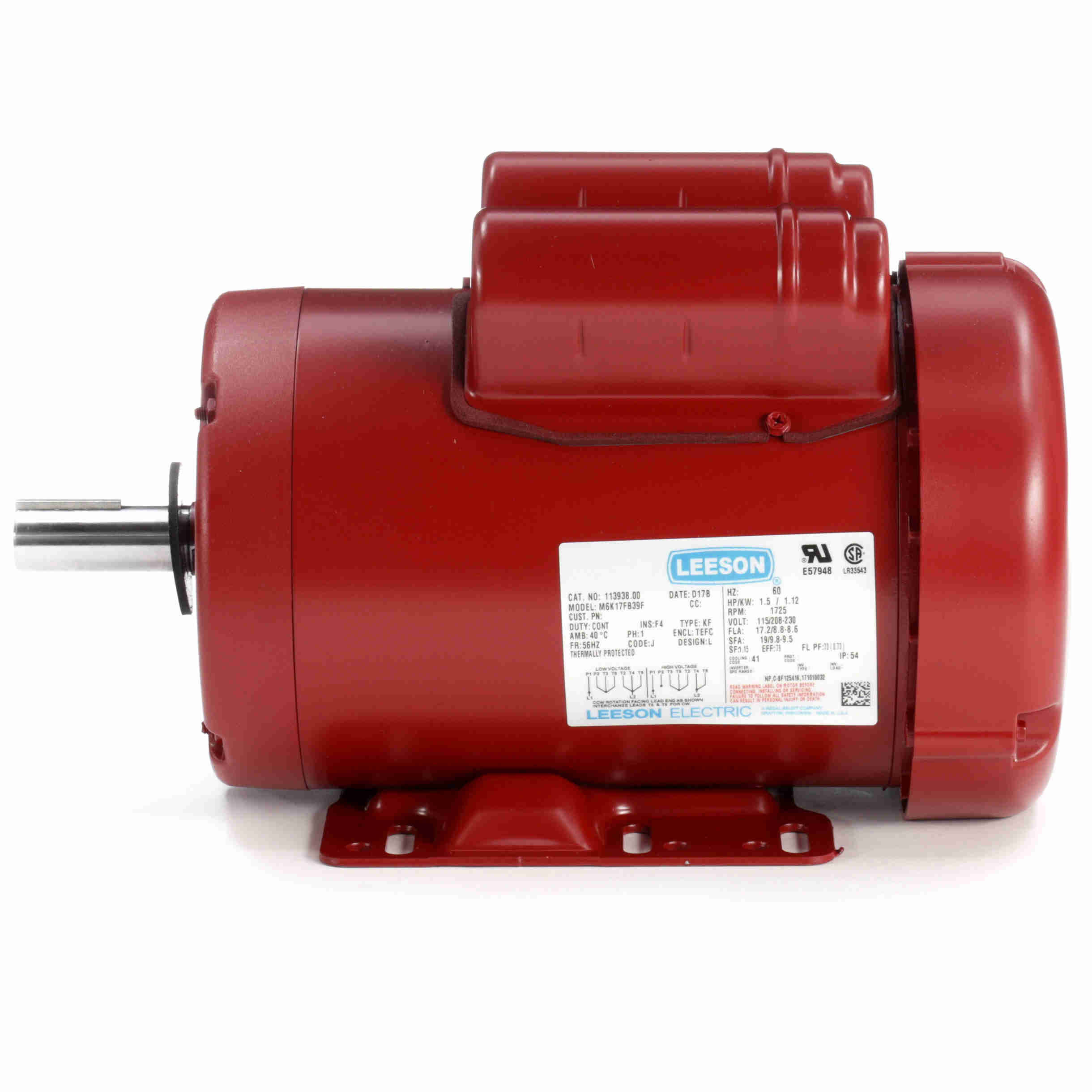

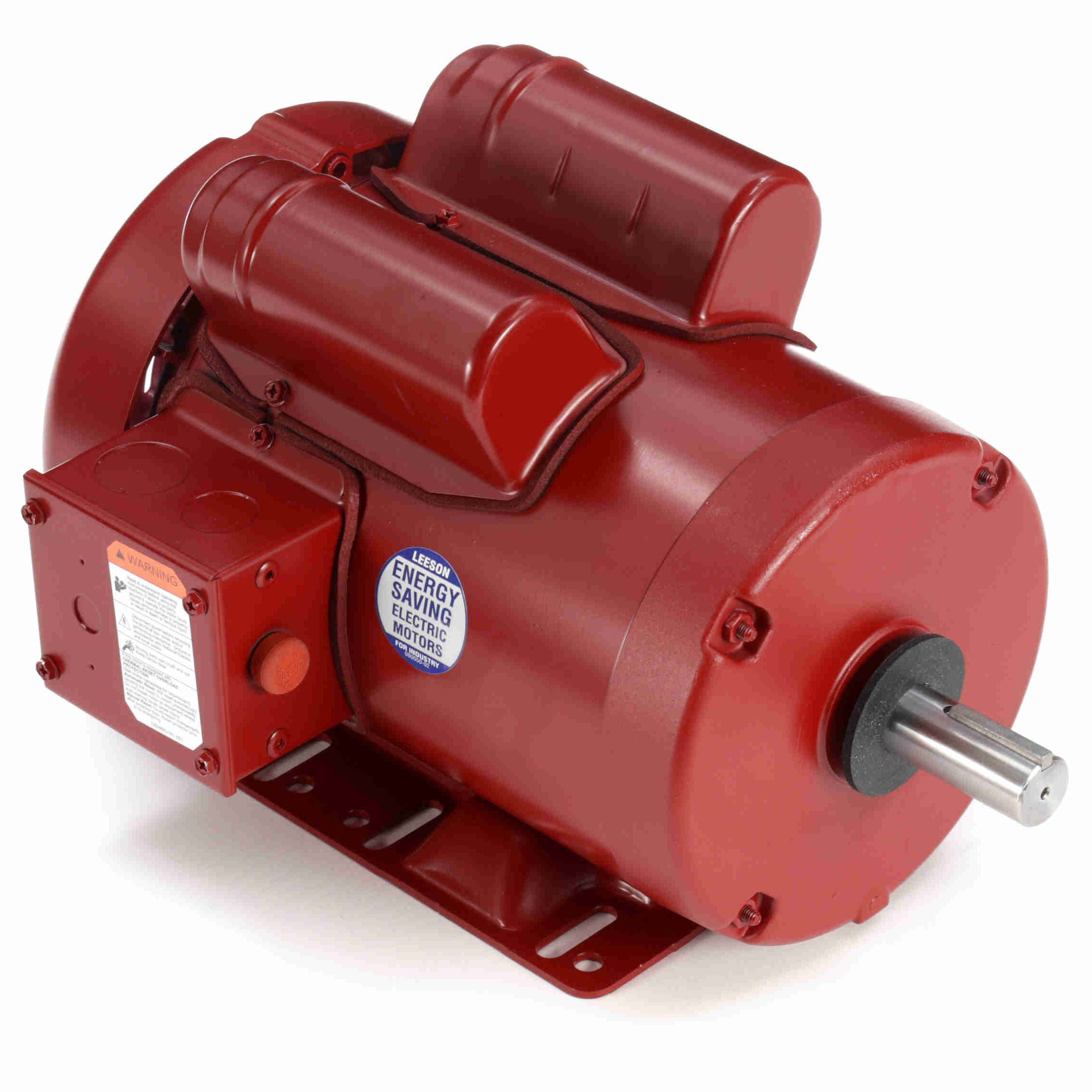

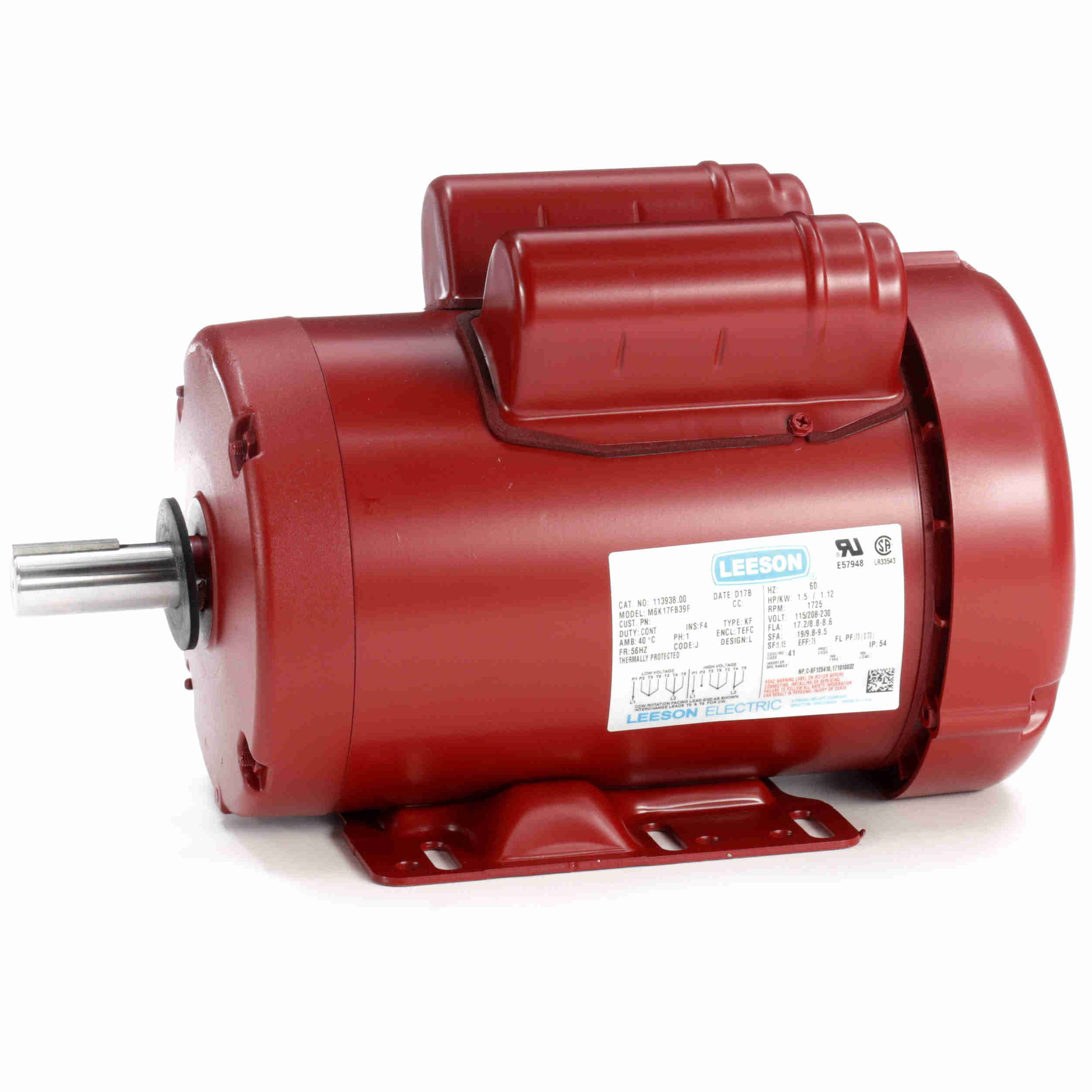

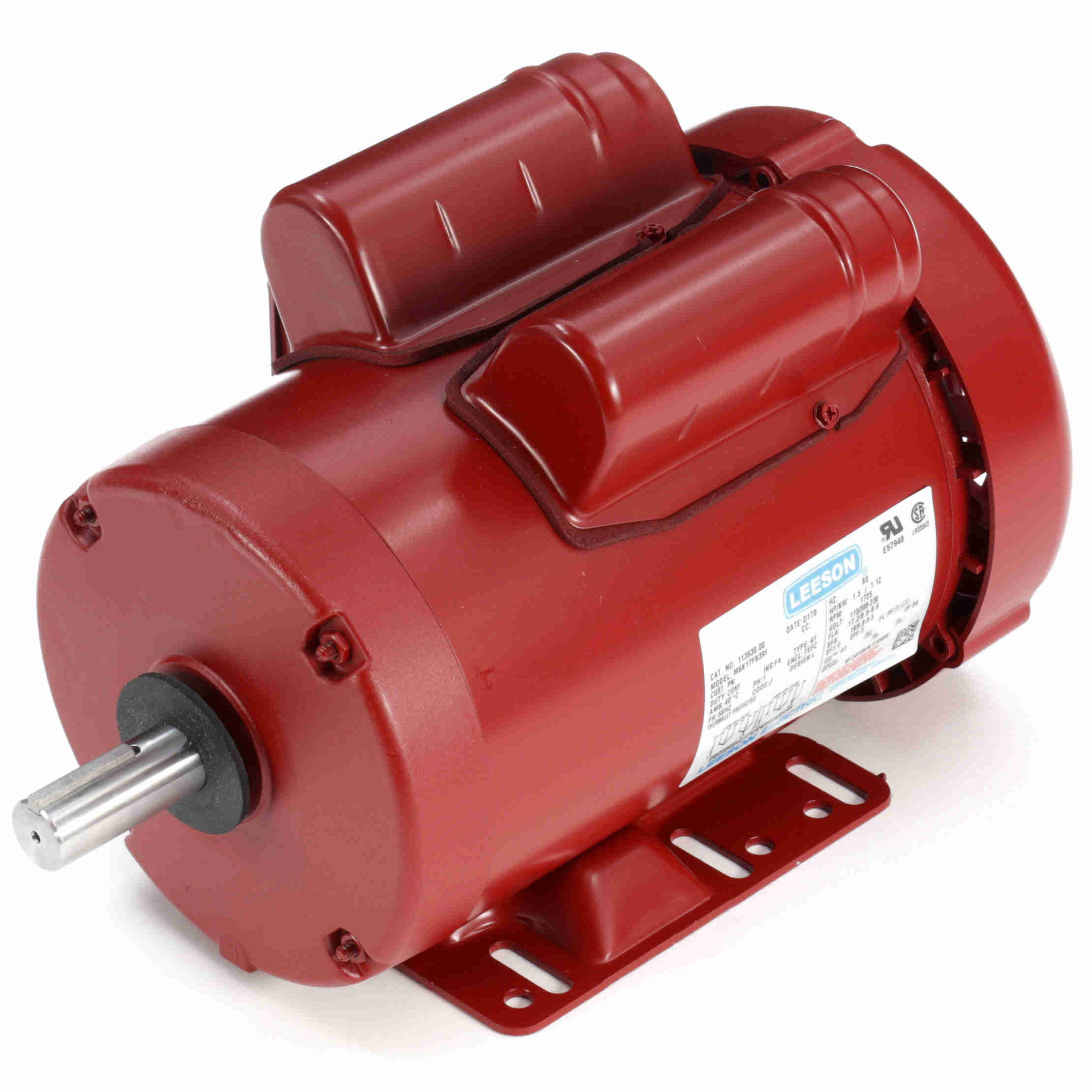

Catalog No 113938.00 Model M6K17FB39F   Product type AC MOTOR Stock Stock Description ..1 1/2HP..1725RPM.56H.TEFC.115/208-230V.1PH.60HZ.CONT.40C.1.15SF.RIGID.M6K17FB39F.....AG - FARM DUTY/GENERAL PURPOSE.MANUAL.......

Information shown is for current motor's design
Engineering Data
Volts	115	Volts	208-230	Volts
F.L. Amps	17.2	F.L. Amps	8.8-8.6	F.L. Amps
S. F Amps	19	S. F Amps	9.8-9.5	S. F Amps
RPM	1800	Hertz	60
HP	1 1/2	Duty	CONTINUOUS	TYPE	KF
KW	1.12
Frame	56HZ	Serv. Factor	1.15	Phase	1
Max Amb	40	Design	L	Code	J
Insul Class	F	Protection	MANUAL	Therm.Prot.	CED2705
Eff 100%	79	Eff 75%		PF	73
UL	Yes	CSA	Yes	Bearing OPE	6203
CC Number	EXEMPT	CE	No	Bearing PE	6205
Load Type		Inverter Type		Speed Range	NONE
Motor Wt.	42 LB	Enclosure	TEFC	Lubrication	POLYREX EM
Nameplate	993500	Mounting	RIGID	Rotation	SELECTIVE CCW
Assembly	042540	Shaft Dia.	7/8 IN	Ext. Diag.	005053.02
Cust Part No		Outline	028769-750B	Ext. Diag2
Packaging	B			Winding	K634278
Carton Label	Leeson Farm Duty			GROUP:	3
Iris		Paint	RED (ENAMEL)	Test Card	02
Form Factor		RMS Amps		Const Torque Speed Range
Torque		Peak
AB Code		Peak@DegC
Resistance
Connection
Rework Status		Rework TYPE
Hazardous Loc	NONE			Brake Motors
Explosion Proof		Temp Op Code		FORCE
Class		GROUP:		VDC
Class		GROUP:		ADC
				Brake Coil OHMs @25 C

Performance
Torque UOM	LB-FT	Inertia (WK²)	.14 LB-FT^2
Torque	4.48(Full Load)	10.8(Break Down)	9.3(Pull Up)	13(Locked Rotor)
CURRENT (amps)	8.4(Full Load)	21.4(Break Down)	0(Pull Up)	51(Locked Rotor)
Efficiency (%)	0(Full Load)	78.7(75% Load)	75.8(50% Load)	65.3(25% Load)
PowerFactor	0(Full Load)	65.8(75% Load)	53.2(50% Load)	35.8(25% Load)

Speed Torque Curve @ 60 Hz, 230 Volts
Curve Point	Amps	Amps(%)	Torque	Torque(%)	RPM	KW	PF	HP
BD	21.4	255.0	10.8	241.0	1550	5.1	-	1.5
PU	-	-	9.3	208.0	1400	-	-	1.5
LR	51.0	607.0	13.0	290.0	0.0	9.6	-	1.5
FL	8.4	100.0	4.48	100.0	1758	1.414	-	1.5
SOURCE: CALCULATED GROUP: 3

Load Curve Data @60 Hz, 230 Volts, 1 1/2 Horsepower
Load	Amps	KW	RPM	Torque	EFF	PF	Rise By Resis	Frame Rise
0.0	5.2	0.24	1798	0.0	0.0	20.1	0.0	-
0.25	5.49	0.452	1790	1.16	65.3	35.8	0.0	-
0.5	6.13	0.75	1779	2.25	75.8	53.2	0.0	-
0.75	7.03	1.064	1770	3.33	78.7	65.8	0.0	-
1.0	8.4	1.414	1758	4.48	79.1	73.2	84.0	48.0
1.25	9.78	1.767	1746	5.63	79.0	78.6	0.0	-
1.5	11.69	2.181	1729	6.81	76.7	81.1	0.0	-
SOURCE: CALCULATED GROUP: 3
