/Products/Electric Motors/Single Phase/Leeson/Washguard - TEFC/114637.00 Leeson Washguard Motor, 2HP, 3600RPM
Click Image to Expand

Product ID: 114637.00

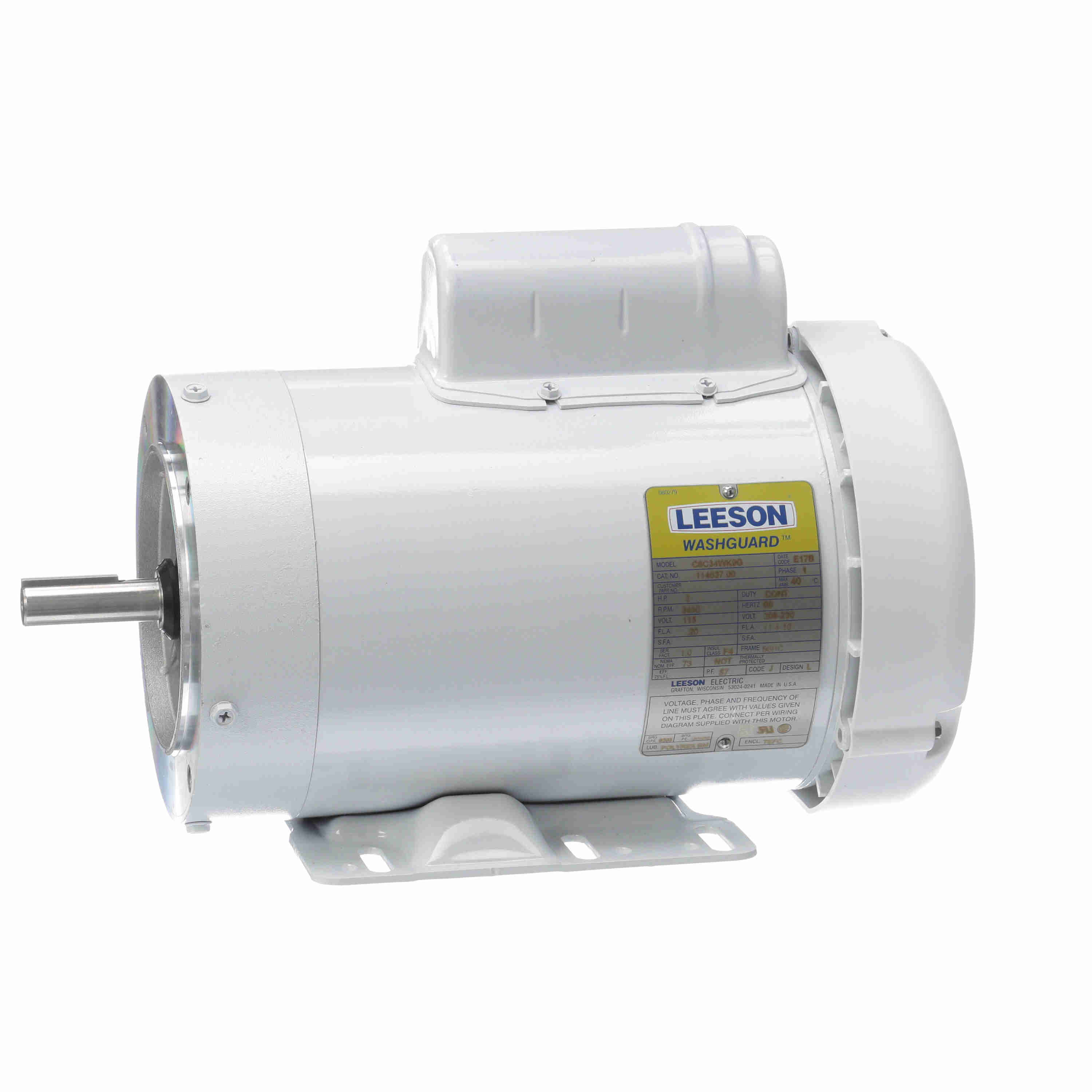

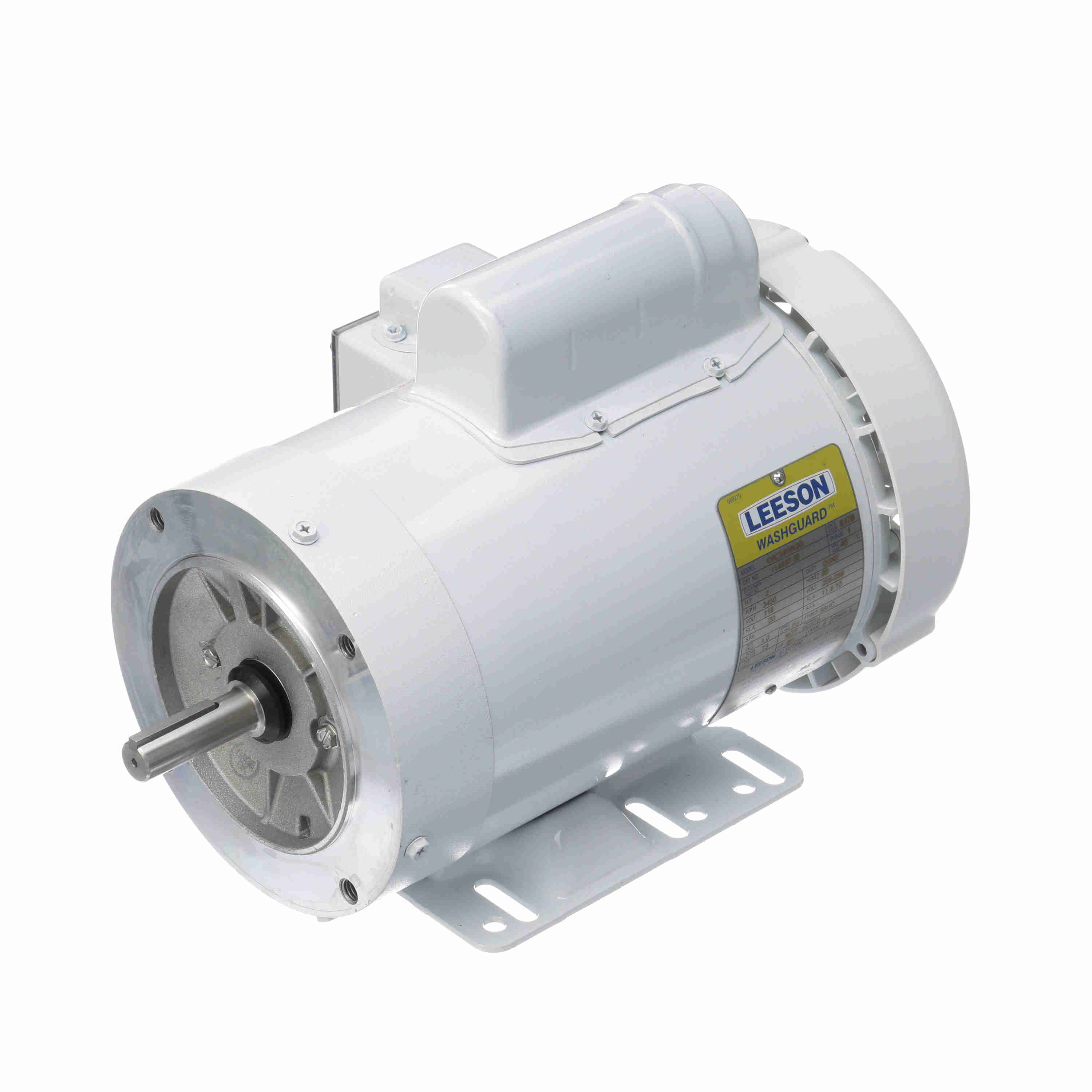

114637.00 Leeson Washguard Motor, 2HP, 3600RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 114637.00

Selected accessories will also be added to cart
$806.17 / Each
Quantity:
56HC Frame, 115/208-230V 1-Phase, TEFC, C Face with Base, C6C34WK9
Features
  • USDA-approved epoxy painted motors
  • Stainless steel Shaft
  • NEMA motors
  • AC washdown motors
  • Rigid base and C face mount types
  • BISSC approved designs
  • Double lip contact seals and v-ring seals used for shaft seals
  • UL recognized and CSA certified
  • Single phase motors feature an electronic Solid State Encapsulated switch
General Specifications
Model :C6C34WK9G Catalog No :114637.00
Part Description :2HP..- C-FACE WITH BASE -.3450RPM.56H.TEFC.115/208-230V.1PH.60HZ.CONT.NOT.40C.1.0SF.RIGID C.WASHGUARD.C6C34WK9G Category :General Purpose
Stock :No
Nameplate Specifications
Output HP :2 Hp Output KW :1.5 kW
Frequency :60 Hz Voltage :115/208-230 V
Current :20.0/11.4-10.0 A Speed :3450 rpm
Service Factor :1 Phase :1
Efficiency :73 % Duty :Continuous
Insulation Class :F Design Code :L
KVA Code :J Frame :56HC
Enclosure :Totally Enclosed Fan Cooled Overload Protector :No
Ambient Temperature :40 °C Drive End Bearing Size :6205
Opp Drive End Bearing Size :6203 UL :Recognized
CSA :Y CE :N
IP Code :55
Technical Specifications
Electrical Type :Capacitor Start Induction Run Starting Method :Across The Line
Poles :2 Rotation :Selective Counterclockwise
Mounting :Rigid base Motor Orientation :HORIZONTAL
Drive End Bearing :BALL Opp Drive End Bearing :BALL
Frame Material :Rolled Steel Shaft Type :NEMA 56
Overall Length :13.37 in Frame Length :7.50 in
Shaft Diameter :0.625 in Shaft Extension :1.88 in
Assembly/Box Mounting :F1 ONLY UPC :691720014035
Weight :46.00 LB
Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Locked-Rotor64.407.50250.002.00
Pull-Up0.007.00233.02,4002.00
Break-Down0.007.80260.03,0002.00
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 4.50
  • 0.270
  • 0.0
  • 26.1
  • 3,598
  • 0.0
  • 0.00
  • 25 %
  • 5.20
  • 0.636
  • 59.9
  • 53.2
  • 3,577
  • 0.0
  • 0.75
  • 50 %
  • 6.47
  • 1.068
  • 71.0
  • 71.8
  • 3,556
  • 0.0
  • 1.50
  • 75 %
  • 8.25
  • 1.550
  • 72.9
  • 81.7
  • 3,532
  • 0.0
  • 2.25
  • 100 %
  • 10.45
  • 2.045
  • 73.0
  • 87.0
  • 3,503
  • 90.0
  • 3.00
  • 125 %
  • 12.96
  • 2.368
  • 78.0
  • 79.4
  • 3,467
  • 0.0
  • 3.75
  • 150 %
  • 16.06
  • 3.315
  • 65.9
  • 89.7
  • 3,415
  • 0.0
  • 4.50
