$1,281.21 / Each

Quantity:

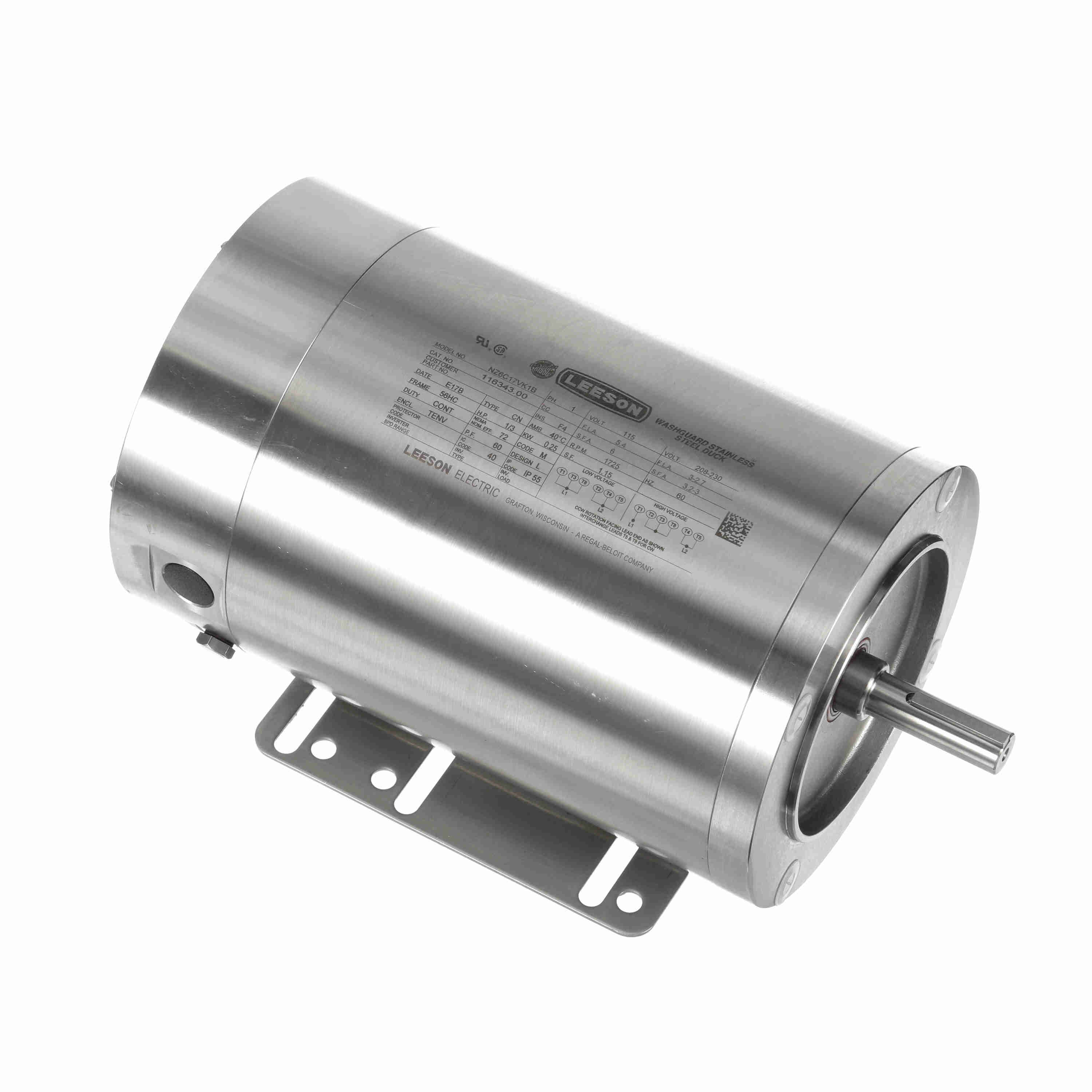

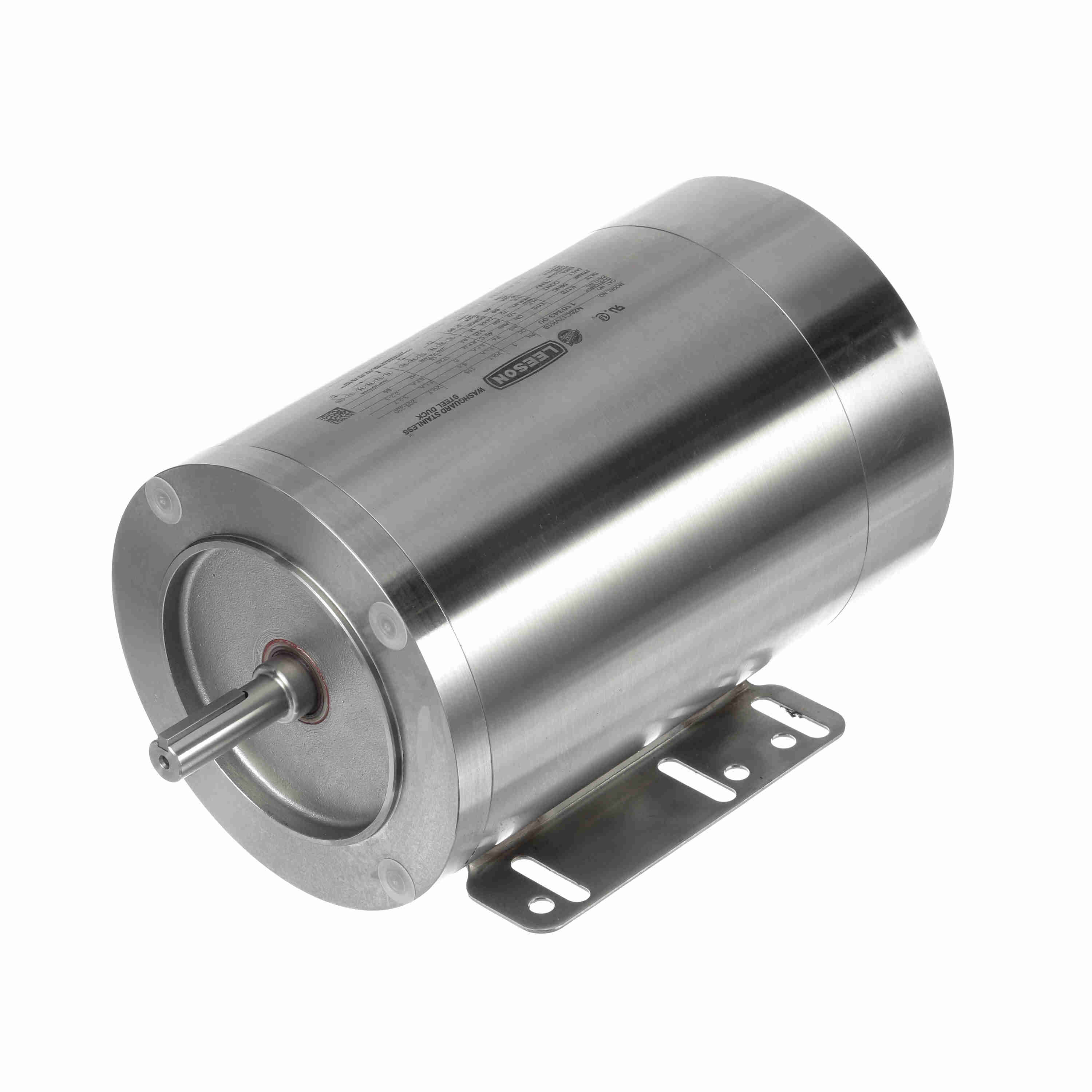

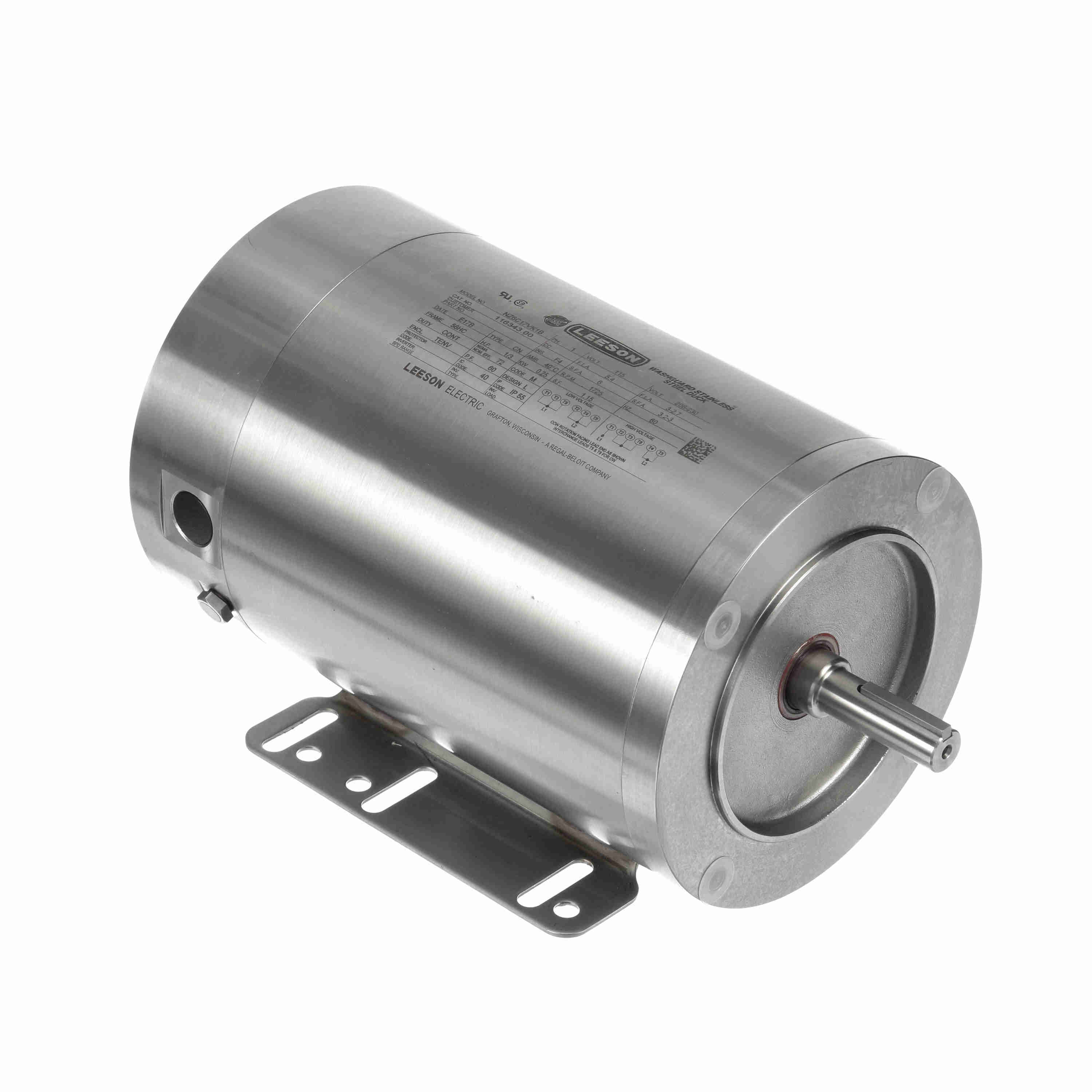

TENV, 56H Frame, 115/208-230V Single Phase 60Hz, Rigid Base, C-Face, NZ6C17VK1B

All exterior components are 300-series stainless steel; All sealing components are Viton® for superior chemical resistance
End shields are O-ring sealed to the frame; Double lip shaft seals on both ends of TEFC motors (shaft end only on TENV motors)
Double-sealed bearings are pre-lubricated with moisture-resistant high temperature grease for long life
Interior coatings applied to rotor and stator protect against corrosion; Ease to clean construction is BISSC Certified for bakery applications
Removable hydrophobic breathers in opposite shaft end bell and conduit box equalize pressure without allowing moisture to enter
Full fact nameplate is laser etched on the motor frame

Model :	NZ6C17VK1B	Catalog No :	116343.00
Part Description :	1/3HP..1725RPM.56H.TENV./V.1PH.60HZ.CONT.NOT.40C.1.15SF.RIGID C.WASHGUARD-ALL STAINLESS.NZ6C17VK1B	Category :	1 Phase
Stock :	No

Output HP :	0.33 HP	Output KW :	0.25 kW
Frequency :	60 Hz	Voltage :	115/208-230 V
Current :	5.4/3.0-2.7 A	Speed :	1725 RPM
Service Factor :	1.15	Phase :	1
Efficiency :	72 %	Duty :	Continuous
Insulation Class :	F	Design Code :	L
KVA Code :	M	Frame :	56HC
Enclosure :	Totally Enclosed Non Ventilated	Overload Protector :	No
Ambient Temperature :	40 °C	Drive End Bearing Size :	6205
Opp Drive End Bearing Size :	6203	UL :	Recognized
CSA :	Y	CE :	N
IP Code :	55

Electrical Type :	Capacitor Start Induction Run	Starting Method :	Across The Line
Poles :	4	Rotation :	Selective Counterclockwise
Mounting :	Rigid base	Motor Orientation :	HORIZONTAL
Drive End Bearing :	BALL	Opp Drive End Bearing :	BALL
Frame Material :	Rolled Steel	Shaft Type :	NEMA 56
Overall Length :	12.20 in	Frame Length :	7.50 in
Shaft Diameter :	0.625 in	Shaft Extension :	1.88 in
Assembly/Box Mounting :	F1 ONLY	UPC :	691720307403
Weight :	35.00 LB
