/Products/Electric Motors/3 Phase/Leeson/Washguard - TENV/TEFC/116644.00 Leeson Washguard Motor, 1/2 HP, 1800 RPM
Click Image to Expand

Product ID: 116644.00

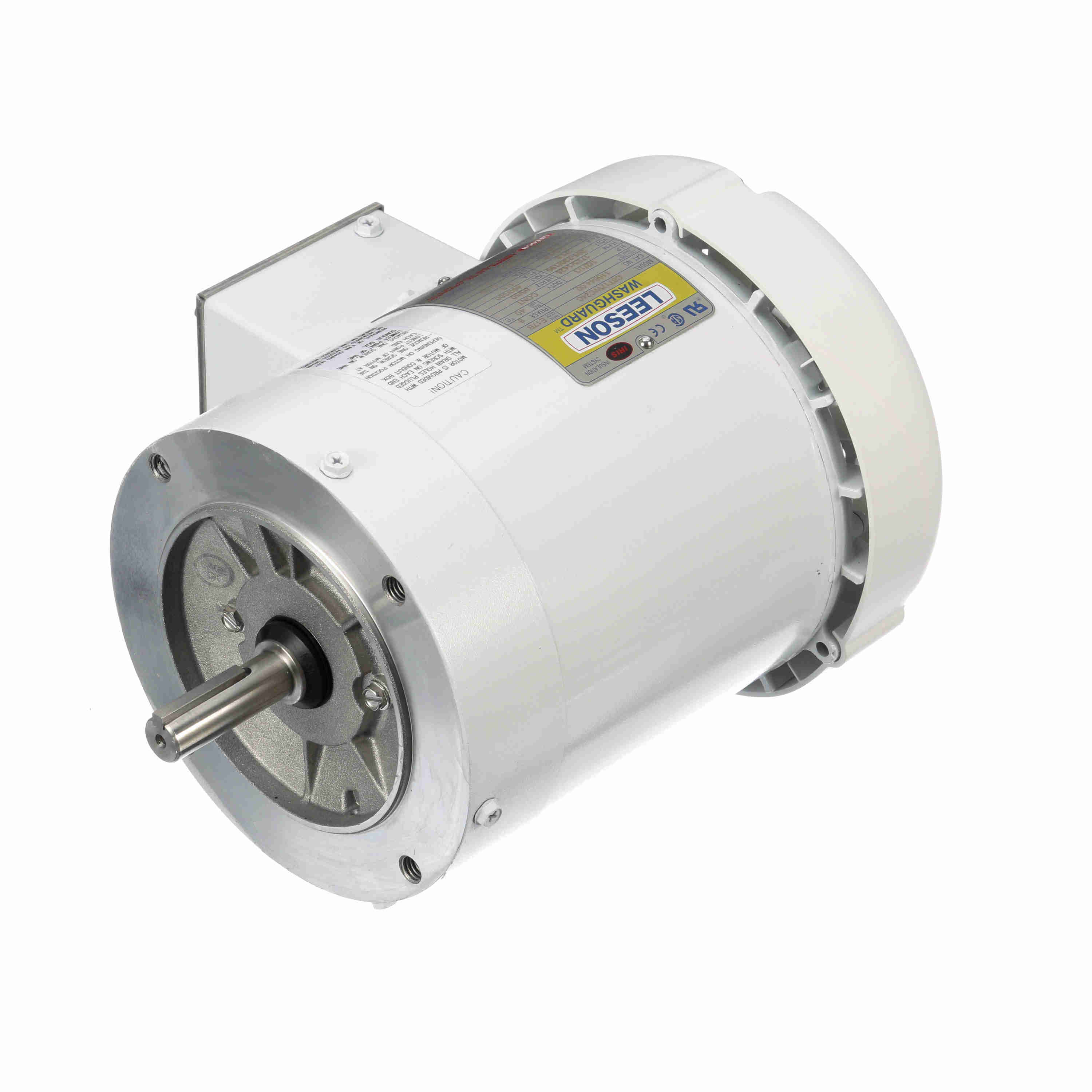

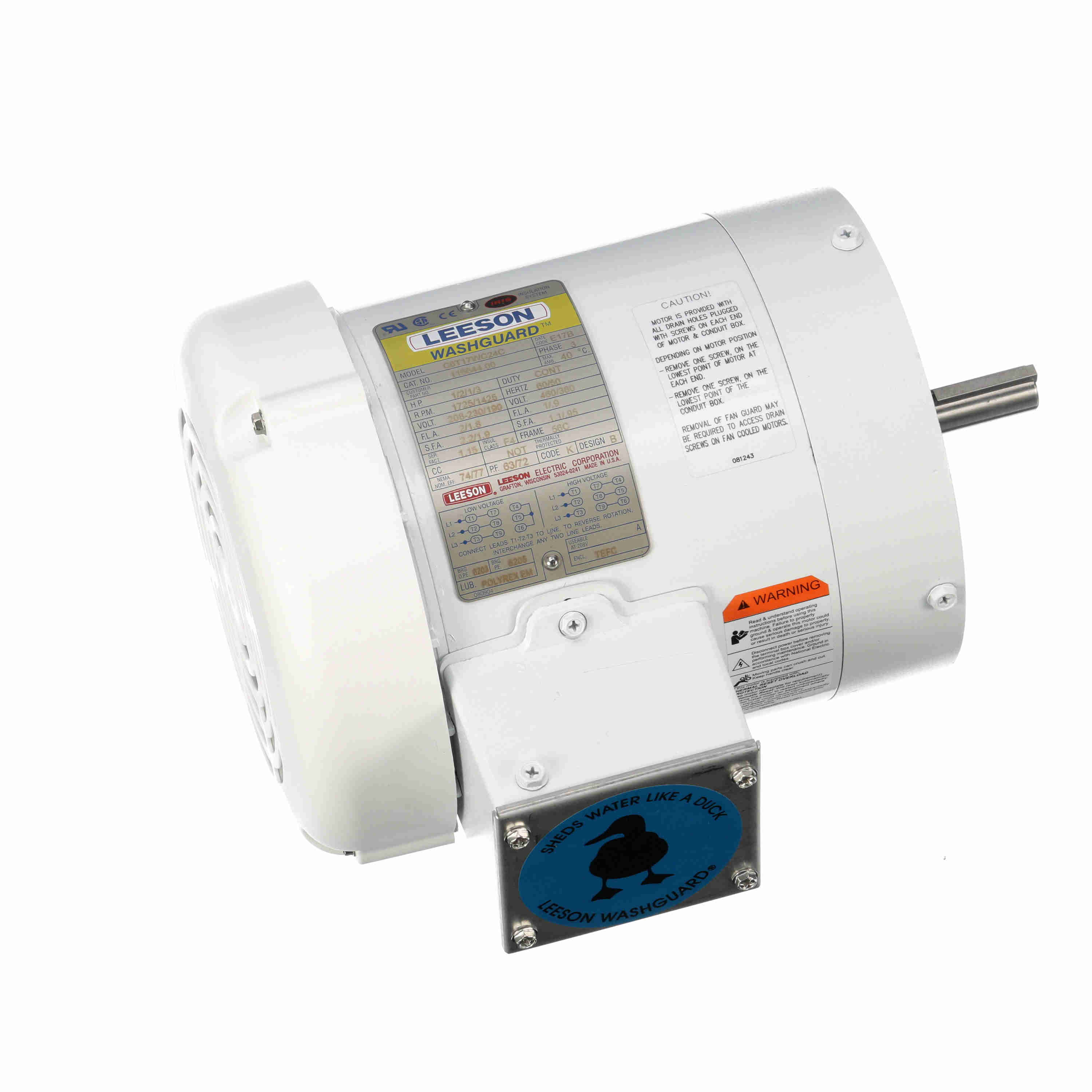

116644.00 Leeson Washguard Motor, 1/2 HP, 1800 RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 116644.00

Selected accessories will also be added to cart
$491.97 / Each
Quantity:
56C Frame, 208-230/460V 3-Phase, TEFC, C Face Less Base, C6T17WC24C, Washdown Duty
Features
  • USDA-approved epoxy painted motors
  • NEMA motors
  • AC washdown
  • Rigid base and C face mount types
  • BISSC approved designs; Double lip contact seals and v-ring seals used for shaft seals
  • 3-year warranty on encapsulated and premium efficient models
  • UL recognized and CSA certified
  • Washdown brakemotors and pump motors available
General Specifications
Model :C6T17WC24C Catalog No :116644.00
Part Description :..1/2HP..1725RPM.56.TEFC.208-230/460V.3PH.60HZ.CONT.40C.1.15SF.ROUND.C6T17WC24C.....WASHGUARD.NOT....... Category :General Purpose
Stock :No
Nameplate Specifications
Output HP :0.50 Hp Output KW :0.37 kW
Frequency :60 Hz Voltage :208-230/460 V
Current :2.0/1.0 A Speed :1725 rpm
Service Factor :1.15 Phase :3
Efficiency :74 % Duty :Continuous
Insulation Class :F Design Code :B
KVA Code :K Frame :56C
Enclosure :Totally Enclosed Fan Cooled Overload Protector :No
Ambient Temperature :40 °C Drive End Bearing Size :6205
Opp Drive End Bearing Size :6203 UL :Recognized
CSA :Y CE :Y
IP Code :55
Technical Specifications
Electrical Type :Squirrel Cage Induction Run Starting Method :Across The Line
Poles :4 Rotation :Reversible
Mounting :Round Motor Orientation :HORIZONTAL
Drive End Bearing :BALL Opp Drive End Bearing :BALL
Frame Material :Rolled Steel Shaft Type :NEMA 56
Overall Length :10.87 in Frame Length :5.00 in
Shaft Diameter :0.625 in Shaft Extension :1.88 in
Assembly/Box Mounting :F1 ONLY UPC :691720343487
Weight :23.00 LB
Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Full Load2.0024.00100.000.50
Pull-Up0.0059.00246.000.50
Break-Down0.0086.50360.000.50
Locked-Rotor10.2060.00250.000.50
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 0.85
  • 0.107
  • 0.0
  • 27.9
  • 1,793
  • 0.0
  • 0.00
  • 25 %
  • 0.85
  • 0.209
  • 45.0
  • 30.5
  • 1,786
  • 0.0
  • 6.10
  • 50 %
  • 0.90
  • 0.311
  • 60.5
  • 43.5
  • 1,773
  • 0.0
  • 11.90
  • 75 %
  • 0.95
  • 0.415
  • 67.5
  • 54.5
  • 1,758
  • 0.0
  • 18.00
  • 100 %
  • 1.05
  • 0.568
  • 70.0
  • 63.0
  • 1,743
  • 57.0
  • 23.90
  • 125 %
  • 1.15
  • 0.656
  • 72.0
  • 72.0
  • 1,724
  • 0.0
  • 30.00
  • 150 %
  • 1.30
  • 0.778
  • 69.0
  • 72.0
  • 1,705
  • 0.0
  • 35.50
