/Products/Electric Motors/3 Phase Stainless Steel/Leeson/Extreme Duck Ultra Washguard/C-Face less Base, TE, IP69/117127.00 Leeson 1/2HP Washdown Electric Motor, 1800RPM
Click Image to Expand

Product ID: 117127.00

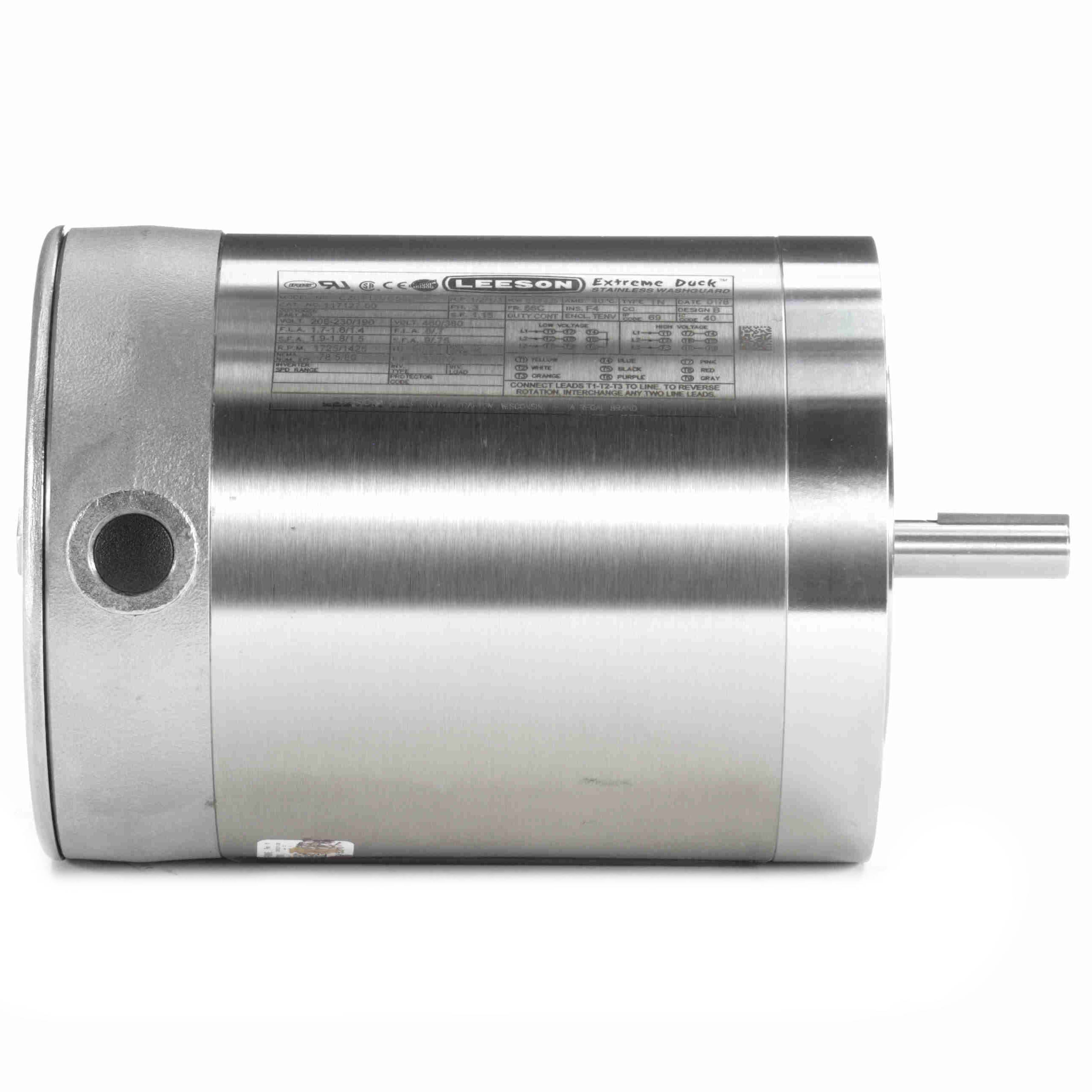

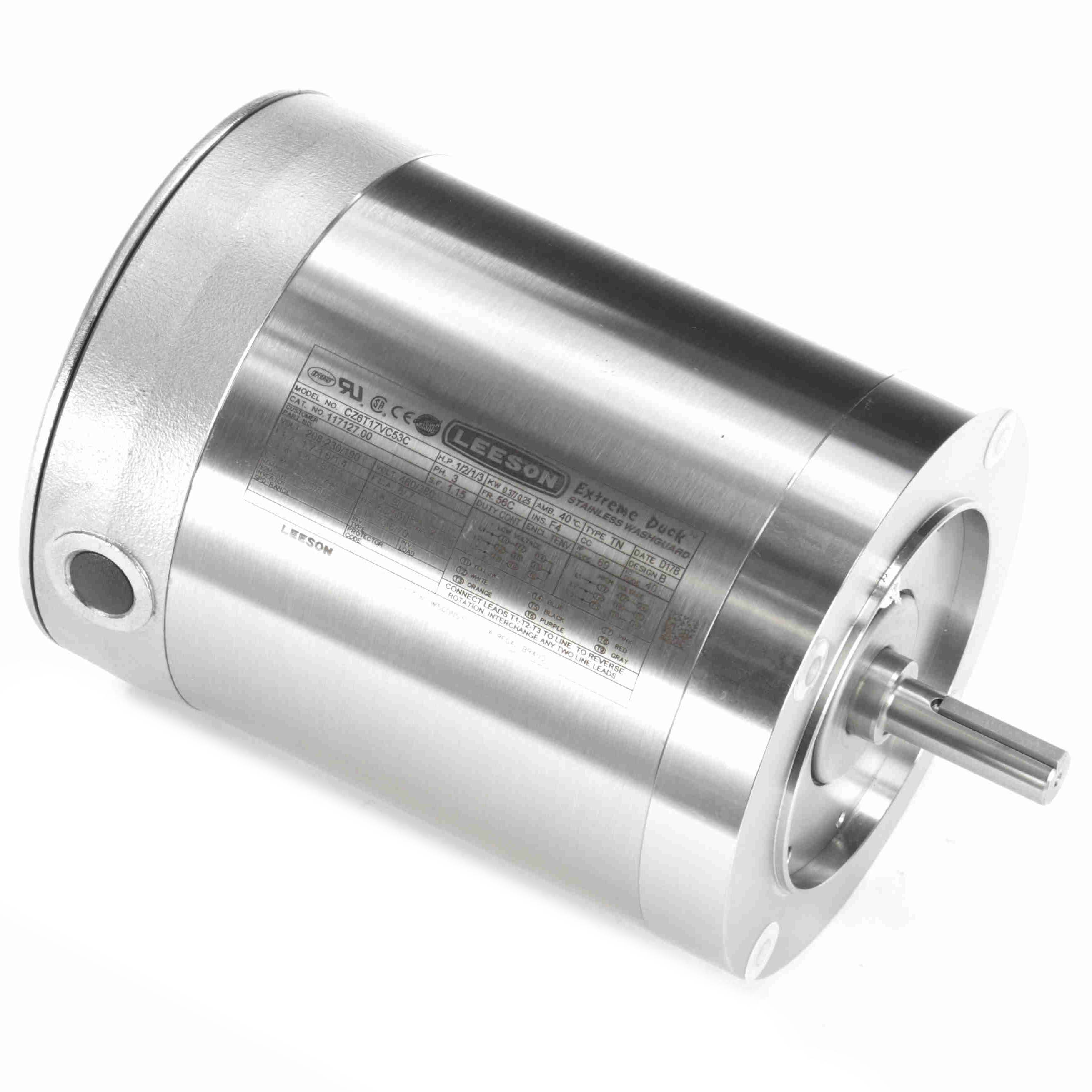

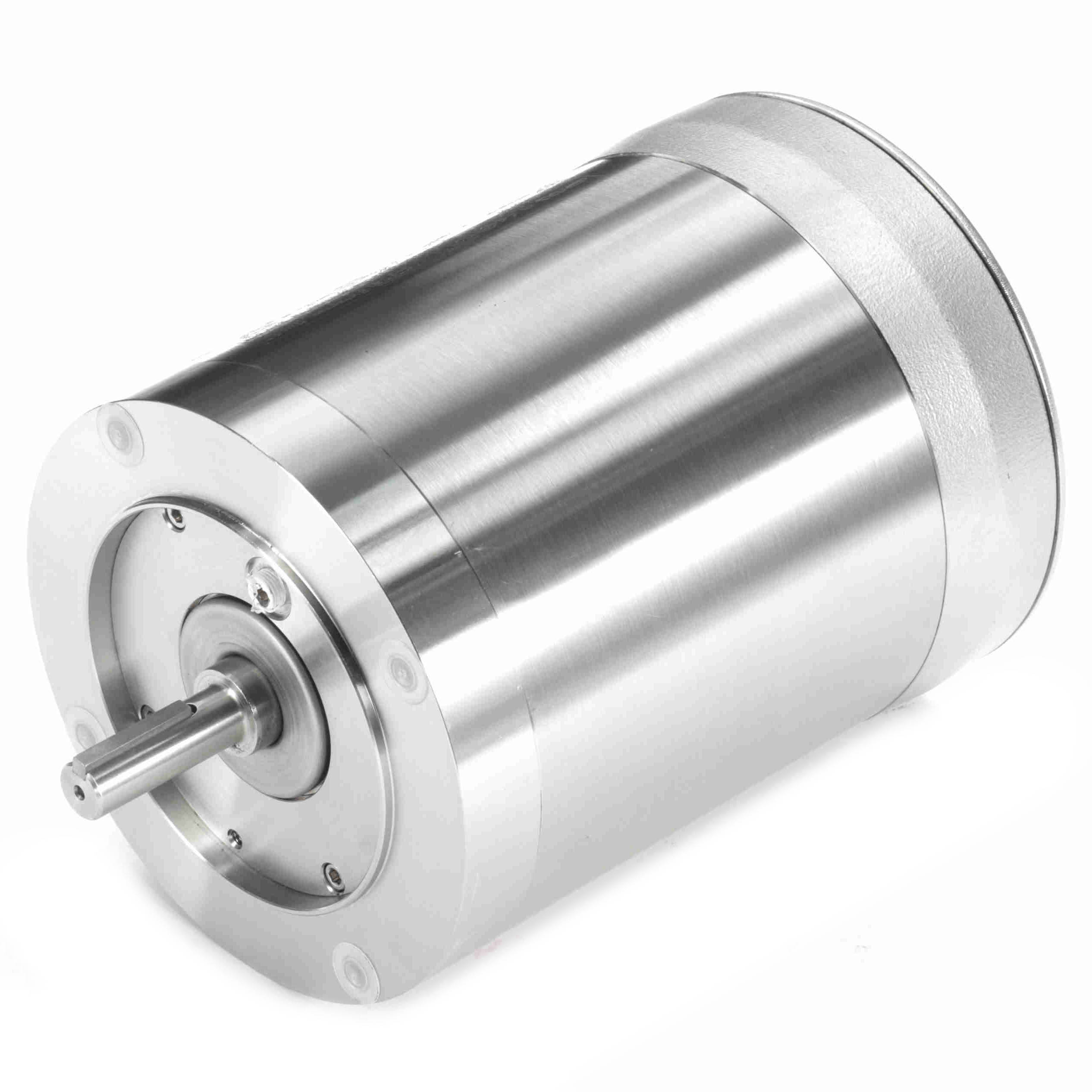

117127.00 Leeson 1/2HP Washdown Electric Motor, 1800RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 117127.00

Selected accessories will also be added to cart
$1,087.97 / Each
Quantity:
TENV, 56C Frame, 208-230/460VAC 60Hz 3-Phase, C-Face, Round Body, Stainless Steel Frame, 5/8" Keyed Shaft

Features

  • All exterior components are 300-series stainless steel; All sealing components are Viton® for superior chemical resistance
  • End shields are O-ring sealed to the frame; Double lip shaft seals on both ends of TEFC motors (shaft end only on TENV motors)
  • Double-sealed bearings are pre-lubricated with moisture-resistant high temperature grease for long life
  • Interior coatings applied to rotor and stator protect against corrosion; Ease to clean construction is BISSC Certified for bakery applications
  • Removable hydrophobic breathers in opposite shaft end bell and conduit box equalize pressure without allowing moisture to enter
  • WASHGUARD efficiencies meet EPAct mandates for non-exempt motors when tested without shaft seals
  • LEESON’s exclusive IRIS™ Inverter-Rated Insulation System provides extra protection and long life, especially in inverter-driven applications
  • IP69K enclosure protection
  • Q-Car(TM) rotor cartridge for quick access; Color Coded Leads;Full fact nameplate is laser etched on the motor frame

General Specifications

UPC: 691720367445 Weight: 43.00 LB
Packaged Length: 19.5 IN Packaged Width: 10.44 IN
Packaged Height: 10.88 IN

Nameplate Specifications

Output HP: 0.50 Hp Output KW: 0.37 kW
Frequency: 60 Hz Voltage: 208-230/460 V
Current: 1.7-1.6/0.80 A Speed: 1725 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 78.5 % Power Factor: 73.6
Duty: Continuous Insulation Class: F
Design Code: B KVA Code: K
Frame: 56C Enclosure: Totally Enclosed Non Ventilated
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6205 Opp Drive End Bearing Size: 6205
UL: Recognized CSA: Y
CE: Y IP Code: 69

Technical Specifications

Electrical Type: Squirrel Cage Induction Run Starting Method: Across The Line
Poles: 4 Rotation: Reversible
Resistance Main: 8.17 Ohms Mounting: Round
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: NEMA 56 Overall Length: 10.97 in
Frame Length: 5.75 in Shaft Diameter: 0.625 in
Shaft Extension: 1.88 in Assembly/Box Mounting: F1 Only

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Locked-Rotor 11.20 700.0 84.80 353.0 0 0.00 0.0 0.50
Break-Down 0.00 0.0 96.00 400.0 0 0.00 0.0 0.50
Full Load 1.60 100.0 24.00 100.0 1,746 0.00 0.0 0.50
Pull-Up 0.00 0.0 77.90 325.0 0 0.00 0.0 0.50

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 125 % 150 %
Current (Amps) 0.48 0.51 0.59 0.69 0.80 0.93 1.08
Rated Output (KW) 0.06 0.16 0.26 0.36 0.47 0.58 0.70
Efficiency (%) 0.0 59.8 72.1 77.2 79.9 79.0 78.0
Power Factor (%) 16.1 39.1 55.7 66.7 73.6 78.7 81.6
Speed (RPM) 1,795 1,785 1,772 1,759 1,746 1,729 1,713
Temp. Rise @ FL 0.0 0.0 0.0 0.0 69.0 0.0 0.0
Torque (ft-lbs) 0.00 6.00 12.00 18.00 24.00 30.00 36.00
