/Products/Electric Motors/3 Phase Stainless Steel/Leeson/117266.00 Leeson 1/2HP Washguard Stainless Steel Electric Motor, 1725RPM
Click Image to Expand

Product ID: 117266.00

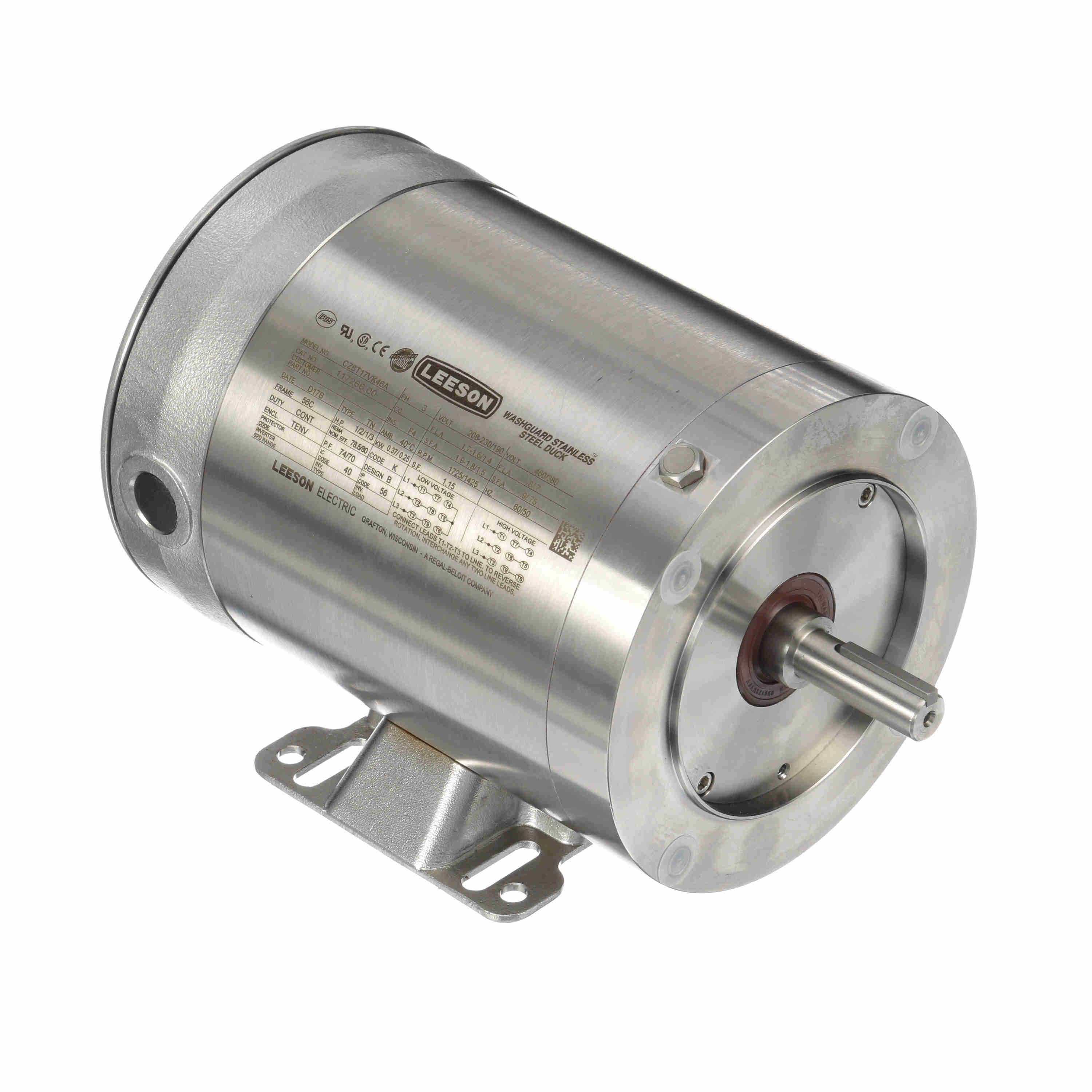

117266.00 Leeson 1/2HP Washguard Stainless Steel Electric Motor, 1725RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 117266.00

Selected accessories will also be added to cart
$1,183.97 / Each
Quantity:
TENV, 56 Frame, 208-230/460V 3-Phase 60Hz, CZ6T17VK46A, C-Face, Rigid Base
Features
  • All exterior components are 300-series stainless steel; All sealing components are Viton® for superior chemical resistance
  • End shields are O-ring sealed to the frame; Double lip shaft seals on both ends of TEFC motors (shaft end only on TENV motors)
  • Double-sealed bearings are pre-lubricated with moisture-resistant high temperature grease for long life
  • Interior coatings applied to rotor and stator protect against corrosion; Ease to clean construction is BISSC Certified for bakery applications
  • Removable hydrophobic breathers in opposite shaft end bell and conduit box equalize pressure without allowing moisture to enter
  • LEESON’s exclusive IRIS™ Inverter-Rated Insulation System provides extra protection and long life, especially in inverter-driven applications
  • Full fact nameplate is laser etched on the motor frame
General Specifications
Model :CZ6T17VK46A Catalog No :117266.00
Part Description :..1/2HP..1725RPM.56.TENV.208-230/460V.3PH.60HZ.CONT.40C.1.15SF.C FACE.CZ6T17VK46A......NOT....... Category :3 Phase
Stock :No
Nameplate Specifications
Output HP :0.50 Hp Output KW :0.37 kW
Frequency :60 Hz Voltage :208-230/460 V
Current :1.7-1.6/0.80 A Speed :1725 rpm
Service Factor :1.15 Phase :3
Efficiency :78.5 % Duty :Continuous
Insulation Class :F Design Code :B
KVA Code :K Frame :56C
Enclosure :Totally Enclosed Non Ventilated Overload Protector :No
Ambient Temperature :40 °C Drive End Bearing Size :6205
Opp Drive End Bearing Size :6205 UL :Recognized
CSA :Y CE :Y
IP Code :56
Technical Specifications
Electrical Type :Squirrel Cage Inverter Rated Starting Method :Line Or Inverter
Poles :4 Rotation :Reversible
Mounting :Round Motor Orientation :HORIZONTAL
Drive End Bearing :BALL Opp Drive End Bearing :BALL
Frame Material :Stainless Steel Shaft Type :NEMA 56
Overall Length :11.22 in Frame Length :6.00 in
Shaft Diameter :0.625 in Shaft Extension :1.88 in
Assembly/Box Mounting :F1 ONLY UPC :691720021286
Weight :35.00 LB
Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Break-Down0.000.096.00400.000.000.00.50
Locked-Rotor11.20700.084.80353.000.000.00.50
Pull-Up0.000.077.90325.000.000.00.50
Full Load1.60100.024.00100.01,7460.000.00.50
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 0.48
  • 0.061
  • 0.0
  • 16.1
  • 1,795
  • 0.0
  • 0.00
  • 25 %
  • 0.51
  • 0.159
  • 59.8
  • 39.1
  • 1,785
  • 0.0
  • 6.00
  • 50 %
  • 0.59
  • 0.262
  • 72.1
  • 55.7
  • 1,772
  • 0.0
  • 12.00
  • 75 %
  • 0.69
  • 0.364
  • 77.2
  • 66.7
  • 1,759
  • 0.0
  • 18.00
  • 100 %
  • 0.80
  • 0.466
  • 79.9
  • 73.6
  • 1,746
  • 69.0
  • 24.00
  • 125 %
  • 0.93
  • 0.583
  • 79.0
  • 78.7
  • 1,729
  • 0.0
  • 30.00
  • 150 %
  • 1.08
  • 0.702
  • 78.0
  • 81.6
  • 1,713
  • 0.0
  • 36.00
