/Products/Electric Motors/3 Phase/Leeson/Milk Transfer Pump/119232.00 Leeson 1HP Ag-Duty Milk Transfer Pump Electric Motor, 3600RPM
Click Image to Expand

Product ID: 119232.00

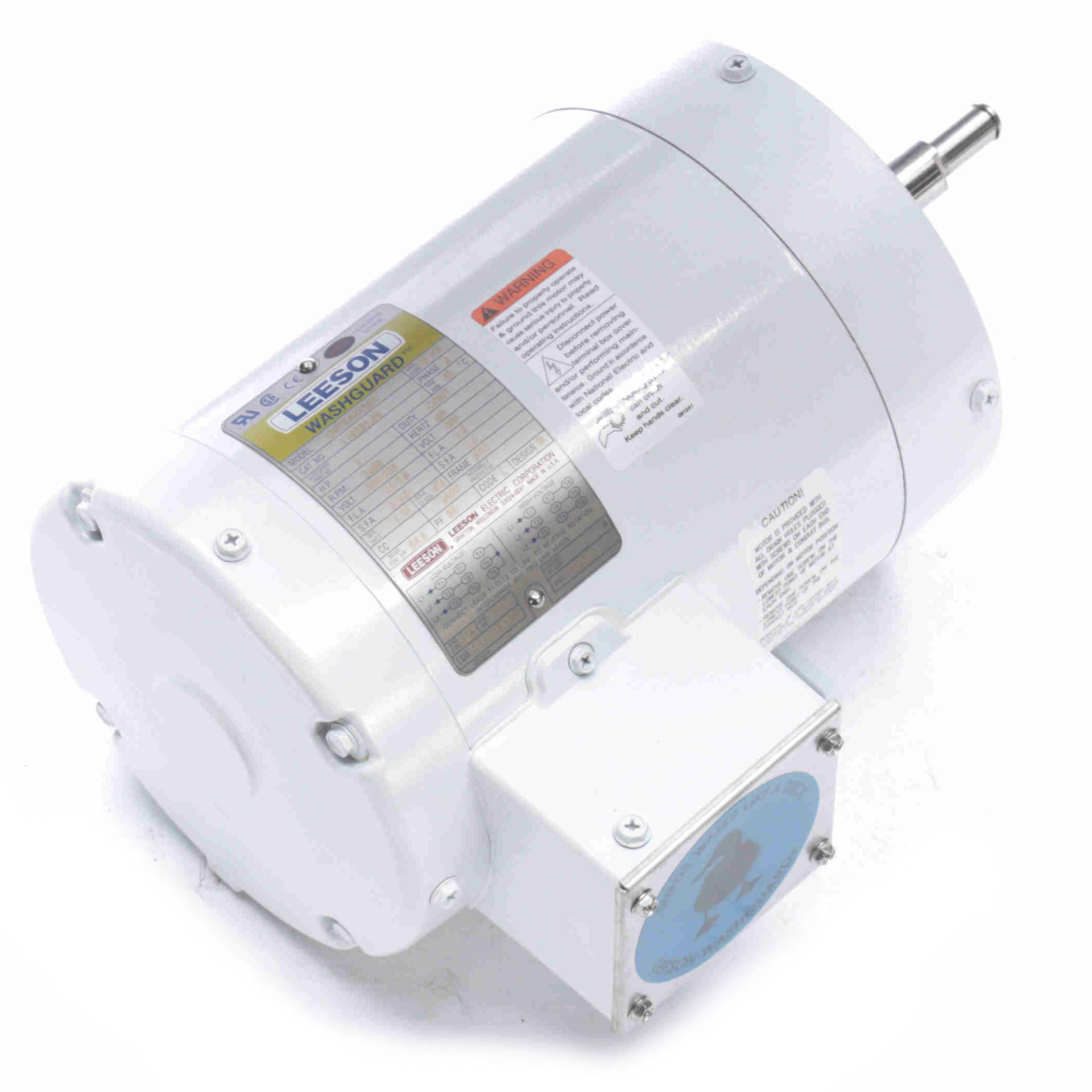

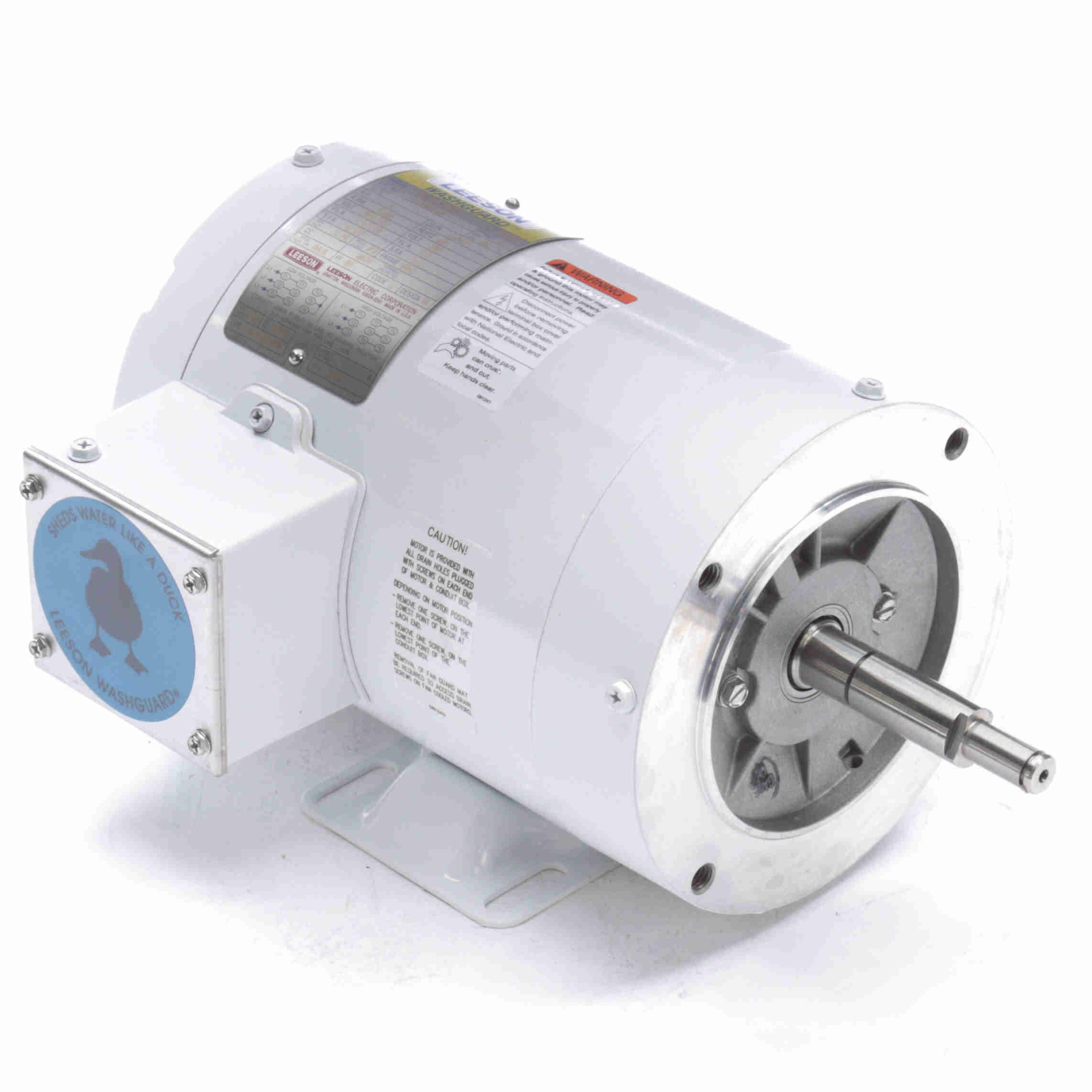

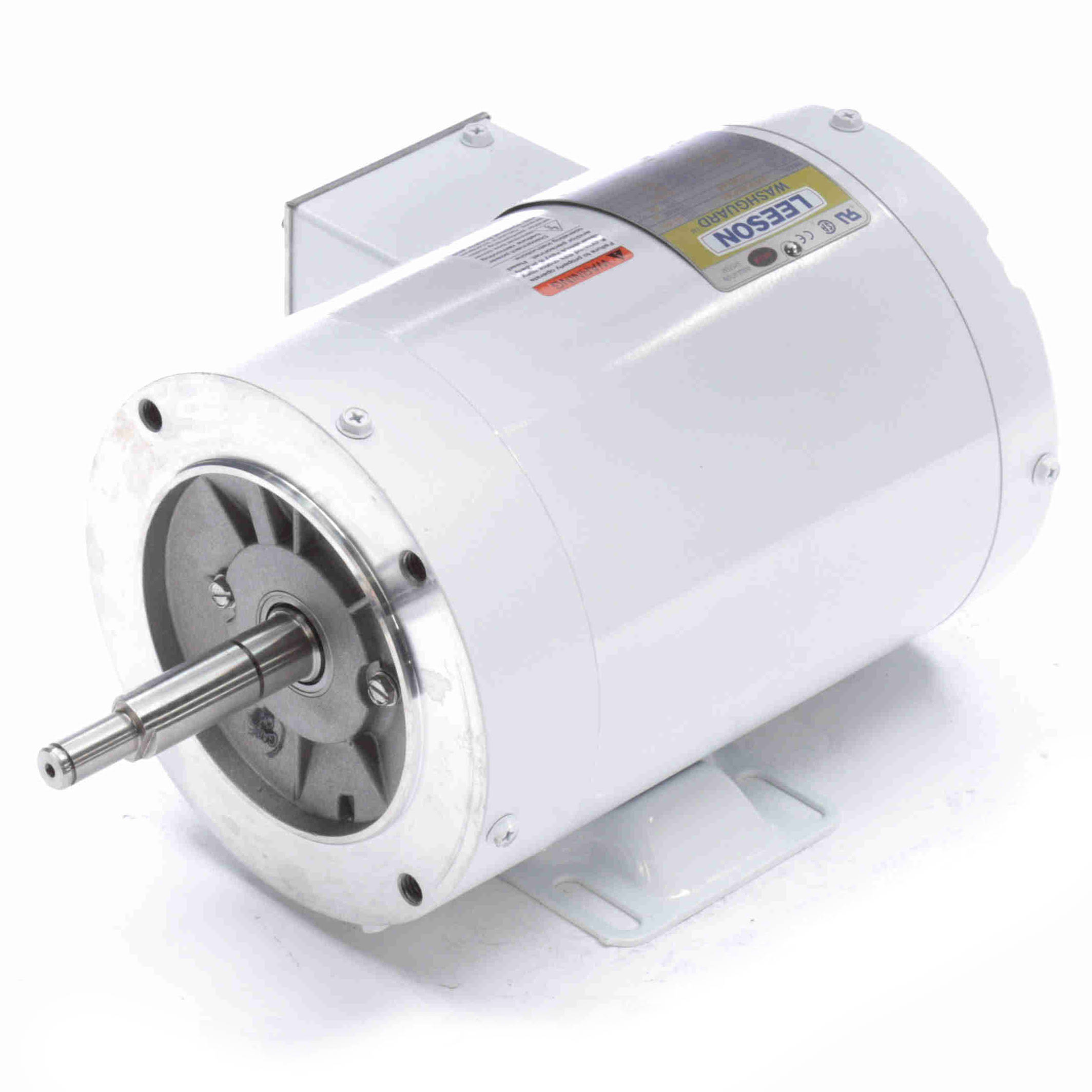

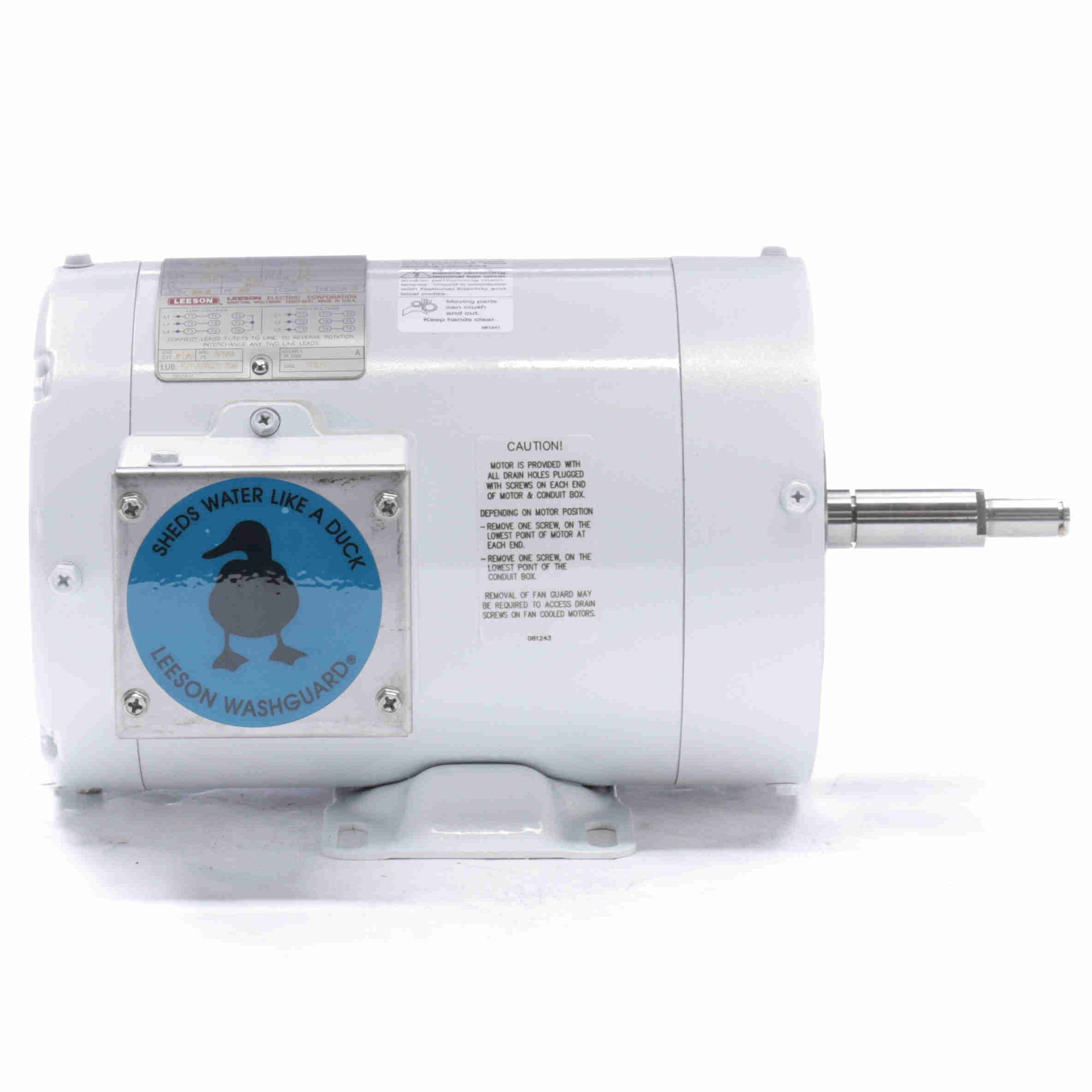

119232.00 Leeson 1HP Ag-Duty Milk Transfer Pump Electric Motor, 3600RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: C6T34VK23

Selected accessories will also be added to cart
$592.80 / Each
Quantity:
TENV, 56CZ Frame, 230/460VAC 3-Phase 60Hz, C6T34VK23A, C-Face, Rigid Base, Rolled Steel, 5/8" Keyed Shaft

Features

  • Replacements for SURGE® milk pumps
  • WASHGUARD® motor features for high pressure washdown applications
  • Epoxy painted and stainless ratings available for corrosion protection
  • Solid state encapsulated starting switch on capacitor start motors
  • Three phase motor is inverter rated

General Specifications

UPC: 691720053720 Weight: 32.00 LB
Packaged Length: 14.44 IN Packaged Width: 10.44 IN
Packaged Height: 10.88 IN

Nameplate Specifications

Output HP: 1 Hp Output KW: 0.75 kW
Frequency: 60 Hz Voltage: 230/460 V
Current: 2.8-2.6/1.3 A Speed: 3450 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 77 % Power Factor: 84.8
Duty: Continuous Insulation Class: F
Design Code: B KVA Code: L
Frame: 56CZ Enclosure: Totally Enclosed Non Ventilated
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6205 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: Y IP Code: 43

Technical Specifications

Electrical Type: Squirrel Cage Induction Run Starting Method: Across The Line
Poles: 2 Rotation: Reversible
Resistance Main: 0 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Single Special Extension Overall Length: 12.73 in
Frame Length: 6.50 in Shaft Diameter: 0.625 in
Shaft Extension: 1.88 in Assembly/Box Mounting: F1 ONLY

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (LB-FT) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Break-Down 0.00 0.0 6.00 400.0 2,700 0.00 0.0 1.00
Full Load 1.30 100.0 1.50 100.0 3,495 0.00 0.0 1.00
Pull-Up 0.00 0.0 4.30 287.0 400 0.00 0.0 1.00
Locked-Rotor 12.00 923.0 4.50 300.0 0 0.00 0.0 1.00

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 150 %
Current (Amps) 0.57 0.66 0.81 1.04 1.29 1.55 1.90
Rated Output (KW) 0.18 0.29 0.49 0.70 0.93 1.07 1.42
Efficiency (%) 0.0 64.1 76.2 80.1 80.3 80.3 78.9
Power Factor (%) 39.6 54.2 75.9 84.5 90.8 86.6 93.8
Speed (RPM) 3,599 3,571 3,551 3,524 3,495 3,455 3,430
Temp. Rise @ FL 0.0 0.0 0.0 0.0 75.0 0.0 0.0
Torque (LB-FT) 0.00 0.36 0.74 1.12 1.51 1.75 2.30
