/Products/Electric Motors/3 Phase/Leeson/Washguard - TENV/TEFC/119469.00 Leeson Washguard Motor, 1.5 HP, 1800 RPM

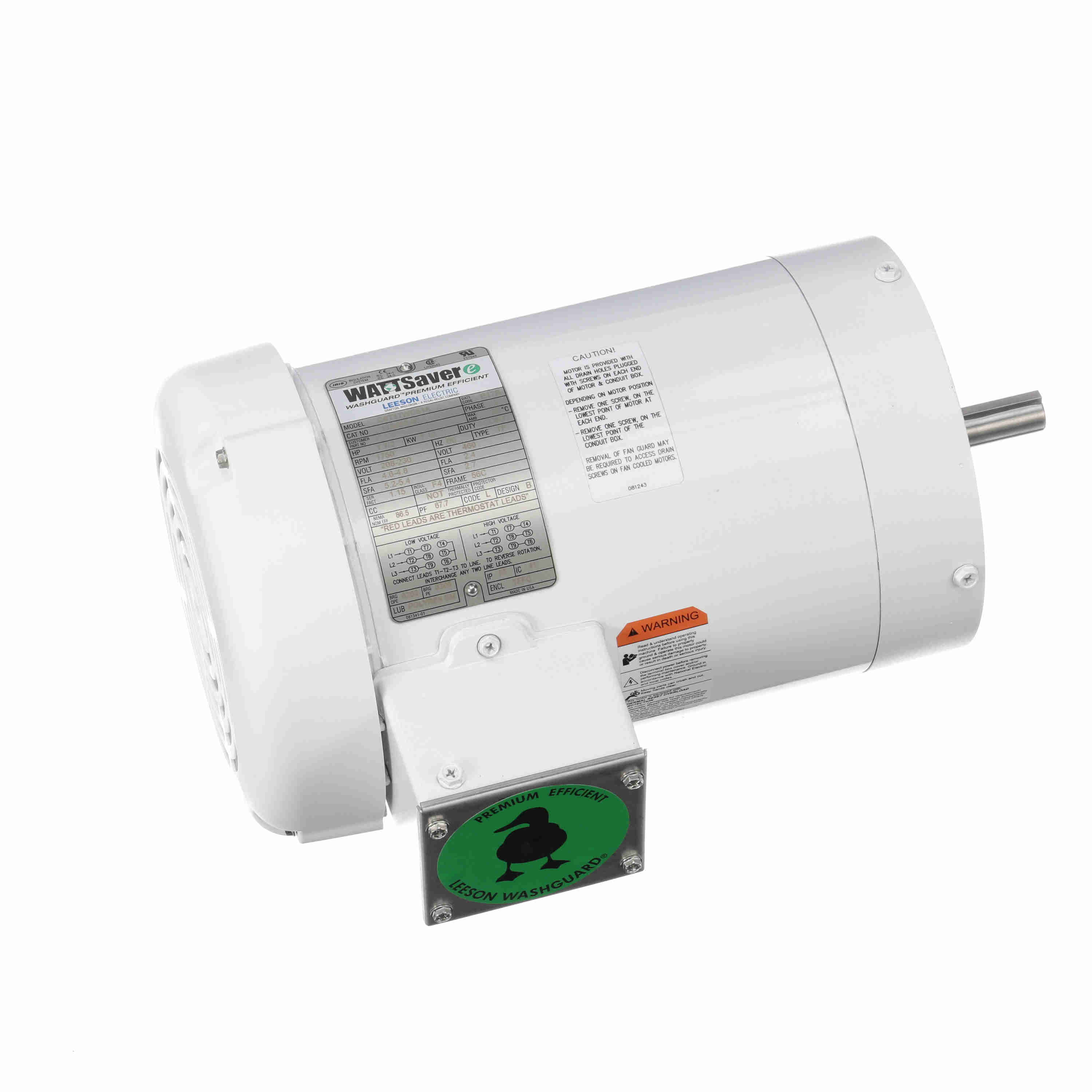

Click Image to Expand

Product ID: 119469.00

119469.00 Leeson Washguard Motor, 1.5 HP, 1800 RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 119469.00

Selected accessories will also be added to cart
$716.97 / Each
Quantity:
56C Frame, 208-230/460V 3-Phase, TEFC, C Face Less Base, C6T17WC51A, Washdown Duty
Features
  • USDA-approved epoxy painted motors
  • NEMA motors
  • AC washdown
  • Rigid base and C face mount types
  • BISSC approved designs; Double lip contact seals and v-ring seals used for shaft seals
  • 3-year warranty on encapsulated and premium efficient models
  • UL recognized and CSA certified
  • Double lip contact seals and v-ring seals used for shaft seals
  • Washdown brakemotors and pump motors available
General Specifications
Model :C6T17WC51A Catalog No :119469.00
Part Description :119469.00..1.5HP..1750RPM.56C.TEFC.230/460V.3PH.60HZ.CONT.40C.1.15SF.C FACE.C6T17WC51.....WASHDOWN MOTORS.NONE....... Category :General Purpose
Stock :No
Nameplate Specifications
Output HP :1.50 Hp Output KW :1.1 kW
Frequency :60 Hz Voltage :208-230/460 V
Current :4.6-4.8/2.4 A Speed :1750 rpm
Service Factor :1.15 Phase :3
Efficiency :86.5 % Duty :Continuous
Insulation Class :F Design Code :B
KVA Code :L Frame :56C
Enclosure :Totally Enclosed Fan Cooled Overload Protector :No
Ambient Temperature :40 °C Drive End Bearing Size :6205
Opp Drive End Bearing Size :6203 UL :Recognized
CSA :Y CE :Y
IP Code :55
Technical Specifications
Electrical Type :Squirrel Cage Induction Run Starting Method :Across The Line
Poles :4 Rotation :Reversible
Mounting :Round Motor Orientation :HORIZONTAL
Drive End Bearing :BALL Opp Drive End Bearing :BALL
Frame Material :Rolled Steel Shaft Type :NEMA 56
Overall Length :13.37 in Frame Length :7.50 in
Shaft Diameter :0.625 in Shaft Extension :1.88 in
Assembly/Box Mounting :F1 ONLY UPC :691720051740
Weight :40.00 LB
Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Pull-Up16.06707.017.00378.02009.400.01.50
Break-Down12.09533.020.40453.01,2007.810.01.50
Locked-Rotor18.50815.017.20382.009.910.01.50
Full Load2.40100.04.50100.01,7521.3175.31.50
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 1.23
  • 0.097
  • 0.0
  • 9.9
  • 1,797
  • 0.0
  • 0.00
  • 25 %
  • 1.33
  • 0.375
  • 74.4
  • 35.4
  • 1,786
  • 0.0
  • 1.10
  • 50 %
  • 1.53
  • 0.673
  • 84.2
  • 55.2
  • 1,773
  • 0.0
  • 2.25
  • 75 %
  • 1.81
  • 0.970
  • 87.2
  • 67.3
  • 1,761
  • 0.0
  • 3.38
  • 100 %
  • 2.15
  • 1.291
  • 86.4
  • 75.4
  • 1,746
  • 45.0
  • 4.50
  • 125 %
  • 2.52
  • 1.611
  • 86.0
  • 80.2
  • 1,732
  • 65.0
  • 5.63
  • 150 %
  • 2.94
  • 1.945
  • 84.6
  • 83.0
  • 1,716
  • 65.0
  • 6.75
  • 175 %
  • 3.37
  • 2.286
  • 83.2
  • 85.1
  • 1,699
  • 0.0
  • 7.88
  • 200 %
  • 3.85
  • 2.650
  • 80.9
  • 86.4
  • 1,678
  • 0.0
  • 9.00
