/Products/Electric Motors/3 Phase/Leeson/Washguard - TENV/TEFC/119471.00 Leeson Washguard Motor, 2 HP, 1800 RPM
Click Image to Expand

Product ID: 119471.00

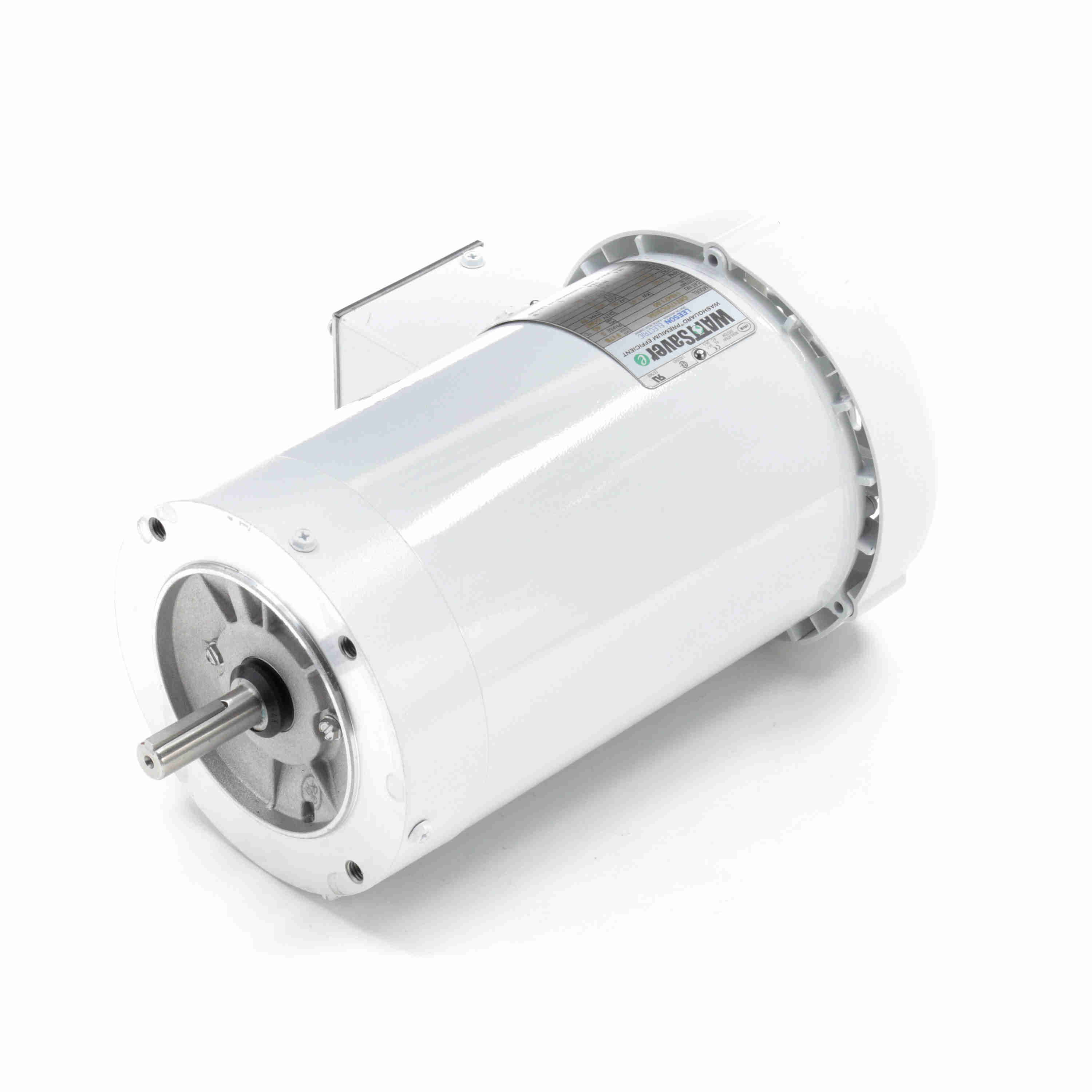

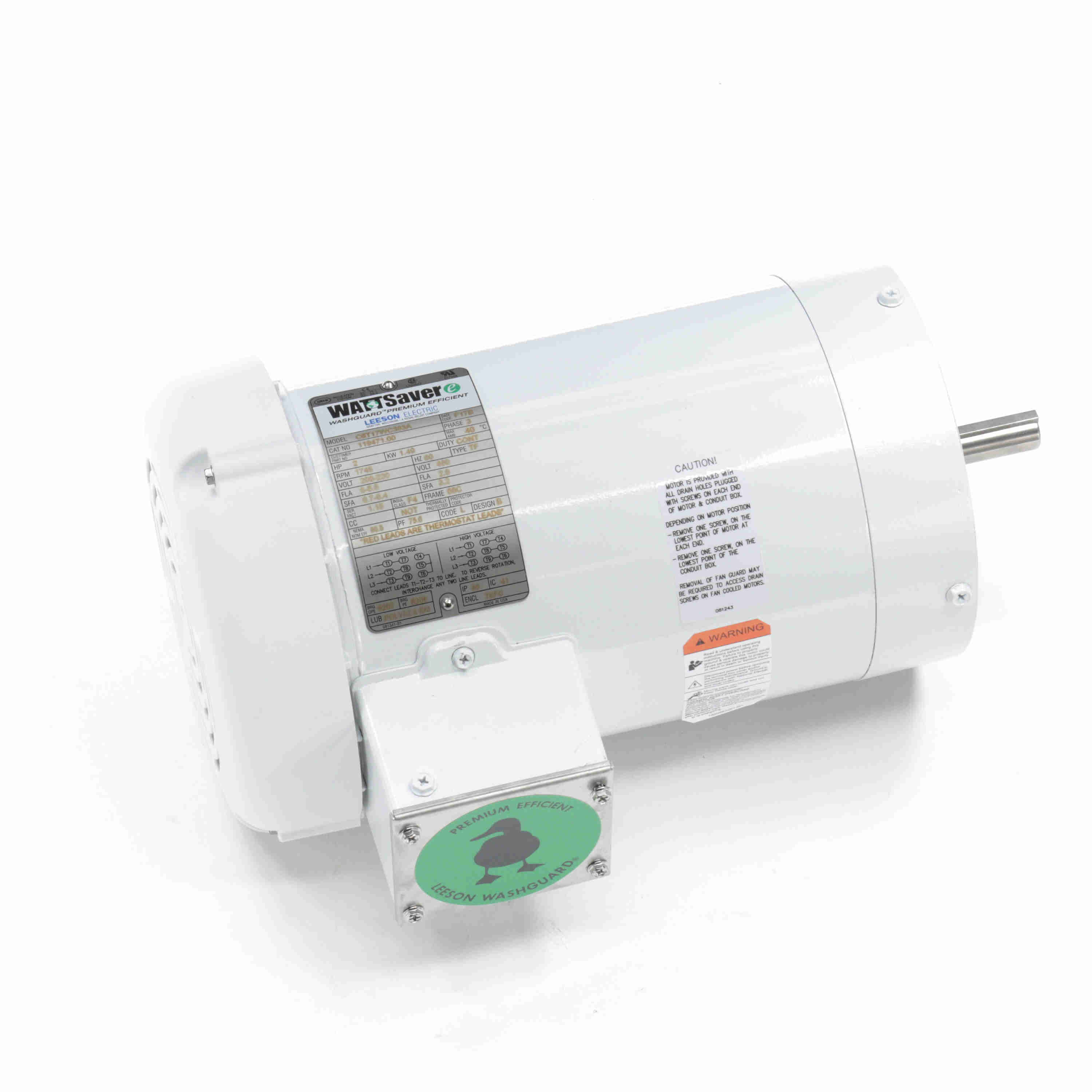

119471.00 Leeson Washguard Motor, 2 HP, 1800 RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 119471.00

Selected accessories will also be added to cart
$861.97 / Each
Quantity:
56C Frame, 208-230/460V 3-Phase, TEFC, C Face Less Base, C6T17WC383A, Washdown Duty
Features
  • USDA-approved epoxy painted motors
  • NEMA motors
  • AC washdown
  • Rigid base and C face mount types
  • BISSC approved designs; Double lip contact seals and v-ring seals used for shaft seals
  • 3-year warranty on encapsulated and premium efficient models
  • UL recognized and CSA certified
  • Double lip contact seals and v-ring seals used for shaft seals
  • Washdown brakemotors and pump motors available
General Specifications
Model :C6T17WC383A Catalog No :119471.00
Part Description :..2HP..1800RPM.56C.TEFC.230/460V.3PH.60HZ.CONT.40C.1.15SF.C FACE......WASHDOWN MOTORS........ Category :General Purpose
Stock :No
Nameplate Specifications
Output HP :2 Hp Output KW :1.5 kW
Frequency :60 Hz Voltage :208-230/460 V
Current :6.0-5.8/2.9 A Speed :1745 rpm
Service Factor :1.15 Phase :3
Efficiency :86.5 % Duty :Continuous
Insulation Class :F Design Code :B
KVA Code :L Frame :56C
Enclosure :Totally Enclosed Fan Cooled Overload Protector :No
Ambient Temperature :40 °C Drive End Bearing Size :6205
Opp Drive End Bearing Size :6203 UL :Recognized
CSA :Y CE :Y
IP Code :55
Technical Specifications
Electrical Type :Squirrel Cage Induction Run Starting Method :Across The Line
Poles :4 Rotation :Reversible
Mounting :Round Motor Orientation :HORIZONTAL
Drive End Bearing :BALL Opp Drive End Bearing :BALL
Frame Material :Rolled Steel Shaft Type :NEMA 56
Overall Length :13.87 in Frame Length :8.00 in
Shaft Diameter :0.625 in Shaft Extension :1.88 in
Assembly/Box Mounting :F1 ONLY UPC :691720051757
Weight :50.00 LB
Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Break-Down19.17958.028.80480.01,10012.000.02.00
Full Load2.00100.06.00100.01,7571.7072.12.00
Pull-Up25.371,268.024.60410.012014.100.02.00
Locked-Rotor26.581,329.024.60410.0014.360.02.00
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 1.70
  • 0.100
  • 0.0
  • 7.0
  • 1,800
  • 0.0
  • 0.00
  • 25 %
  • 1.90
  • 0.500
  • 74.5
  • 33.5
  • 1,785
  • 0.0
  • 1.50
  • 50 %
  • 2.20
  • 0.950
  • 83.5
  • 52.0
  • 1,775
  • 0.0
  • 3.00
  • 75 %
  • 2.60
  • 1.350
  • 85.5
  • 64.0
  • 1,762
  • 0.0
  • 4.50
  • 100 %
  • 2.90
  • 1.750
  • 86.5
  • 75.6
  • 1,745
  • 55.0
  • 6.00
  • 115 %
  • 3.20
  • 2.000
  • 86.0
  • 76.5
  • 1,740
  • 75.0
  • 6.90
  • 125 %
  • 3.50
  • 2.150
  • 85.5
  • 77.5
  • 1,730
  • 85.0
  • 7.50
  • 150 %
  • 4.10
  • 2.600
  • 84.0
  • 80.5
  • 1,718
  • 0.0
  • 9.00
