/Products/Electric Motors/3 Phase/Leeson/Washguard - TENV/TEFC/119473.00 Leeson Washguard Motor, 3 HP, 3600 RPM
Click Image to Expand

Product ID: 119473.00

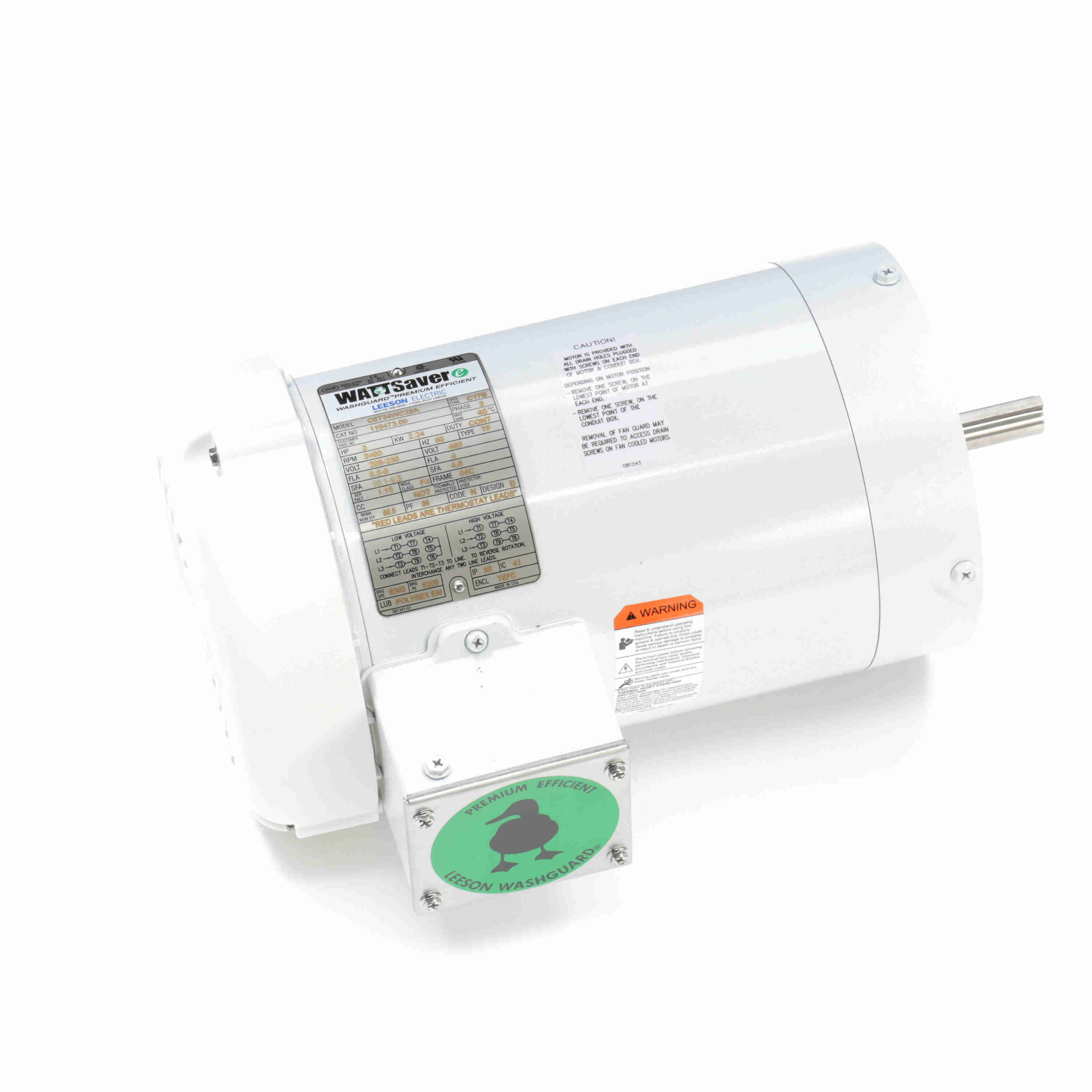

119473.00 Leeson Washguard Motor, 3 HP, 3600 RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 119473.00

Selected accessories will also be added to cart
$1,059.97 / Each
Quantity:
56C Frame, 208-230/460V 3-Phase, TEFC, C Face Less Base, C6T34WC28A, Washdown Duty
Features
  • USDA-approved epoxy painted motors
  • NEMA motors
  • AC washdown
  • Rigid base and C face mount types
  • BISSC approved designs; Double lip contact seals and v-ring seals used for shaft seals
  • 3-year warranty on encapsulated and premium efficient models
  • UL recognized and CSA certified
  • Double lip contact seals and v-ring seals used for shaft seals
  • Washdown brakemotors and pump motors available
General Specifications
Model :C6T34WC28A Catalog No :119473.00
Part Description :119473.00..3HP..3490RPM.56C.TEFC.230/460V.3PH.60HZ.CONT.40C.1.15SF.C FACE.C6T34WC28.....WASHDOWN MOTORS.T-STATS....... Category :General Purpose
Stock :No
Nameplate Specifications
Output HP :3 Hp Output KW :2.2 kW
Frequency :60 Hz Voltage :208-230/460 V
Current :8.8-8.0/4.0 A Speed :3490 rpm
Service Factor :1.15 Phase :3
Efficiency :86.5 % Duty :Continuous
Insulation Class :F Design Code :B
KVA Code :N Frame :56C
Enclosure :Totally Enclosed Fan Cooled Overload Protector :No
Ambient Temperature :40 °C Drive End Bearing Size :6205
Opp Drive End Bearing Size :6203 UL :Recognized
CSA :Y CE :Y
IP Code :55
Technical Specifications
Electrical Type :Squirrel Cage Induction Run Starting Method :Across The Line
Poles :2 Rotation :Reversible
Mounting :Round Motor Orientation :HORIZONTAL
Drive End Bearing :BALL Opp Drive End Bearing :BALL
Frame Material :Rolled Steel Shaft Type :NEMA 56
Overall Length :13.62 in Frame Length :7.75 in
Shaft Diameter :0.625 in Shaft Extension :1.88 in
Assembly/Box Mounting :F1 ONLY UPC :691720051771
Weight :44.00 LB
Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Pull-Up0.000.017.50389.000.000.03.00
Locked-Rotor41.001,025.017.97399.000.000.03.00
Break-Down0.000.020.83463.02,4000.000.03.00
Full Load4.00100.04.50100.03,5060.000.03.00
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 1.90
  • 0.270
  • 0.0
  • 17.8
  • 3,498
  • 0.0
  • 0.00
  • 25 %
  • 2.00
  • 0.752
  • 74.3
  • 47.2
  • 3,577
  • 0.0
  • 1.10
  • 50 %
  • 2.50
  • 1.347
  • 83.2
  • 67.6
  • 3,555
  • 0.0
  • 2.22
  • 75 %
  • 3.10
  • 1.957
  • 85.6
  • 79.2
  • 3,532
  • 0.0
  • 3.34
  • 100 %
  • 4.00
  • 2.598
  • 86.9
  • 81.0
  • 3,506
  • 60.0
  • 4.50
  • 115 %
  • 4.35
  • 2.968
  • 86.8
  • 86.2
  • 3,496
  • 0.0
  • 5.20
  • 125 %
  • 4.70
  • 3.240
  • 86.4
  • 86.5
  • 3,481
  • 0.0
  • 5.66
  • 150 %
  • 5.50
  • 3.920
  • 85.6
  • 89.5
  • 3,454
  • 0.0
  • 6.84
