/Products/Electric Motors/3 Phase/Leeson/Washguard - TENV/TEFC/119475.00 Leeson 1HP Washguard Electric Motor, 1800RPM
Click Image to Expand

Product ID: 119475.00

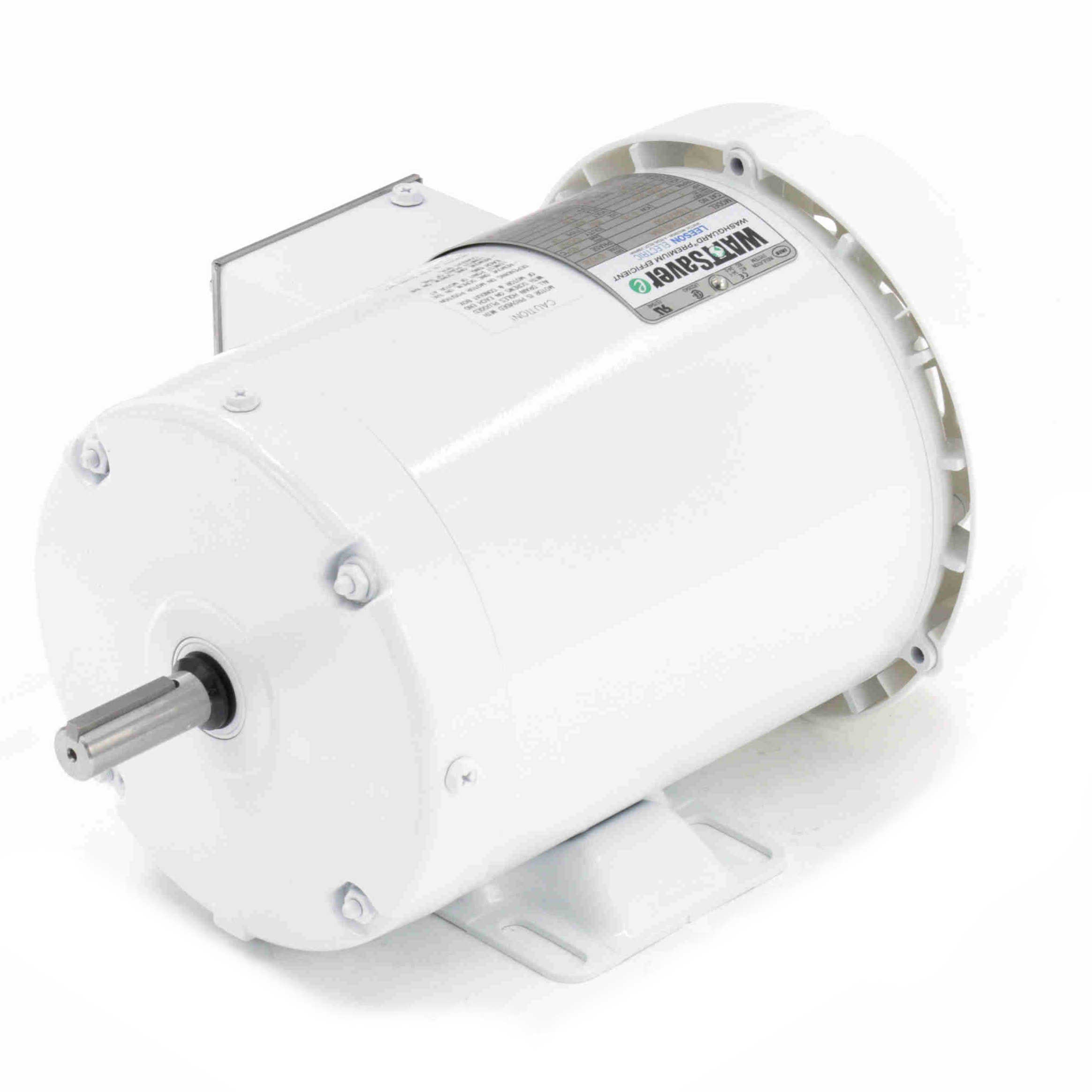

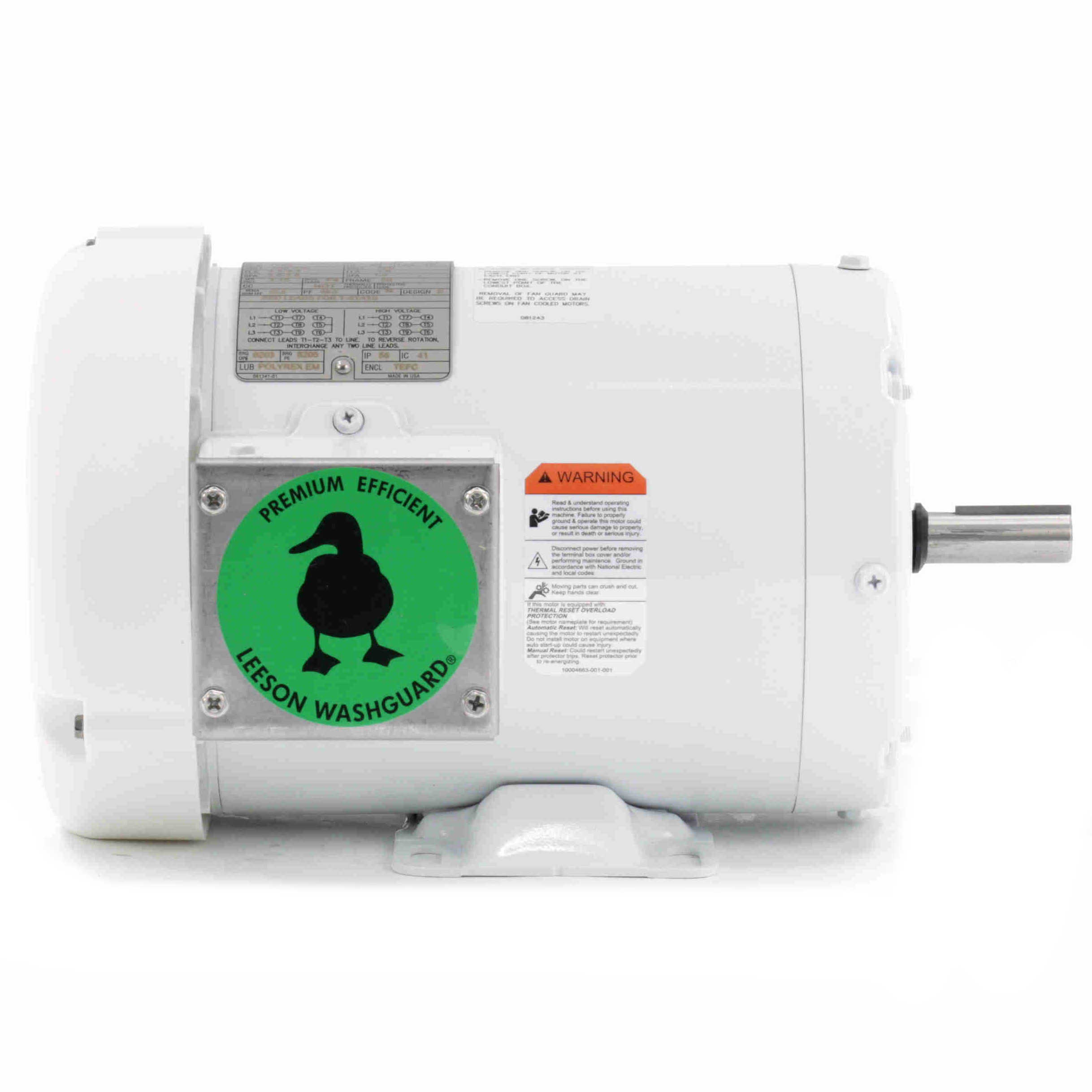

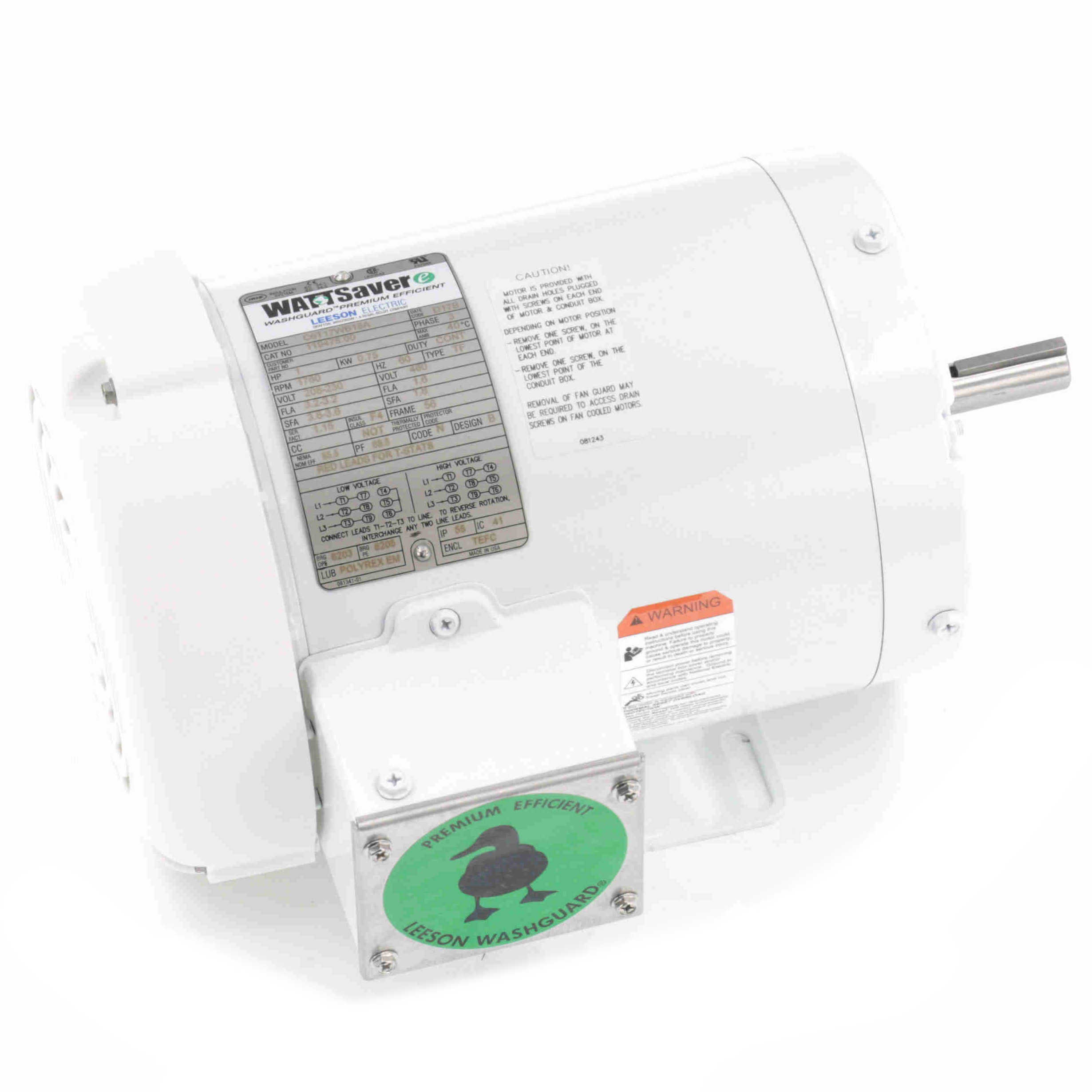

119475.00 Leeson 1HP Washguard Electric Motor, 1800RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 119475.00

Selected accessories will also be added to cart
$699.97 / Each
Quantity:
TEFC, 56 Frame, 208-230/460VAC 60Hz 3-Phase, C6T17WB18A, Rigid Base, Rolled Steel Frame, Washdown Duty, 5/8" Keyed Shaft

Features

  • USDA-approved white epoxy finish ensures resistance and protection against caustic cleaning solutions.
  • Sealed bearings shut out contaminants that lead to bearing failure.
  • Stainless steel output shaft seals protect against external contaminants.
  • Cast, white epoxy conduit boxes house electrical wiring.

General Specifications

UPC: 691720051849 Weight: 57.00 LB
Packaged Length: 14.44 IN Packaged Width: 10.44 IN
Packaged Height: 10.88 IN Country of Origin: United States of America

Nameplate Specifications

Output HP: 1 Hp Output KW: 0.75 kW
Frequency: 60 Hz Voltage: 208-230/460 V
Current: 3.2-3.2/1.6 A Speed: 1760 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 85.5 % Power Factor: 68.5
Duty: Continuous Insulation Class: F
Design Code: B KVA Code: N
Frame: 56 Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: No Protection Ambient Temperature: 40 °C
Drive End Bearing Size: 6205 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: Y IP Code: 55
Number of Speeds: 1

Technical Specifications

Electrical Type: Squirrel Cage Induction Run Starting Method: Across The Line
Poles: 4 Rotation: Reversible
Resistance Main: 12.96 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: NEMA 56 Overall Length: 12.25 in
Frame Length: 6.75 in Shaft Diameter: 0.625 in
Shaft Extension: 1.94 in Assembly/Box Mounting: F1 ONLY

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (LB-FT) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Pull-Up 13.02 766.0 11.90 397.0 110 7.20 0.0 1.00
Locked-Rotor 14.00 824.0 12.00 400.0 0 7.30 0.0 1.00
Full Load 1.70 100.0 3.00 100.0 1,761 0.91 69.9 1.00
Break-Down 9.86 580.0 15.80 527.0 1,170 6.16 0.0 1.00

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 125 % 150 %
Current (Amps) 1.00 1.02 1.16 1.35 1.55 1.70 1.77 2.03
Rated Output (KW) 0.06 0.26 0.48 0.66 0.88 1.00 1.10 1.32
Efficiency (%) 0.0 72.5 79.6 85.4 85.5 85.0 84.7 84.2
Power Factor (%) 8.0 32.4 51.5 61.5 70.9 75.0 77.9 81.4
Speed (RPM) 1,798 1,789 1,779 1,769 1,757 1,750 1,745 1,733
Temp. Rise @ FL 0.0 0.0 0.0 0.0 38.0 0.0 60.0 0.0
Torque (LB-FT) 0.00 0.75 1.50 2.25 3.00 3.45 3.75 4.50
