/Products/Electric Motors/3 Phase/Leeson/Washguard - TENV/TEFC/119478.00 Leeson Washguard Motor, 1 HP, 1200 RPM
Click Image to Expand

Product ID: 119478.00

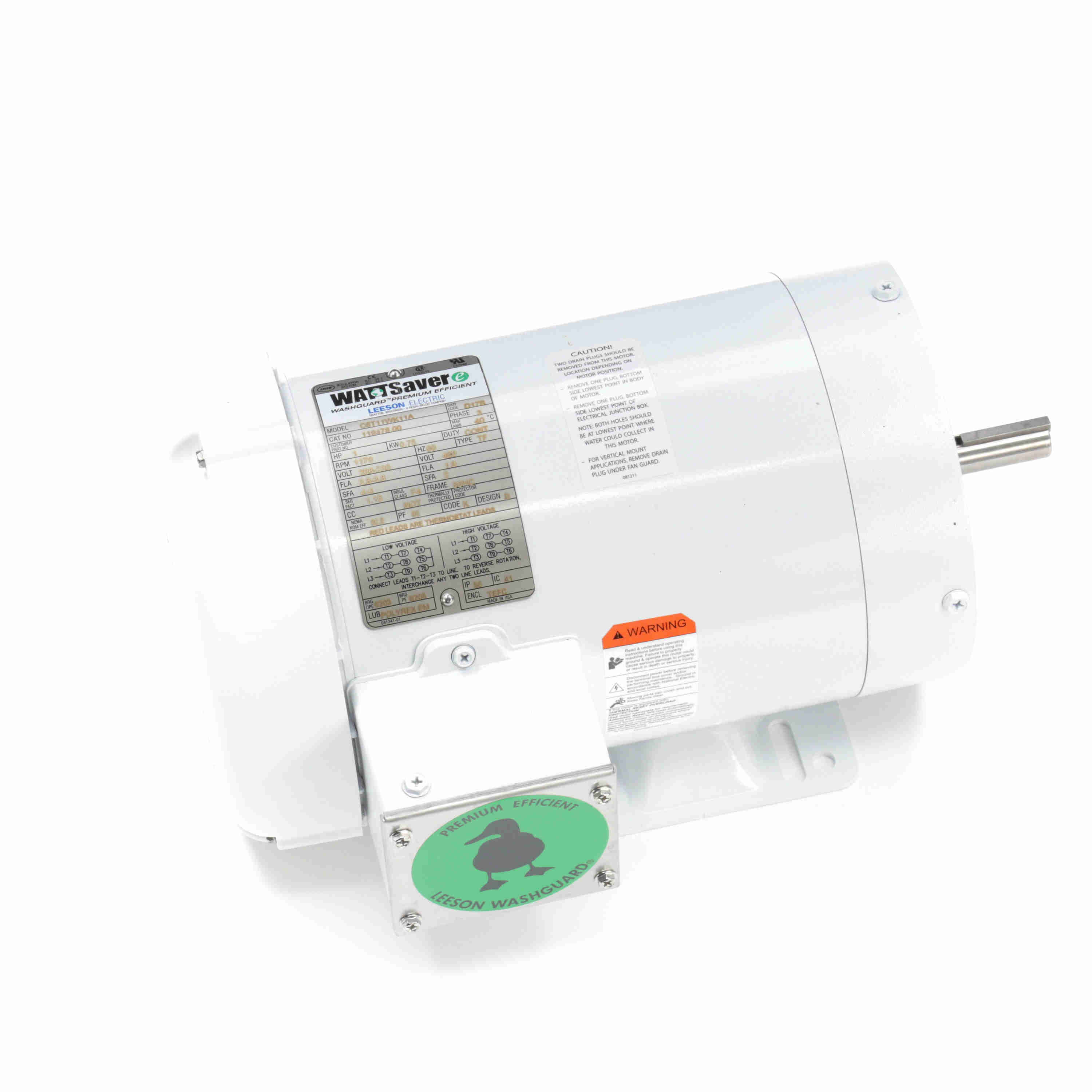

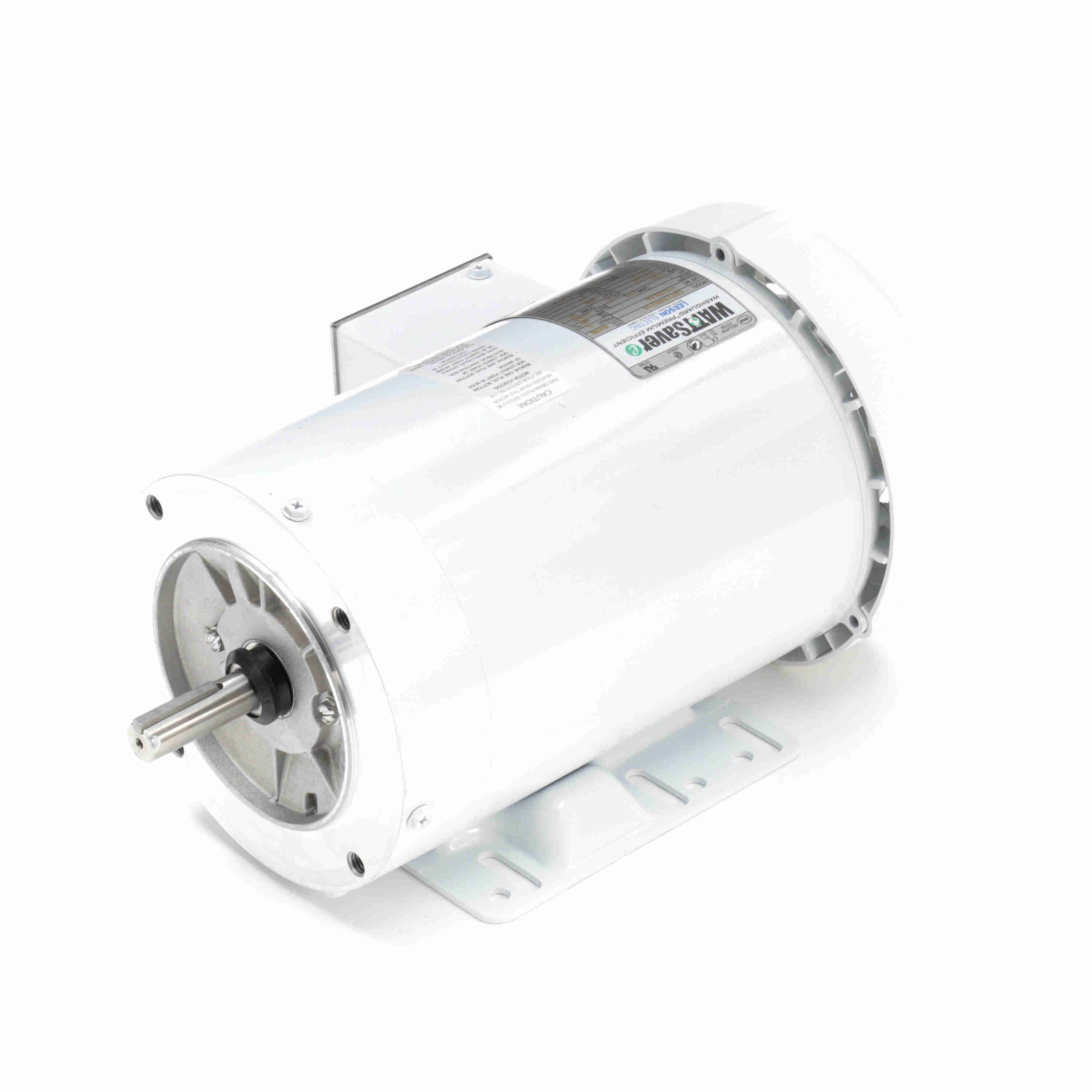

119478.00 Leeson Washguard Motor, 1 HP, 1200 RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 119478.00

Selected accessories will also be added to cart
$923.97 / Each
Quantity:
56HC Frame, 208-230/460V 3-Phase, TEFC, C Face with Base, C6T11WK11A, Washdown Duty
Features
  • USDA-approved epoxy painted motors
  • NEMA motors
  • AC washdown
  • Rigid base and C face mount types
  • BISSC approved designs; Double lip contact seals and v-ring seals used for shaft seals
  • 3-year warranty on encapsulated and premium efficient models
  • UL recognized and CSA certified
  • Double lip contact seals and v-ring seals used for shaft seals
  • Washdown brakemotors and pump motors available
General Specifications
Model :C6T11WK11A Catalog No :119478.00
Part Description :119478.00..1HP..1170RPM.56C.TEFC.230/460V.3PH.60HZ.CONT.40C.1.15SF.RIGID C FACE.C6T11WK11.....WASHDOWN DUTY.NONE....... Category :General Purpose
Stock :No
Nameplate Specifications
Output HP :1 Hp Output KW :0.75 kW
Frequency :60 Hz Voltage :208-230/460 V
Current :3.8-3.8/1.9 A Speed :1170 rpm
Service Factor :1.15 Phase :3
Efficiency :82.5 % Duty :Continuous
Insulation Class :F Design Code :B
KVA Code :K Frame :56HC
Enclosure :Totally Enclosed Fan Cooled Overload Protector :No
Ambient Temperature :40 °C Drive End Bearing Size :6205
Opp Drive End Bearing Size :6203 UL :Recognized
CSA :Y CE :Y
IP Code :55
Technical Specifications
Electrical Type :Squirrel Cage Induction Run Starting Method :Across The Line
Poles :6 Rotation :Reversible
Mounting :Rigid base Motor Orientation :HORIZONTAL
Drive End Bearing :BALL Opp Drive End Bearing :BALL
Frame Material :Rolled Steel Shaft Type :NEMA 56
Overall Length :13.37 in Frame Length :7.50 in
Shaft Diameter :0.625 in Shaft Extension :1.88 in
Assembly/Box Mounting :F1 ONLY UPC :691720051931
Weight :43.00 LB
Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Full Load1.900.04.50100.01,1700.900.01.00
Pull-Up9.940.013.30298.01254.550.01.00
Locked-Rotor10.700.013.50300.004.570.01.00
Break-Down7.400.015.80351.07504.040.01.00
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 1.20
  • 0.082
  • 0.0
  • 8.6
  • 1,198
  • 0.0
  • 0.00
  • 25 %
  • 1.24
  • 0.265
  • 70.2
  • 26.8
  • 1,190
  • 0.0
  • 1.10
  • 50 %
  • 1.37
  • 0.464
  • 80.6
  • 42.5
  • 1,180
  • 0.0
  • 2.23
  • 75 %
  • 1.55
  • 0.675
  • 82.9
  • 54.7
  • 1,169
  • 0.0
  • 3.37
  • 100 %
  • 1.78
  • 0.893
  • 83.6
  • 63.0
  • 1,157
  • 41.5
  • 4.54
  • 115 %
  • 1.94
  • 1.032
  • 83.3
  • 66.8
  • 1,148
  • 53.0
  • 5.27
  • 125 %
  • 2.05
  • 1.125
  • 82.9
  • 68.9
  • 1,144
  • 0.0
  • 5.74
  • 150 %
  • 2.37
  • 1.371
  • 81.6
  • 72.6
  • 1,129
  • 0.0
  • 6.98
