/Products/Electric Motors/3 Phase Stainless Steel/Leeson/Extreme Duck Ultra Washguard/C-Face less Base, TE, IP69/119512.00 Leeson 1HP Washdown Electric Motor, 1800RPM
Click Image to Expand

Product ID: 119512.00

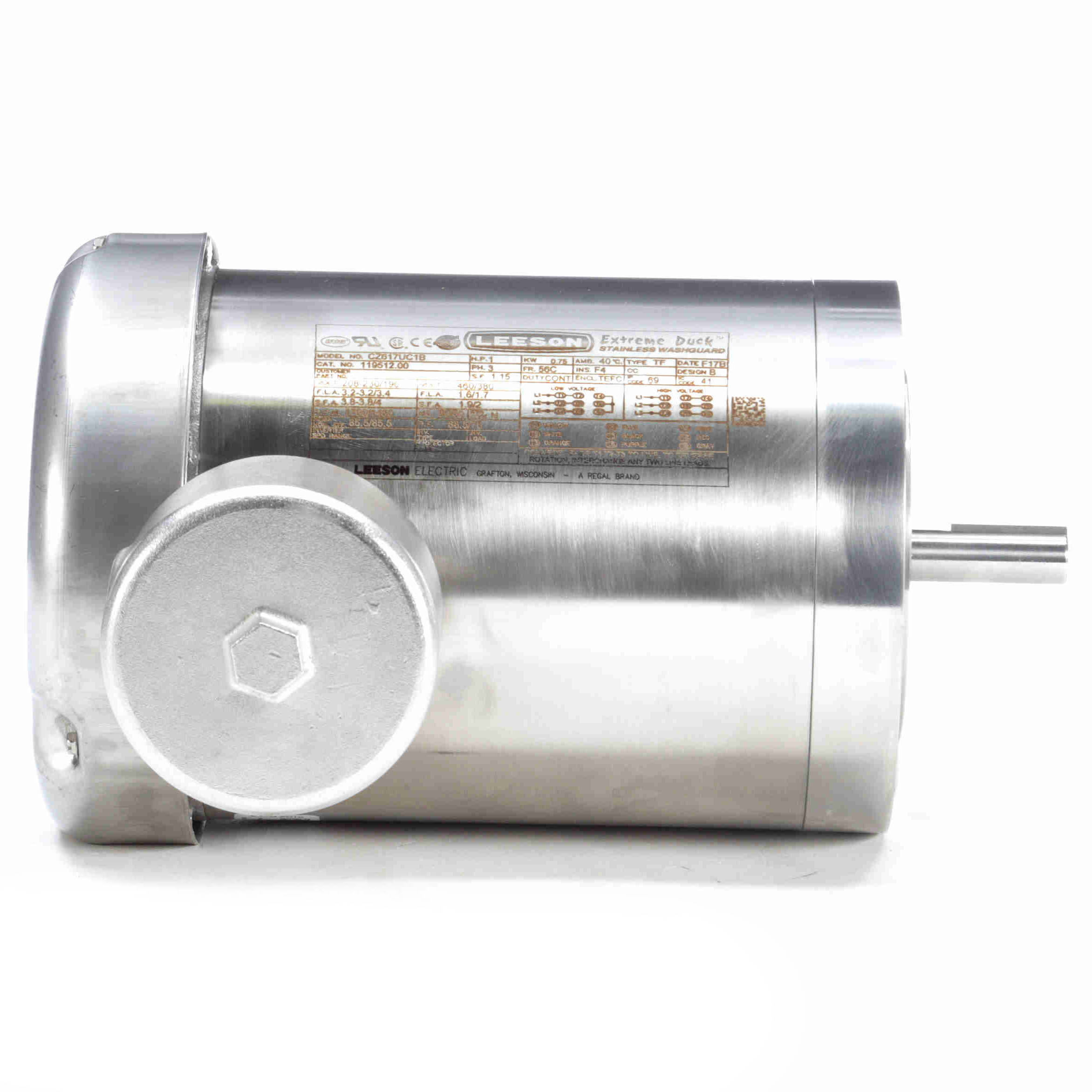

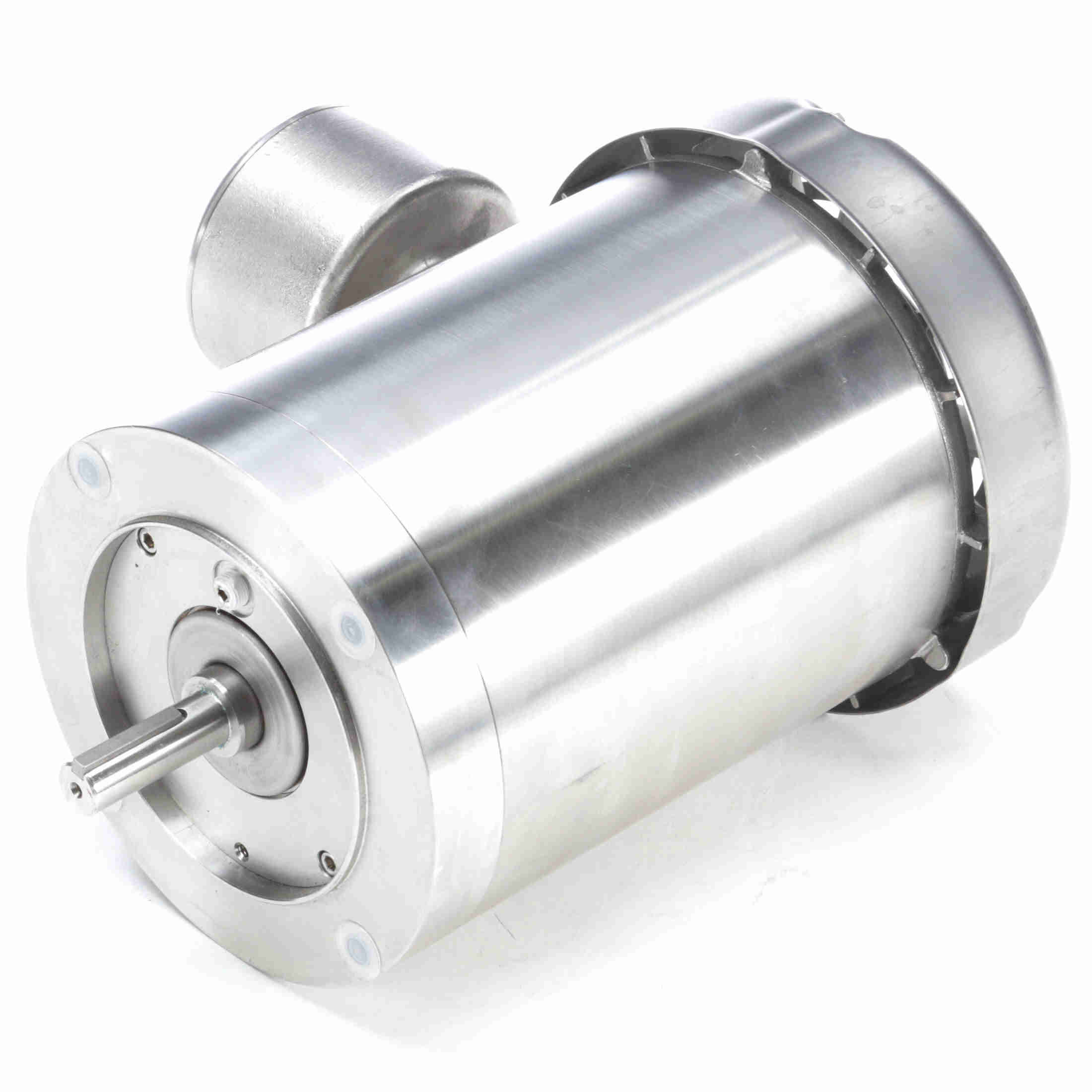

119512.00 Leeson 1HP Washdown Electric Motor, 1800RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 119512.00

Selected accessories will also be added to cart
$1,363.97 / Each
Quantity:
TEFC, IP69, 56C Frame, 208-230/460VAC 60Hz 3-Phase, C-Face, Round Body, Stainless Steel Frame, 5/8" Keyed Shaft

Features

  • Q-Car(TM) rotor cartridge for quick access
  • Double-sealed ball bearings with high temperature grease
  • Non-wicking lead wires; Two-piece shaft seal with flinger
  • Chemical and abrasion resistant lead markers
  • Conduit box rotates 360 degrees on TEFC models
  • Enhanced encapsulation process; IP69K enclosure protection
  • Total winding encapsulation using an epoxy resin
  • LEESON’s exclusive IRIS® Inverter-Rated Insulation System provides extra protection and long life, especially when used in applications driven by an Inverter
  • CSA Energy Efficiency Verification Program, report number EEV 78720-1
  • IP69K enclosure protection;Color Coded Leads; Full fact nameplate is laser etched on the motor frame

General Specifications

UPC: 691720053379 Weight: 46.00 LB
Packaged Length: 17.94 IN Packaged Width: 13.06 IN
Packaged Height: 12.88 IN

Nameplate Specifications

Output HP: 1 Hp Output KW: 0.75 kW
Frequency: 60 Hz Voltage: 208-230/460 V
Current: 3.2-3.2/1.6 A Speed: 1760 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 85.5 % Power Factor: 68.5
Duty: Continuous Insulation Class: F
Design Code: B KVA Code: N
Frame: 56C Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6205 Opp Drive End Bearing Size: 6205
UL: Recognized CSA: Y
CE: Y IP Code: 69

Technical Specifications

Electrical Type: Squirrel Cage Inverter Rated Starting Method: Line Or Inverter
Poles: 4 Rotation: Reversible
Resistance Main: 12.96 Ohms Mounting: Round
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Stainless Steel
Shaft Type: NEMA 56 Overall Length: 11.94 in
Frame Length: 7.00 in Shaft Diameter: 0.625 in
Shaft Extension: 1.88 in Assembly/Box Mounting: F1 Only

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Locked-Rotor 14.00 903.0 12.00 400.0 0 7.30 0.0 1.00
Break-Down 9.86 636.0 15.80 527.0 1,170 6.16 0.0 1.00
Pull-Up 13.02 840.0 11.90 397.0 110 7.20 0.0 1.00
Full Load 1.55 100.0 3.00 100.0 1,757 0.88 0.0 1.00

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 125 % 150 %
Current (Amps) 1.00 1.02 1.16 1.35 1.55 1.77 2.03
Rated Output (KW) 0.06 0.26 0.48 0.66 0.88 1.10 1.32
Efficiency (%) 0.0 72.5 79.6 85.4 85.5 84.8 84.2
Power Factor (%) 8.0 32.4 51.5 61.5 70.9 77.9 81.4
Speed (RPM) 1,798 1,789 1,779 1,769 1,757 1,745 1,733
Temp. Rise @ FL 0.0 0.0 0.0 0.0 38.0 0.0 0.0
Torque (ft-lbs) 0.00 0.75 1.50 2.25 3.00 3.75 4.50
