/Products/Electric Motors/3 Phase/Leeson/TEAO Rigid Base/120379.00 Leeson 3HP Agricultural Duty Aeration Fan Electric Motor, 3450RPM
Click Image to Expand

Product ID: 120379.00

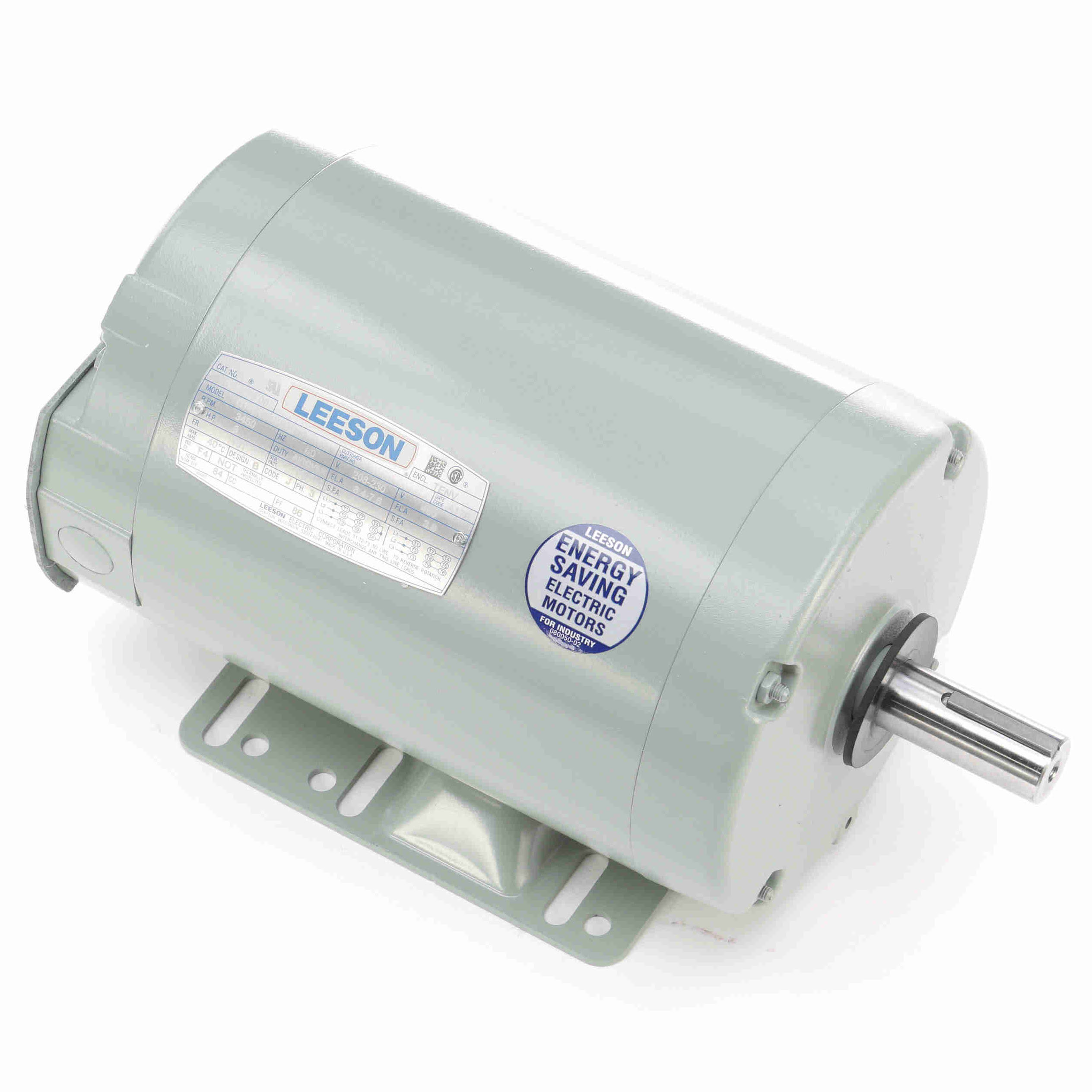

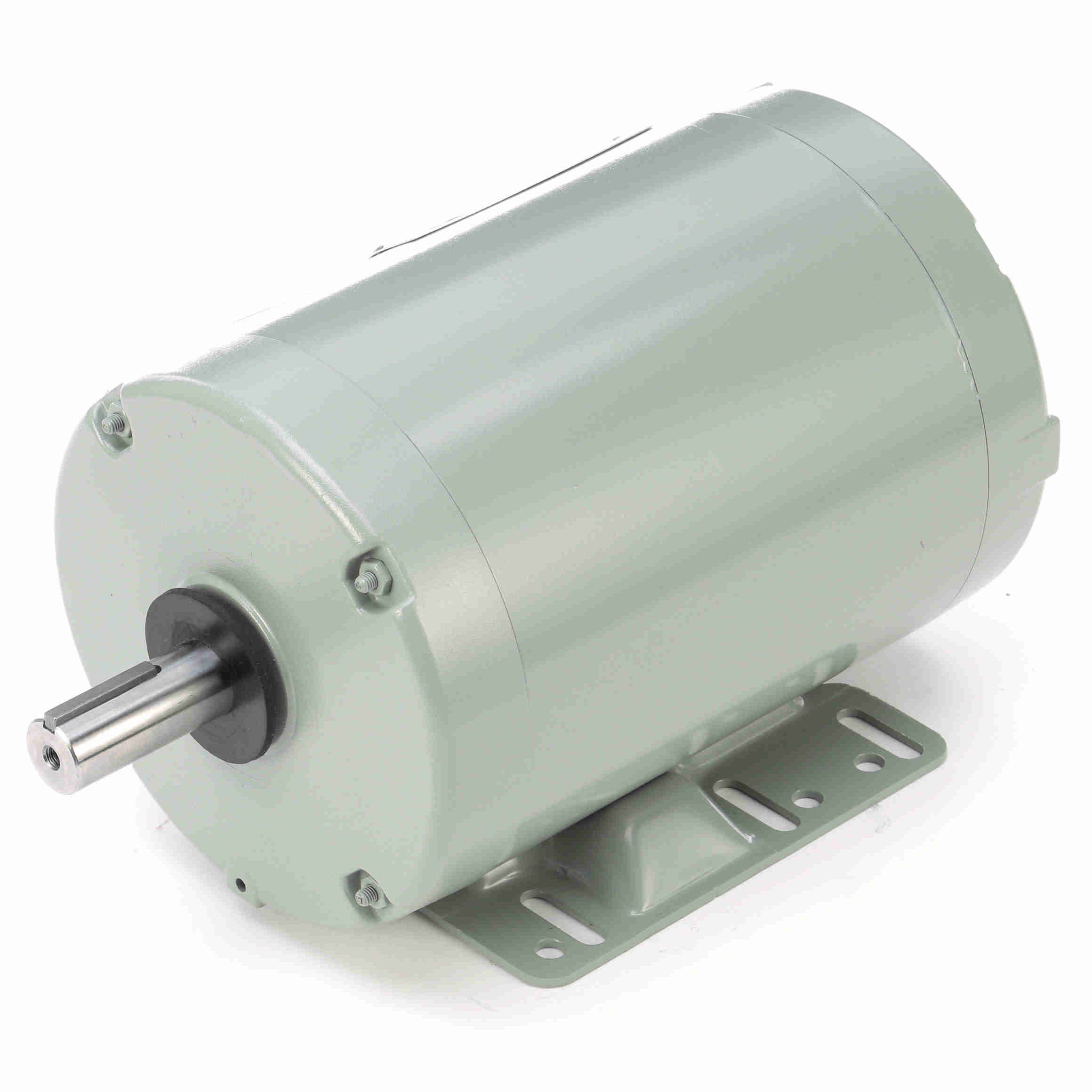

120379.00 Leeson 3HP Agricultural Duty Aeration Fan Electric Motor, 3450RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: C145T34NB2

Selected accessories will also be added to cart
$435.23 / Each
Quantity:
TEAO, 145T Frame, 208-230/460VAC 3-Phase 60Hz, C145T34NB2E, Rigid Base, Rolled Steel, 7/8" Keyed Shaft

Features

Features
  • Air over motor designs
  • Double sealed full contact ball bearings
  • Epoxy paint
  • Non-standard shaft extension
  • Belt driven fans or fan on shaft applications
  • Must be mounted in airstream for proper cooling

General Specifications

General Specifications
Model : C145T34NB2E Catalog No : 120379.00
Part Description : ..3HP..3450RPM.145T.TENV.208-230/460V.3PH.60HZ.AIROVER.40C.1.0SF.RIGID.C145T34NB2E.....AG - FAN & BLOWER.NOT....... Category : Aeration Fan
Stock : No

Nameplate Specifications

Nameplate Specifications
Output HP : 3 HP Output KW : 2.2 kW
Frequency : 60 Hz Voltage : 208-230/460 V
Current : 8.4-7.6/3.8 A Speed : 3450 RPM
Service Factor : 1 Phase : 3
Efficiency : 84 % Duty : Continuous
Insulation Class : F Design Code : B
KVA Code : J Frame : 145T
Enclosure : Totally Enclosed Air Over Overload Protector : No
Ambient Temperature : 40 °C Drive End Bearing Size : 6205
Opp Drive End Bearing Size : 6203 UL : Recognized
CSA : Y CE : N
IP Code : 43

Technical Specifications

Technical Specifications
Electrical Type : Squirrel Cage Induction Run Starting Method : Across The Line
Poles : 2 Rotation : Reversible
Mounting : Rigid base Motor Orientation : HORIZONTAL
Drive End Bearing : BALL Opp Drive End Bearing : BALL
Frame Material : Rolled Steel Shaft Type : T
Overall Length : 12.34 in Frame Length : 7.00 in
Shaft Diameter : 0.875 in Shaft Extension : 2.25 in
Assembly/Box Mounting : F1 ONLY UPC : 691720015476
Weight : 41.00 LB

Speed & Load Characteristics

Speed Characteristics
Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Break-Down 0.00 15.20 338.0 2,300 3.00
Locked-Rotor 30.00 13.00 289.0 0 3.00
Pull-Up 0.00 12.70 282.0 400 3.00
Full Load 3.80 4.50 100.0 3,486 3.00
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 1.70
  • 0.160
  • 0.0
  • 11.8
  • 3,598
  • 0.0
  • 0.00
  • 25 %
  • 2.01
  • 0.847
  • 67.7
  • 52.9
  • 3,569
  • 0.0
  • 1.13
  • 50 %
  • 2.38
  • 1.320
  • 85.9
  • 69.6
  • 3,547
  • 0.0
  • 2.25
  • 75 %
  • 3.03
  • 1.975
  • 85.6
  • 81.8
  • 3,519
  • 0.0
  • 3.38
  • 100 %
  • 3.80
  • 2.630
  • 84.8
  • 86.9
  • 3,486
  • 82.0
  • 4.50
  • 125 %
  • 4.63
  • 3.238
  • 85.3
  • 87.8
  • 3,452
  • 0.0
  • 5.63
  • 150 %
  • 5.50
  • 3.927
  • 83.3
  • 89.6
  • 3,411
  • 0.0
  • 6.75
