/Products/Electric Motors/Single Phase/Leeson/Woodworking/120997.00 Leeson 2HP Definite Purpose Woodworking Electric Motor, 3600RPM
Click Image to Expand

Product ID: 120997.00

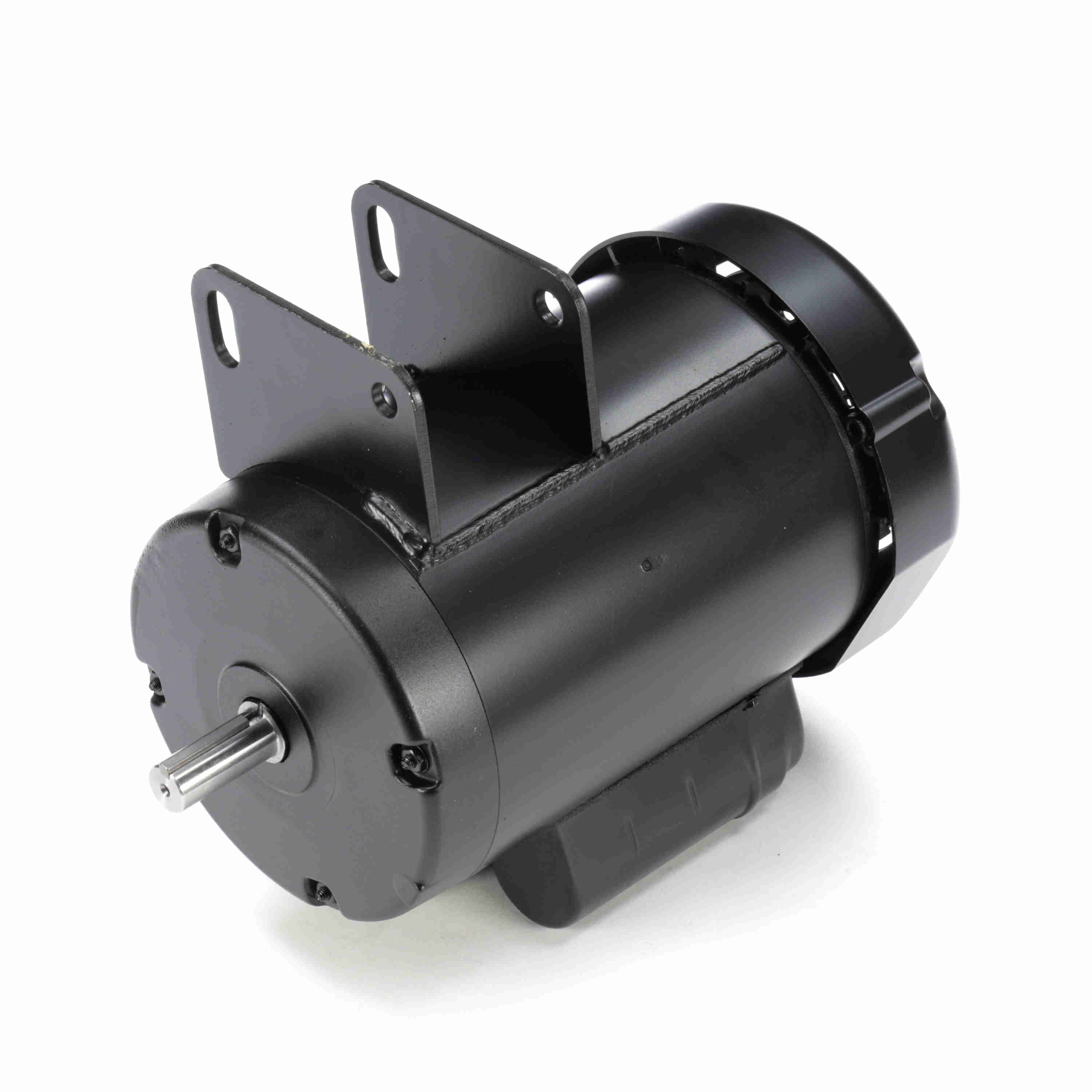

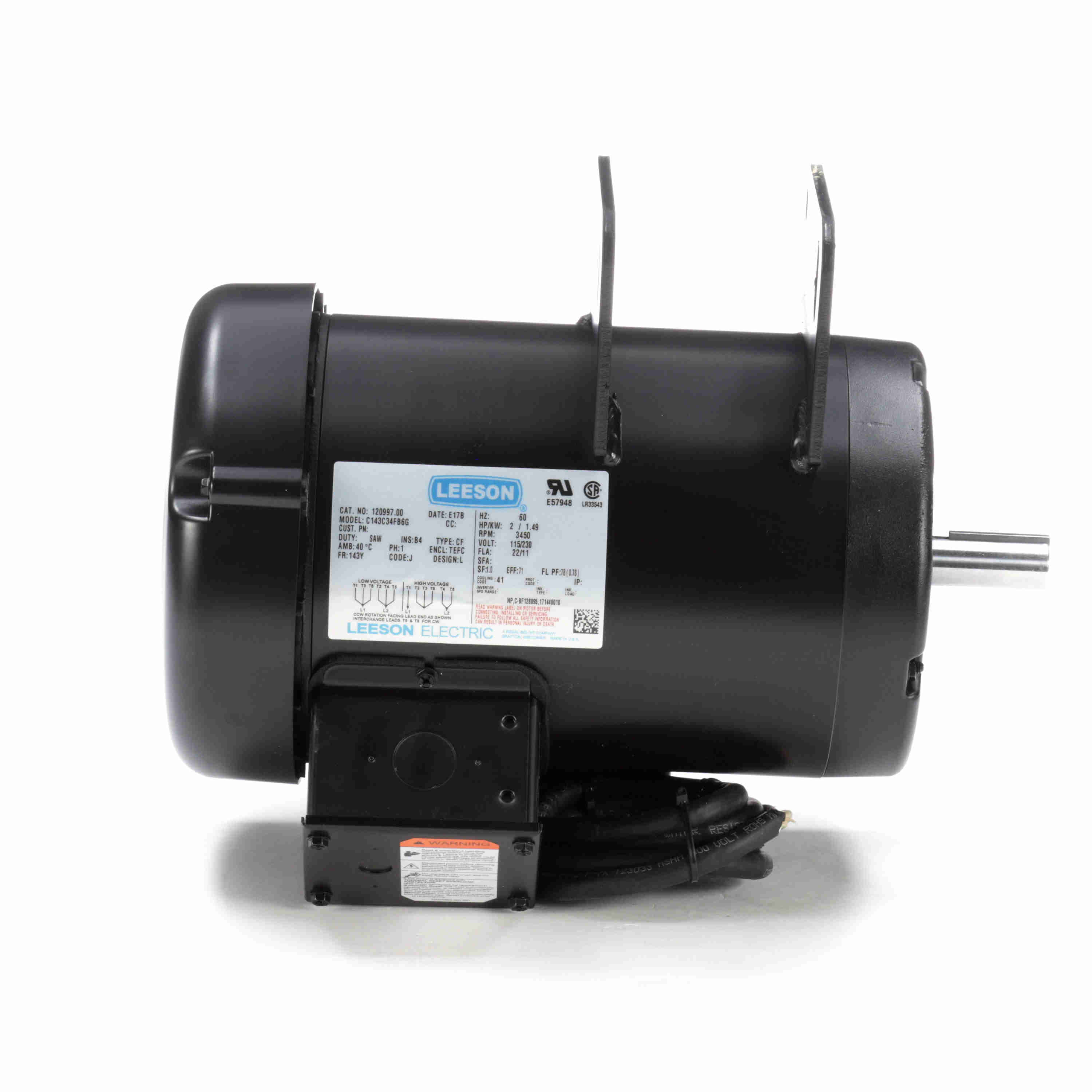

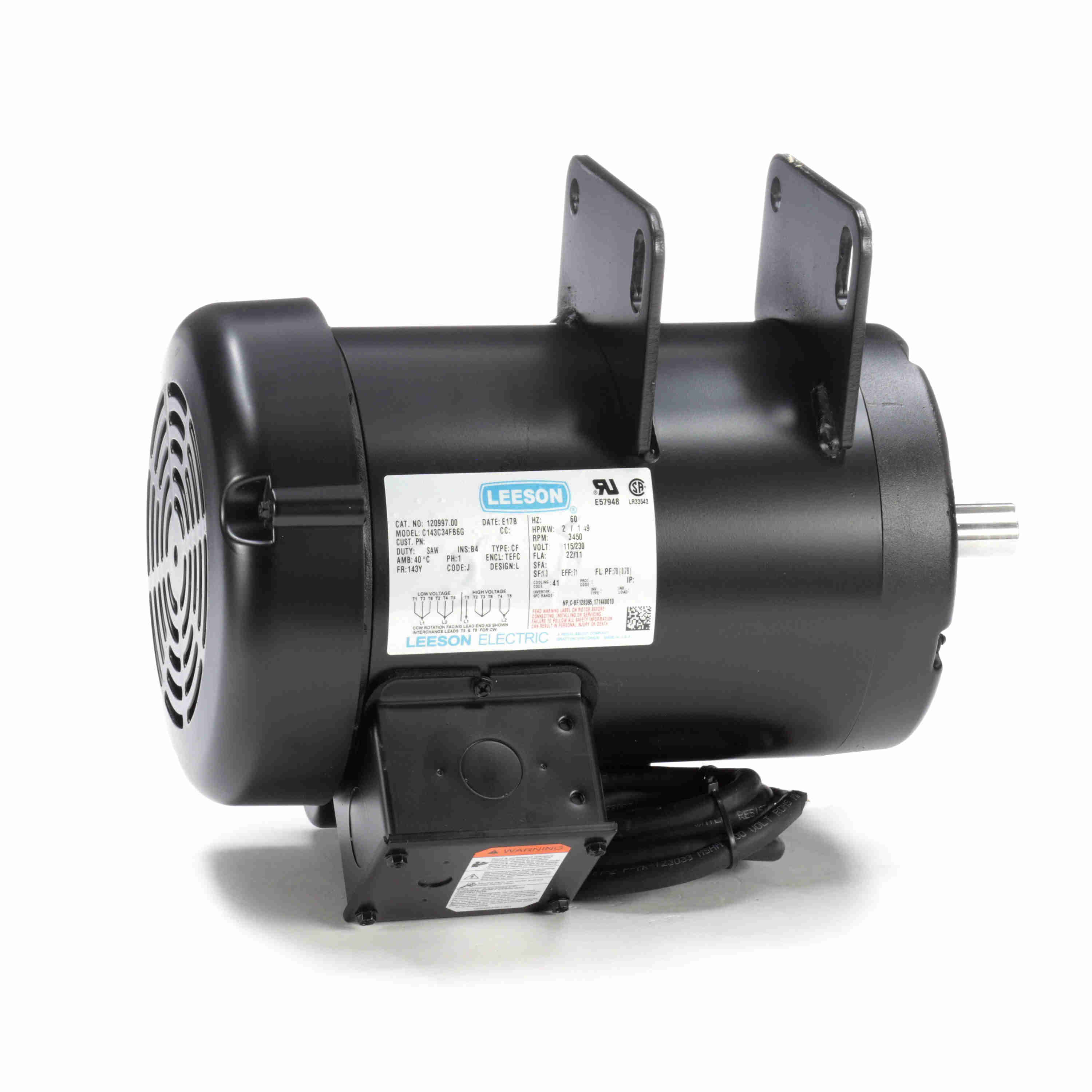

120997.00 Leeson 2HP Definite Purpose Woodworking Electric Motor, 3600RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 120997.00

Selected accessories will also be added to cart
$948.48 / Each
Quantity:
TEFC, 143Y Frame, 115/230VAC Single Phase 60Hz, Rolled Steel, 3/4" Shaft - Special Extension

Features

  • Motor pivots on rod for belt tensioning
  • Extra high breakdown torques for maximum cutting power
  • 3/4” Dia. Shaft, 1-3/4” long with keyway
  • Includes 54 inch cord

General Specifications

UPC: 691720016480 Weight: 45.00 LB
Packaged Length: 17.94 IN Packaged Width: 13.06 IN
Packaged Height: 12.88 IN

Nameplate Specifications

Output HP: 2 Hp Output KW: 1.5 kW
Frequency: 60 Hz Voltage: 115/230 V
Current: 22.0/11.0 A Speed: 3450 rpm
Service Factor: 1 Phase: 1
Efficiency: 71 % Power Factor: 78
Duty: Saw Insulation Class: B
Design Code: L KVA Code: J
Frame: 143Y Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6205 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: N IP Code: 43

Technical Specifications

Electrical Type: Capacitor Start Induction Run Starting Method: Across The Line
Poles: 2 Rotation: Fixed Counterclockwise
Resistance Main: 0 Ohms Mounting: Round
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Single Special Extension Overall Length: 12.86 in
Frame Length: 7.50 in Shaft Diameter: 0.750 in
Shaft Extension: 1.75 in Assembly/Box Mounting: F1 Only

Speed & Load Characteristics

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Break-Down 0.00 8.80 293.0 2,950 2.00
Full Load 11.00 3.00 100.0 3,512 2.00
Locked-Rotor 69.00 6.60 220.0 0 2.00
Pull-Up 0.00 6.00 200.0 2,800 2.00

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 125 % 150 %
Current (Amps) 6.82 7.32 8.22 8.56 11.01 13.08 15.11
Rated Output (KW) 0.32 0.69 1.09 1.52 1.97 2.46 2.95
Efficiency (%) 0.0 55.3 69.6 74.3 75.8 75.7 74.9
Power Factor (%) 20.3 40.9 57.6 77.2 78.0 81.6 84.9
Speed (RPM) 3,598 3,572 3,554 3,534 3,512 3,486 3,455
Temp. Rise @ FL 0.0 0.0 0.0 0.0 85.0 0.0 0.0
Torque (ft-lbs) 0.00 0.75 1.50 2.25 3.00 3.75 4.50
