/Products/Electric Motors/Single Phase/Leeson/Woodworking/120998.00 Leeson 4HP Contractor Saw Electric Motor, 3600 RPM
Click Image to Expand

Product ID: 120998.00

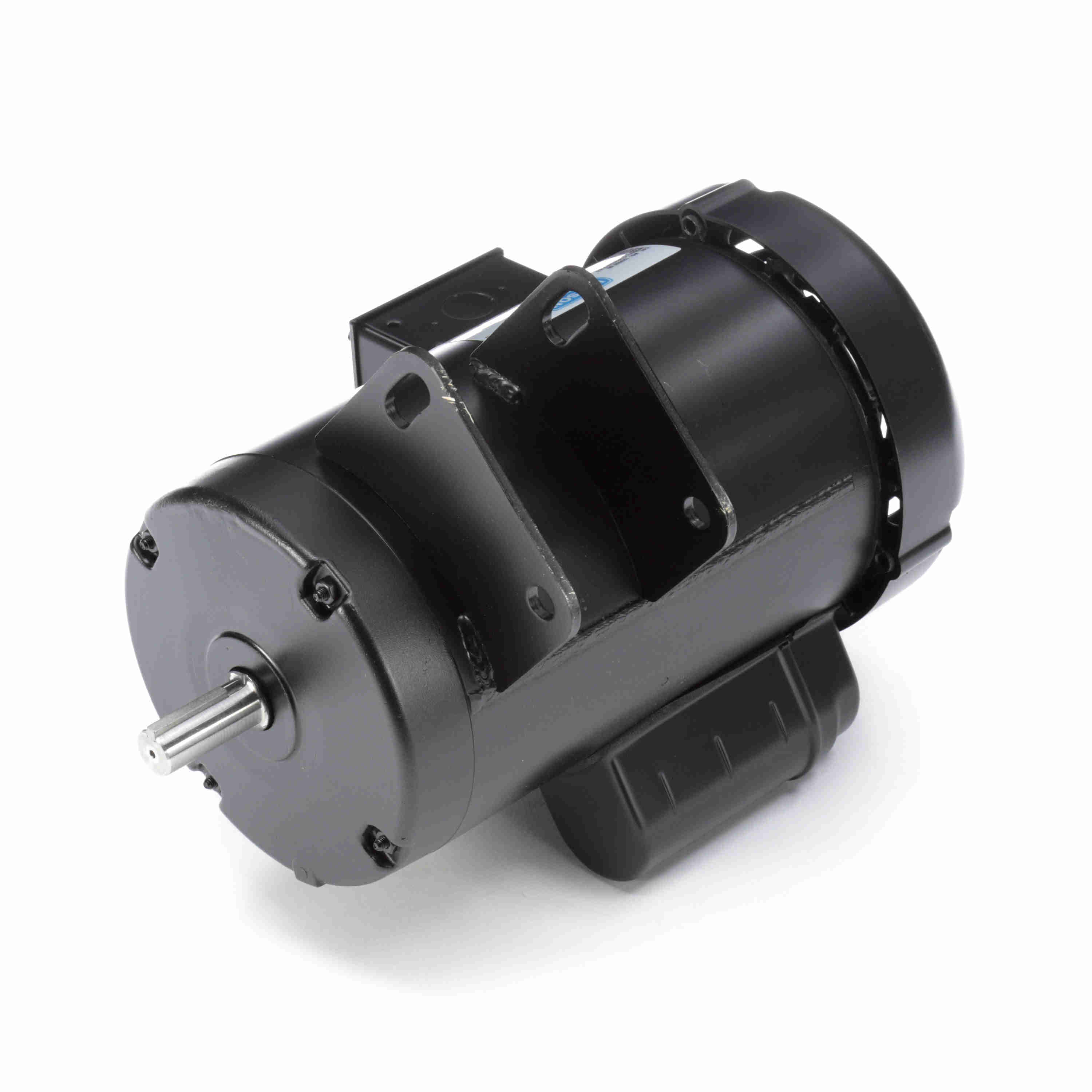

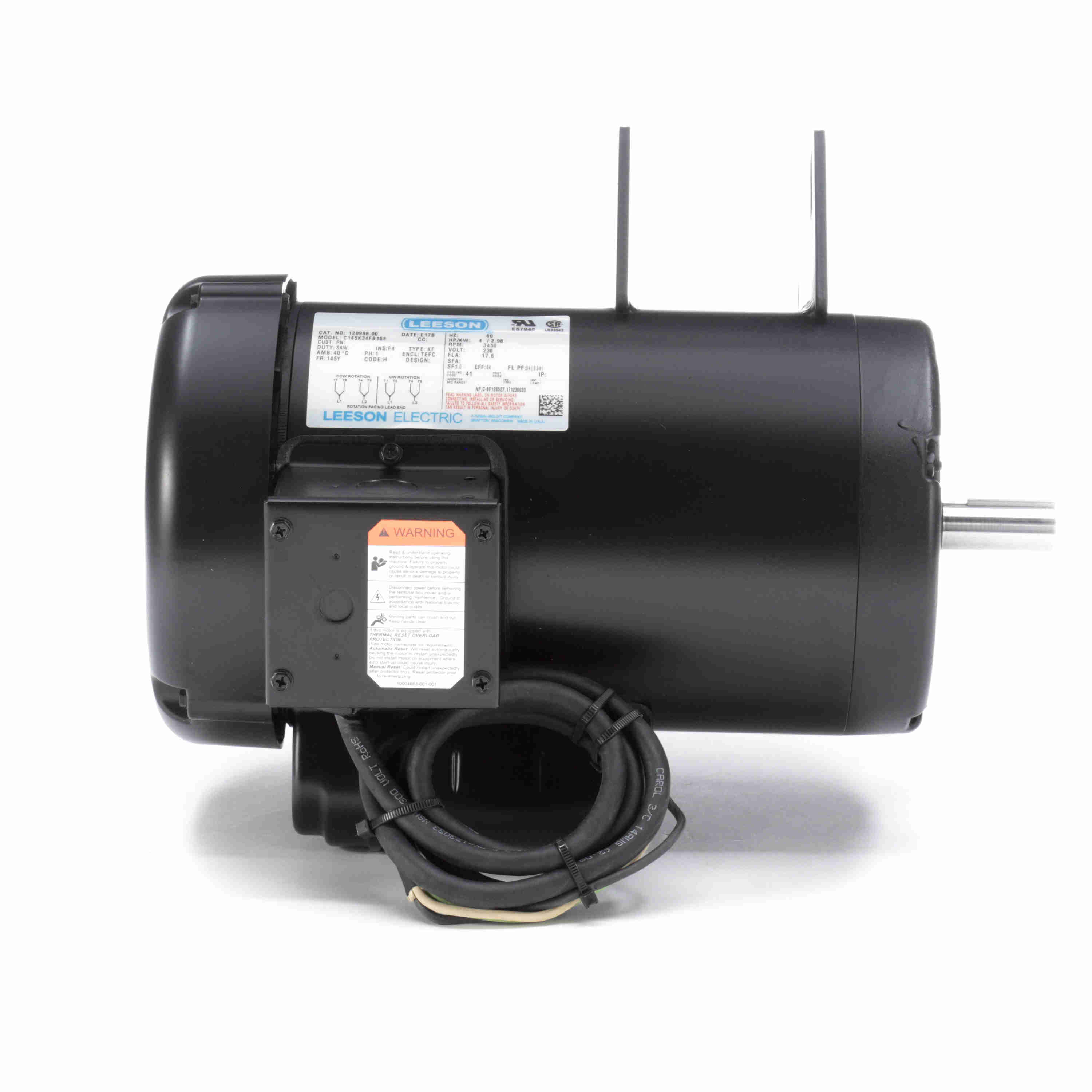

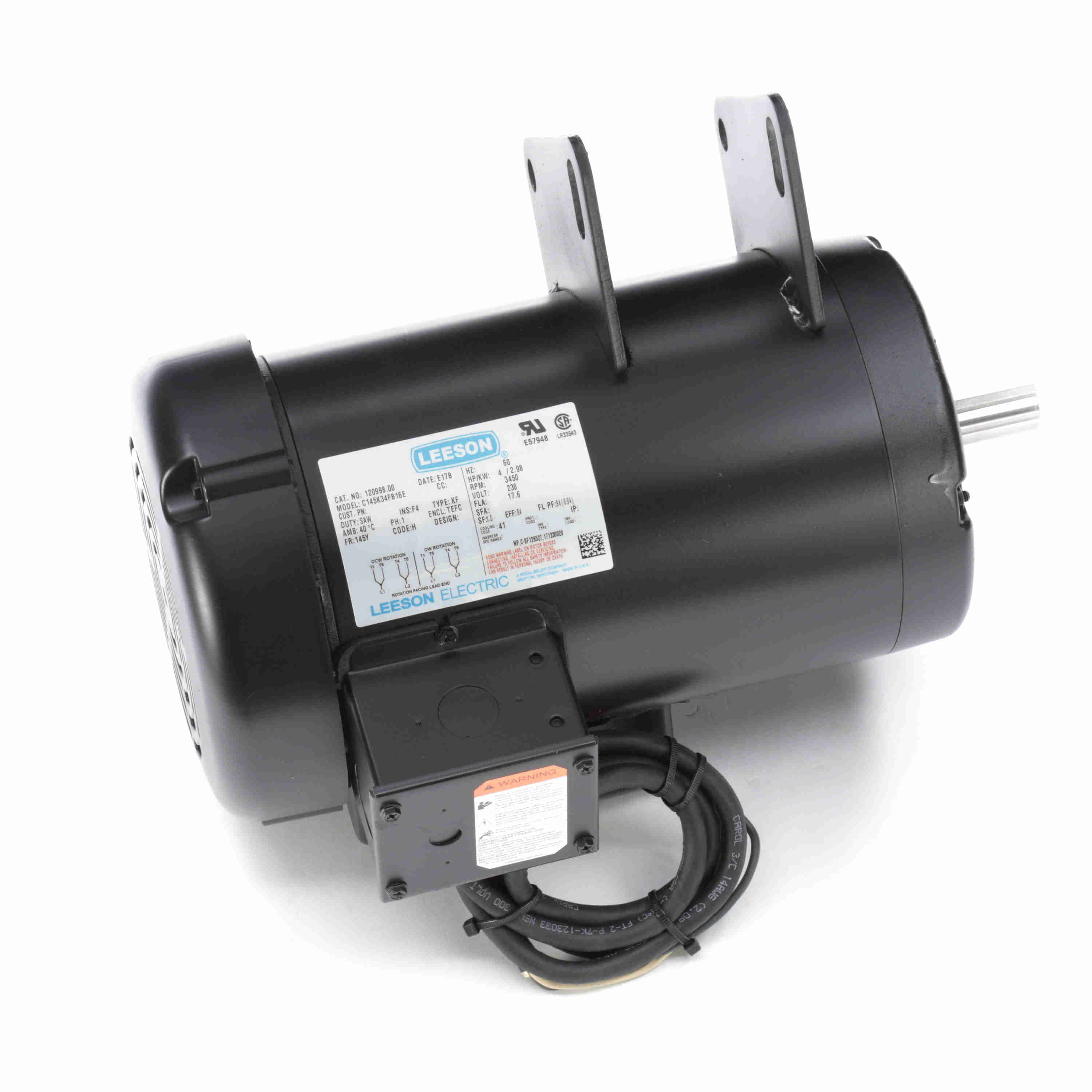

120998.00 Leeson 4HP Contractor Saw Electric Motor, 3600 RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 120998.00

Selected accessories will also be added to cart
$1,136.30 / Each
Quantity:
TEFC, 145Y Frame, 230V 1-Phase 60Hz, Delta UNISAW Mounting

Features

Features
  • Motor pivots on rod for belt tensioning
  • Extra high breakdown torques for maximum cutting power
  • 3/4” Dia. Shaft, 1-3/4” long with keyway
  • Includes 54 inch cord

General Specifications

General Specifications
Model :C145K34FB16E Catalog No :120998.00
Part Description :4HP..3450RPM.145.TEFC./230V.1PH.60HZ.SAW.NOT.40C.1.0SF.ROUND.WOODWORKING.C145K34FB16E Category :Other Purpose
Stock :No

Nameplate Specifications

Nameplate Specifications
Output HP :4 Hp Output KW :3.0 kW
Frequency :60 Hz Voltage :230 V
Current :17.6 A Speed :3450 rpm
Service Factor :1 Phase :1
Efficiency :84 % Duty :Saw
Insulation Class :F Design Code :NO DESIGN CODE
KVA Code :H Frame :145Y
Enclosure :Totally Enclosed Fan Cooled Overload Protector :No
Ambient Temperature :40 °C Drive End Bearing Size :6205
Opp Drive End Bearing Size :6203 UL :Recognized
CSA :Y CE :N
IP Code :43

Technical Specifications

Technical Specifications
Electrical Type :Capacitor Start Capacitor Run Starting Method :Across The Line
Poles :2 Rotation :Fixed Counterclockwise
Mounting :Round Motor Orientation :HORIZONTAL
Drive End Bearing :BALL Opp Drive End Bearing :BALL
Frame Material :Rolled Steel Shaft Type :Single Special Extension
Overall Length :12.86 in Frame Length :8.50 in
Shaft Diameter :0.750 in Shaft Extension :1.75 in
Assembly/Box Mounting :F1 ONLY UPC :691720016497
Weight :51.00 LB
