/Products/Electric Motors/3 Phase/Leeson/Compressor Duty/121004.00 Leeson 1.5HP Compressor Duty Electric Motor, 1750RPM
Click Image to Expand

Product ID: 121004.00

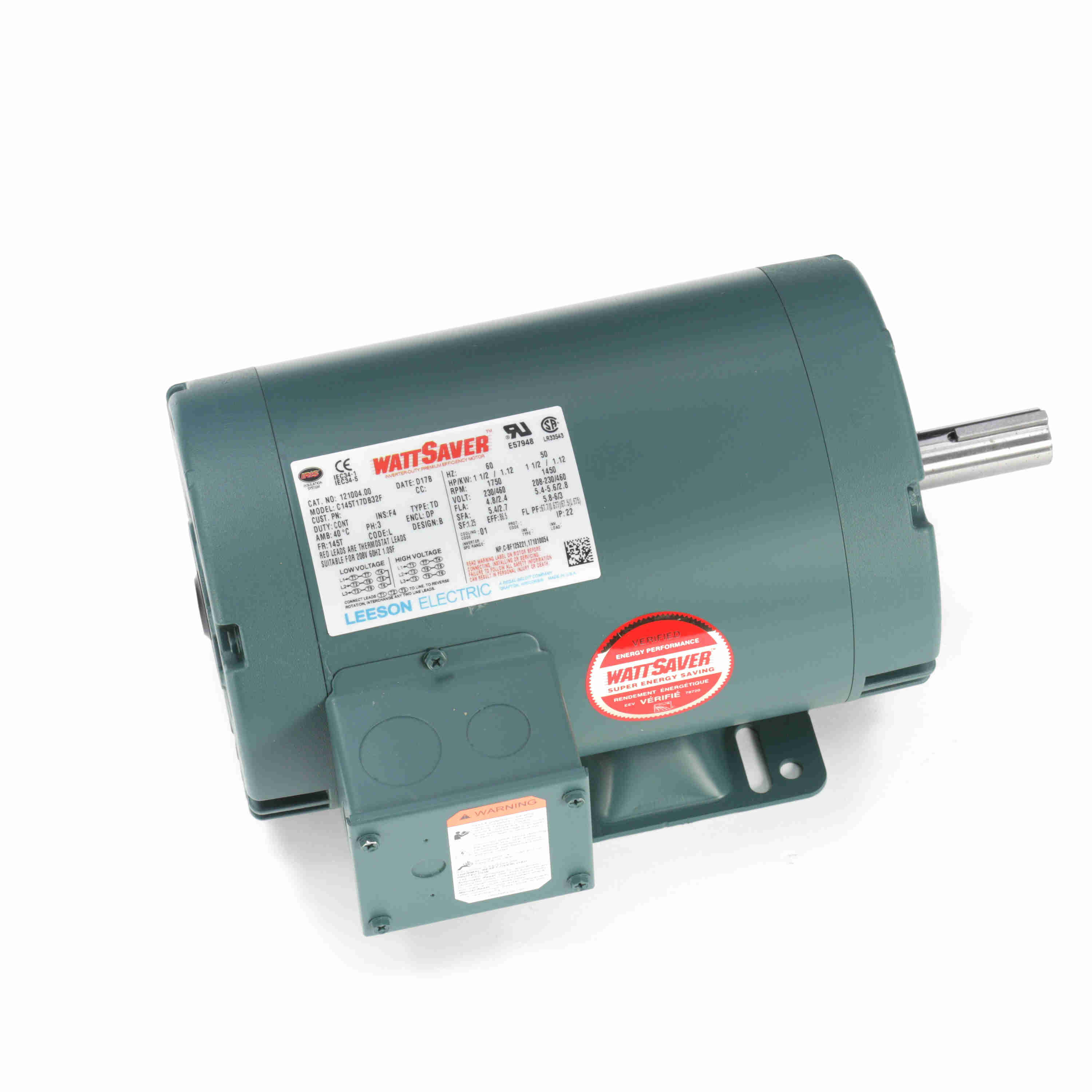

121004.00 Leeson 1.5HP Compressor Duty Electric Motor, 1750RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 121004.00

Selected accessories will also be added to cart
$614.97 / Each
Quantity:
DP, 145T Frame, 208-230/460VAC, 3-Phase, 60Hz, C145T17DB32F, Rigid Base, 0.875" Shaft Diameter
Features
  • Double shielded ball bearings
  • Designed for belted loads
  • Class F Insulation
  • Meets or exceeds NEMA ® service factors
  • 3-year warranty on Premium efficient motors
  • Rolled Steel and Cast Iron Construction
  • Continuous Duty
General Specifications
Model :C145T17DB32F Catalog No :121004.00
Part Description :..1 1/2HP..1750RPM.145T.DP.208-230/460V.3PH.60HZ.CONT.40C.1.15SF.RIGID.C145T17DB32F.....WATTSAVER.AUTOMATIC....... Category :Open Drip Proof (ODP)
Stock :No
Nameplate Specifications
Output HP :1.5 Hp Output KW :1.12 kW
Frequency :60 Hz Voltage :208-230/460 V
Current :4.6-4.8/2.4 A Speed :1750 rpm
Service Factor :1.25 Phase :3
Efficiency :86.5 % Duty :CONTINUOUS
Insulation Class :F Design Code :B
KVA Code :L Frame :145T
Enclosure :DP Overload Protector :NOT
Ambient Temperature :40 °C Drive End Bearing Size :6205
Opp Drive End Bearing Size :6203 UL :Recognized
CSA :Y CE :Y
IP Code :22
Technical Specifications
Electrical Type :SQ CAGE IND RUN Starting Method :ACROSS THE LINE
Poles :4 Rotation :REV
Mounting :RIGID Motor Orientation :HORIZONTAL
Drive End Bearing :BALL Opp Drive End Bearing :BALL
Frame Material :ROLLED STEEL Shaft Type :T
Overall Length :12.69 in Frame Length :7.5 in
Shaft Diameter :0.88 in Shaft Extension :2.25 in
Assembly/Box Mounting :F1 ONLY UPC :691720016534
Weight :44.00 LB
Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Locked-Rotor18.04839.014.75328.009.910.01.50
Pull-Up16.06747.015.00333.02009.400.01.50
Break-Down12.09562.019.80440.01,2007.810.01.50
Full Load2.15100.04.50100.07461.2967.71.50
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 1.23
  • 0.097
  • 0.0
  • 9.9
  • 1,797
  • 0.0
  • 0.00
  • 25 %
  • 1.33
  • 0.375
  • 76.1
  • 35.5
  • 1,786
  • 0.0
  • 1.13
  • 50 %
  • 1.53
  • 0.673
  • 84.2
  • 55.1
  • 1,773
  • 0.0
  • 2.25
  • 75 %
  • 1.81
  • 0.970
  • 87.0
  • 67.2
  • 1,761
  • 0.0
  • 3.38
  • 100 %
  • 2.15
  • 1.291
  • 86.5
  • 67.7
  • 1,746
  • 30.0
  • 4.50
  • 115 %
  • 2.65
  • 1.510
  • 84.5
  • 74.0
  • 1,740
  • 40.0
  • 5.20
  • 125 %
  • 2.52
  • 1.611
  • 85.9
  • 80.1
  • 1,732
  • 0.0
  • 5.63
  • 150 %
  • 2.94
  • 1.945
  • 84.6
  • 83.2
  • 1,716
  • 0.0
  • 6.75
  • 175 %
  • 3.37
  • 2.286
  • 83.1
  • 85.1
  • 1,699
  • 0.0
  • 7.88
  • 200 %
  • 3.85
  • 2.650
  • 80.9
  • 86.4
  • 1,678
  • 0.0
  • 9.00
