/Products/Electric Motors/Single Phase/Leeson/Pressure Washer/121465.00 Leeson 2HP Electric Motor, 1800RPM
Click Image to Expand

Product ID: 121465.00

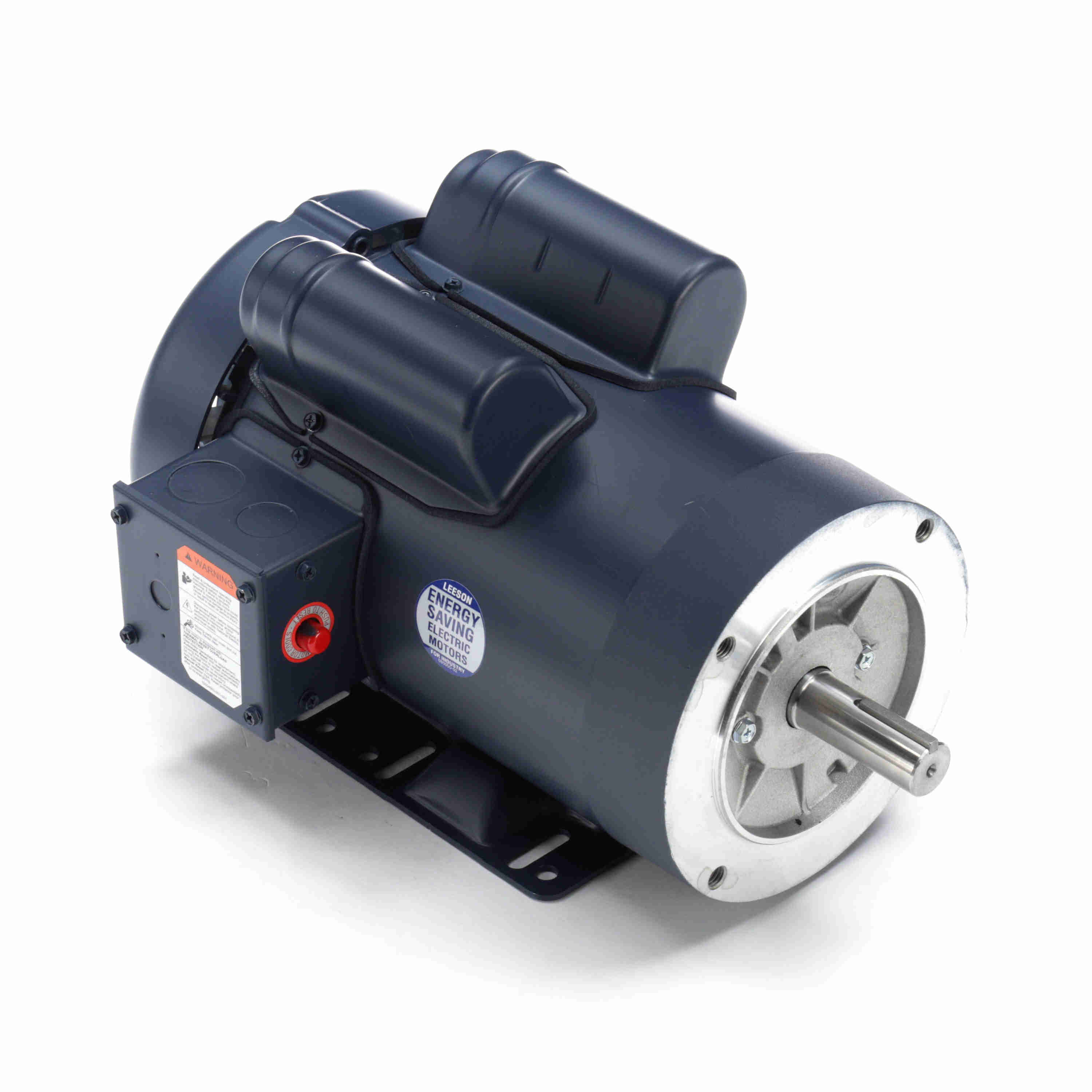

121465.00 Leeson 2HP Electric Motor, 1800RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 121465.00

Selected accessories will also be added to cart
$1,074.74 / Each
Quantity:
P145K17FK10E, 145TC Frame, 115/208-230V
Features
  • Double shielded ball bearings
  • Dynamically balanced rotors
  • Capacitor start / capacitor run designs to reduce amp draw
  • Manual reset overload protection
  • High service factor
General Specifications
Model : P145K17FK10E Catalog No : 121465.00
Part Description : 2HP..1740RPM.145.TEFC./V.1PH.60HZ.CONT.MANUAL.40C.1.0SF.RIGID C.GENERAL PURPOSE.P145K17FK10E Category : Totally Enclosed Fan Cooled (TEFC)
Stock : No
Nameplate Specifications
Output HP : 2 Hp Output KW : 1.49 kW
Frequency : 60 Hz Voltage : 115/208-230 V
Current : 18.4/9.2 A Speed : 1740 rpm
Service Factor : 1 Phase : 1
Efficiency : 82 % Duty : CONTINUOUS
Insulation Class : B Design Code : L
KVA Code : H Frame : 145TC
Enclosure : TEFC Overload Protector : MANUAL
Ambient Temperature : 40 °C Drive End Bearing Size : 6205
Opp Drive End Bearing Size : 6203 UL : Recognized ( Not Protector)
CSA : Y CE : N
IP Code : 43
Technical Specifications
Electrical Type : CAP START CAP RUN Starting Method : ACROSS THE LINE
Poles : 4 Rotation : SELECTIVE CCW
Mounting : RIGID Motor Orientation : HORIZONTAL
Drive End Bearing : BALL Opp Drive End Bearing : BALL
Frame Material : ROLLED STEEL Shaft Type : T
Overall Length : 13.93 in Frame Length : 8 in
Shaft Diameter : 0.88 in Shaft Extension : 2.25 in
Assembly/Box Mounting : F1 ONLY UPC : 691720017029
Weight : 46.00 LB
Speed Characteristics
Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Break-Down 31.60 318.0 15.40 258.0 1,479 7.00 0.0 2.00
Locked-Rotor 66.50 668.0 16.20 271.0 0 12.00 0.0 2.00
Full Load 9.95 100.0 5.98 100.0 1,756 1.93 84.2 2.00
Pull-Up 57.10 574.0 8.87 148.0 1,221 9.80 0.0 2.00
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 5.02
  • 0.380
  • 0.0
  • 32.9
  • 1,798
  • 0.0
  • 0.00
  • 25 %
  • 5.47
  • 0.693
  • 53.9
  • 55.0
  • 1,788
  • 0.0
  • 1.47
  • 50 %
  • 6.67
  • 1.081
  • 69.0
  • 70.3
  • 1,776
  • 0.0
  • 2.96
  • 75 %
  • 8.13
  • 1.488
  • 75.2
  • 79.4
  • 1,765
  • 0.0
  • 4.46
  • 100 %
  • 9.86
  • 1.920
  • 77.6
  • 84.6
  • 1,752
  • 96.9
  • 5.99
  • 125 %
  • 11.85
  • 2.390
  • 77.9
  • 87.7
  • 1,737
  • 0.0
  • 7.56
  • 150 %
  • 14.19
  • 2.910
  • 77.0
  • 89.0
  • 1,720
  • 0.0
  • 9.16
