Product ID: 121915.00

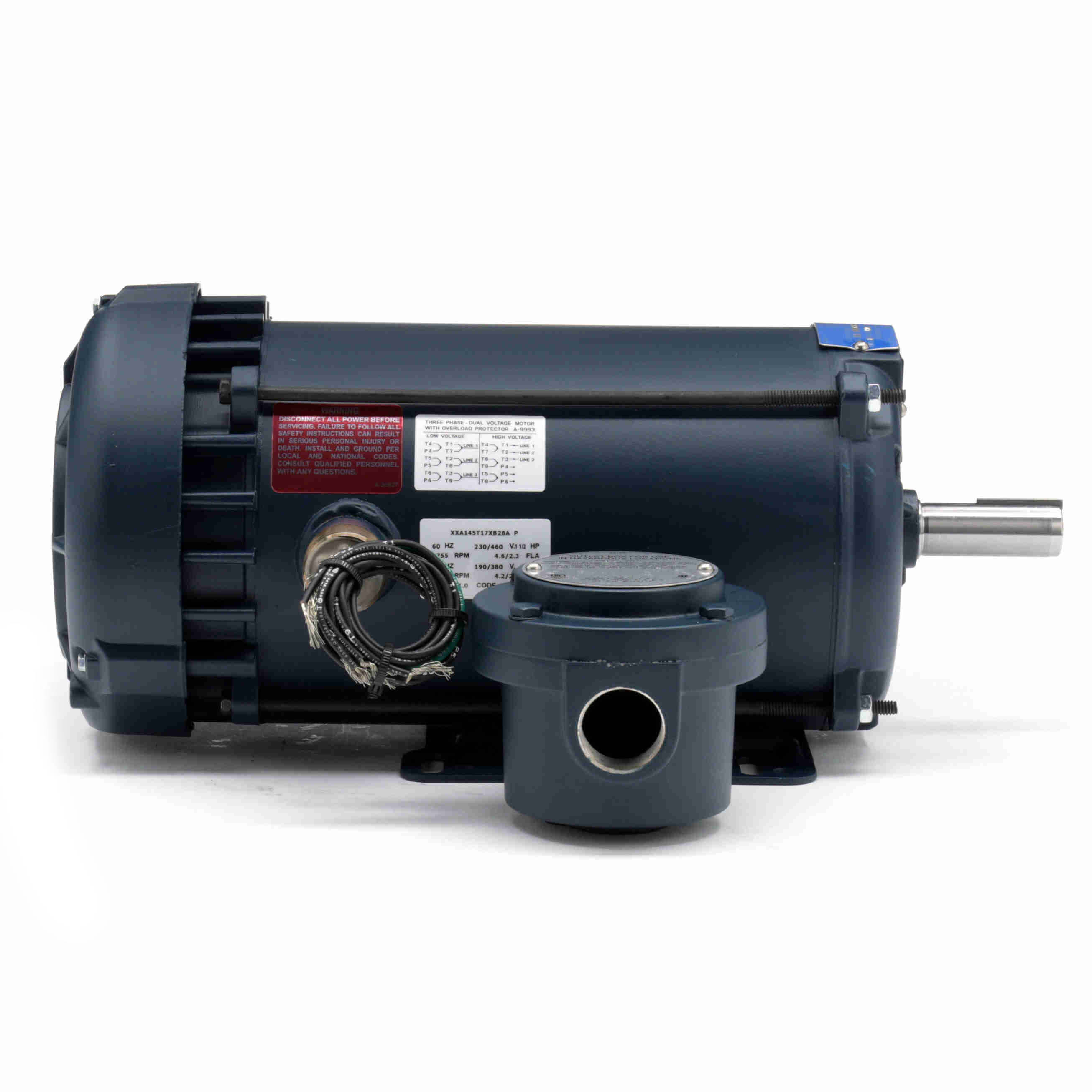

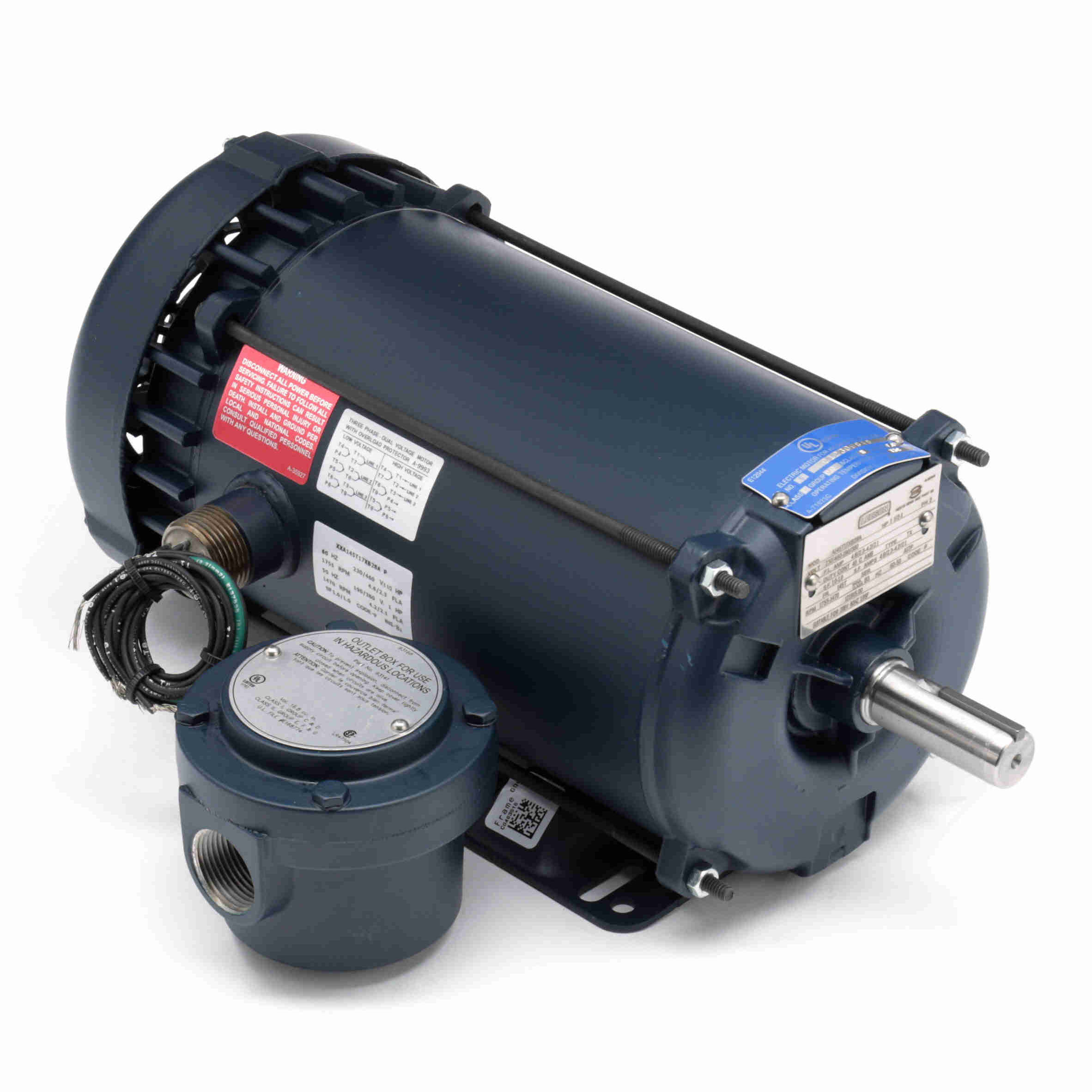

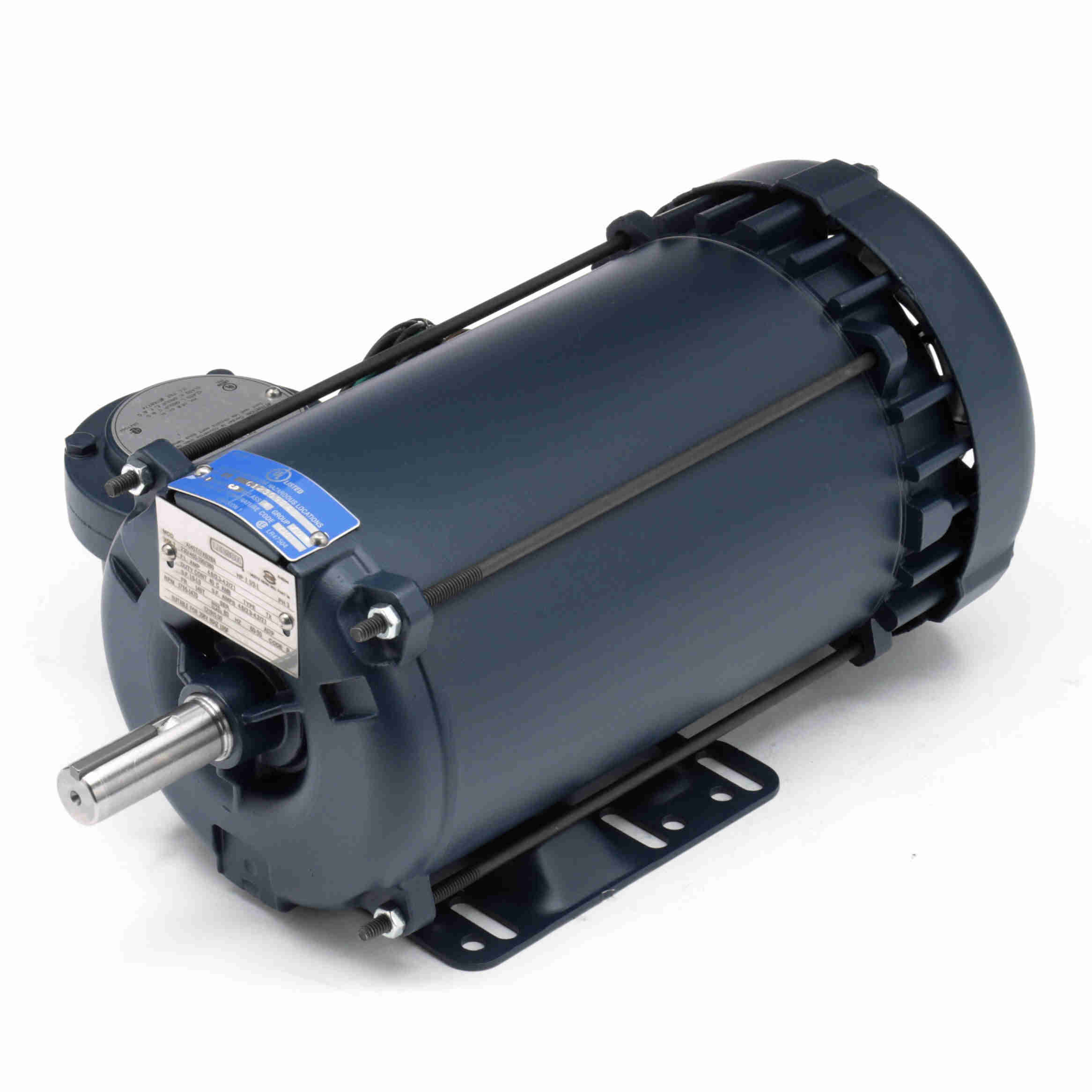

121915.00 Leeson 1/2HP Explosion Proof Electric Motor, 1800RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 121915.00

Selected accessories will also be added to cart
$1,299.97 / Each
Quantity:
EPFC, 145T Frame, 230/460V 3-Phase 60Hz, A145T17XB28A
Features
  • Meets UL and CSA safety requirements
  • Automatic overload protected
  • Internal mounted capacitors
  • Double shielded ball bearings
  • Meets temperature code T3B
General Specifications
Model :A145T17XB28A Catalog No :121915.00
Part Description :..1 1/2HP..1800RPM.145T.EPFC.230/460V.3PH.60HZ.CONT.40C.1.15SF.RIGID.............. Category :Explosion Proof
Stock :No
Nameplate Specifications
Output HP :1.50 Hp Output KW :1.1 kW
Frequency :60 Hz Voltage :230/460 V
Current :4.6/2.3 A Speed :1755 rpm
Service Factor :1 Phase :3
Efficiency :86.5 % Duty :Continuous
Insulation Class :B Design Code :B
KVA Code :P Frame :145T
Enclosure :Explosion Proof Fan cooled Overload Protector :Automatic
Ambient Temperature :40 °C Drive End Bearing Size :205
Opp Drive End Bearing Size :203 UL :Listed
CSA :N CE :N
IP Code :54
Technical Specifications
Electrical Type :Squirrel Cage Induction Run Starting Method :Across The Line
Poles :4 Rotation :Reversible
Mounting :Rigid Base Motor Orientation :Horizontal
Drive End Bearing :Ball Opp Drive End Bearing :Ball
Frame Material :Rolled Steel Shaft Type :T
Overall Length :15.00 in Frame Length :7.81 in
Shaft Diameter :0.875 in Shaft Extension :2.25 in
Assembly/Box Mounting :F1 ONLY UPC :691720211823
Weight :59.00 LB
Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
2/319.20835.022.30496.01,2000.000.01.50
No Load1.5065.00.000.01,8000.000.01.50
Pull-Up23.301,013.020.20449.01300.000.01.50
Break-Down16.00696.026.00578.01,1900.0085.51.50
Locked-Rotor24.001,043.021.20471.000.0069.51.50
Full Load2.30100.04.50100.01,7550.000.01.50
1/322.80991.018.00400.06000.000.01.50
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 1.50
  • 0.090
  • 0.0
  • 7.5
  • 1,800
  • 0.0
  • 0.00
  • 25 %
  • 1.55
  • 0.380
  • 74.0
  • 30.5
  • 1,790
  • 0.0
  • 1.10
  • 50 %
  • 1.75
  • 0.680
  • 82.5
  • 49.0
  • 1,780
  • 0.0
  • 2.20
  • 75 %
  • 2.00
  • 1.000
  • 85.5
  • 62.5
  • 1,765
  • 0.0
  • 3.50
  • 100 %
  • 2.30
  • 1.300
  • 86.5
  • 71.0
  • 1,755
  • 35.0
  • 4.50
  • 115 %
  • 2.50
  • 1.500
  • 86.5
  • 75.0
  • 1,750
  • 45.0
  • 5.20
  • 125 %
  • 2.65
  • 1.650
  • 85.5
  • 77.0
  • 1,745
  • 60.0
  • 5.65
