/Products/Electric Motors/3 Phase Explosion Proof/Leeson/C-Face with Base/121919.00 Leeson 1HP Explosion Proof Electric Motor, 1800RPM
Click Image to Expand

Product ID: 121919.00

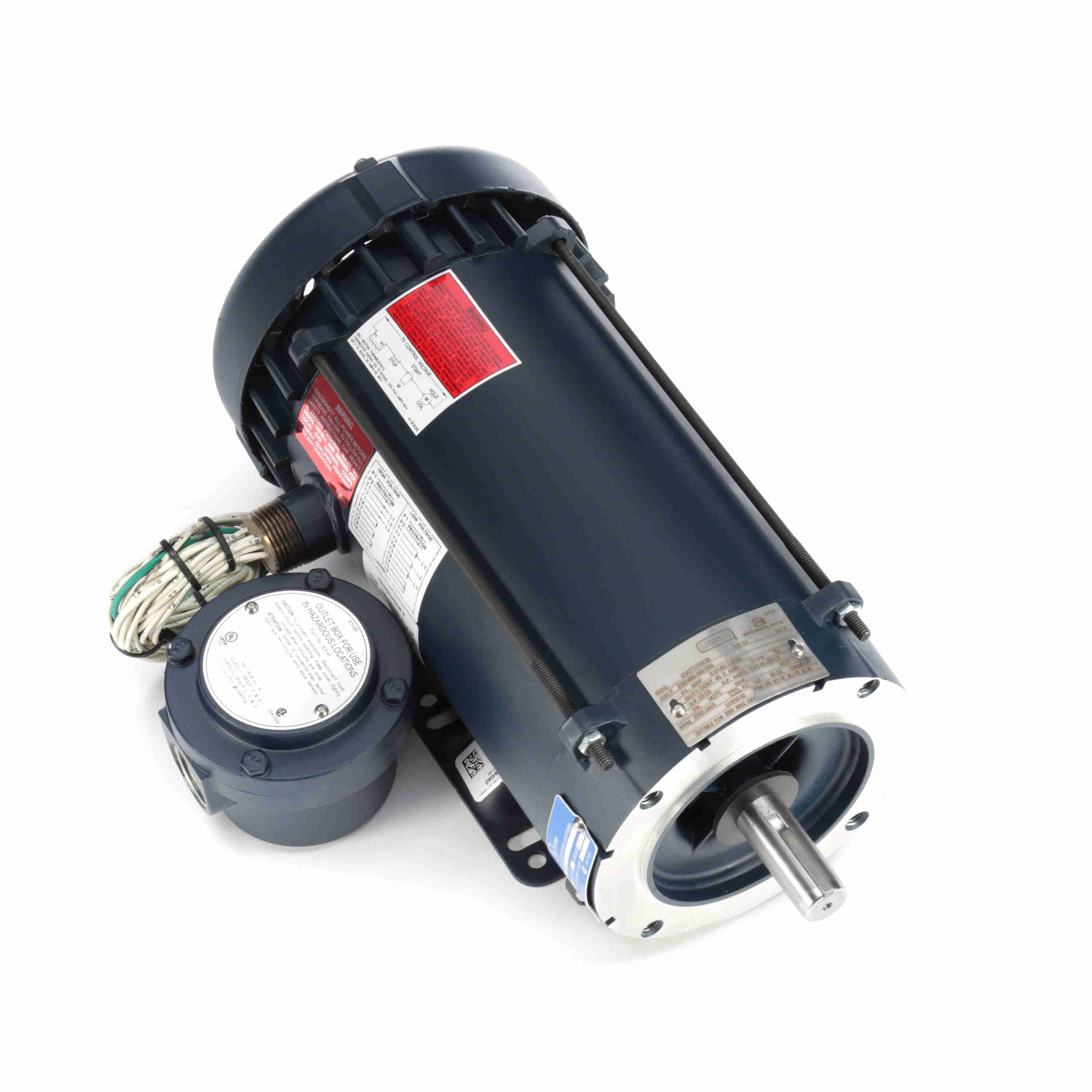

121919.00 Leeson 1HP Explosion Proof Electric Motor, 1800RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 121919.00

Selected accessories will also be added to cart
$1,299.97 / Each
Quantity:
EPFC, 143TC Frame, 230/460V 3-Phase 60Hz, T-Stat, Rigid Base, C-Face, C143T17XK3B
Features
  • Meets UL and CSA safety requirements
  • Automatic overload protected
  • Internal mounted capacitors
  • Double shielded ball bearings
  • Meets temperature code T3B
General Specifications
Model :C143T17XK3B Catalog No :121919.00
Part Description :..1HP..1800RPM.143TC.EPFC.230/460V.3PH.60HZ.CONT.40C.1.15SF.RIGID-C.............. Category :Explosion Proof
Stock :No
Nameplate Specifications
Output HP :1 Hp Output KW :0.75 kW
Frequency :60 Hz Voltage :230/460 V
Current :3.3/1.7 A Speed :1765 rpm
Service Factor :1 Phase :3
Efficiency :85.5 % Duty :Continuous
Insulation Class :F Design Code :B
KVA Code :P Frame :143TC
Enclosure :Explosion Proof Fan cooled Overload Protector :No
Ambient Temperature :40 °C Drive End Bearing Size :6205
Opp Drive End Bearing Size :6203 UL :Listed
CSA :N CE :N
IP Code :54
Technical Specifications
Electrical Type :Squirrel Cage Inverter Rated Starting Method :Line Or Inverter
Poles :4 Rotation :Reversible
Mounting :Rigid Base Motor Orientation :Horizontal
Drive End Bearing :Ball Opp Drive End Bearing :Ball
Frame Material :Rolled Steel Shaft Type :T
Overall Length :16.00 in Frame Length :8.81 in
Shaft Diameter :0.875 in Shaft Extension :2.25 in
Assembly/Box Mounting :F1 ONLY UPC :691720211854
Weight :48.00 LB
Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Locked-Rotor17.001,030.013.70457.000.0069.51.00
No Load1.1570.00.000.01,8000.000.01.00
Full Load1.60100.03.00100.01,7650.000.01.00
Break-Down11.00667.016.80560.01,2700.0083.01.00
2/313.60824.014.40480.01,2000.000.01.00
1/316.15979.011.65388.06000.000.01.00
Pull-Up16.00970.012.50417.01150.000.01.00
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 1.15
  • 0.070
  • 0.0
  • 7.5
  • 1,800
  • 0.0
  • 0.00
  • 25 %
  • 1.20
  • 0.260
  • 72.0
  • 30.0
  • 1,790
  • 0.0
  • 0.75
  • 50 %
  • 1.30
  • 0.460
  • 81.5
  • 46.5
  • 1,785
  • 0.0
  • 1.50
  • 75 %
  • 1.45
  • 0.660
  • 84.0
  • 59.5
  • 1,775
  • 0.0
  • 2.25
  • 100 %
  • 1.60
  • 0.870
  • 85.5
  • 68.0
  • 1,765
  • 30.0
  • 3.00
  • 115 %
  • 1.75
  • 1.000
  • 85.5
  • 72.0
  • 1,760
  • 40.0
  • 3.45
  • 125 %
  • 1.85
  • 1.090
  • 85.5
  • 74.0
  • 1,755
  • 50.0
  • 3.75
