/Products/Electric Motors/3 Phase Explosion Proof/Leeson/C-Face with Base/121921.00 Leeson 2HP Explosion Proof Electric Motor, 1800RPM
Click Image to Expand

Product ID: 121921.00

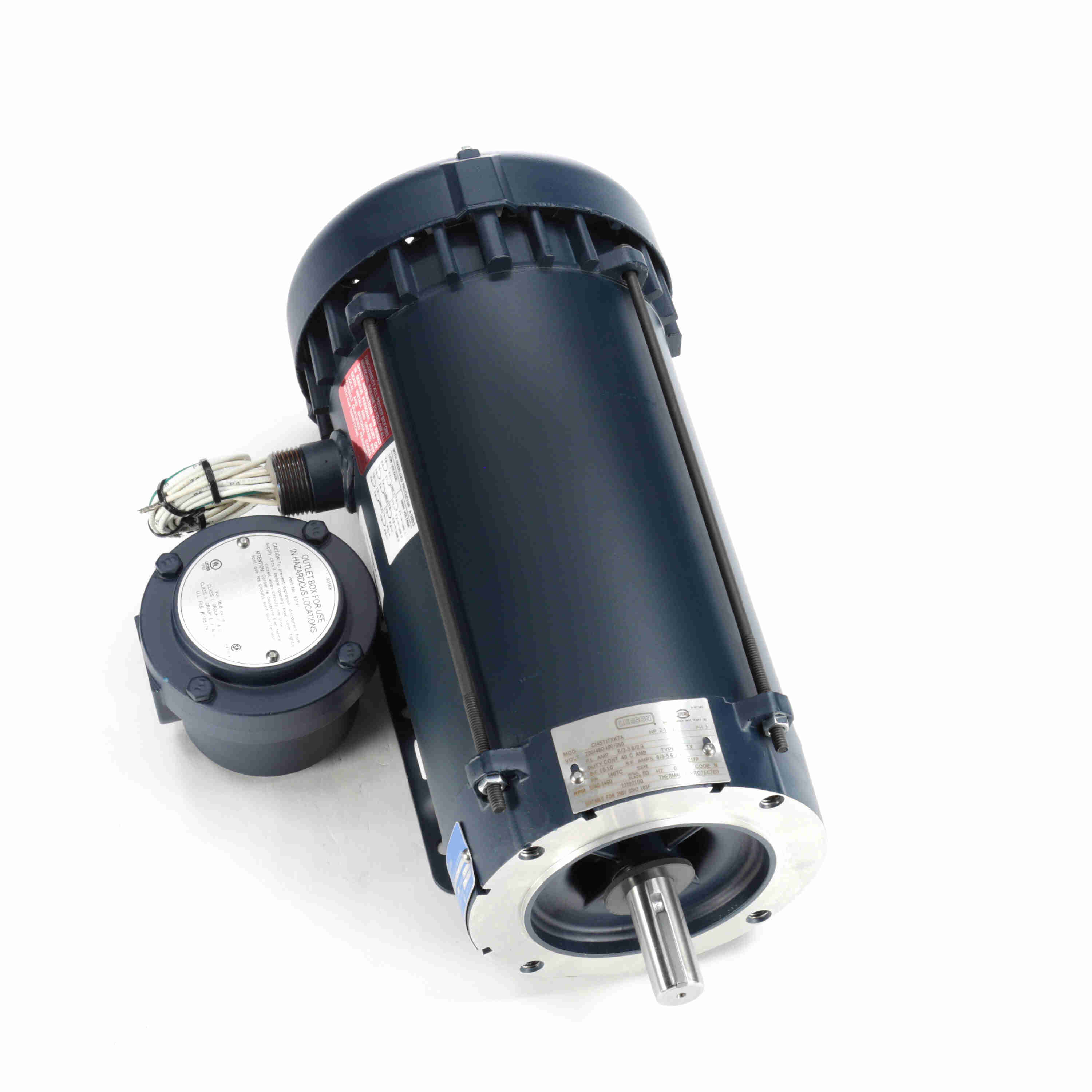

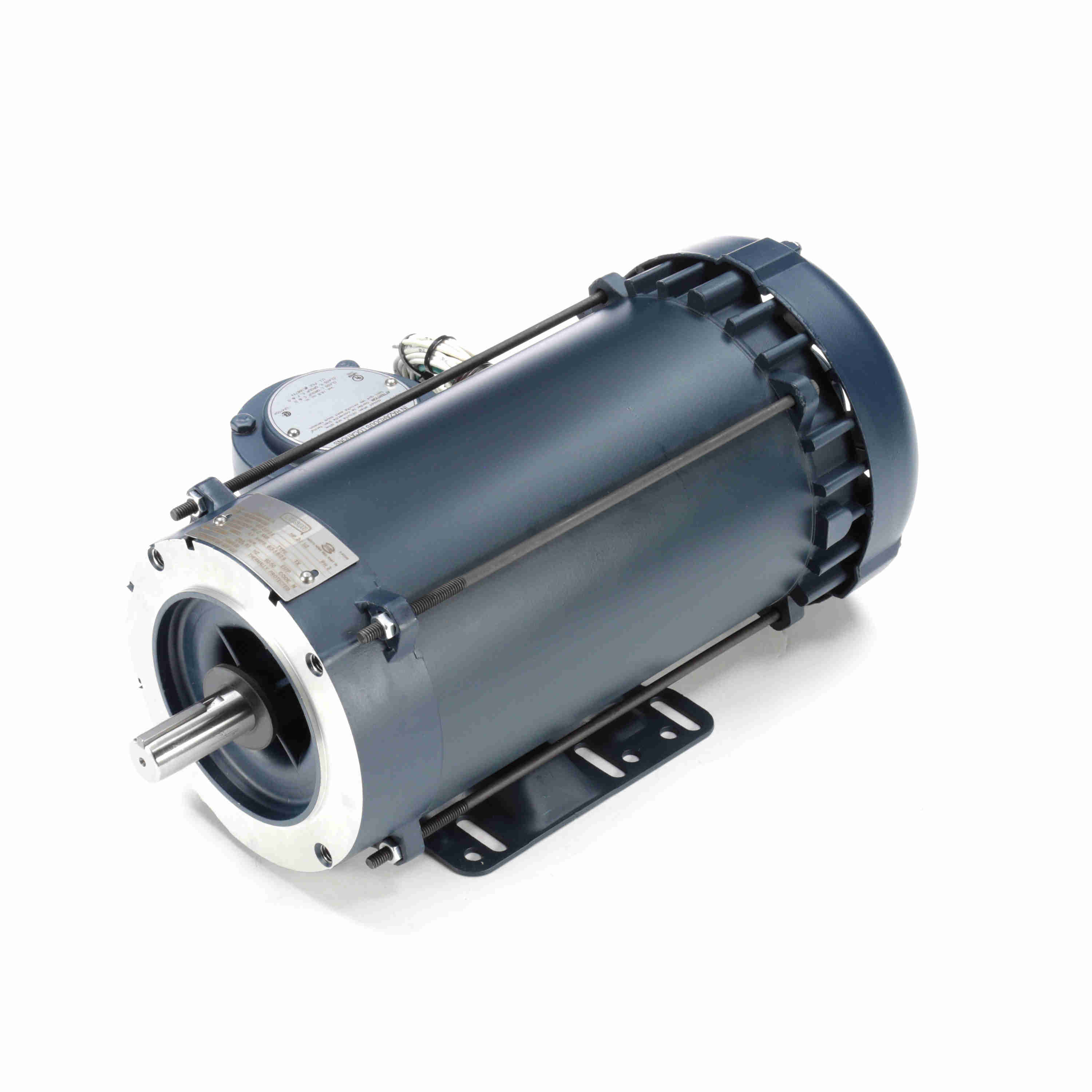

121921.00 Leeson 2HP Explosion Proof Electric Motor, 1800RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 121921.00

Selected accessories will also be added to cart
$1,499.97 / Each
Quantity:
EPFC, 145TC Frame, 230/460V 3-Phase 60Hz, Rigid Base, C-Face, C145T17XK7A
Features
  • Meets UL and CSA safety requirements
  • Automatic overload protected
  • Internal mounted capacitors
  • Double shielded ball bearings
  • Meets temperature code T3B
General Specifications
Model :C145T17XK7A Catalog No :121921.00
Part Description :..2HP..1800RPM.145TC.EPFC.230/460V.3PH.60HZ.CONT.40C.1.15SF.RIGID-C.............. Category :Explosion Proof
Stock :No
Nameplate Specifications
Output HP :2 Hp Output KW :1.5 kW
Frequency :60 Hz Voltage :230/460 V
Current :6.0/3.0 A Speed :1760 rpm
Service Factor :1 Phase :3
Efficiency :86.5 % Duty :Continuous
Insulation Class :B Design Code :B
KVA Code :N Frame :145TC
Enclosure :Explosion Proof Fan cooled Overload Protector :Automatic
Ambient Temperature :40 °C Drive End Bearing Size :205
Opp Drive End Bearing Size :203 UL :Listed
CSA :N CE :N
IP Code :54
Technical Specifications
Electrical Type :Squirrel Cage Induction Run Starting Method :Across The Line
Poles :4 Rotation :Reversible
Mounting :Rigid Base Motor Orientation :Horizontal
Drive End Bearing :Ball Opp Drive End Bearing :Ball
Frame Material :Rolled Steel Shaft Type :T
Overall Length :16.50 in Frame Length :9.31 in
Shaft Diameter :0.875 in Shaft Extension :2.25 in
Assembly/Box Mounting :F1 ONLY UPC :691720211878
Weight :55.00 LB
Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Full Load3.00100.06.00100.01,7600.000.02.00
No Load1.9063.00.000.01,8000.000.02.00
Pull-Up29.50983.023.70395.01150.000.02.00
1/329.00967.020.80347.06000.000.02.00
2/324.40813.025.70428.01,2000.000.02.00
Locked-Rotor30.501,017.024.50408.000.0071.02.00
Break-Down19.50650.033.20553.01,2000.0087.52.00
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 1.90
  • 0.110
  • 0.0
  • 7.0
  • 1,800
  • 0.0
  • 0.00
  • 25 %
  • 2.00
  • 0.500
  • 77.0
  • 30.0
  • 1,790
  • 0.0
  • 1.50
  • 50 %
  • 2.30
  • 0.880
  • 85.5
  • 49.0
  • 1,780
  • 0.0
  • 3.00
  • 75 %
  • 2.60
  • 1.280
  • 86.5
  • 62.0
  • 1,770
  • 0.0
  • 4.45
  • 100 %
  • 3.00
  • 1.700
  • 86.5
  • 71.0
  • 1,760
  • 45.0
  • 6.00
  • 115 %
  • 3.30
  • 1.950
  • 87.5
  • 75.0
  • 1,755
  • 50.0
  • 6.90
  • 125 %
  • 3.50
  • 2.150
  • 87.5
  • 77.0
  • 1,750
  • 60.0
  • 7.50
