/Products/Electric Motors/3 Phase Explosion Proof/Leeson/Washguard, C-Face with Base/122397.00 Leeson 2HP Washguard Explosion Proof Electric Motor, 1800RPM
Click Image to Expand

Product ID: 122397.00

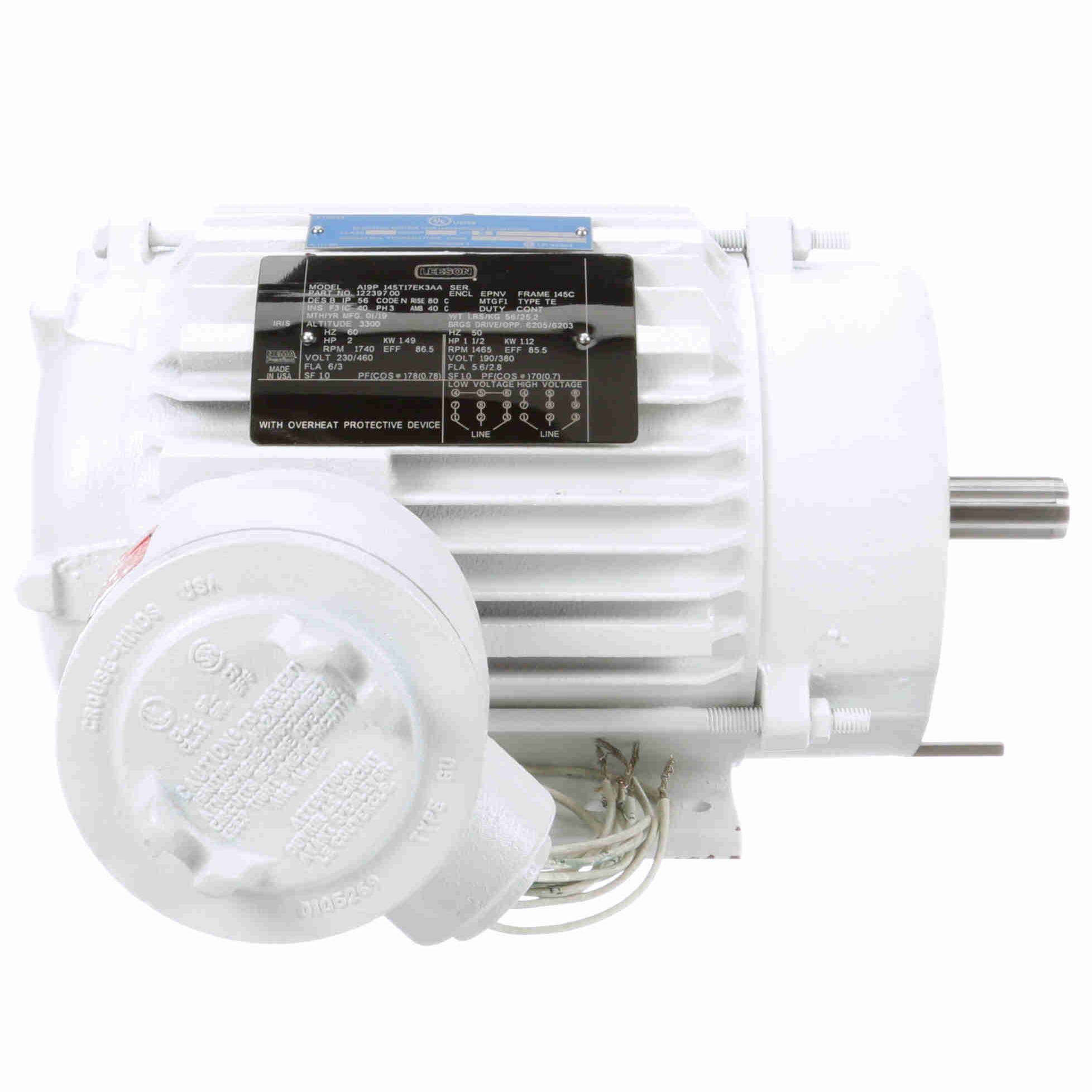

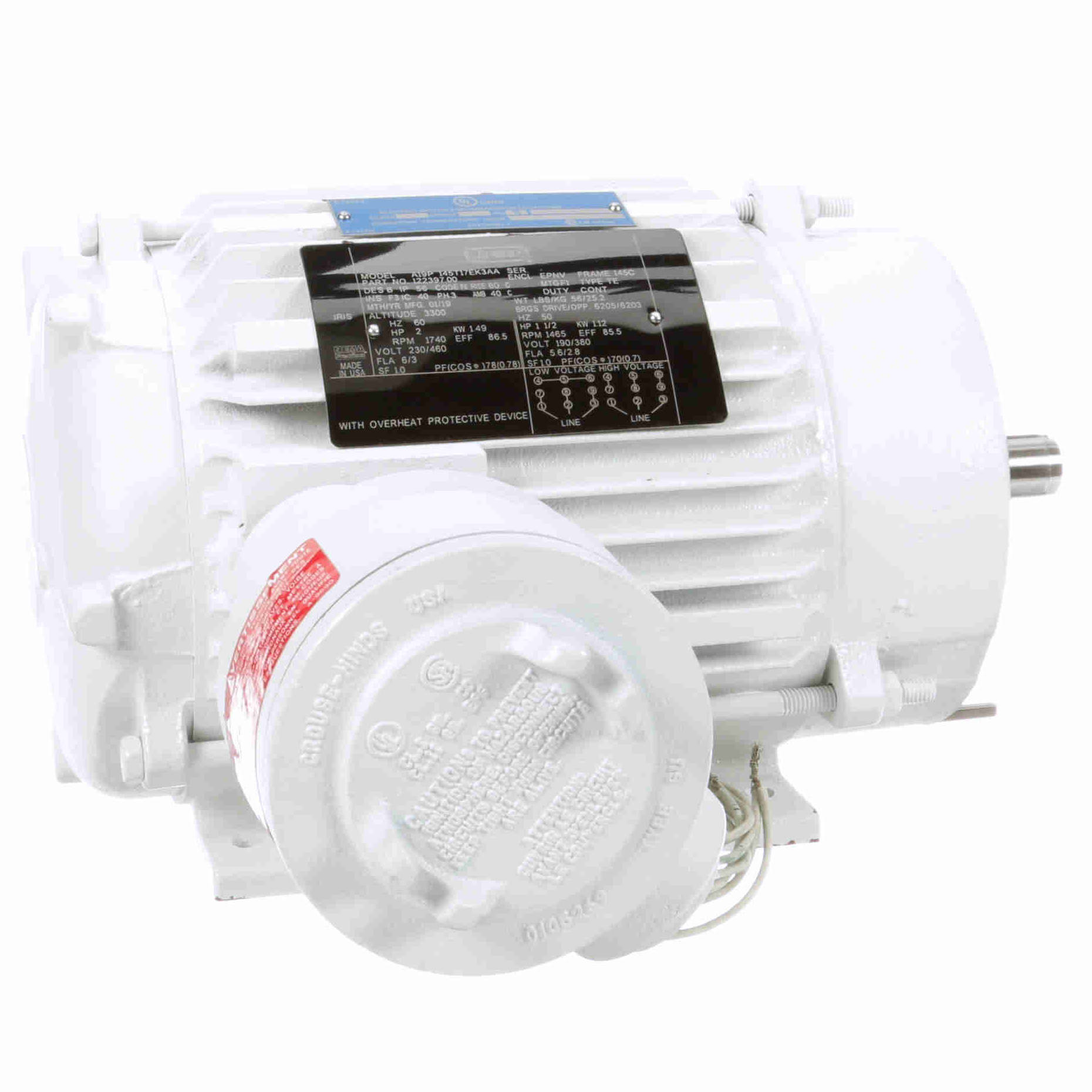

122397.00 Leeson 2HP Washguard Explosion Proof Electric Motor, 1800RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 122397.00

Selected accessories will also be added to cart
$1,499.97 / Each
Quantity:
EPNV, 145C Frame, 230/460VAC 3-Phase 60Hz, Rigid Base, C-Face, Cast Iron Frame, 7/8" Keyed Shaft

Features

  • USDA-approved finish
  • Sealed Bearings; Interior Corrosion Protected
  • Shaft Seals on Both Ends
  • Cast iron Conduit Box
  • Rigid Base with C Face
  • Stainless Steel Nameplate
  • Potted Leads; T-Stats
  • Premium Efficiency

General Specifications

UPC: 691720993903 Weight: 56.00 LB
Packaged Length: 15.5 IN Packaged Width: 14 IN
Packaged Height: 9.38 IN

Nameplate Specifications

Output HP: 2 Hp Output KW: 1.5 kW
Frequency: 60 Hz Voltage: 230/460 V
Current: 6.0/3.0 A Speed: 1740 rpm
Service Factor: 1 Phase: 3
Efficiency: 86.5 % Power Factor: 78
Duty: Continuous Insulation Class: F
Design Code: B KVA Code: N
Frame: 145C Enclosure: Explosion Proof Non Ventilated
Thermal Protection: Thermostats (N/C) Ambient Temperature: 40 °C
Drive End Bearing Size: 6205 Opp Drive End Bearing Size: 6203
UL: UL Listed And CSA Certified CSA: Y
CE: N IP Code: 56
Hazardous Location: EXP PROOF CL I GR C&D CL II GR F&G T3B

Technical Specifications

Electrical Type: Squirrel Cage Induction Run Starting Method: Across The Line
Poles: 4 Rotation: Reversible
Resistance Main: 6.51 Ohms Mounting: Rigid base
Motor Orientation: HORIZONTAL Drive End Bearing: BALL
Opp Drive End Bearing: BALL Frame Material: Cast Iron
Shaft Type: T Overall Length: 13.42 in
Frame Length: 7.50 in Shaft Diameter: 0.875 in
Shaft Extension: 2.12 in Assembly/Box Mounting: F1 Only

Speed & Load Characteristics

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Break-Down 16.00 533.0 28.00 467.0 1,050 76.5 2.00
Locked-Rotor 30.00 833.0 22.00 367.0 0 61.0 2.00
2/3 21.00 700.0 23.00 383.0 1,200 2.00
1/3 25.00 800.0 18.50 308.0 600 2.00
Pull-Up 22.50 750.0 20.00 333.0 900 2.00
No Load 1.60 53.0 0.00 0.0 1,800 2.00
Full Load 3.00 100.0 6.00 100.0 1,740 2.00

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 125 %
Current (Amps) 1.60 2.00 2.10 2.50 3.00 3.10 3.30
Rated Output (KW) 0.12 0.50 0.90 1.30 1.70 2.00 2.20
Efficiency (%) 0.0 74.0 82.5 85.5 86.5 85.5 85.5
Power Factor (%) 9.5 35.0 55.0 70.0 78.0 81.0 82.5
Speed (RPM) 1,800 1,785 1,775 1,760 1,740 1,735 1,730
Temp. Rise @ FL 0.0 0.0 0.0 0.0 80.0 95.0 0.0
Torque (ft-lbs) 0.00 1.50 3.00 4.50 6.00 7.00 7.60
