/Products/Electric Motors/Single Phase Electric Motors/Marathon Single Phase Electric Motors/131536.00 Marathon 2HP Air Compressor Electric Motor, 1740RPM
Click Image to Expand

Product ID: 131536.00

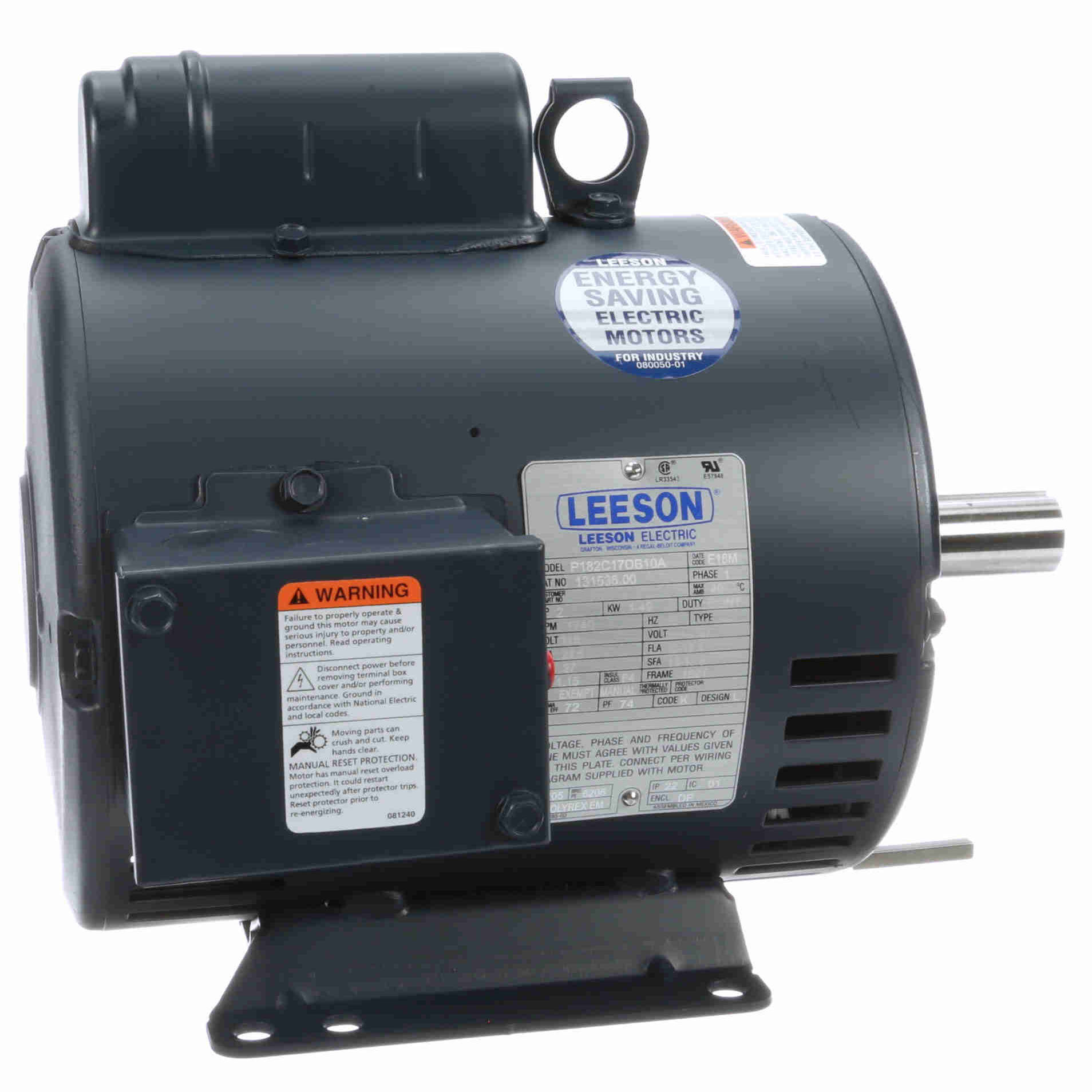

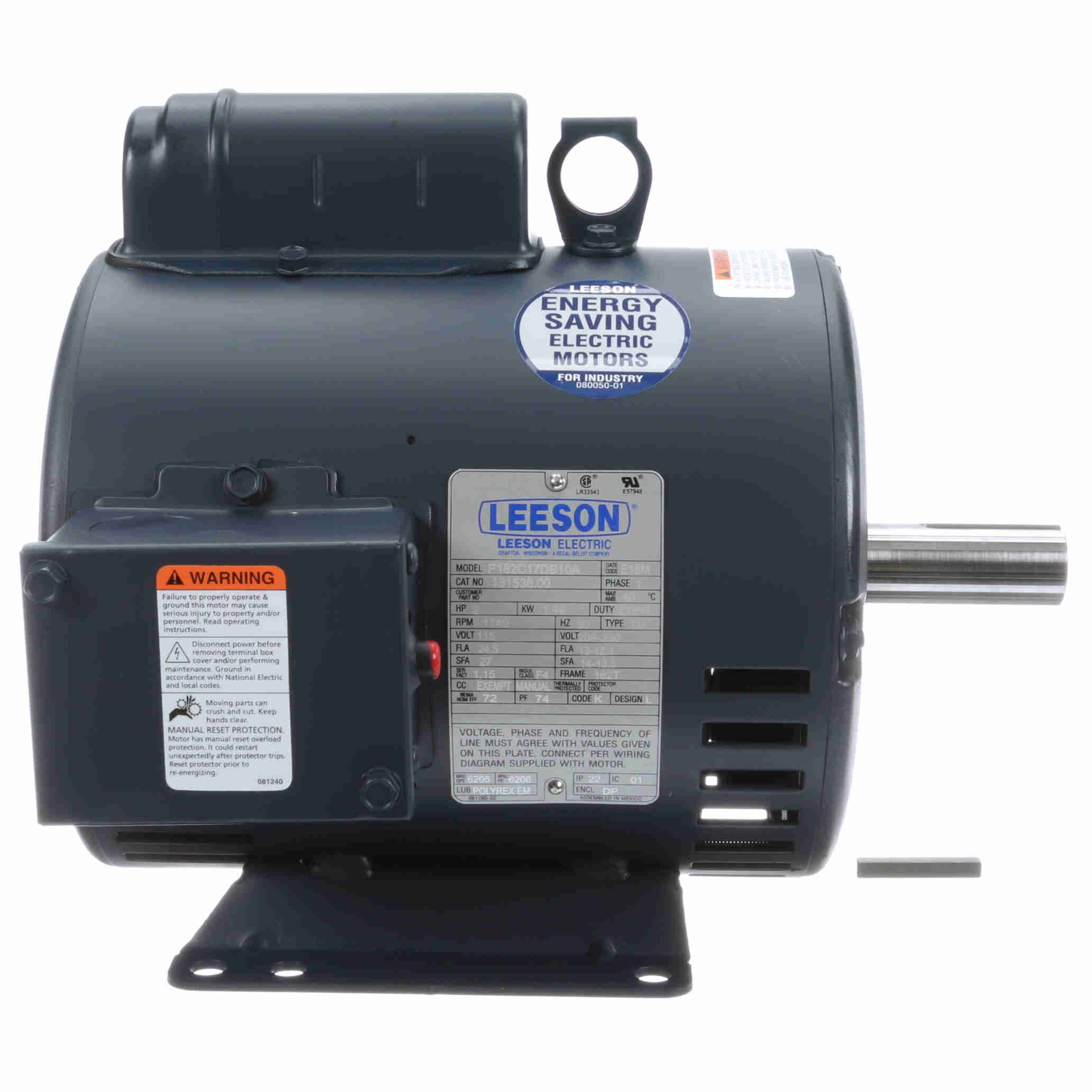

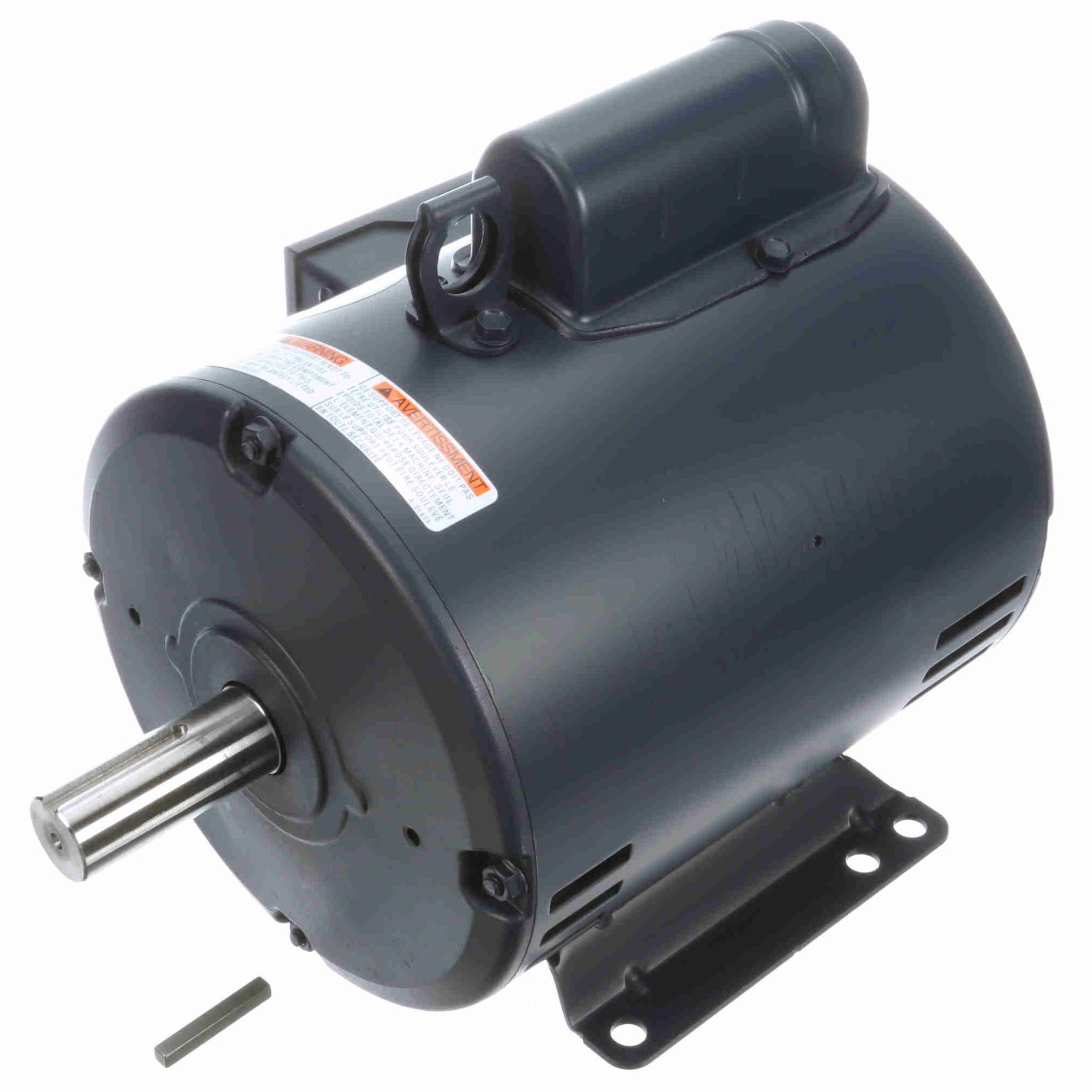

131536.00 Marathon 2HP Air Compressor Electric Motor, 1740RPM

MFG: Marathon Electric
MFG Part Number: 131536.00

Selected accessories will also be added to cart
$516.59 / Each
Quantity:
ODP, 182T Frame, 115/208-230VAC 60Hz Single Phase, Rigid Base, Rolled Steel, 1-1/8" Keyed Shaft

Features

  • Durable rolled steel construction
  • NEMA design B performance
  • Double shielded ball bearings
  • Continuous duty
  • Thermally protected ratings
  • UL recognized component listing and CSA certified

General Specifications

UPC:691720017784Weight:66.00 LB
Packaged Length:17.94 INPackaged Width:13.06 IN
Packaged Height:12.88 IN

Nameplate Specifications

Output HP:2 HpOutput KW:1.5 kW
Frequency:60 HzVoltage:115/208-230 V
Current:24.5/13.0-12.4 ASpeed:1740 rpm
Service Factor:1.15Phase:1
Efficiency:72 %Power Factor:74
Duty:ContinuousInsulation Class:F
Design Code:LKVA Code:K
Frame:182TEnclosure:Drip Proof
Thermal Protection:ManualAmbient Temperature:40 ?C
Drive End Bearing Size:6206Opp Drive End Bearing Size:6205
UL:RecognizedCSA:Y
CE:NIP Code:22

Technical Specifications

Electrical Type:Capacitor Start Induction RunStarting Method:Across The Line
Poles:4Rotation:Selective Counterclockwise
Resistance Main:0 OhmsMounting:Rigid Base
Motor Orientation:HorizontalDrive End Bearing:Ball
Opp Drive End Bearing:BallFrame Material:Rolled Steel
Shaft Type:TOverall Length:13.19 in
Frame Length:9.00 inShaft Diameter:1.125 in
Shaft Extension:2.75 inAssembly/Box Mounting:F1 ONLY

Speed Characteristics

CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)(%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Full Load12.406.00100.002.00
Break-Down0.0016.10268.002.00
Pull-Up0.0015.00250.002.00
Locked-Rotor78.0020.60343.002.00

Load Characteristics

% of Rated Load0 %25 %50 %75 %100 %115 %125 %150 %
Current (Amps)8.168.249.1910.6812.4013.5014.4716.92
Rated Output (KW)0.360.761.161.652.122.262.643.22
Efficiency (%)0.050.265.068.470.475.670.168.5
Power Factor (%)19.240.055.167.174.469.079.482.6
Speed (RPM)1,7961,7861,7751,7641,7521,7551,7371,721
Temp. Rise @ FL0.00.00.00.052.00.00.00.0
Torque (ft-lbs)0.001.503.004.506.006.807.509.00
Type
Electric Motor
Input Phase
Single Phase
Enclosure
ODP
Horsepower
2HP
Frame
182T
Speed
1740RPM
