/Products/Electric Motors/Single Phase Electric Motors/Marathon Single Phase Electric Motors/131541.00 Marathon 2HP Extra Hi-Torque Agricultural Duty Electric Motor

Click Image to Expand

Previous Next

Product ID: 131541.00

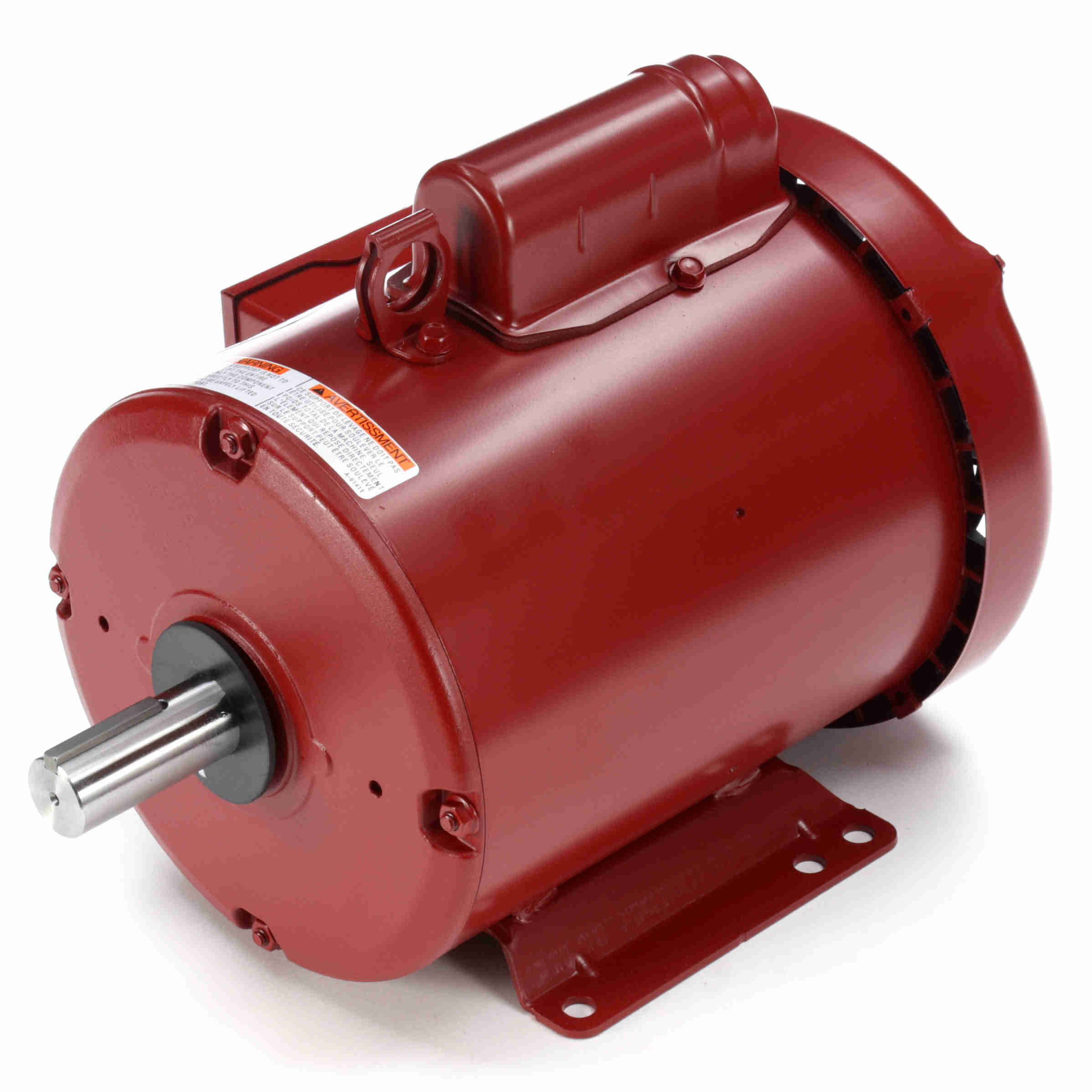

131541.00 Marathon 2HP Extra Hi-Torque Agricultural Duty Electric Motor

MFG: Marathon Electric
MFG Part Number: P182C17FB12

Selected accessories will also be added to cart

$637.19 / Each

Quantity:

General Purpose, High Torque, TEFC, 1725 RPM, 184T Frame, Single Phase, 115/208-230VAC

Farm Duty 1/3 to 10 HP, TEFC, High Torque (HT): Feeders, conveyors, fans, compressors, spray washers, grinders, elevators, pumps and other demanding applications that require high starting torque.2 to 10 HP, TEFC, Extra High Torque (EHT): Silo unloaders, barn cleaners, bunk feeders, conveyors and other machinery requiring extra high starting torque. Motors have 300% and greater LRT.Catalog No131541.00ModelP182C17FB12C Product typeAC MOTORStockStock Description2HP..1740RPM.182.TEFC.115/208-230V.1PH.60HZ.CONT.MANUAL.40C.1.15SF.RIGID.AG - FARM DUTY/GENERAL PURPOSE.P182C17FB12CInformation shown is for current motor's designEngineering Data Volts115Volts208-230Volts F.L. Amps24.8F.L. Amps13-12.4F.L. Amps S. F Amps27S. F Amps14-13.5S. F Amps RPM1800Hertz60 HP2DutyCONTINUOUSTYPECF KW1.49 Frame182TServ. Factor1.15Phase1 Max Amb40DesignLCodeK Insul ClassFProtectionMANUALTherm.Prot.BRD2971 Eff 100%72Eff 75%PF75 ULY-(LEESON UL REC)CSAYesBearing OPE6205 CC NumberCENoBearing PE6206 Load TypeInverter TypeSpeed RangeNONE Motor Wt.65 LBEnclosureTEFCLubricationPOLYREX EM Nameplate081285MountingRIGIDRotationSELECTIVE CCW Assembly180-033Shaft Dia.1 1/8 INExt. Diag.005067.02 Cust Part NoOutline035747-900Ext. Diag2 PackagingBOutline Dash NoWindingC842 Carton LabelLeeson Farm DutyGROUP:3 IrisPaint305003.01Test Card02
