/Products/Electric Motors/Single Phase Electric Motors/Marathon Single Phase Electric Motors/131542.00 Marathon 3HP Extra Hi-Torque Agriculture Duty Electric Motor, 1800RPM
Click Image to Expand

Product ID: 131542.00

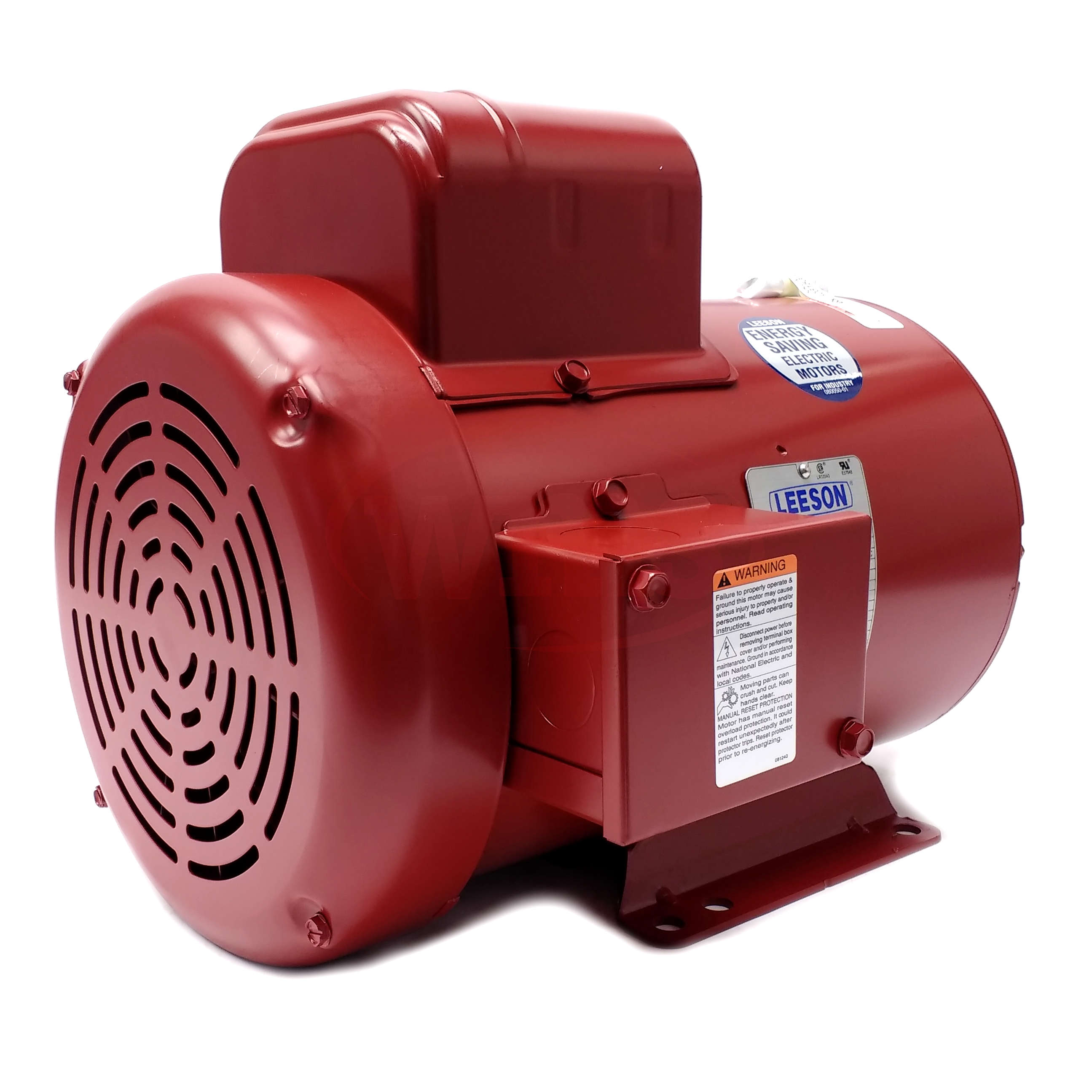

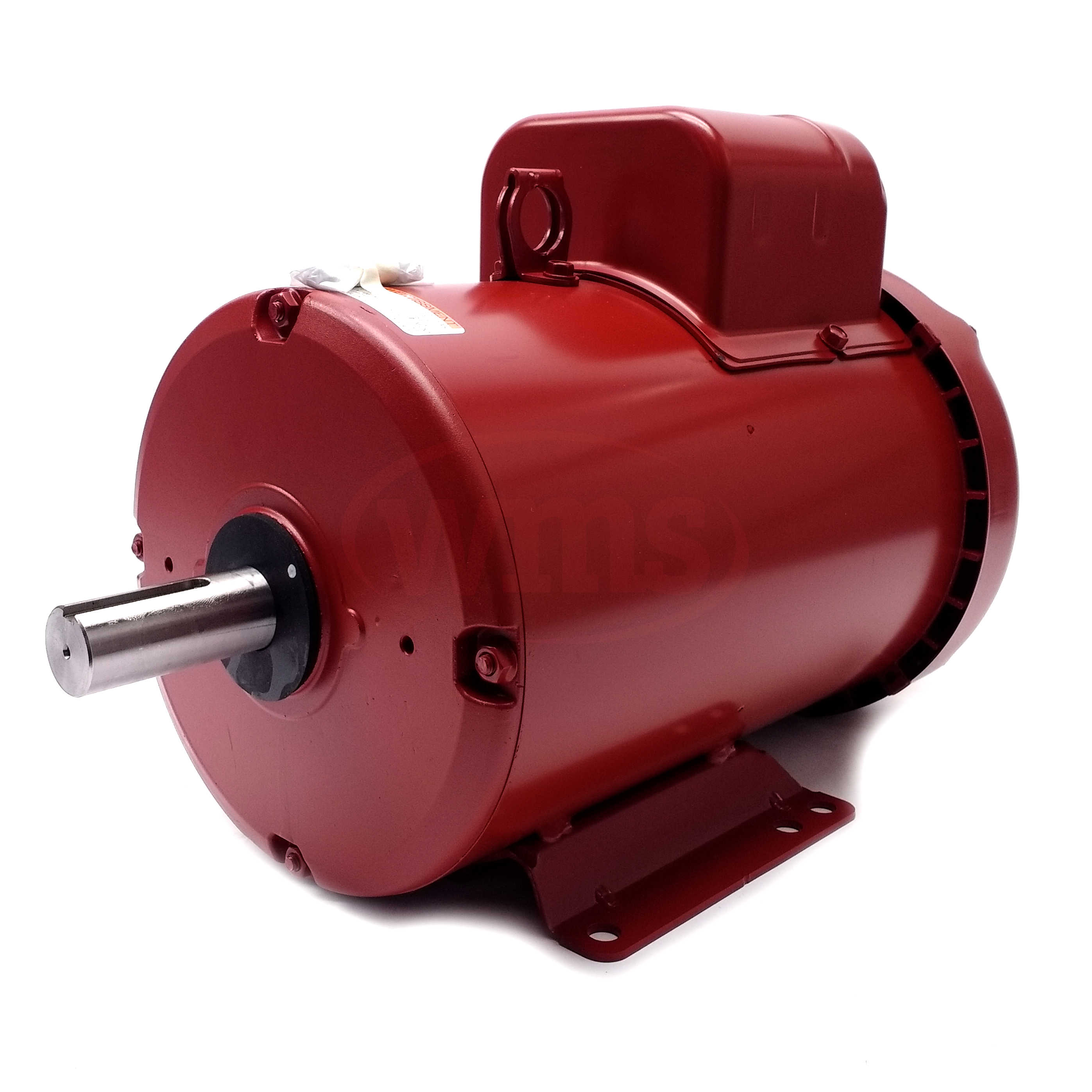

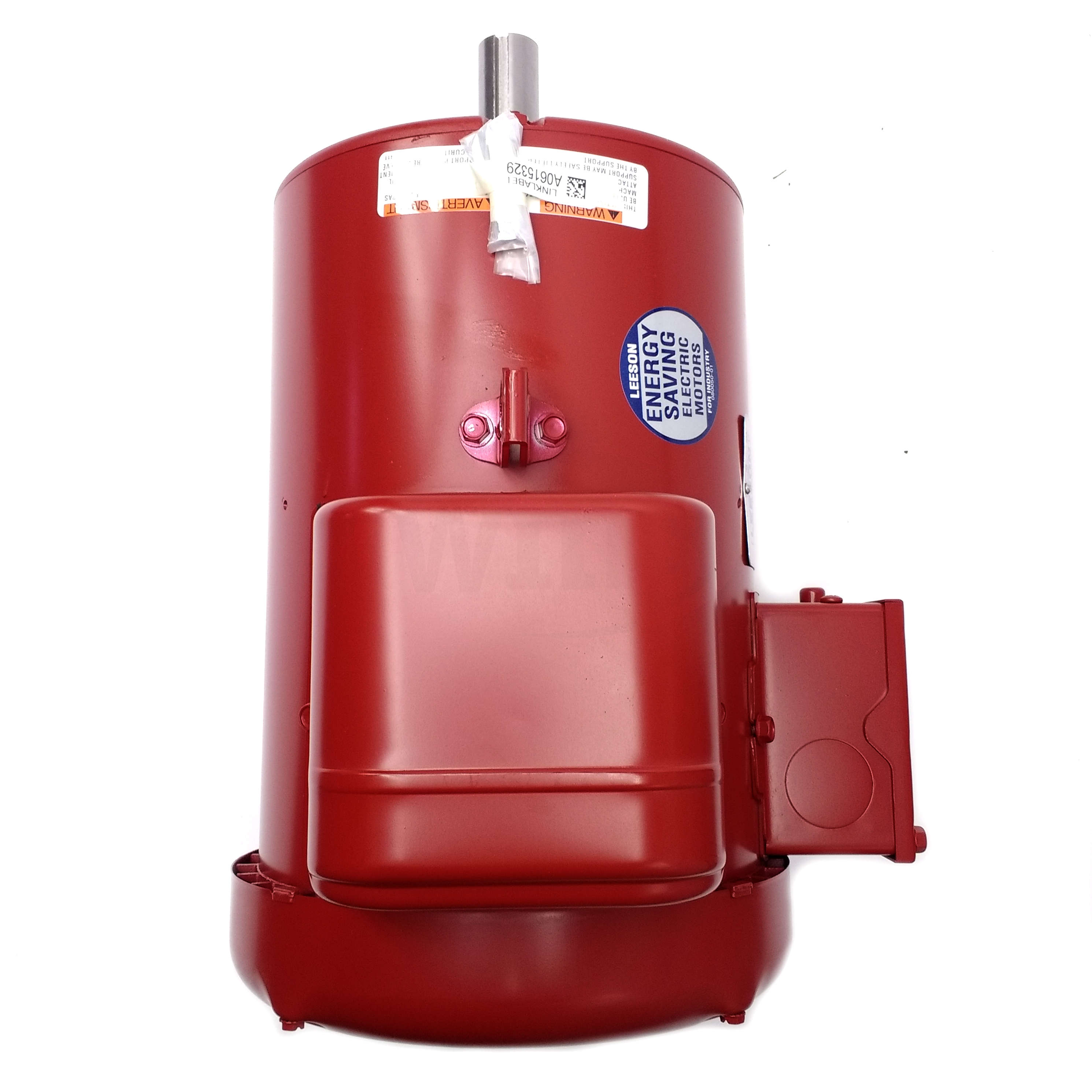

131542.00 Marathon 3HP Extra Hi-Torque Agriculture Duty Electric Motor, 1800RPM

MFG: Marathon Electric
MFG Part Number: P182C17FB13

Available Stock: 1
Selected accessories will also be added to cart
$738.19 / Each
Quantity:
TEFC, 184T Frame, 230VAC Single Phase 60Hz, P184C17FB13C, Rigid Base, Rolled Steel, 1-1/8" Shaft

Features

Features
  • Gasketed capacitor cases and conduit box covers
  • Meets or exceeds NEMA service factors
  • Double sealed ball bearings
  • Single phase designs
  • Condensate drains on general purpose Ag motors
  • Low temperature manual overload protected
  • High starting torque ratings

General Specifications

General Specifications
Model :P184C17FB13CCatalog No :131542.00
Part Description :3HP..1740RPM.184.TEFC./230V.1PH.60HZ.CONT.MANUAL.40C.1.15SF.RIGID.AG - FARM DUTY/GENERAL PURPOSE.P184C17FB13CCategory :Agricultural
Stock :No

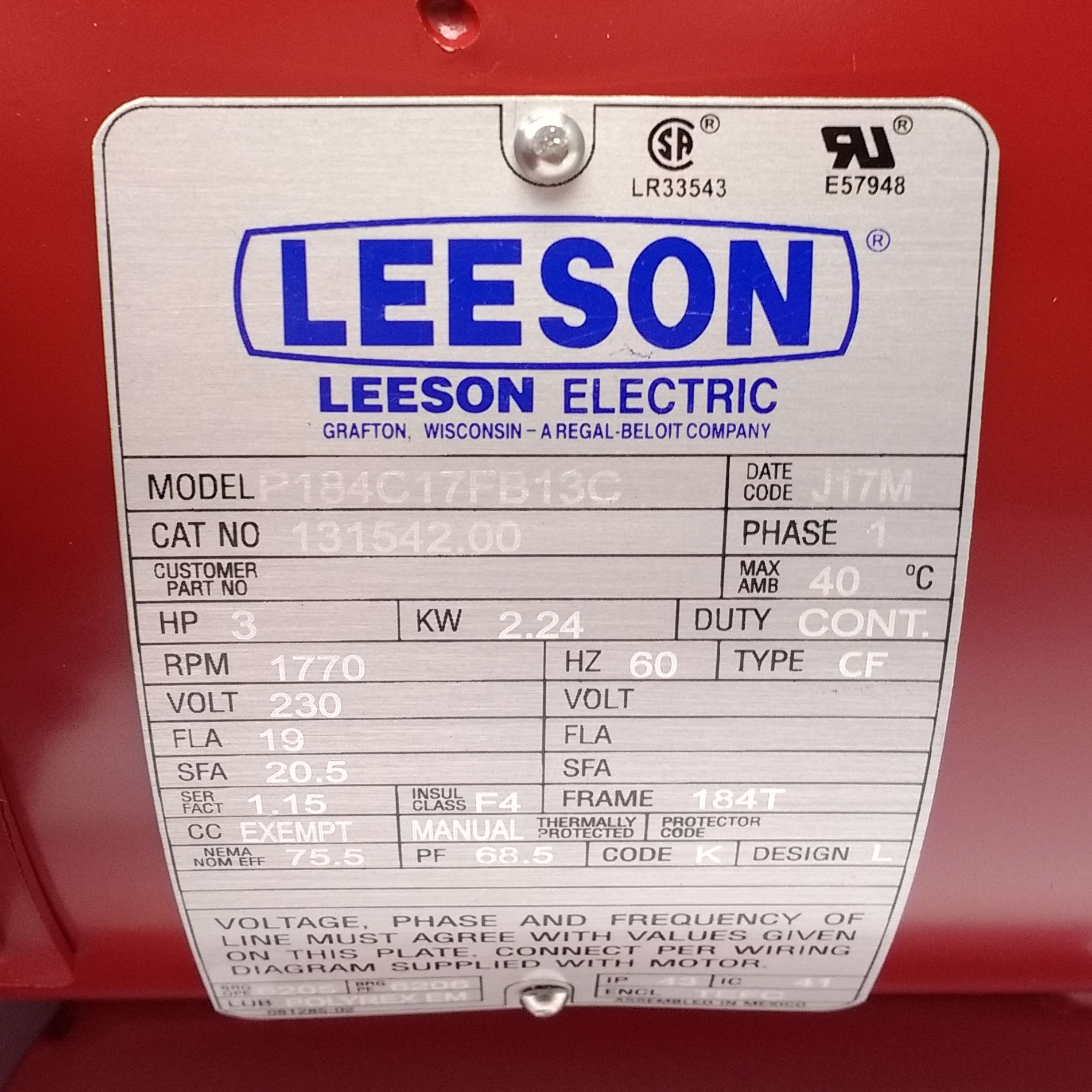

Nameplate Specifications

Nameplate Specifications
Output HP :3 HPOutput KW :2.2 kW
Frequency :60 HzVoltage :230 V
Current :19.0 ASpeed :1740 RPM
Service Factor :1.15 Phase :1
Efficiency :75.5 %Duty :Continuous
Insulation Class :F Design Code :L
KVA Code :K Frame :184T
Enclosure :Totally Enclosed Fan Cooled Overload Protector :Manual
Ambient Temperature :40 ?CDrive End Bearing Size :6206
Opp Drive End Bearing Size :6205 UL :Recognized
CSA :Y CE :N
IP Code :43

Technical Specifications

Technical Specifications
Electrical Type :Capacitor Start Induction Run Starting Method :Across The Line
Poles :4 Rotation :Selective Counterclockwise

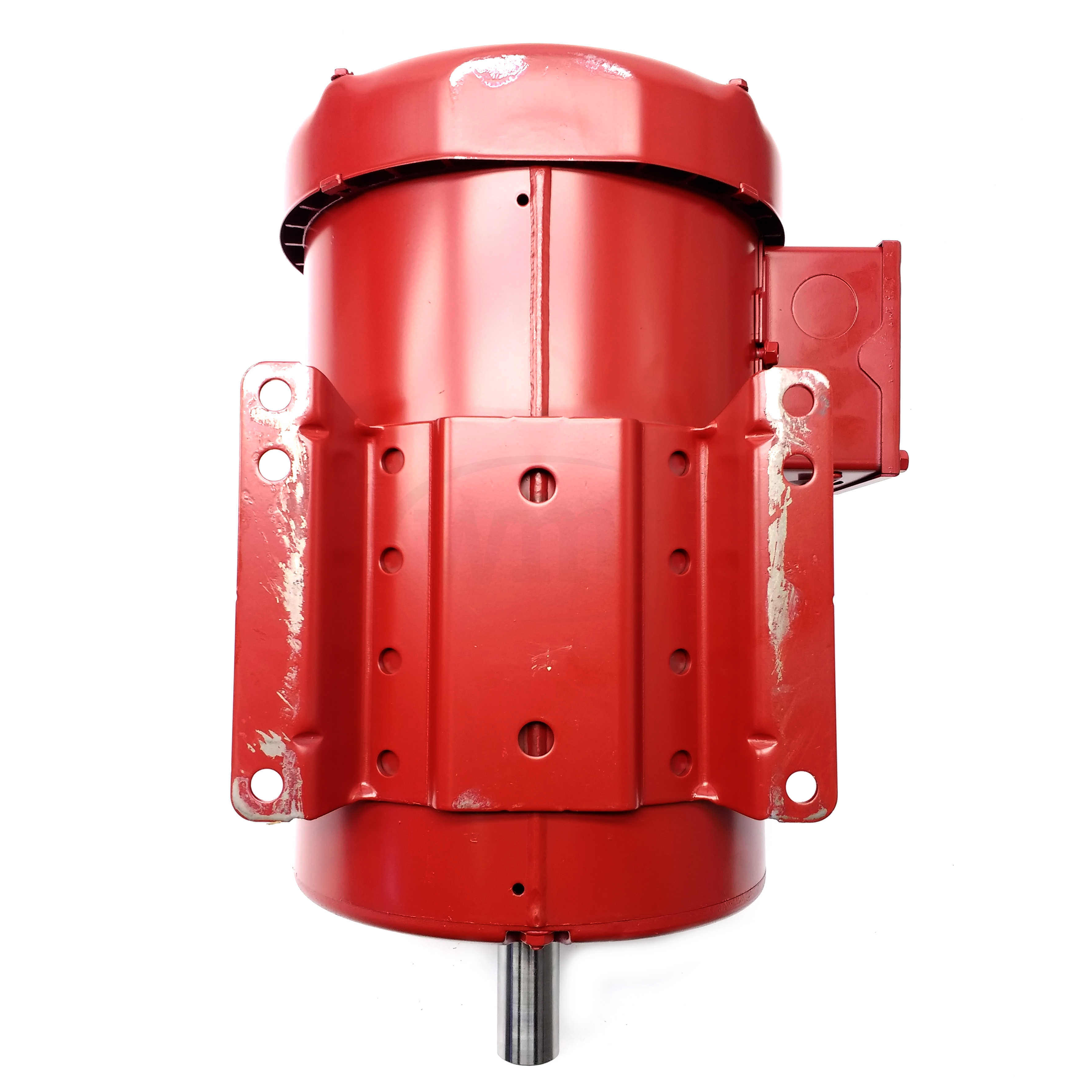

Mounting :Rigid Base Motor Orientation :Horizontal
Drive End Bearing :Ball Opp Drive End Bearing :Ball
Frame Material :Rolled Steel Shaft Type :T

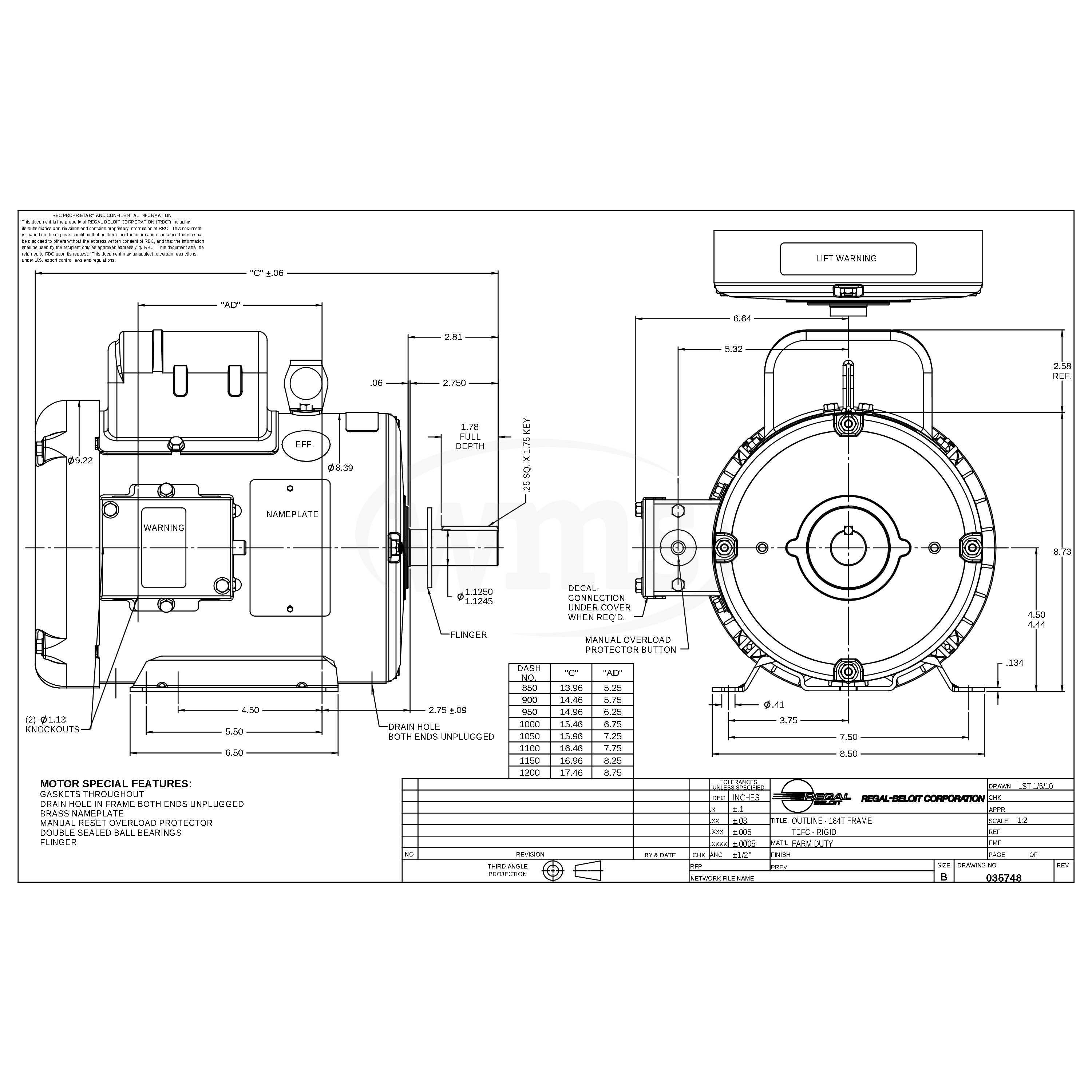

Overall Length :16.46 inFrame Length :11.00 in
Shaft Diameter :1.125 inShaft Extension :2.75 in
Assembly/Box Mounting :F1 ONLY UPC :691720017906
Weight :86.00 LB

Speed & Load Characteristics

Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Full Load19.009.00100.01,7693.00
Pull-Up0.0023.50261.003.00
Locked-Rotor136.0037.45416.003.00
Break-Down0.0027.85309.003.00
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 13.60
  • 0.520
  • 0.0
  • 16.6
  • 1,797
  • 0.0
  • 0.00
  • 25 %
  • 14.00
  • 1.146
  • 49.9
  • 35.6
  • 1,790
  • 0.0
  • 2.25
  • 50 %
  • 15.30
  • 1.770
  • 64.4
  • 50.3
  • 1,784
  • 0.0
  • 4.50
  • 75 %
  • 17.10
  • 2.380
  • 71.6
  • 60.5
  • 1,777
  • 0.0
  • 6.75
  • 100 %
  • 19.00
  • 2.995
  • 75.5
  • 68.5
  • 1,770
  • 91.0
  • 9.00
  • 115 %
  • 20.50
  • 3.200
  • 75.4
  • 71.2
  • 1,765
  • 0.0
  • 10.00
  • 125 %
  • 21.90
  • 3.740
  • 75.3
  • 74.3
  • 1,761
  • 0.0
  • 11.25
  • 150 %
  • 25.00
  • 4.523
  • 74.2
  • 78.7
  • 1,750
  • 0.0
  • 13.50
Type
Electric Motor
Input Phase
Single Phase
Speed
1800RPM
Enclosure
TEFC
Horsepower
3HP
Enclosure
TEFC
Frame
184T
