/Products/Electric Motors/Single Phase Electric Motors/Marathon Single Phase Electric Motors/131560.00 Marathon 5HP General Purpose Electric Motor, 1800RPM

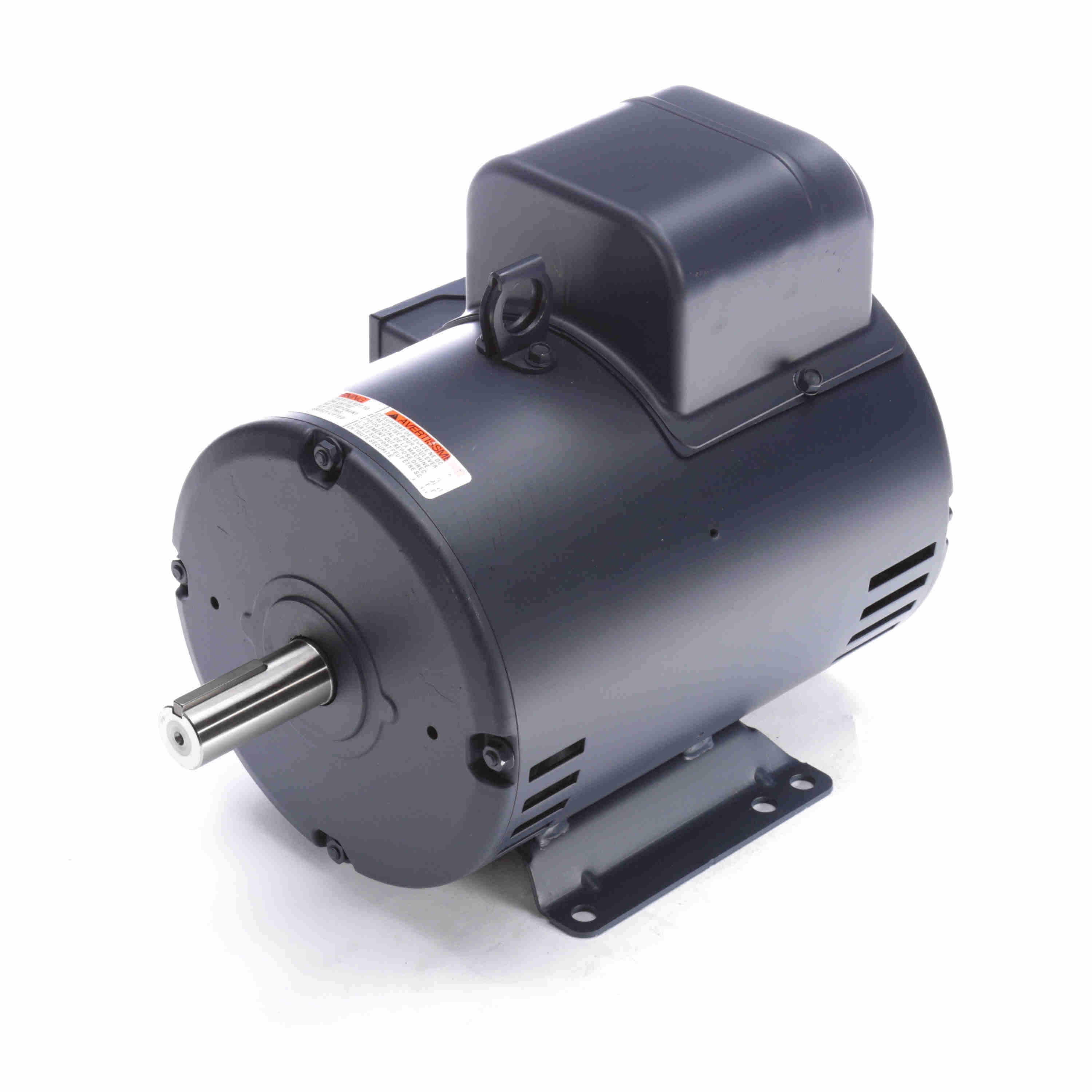

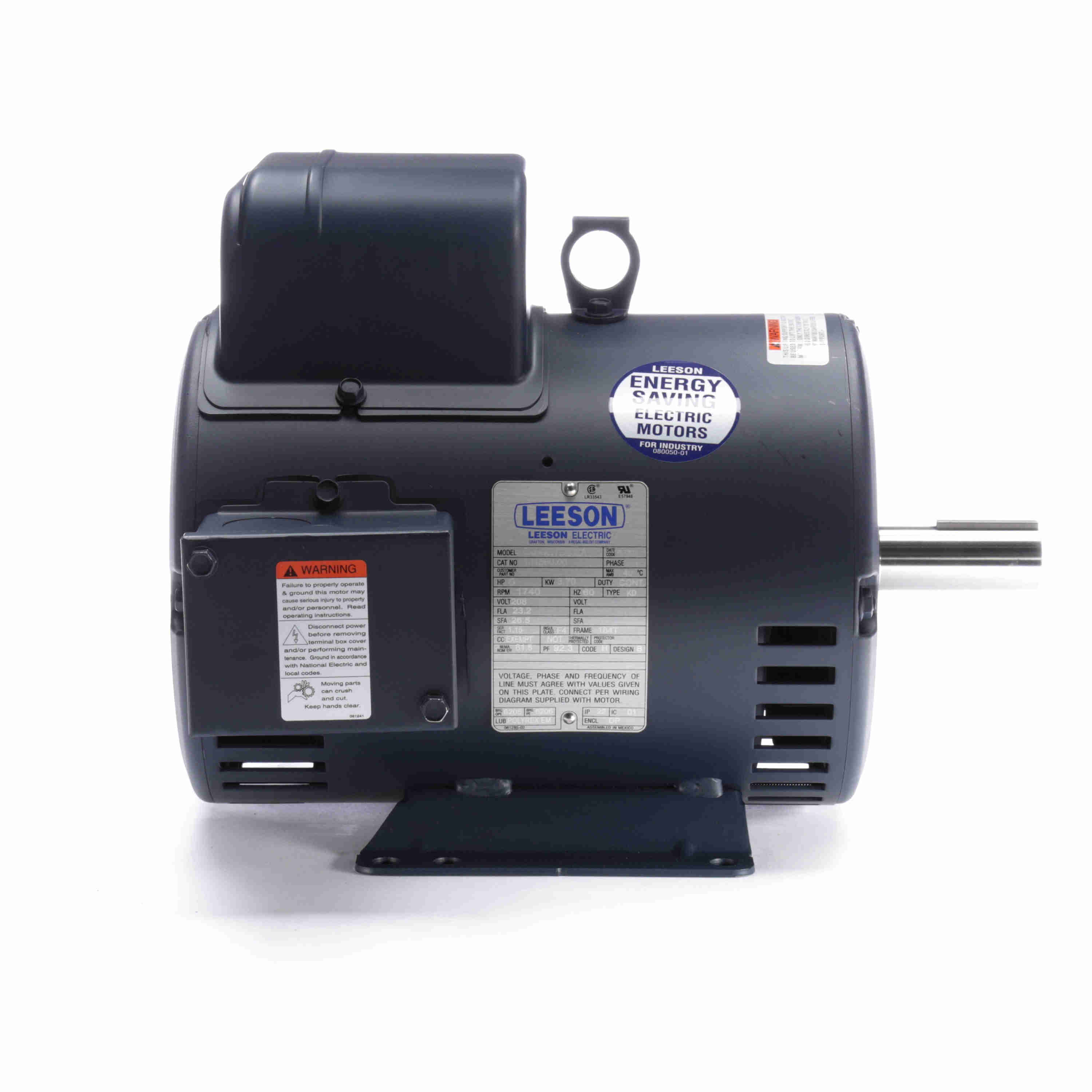

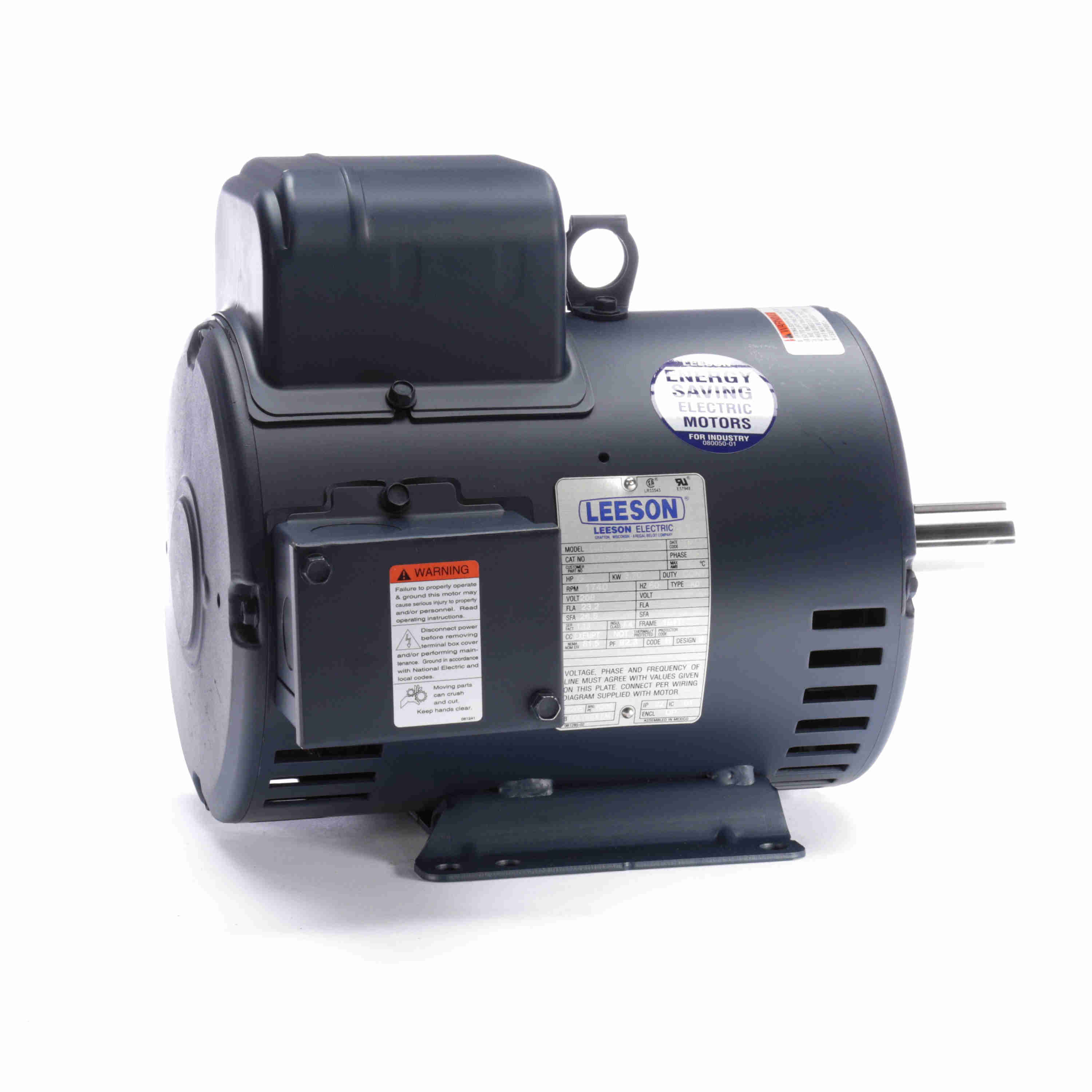

Click Image to Expand

Product ID: 131560.00

131560.00 Marathon 5HP General Purpose Electric Motor, 1800RPM

MFG: Marathon Electric
MFG Part Number: 131560.00

Selected accessories will also be added to cart
$686.60 / Each
Quantity:
Drip Proof (DP), 184T Frame, 208VAC 60Hz Single Phase, Rigid Base, Rolled Steel Frame, 1-1/8" Keyed Shaft

Features

  • Durable rolled steel construction
  • NEMA design B performance
  • Double shielded ball bearings
  • Continuous duty
  • Thermally protected ratings
  • UL recognized component listing and CSA certified

General Specifications

UPC:691720018033Weight:85.00 LB
Packaged Length:17.94 INPackaged Width:13.06 IN
Packaged Height:12.88 INCountry of Origin:Mexico

Nameplate Specifications

Output HP:5 HpOutput KW:3.7 kW
Frequency:60 HzVoltage:208 V
Current:23.2 ASpeed:1740 rpm
Service Factor:1.15Phase:1
Efficiency:81.5 %Power Factor:92.3
Duty:ContinuousInsulation Class:F
Design Code:LKVA Code:H
Frame:184TEnclosure:Drip Proof
Thermal Protection:No ProtectionAmbient Temperature:40 ?C
Drive End Bearing Size:6206Opp Drive End Bearing Size:6205
UL:Recognized CSA:Y
CE:NIP Code:22
Number of Speeds:1

Technical Specifications

Electrical Type:Capacitor Start Capacitor RunStarting Method:Across The Line
Poles:4Rotation:Selective Counterclockwise
Resistance Main:0 OhmsMounting:Rigid Base
Motor Orientation:HorizontalDrive End Bearing:Ball
Opp Drive End Bearing:BallFrame Material:Rolled Steel
Shaft Type:TOverall Length:14.69 in
Frame Length:10.50 inShaft Diameter:1.125 in
Shaft Extension:2.75 inAssembly/Box Mounting: F1 ONLY

Speed Characteristics

CurvepointCurrent (Amps)Current (%)Torque (LB-FT)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Pull-Up0.0031.60211.005.00
Full Load23.2015.00100.005.00
Locked-Rotor159.0038.40256.005.00
Break-Down0.0034.30229.005.00

Load Characteristics

% of Rated Load0 %25 %50 %75 %100 %125 %150 %175 %200 %
Current (Amps)7.909.8713.6117.8923.3328.8835.8143.6454.73
Rated Output (KW)0.001.532.473.444.585.717.078.5410.58
Efficiency (%)0.062.476.782.381.981.578.174.467.1
Power Factor (%)0.074.487.492.394.395.094.9 94.192.9
Speed (RPM)01,7901,7811,7701,7591,7461,7281,7041,665
Temp. Rise @ FL0.00.00.00.00.00.00.00.00.0
Torque (LB-FT)0.003.757.5011.2515.0018.7522.5026.2530.00
Type
Electric Motor
Input Phase
Single Phase
Speed
1800RPM
Horsepower
5HP
Enclosure
DP
Frame
184T
