/Products/Electric Motors/Single Phase Electric Motors/Marathon Single Phase Electric Motors/131633.00 Marathon 5HP Electric Motor, 1800RPM
Click Image to Expand

Product ID: 131633.00

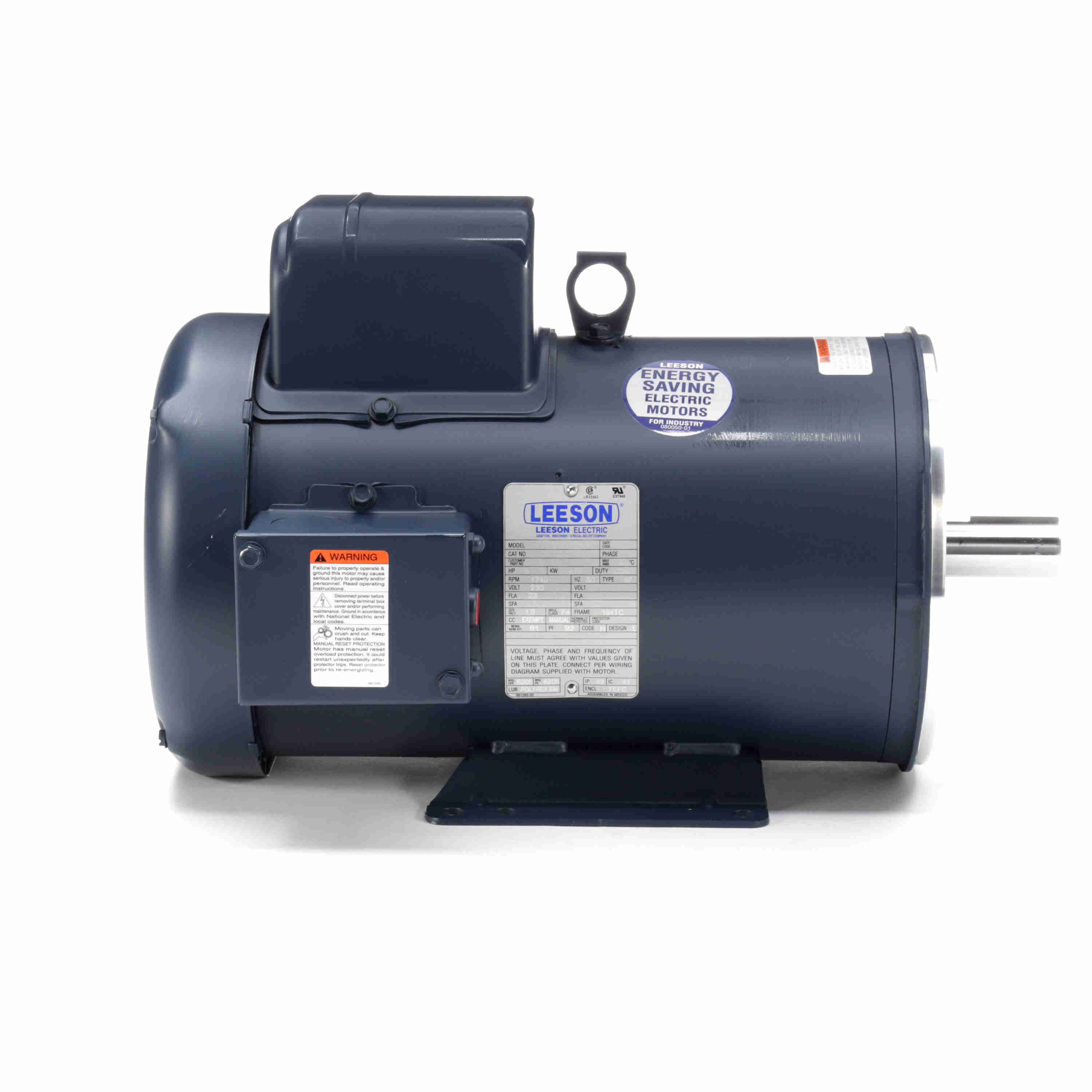

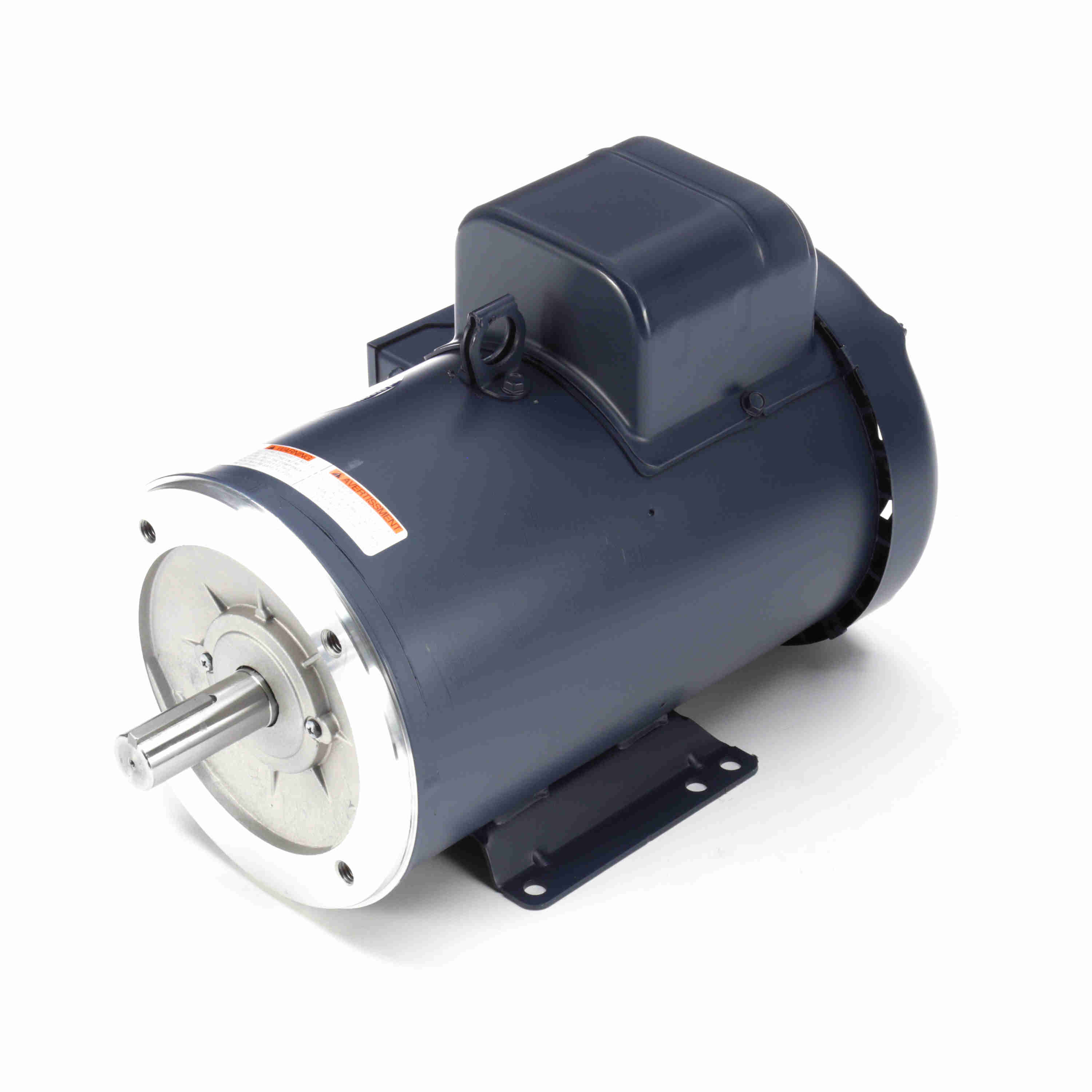

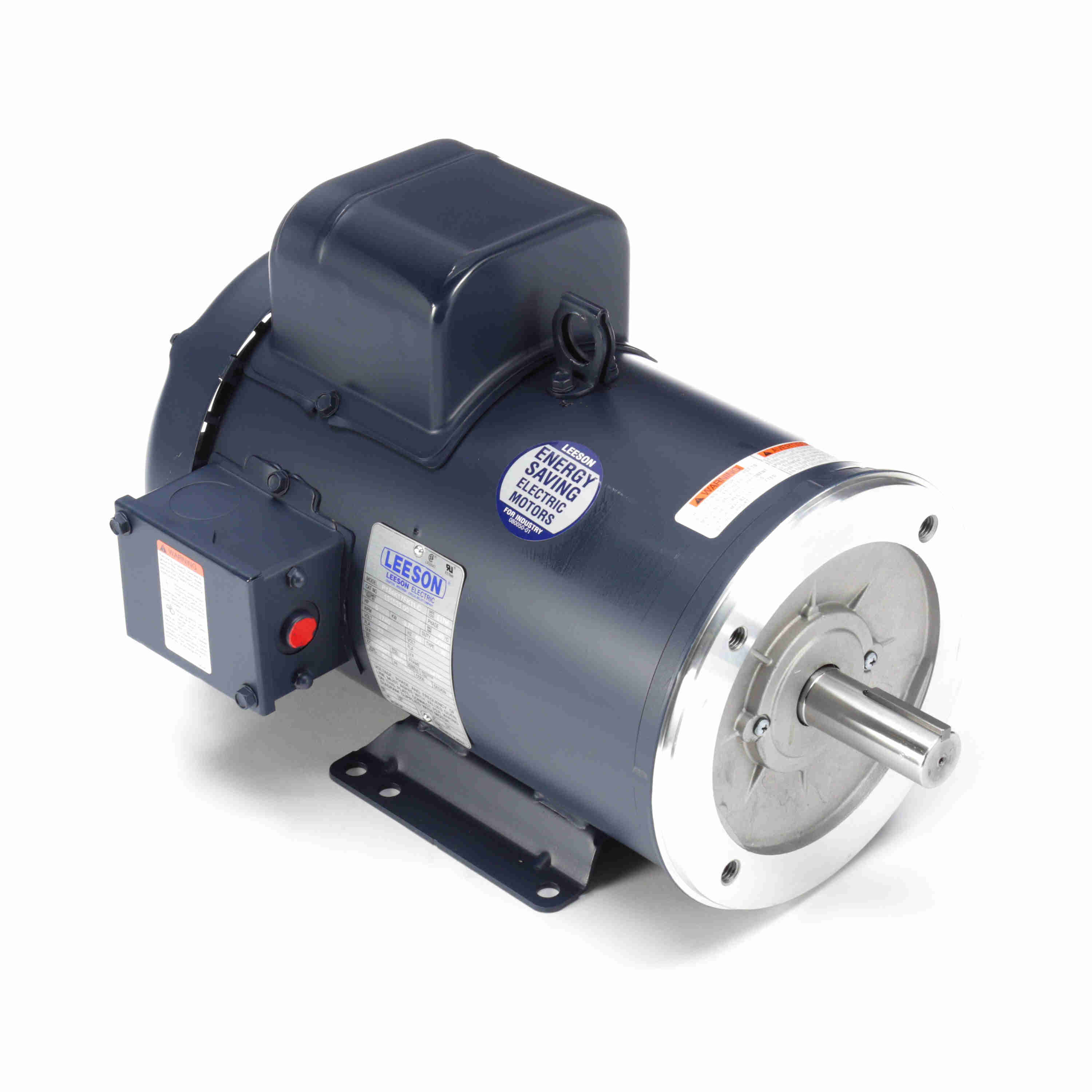

131633.00 Marathon 5HP Electric Motor, 1800RPM

MFG: Marathon Electric
MFG Part Number: 131633.00

Selected accessories will also be added to cart
$950.86 / Each
Quantity:
P184K17FK11C, 184TC Frame, 208-230V
Features
  • Double shielded ball bearings
  • Dynamically balanced rotors
  • Capacitor start / capacitor run designs to reduce amp draw
  • Manual reset overload protection
  • High service factor
General Specifications
Model :P184K17FK11CCatalog No :131633.00
Part Description :5HP..1740RPM.NAN.TEFC./230V.1PH.60HZ.CONT.MANUAL.40C.1.0SF.RIGID C.GENERAL PURPOSE.P184K17FK11CCategory :Totally Enclosed Fan Cooled (TEFC)
Stock :No
Nameplate Specifications
Output HP :5 HpOutput KW :3.7 kW
Frequency :60 HzVoltage :230 V
Current :23 ASpeed :1740 rpm
Service Factor :1 Phase :1
Efficiency :81 %Duty :CONTINUOUS
Insulation Class :F Design Code :L
KVA Code :H Frame :184TC
Enclosure :TEFC Overload Protector :MANUAL
Ambient Temperature :40 ?CDrive End Bearing Size :6206
Opp Drive End Bearing Size :6205 UL :Recognized
CSA :Y CE :N
IP Code :43
Technical Specifications
Electrical Type :CAP START CAP RUN Starting Method :ACROSS THE LINE
Poles :4 Rotation :SELECTIVE CCW
Mounting :RIGID Motor Orientation :HORIZONTAL
Drive End Bearing :BALL Opp Drive End Bearing :BALL
Frame Material :ROLLED STEEL Shaft Type :T
Overall Length :17.47 inFrame Length :12 in
Shaft Diameter :1.13 inShaft Extension :2.75 in
Assembly/Box Mounting :F1 ONLY UPC :691720018484
Weight :107.00 LB
Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Break-Down0.0035.30235.005.00
Full Load23.0015.00100.005.00
Locked-Rotor149.0046.50310.005.00
Pull-Up0.0030.50203.005.00
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 7.70
  • 0.430
  • 0.0
  • 24.3
  • 1,798
  • 0.0
  • 0.00
  • 25 %
  • 8.98
  • 1.290
  • 73.9
  • 62.5
  • 1,790
  • 0.0
  • 3.75
  • 50 %
  • 12.61
  • 2.305
  • 82.3
  • 79.5
  • 1,781
  • 0.0
  • 7.50
  • 75 %
  • 16.75
  • 3.385
  • 83.6
  • 87.9
  • 1,771
  • 0.0
  • 11.25
  • 100 %
  • 21.70
  • 4.590
  • 81.6
  • 92.0
  • 1,758
  • 98.0
  • 15.00
  • 125 %
  • 27.54
  • 5.740
  • 80.9
  • 90.6
  • 1,744
  • 0.0
  • 18.75
  • 150 %
  • 34.35
  • 7.170
  • 77.1
  • 90.8
  • 1,728
  • 0.0
  • 22.50
Type
Electric Motor
Input Phase
Single Phase
Speed
1800RPM
Horsepower
5HP
Frame
184TC
