/Products/Electric Motors/Single Phase Electric Motors/Marathon Single Phase Electric Motors/131637.00 Marathon 3HP General Purpose Electric Motor, 3450RPM
Click Image to Expand

Product ID: 131637.00

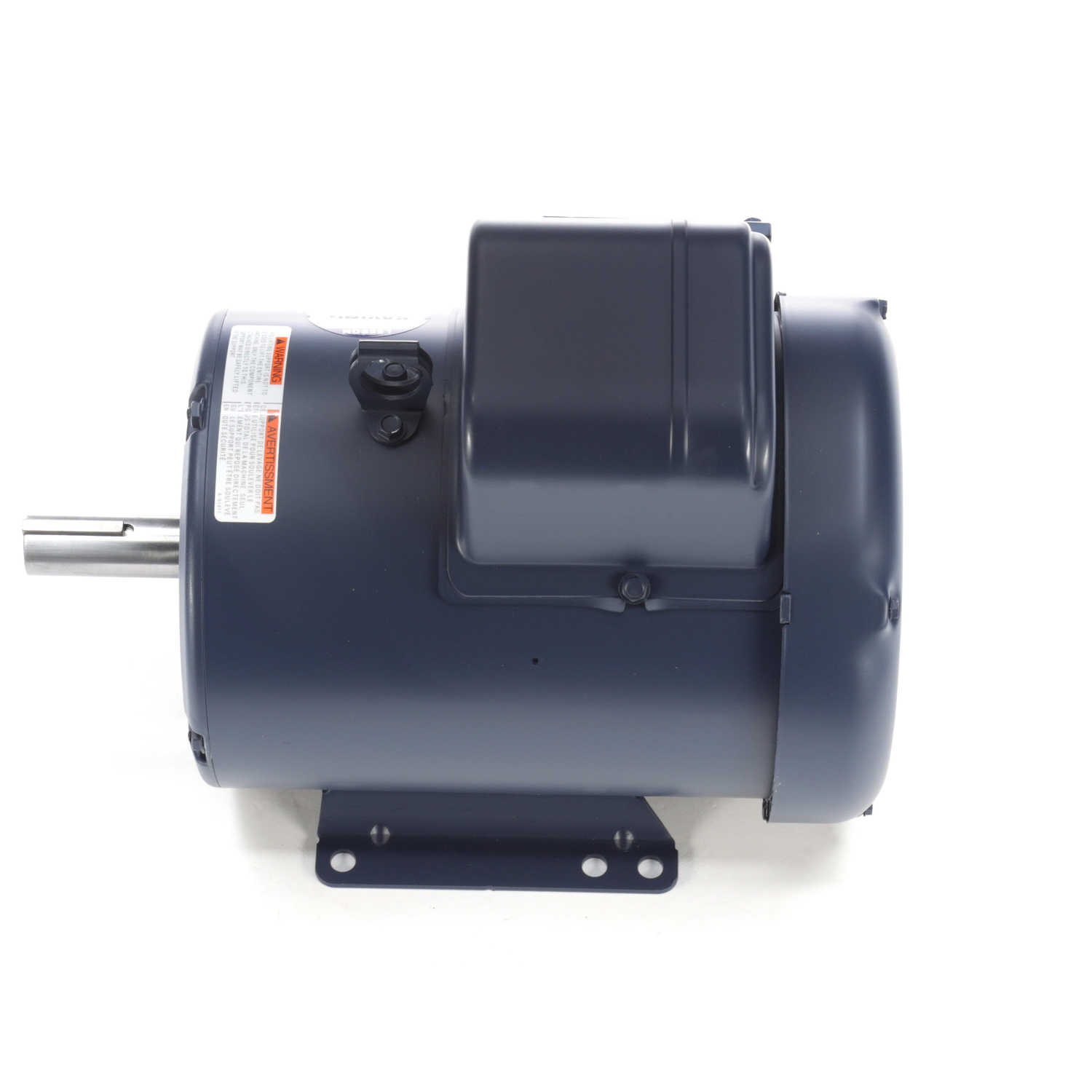

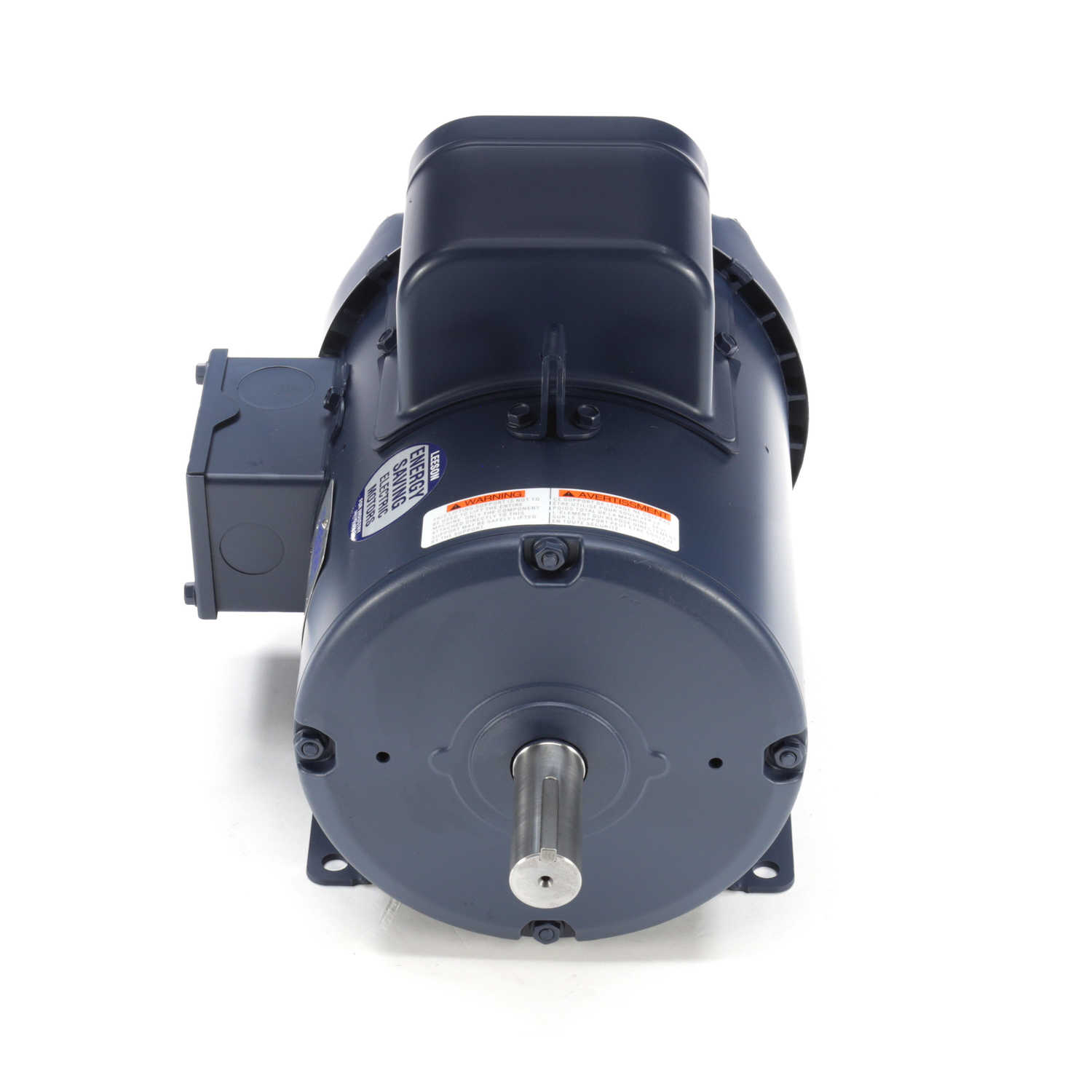

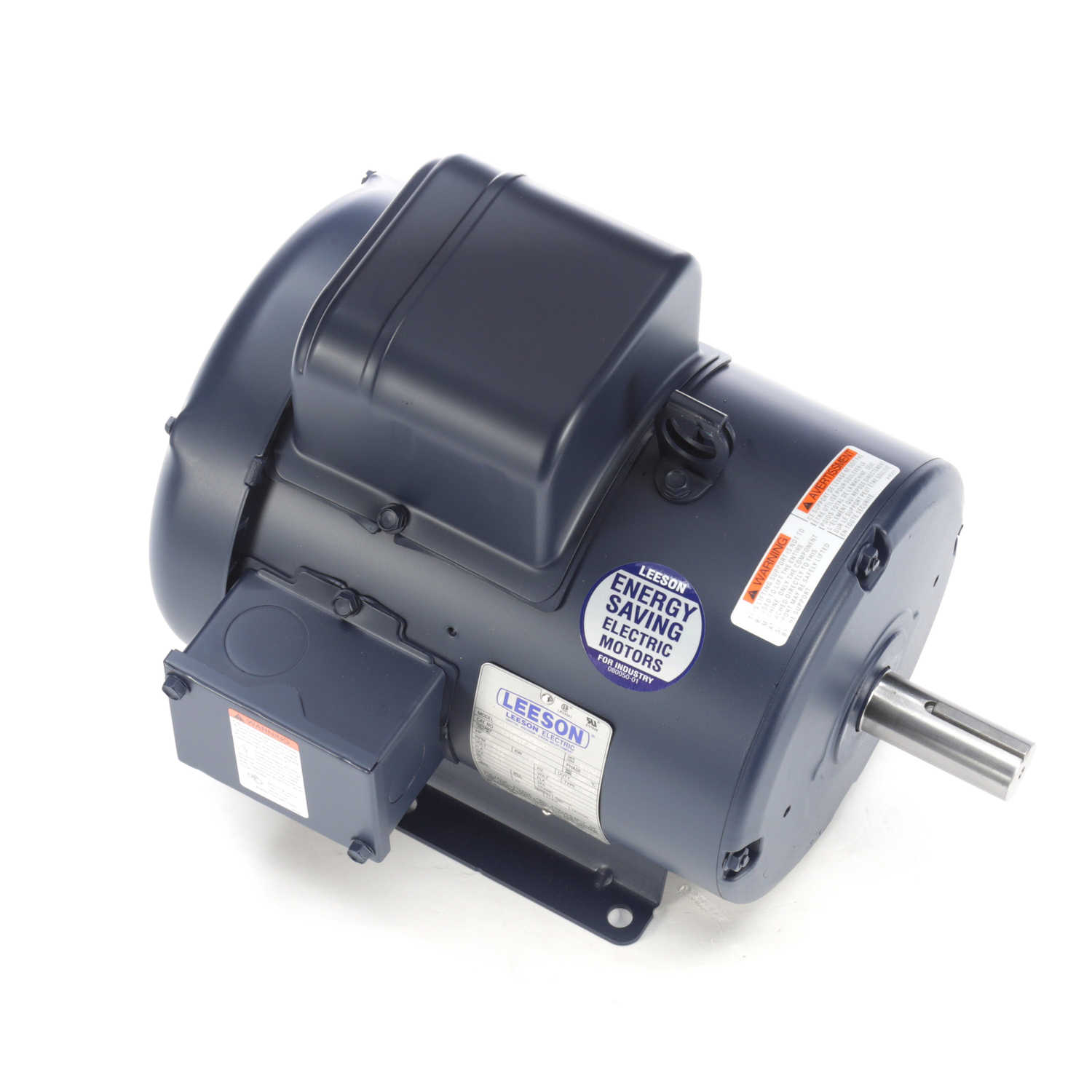

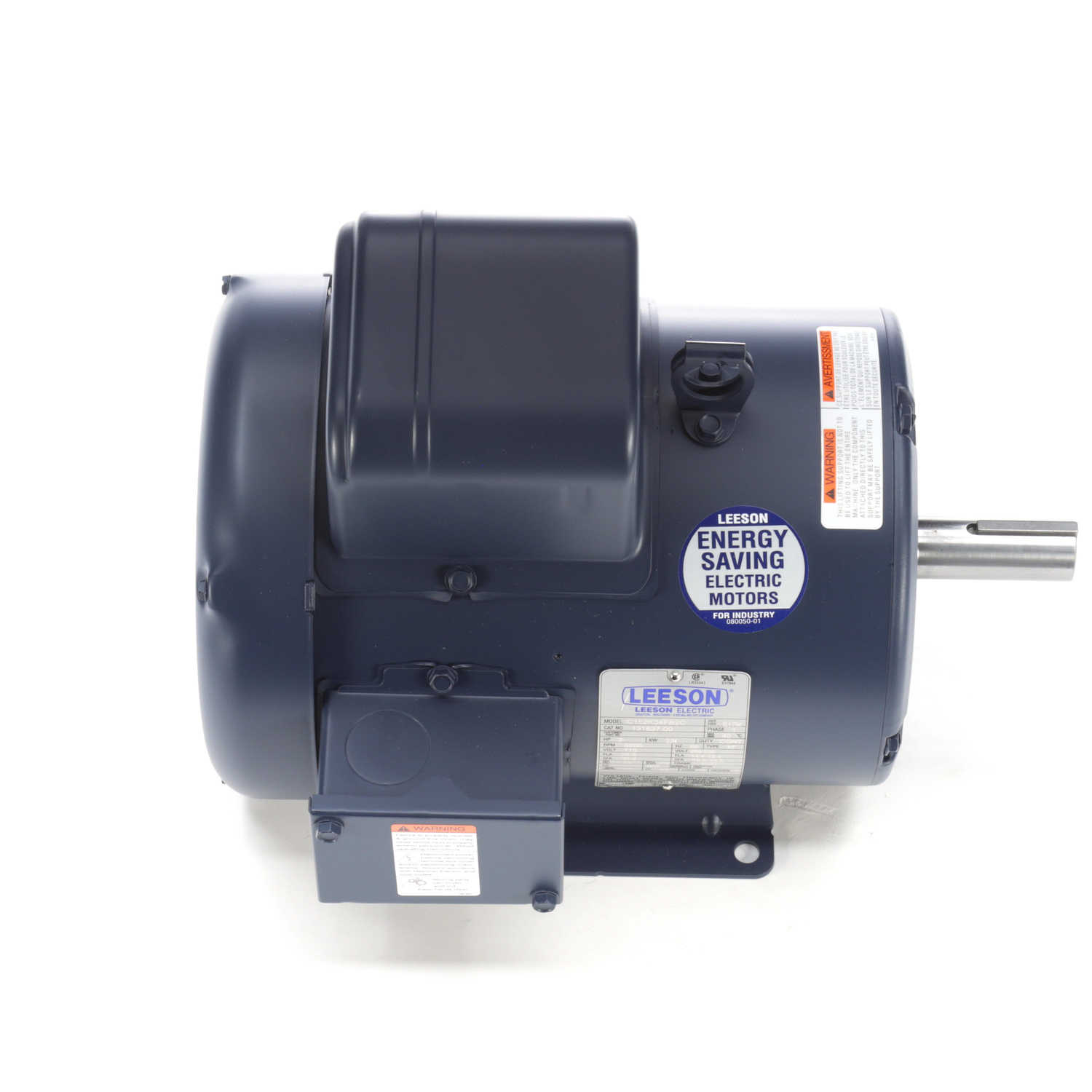

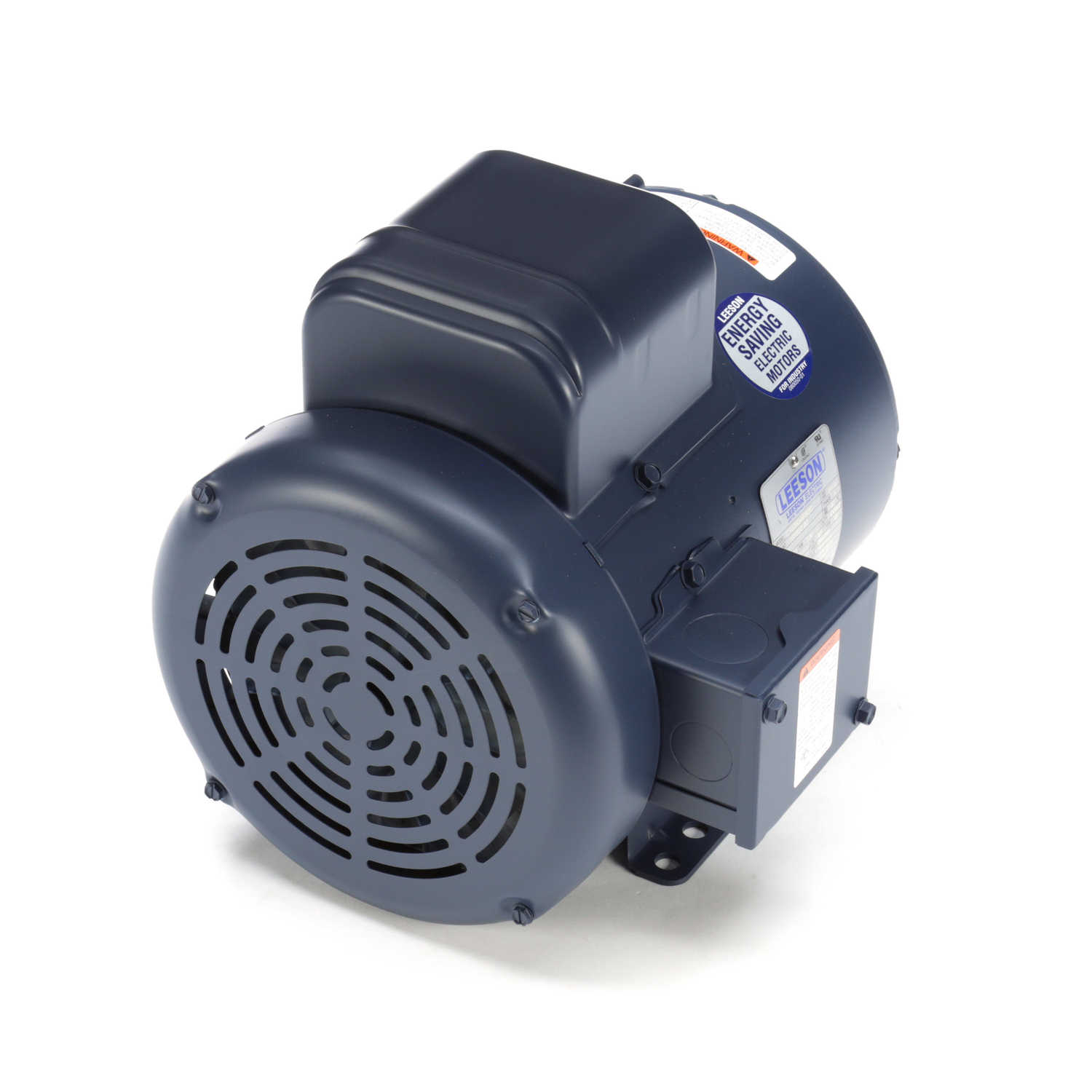

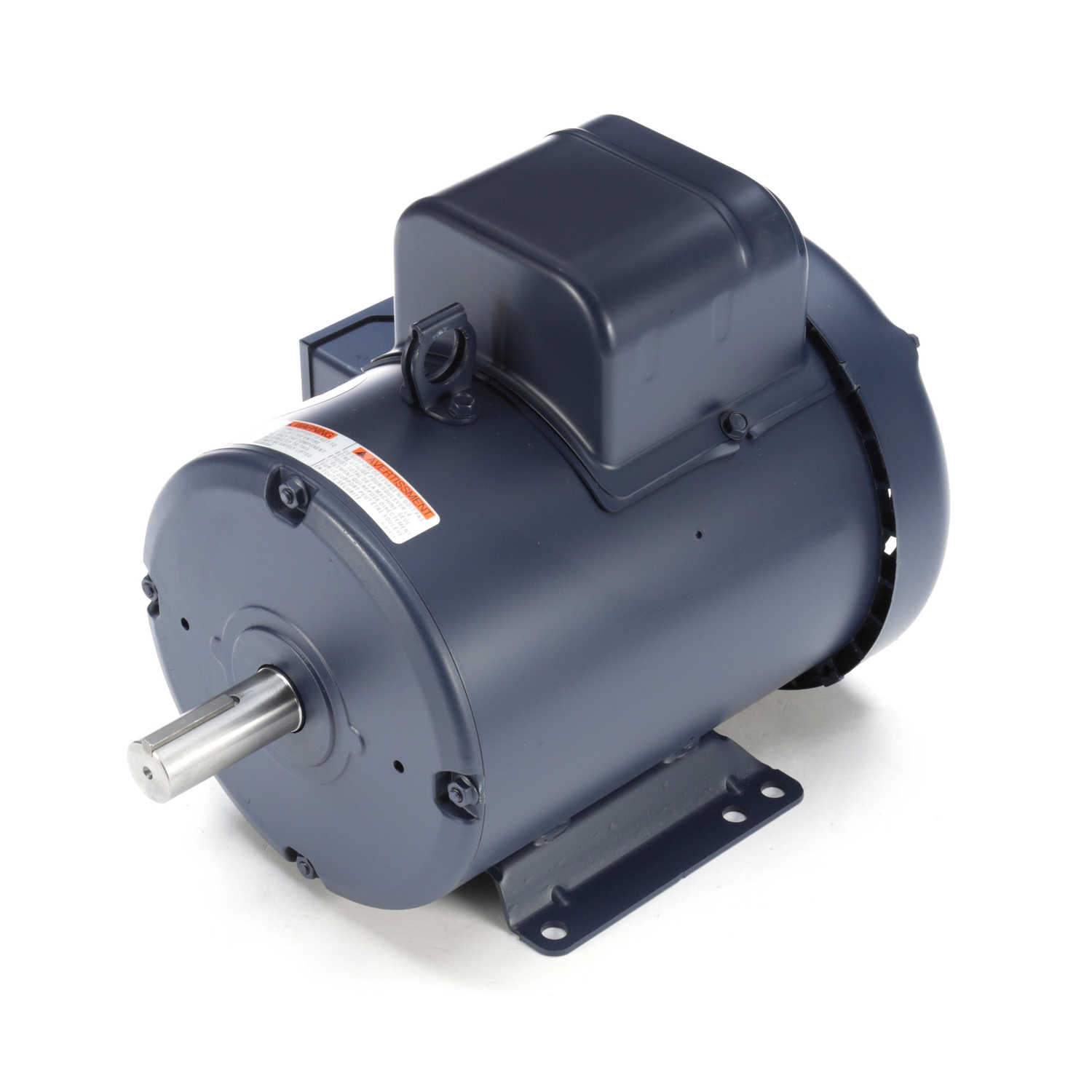

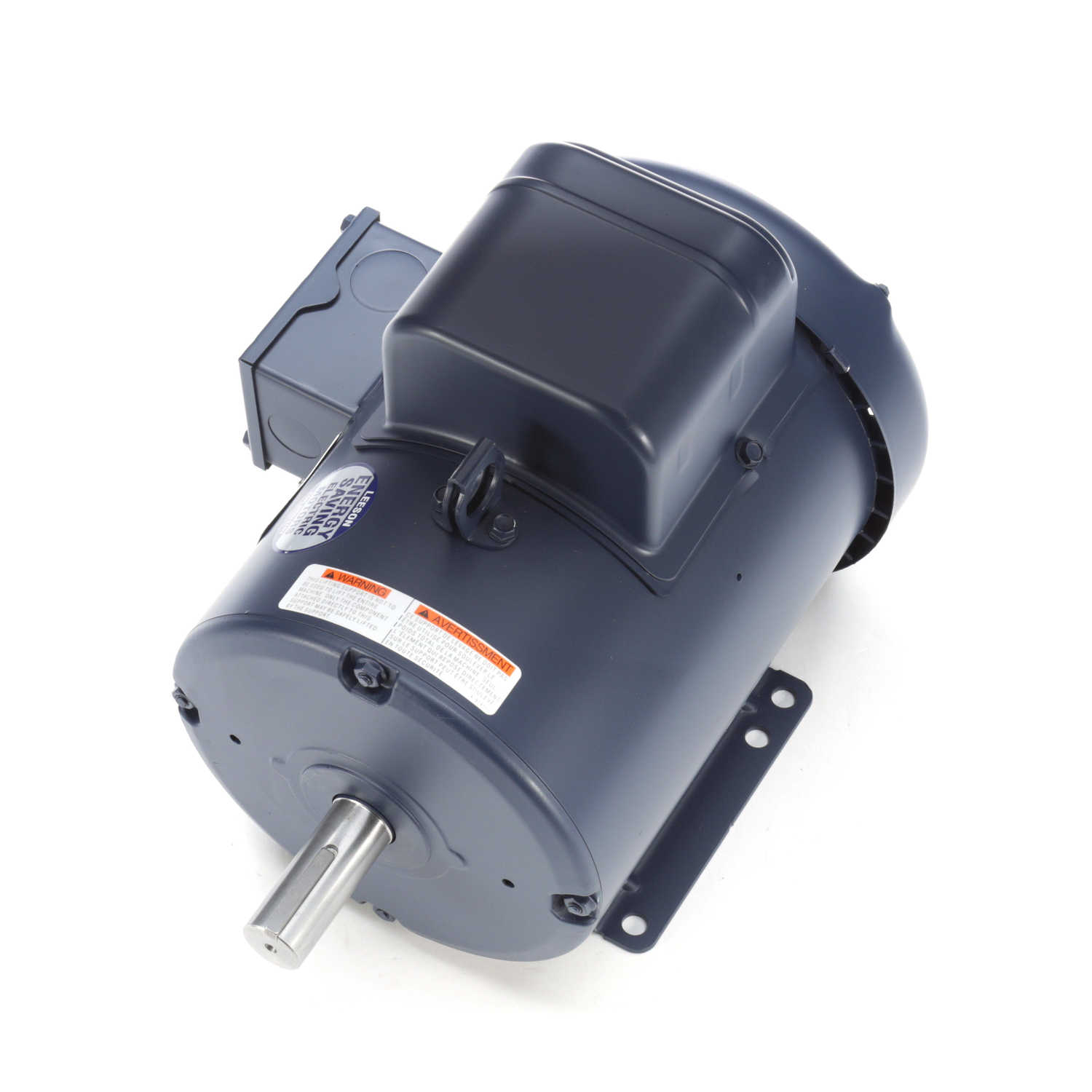

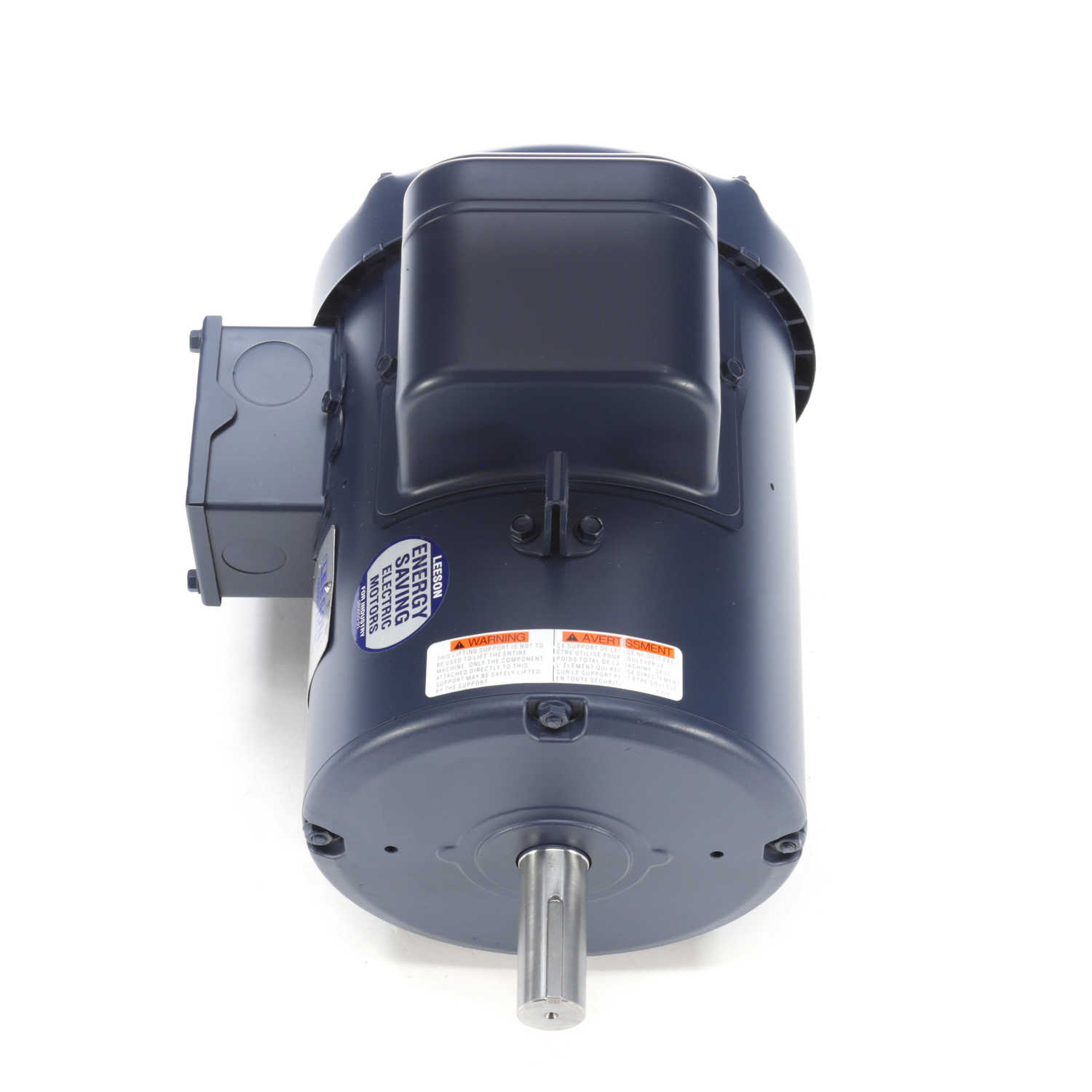

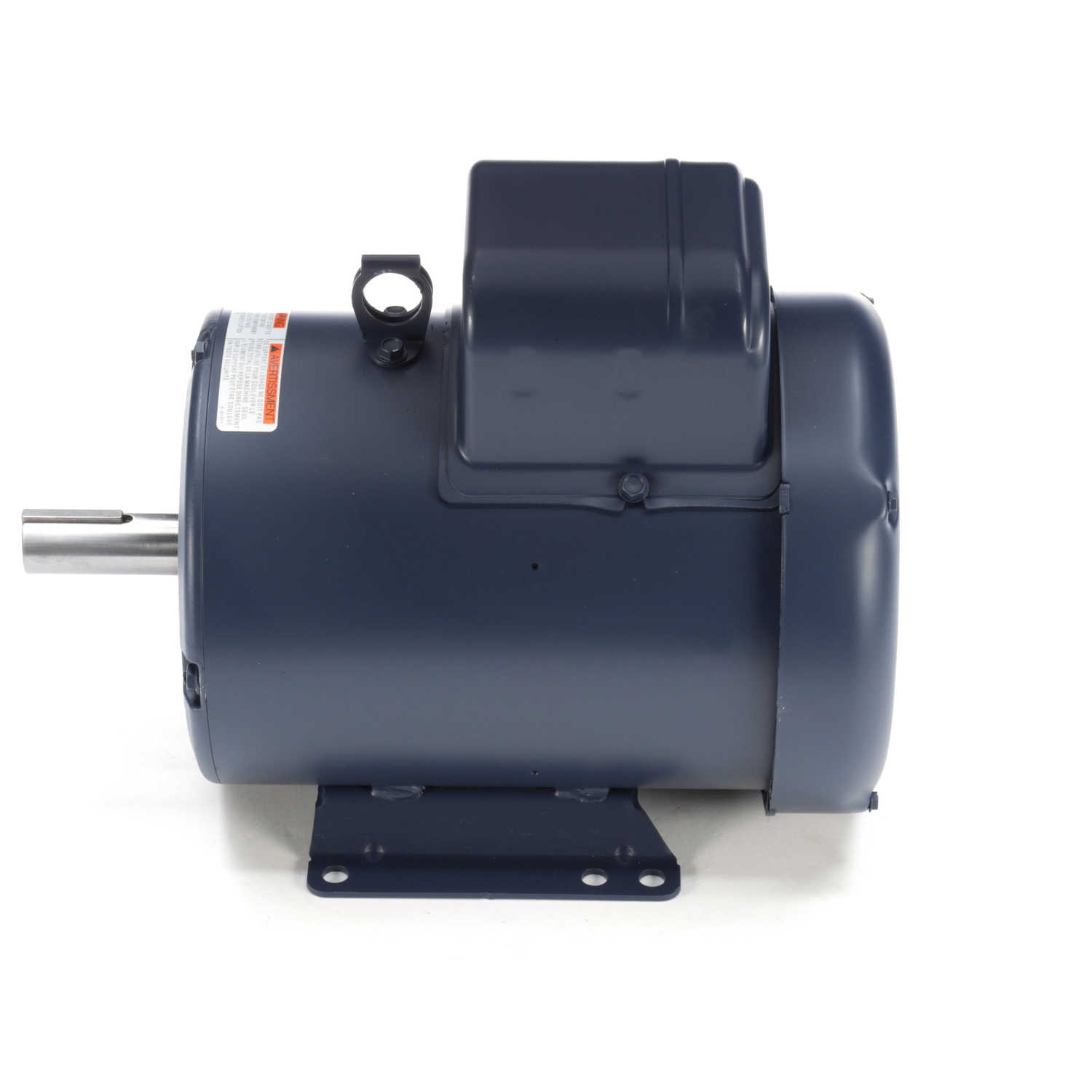

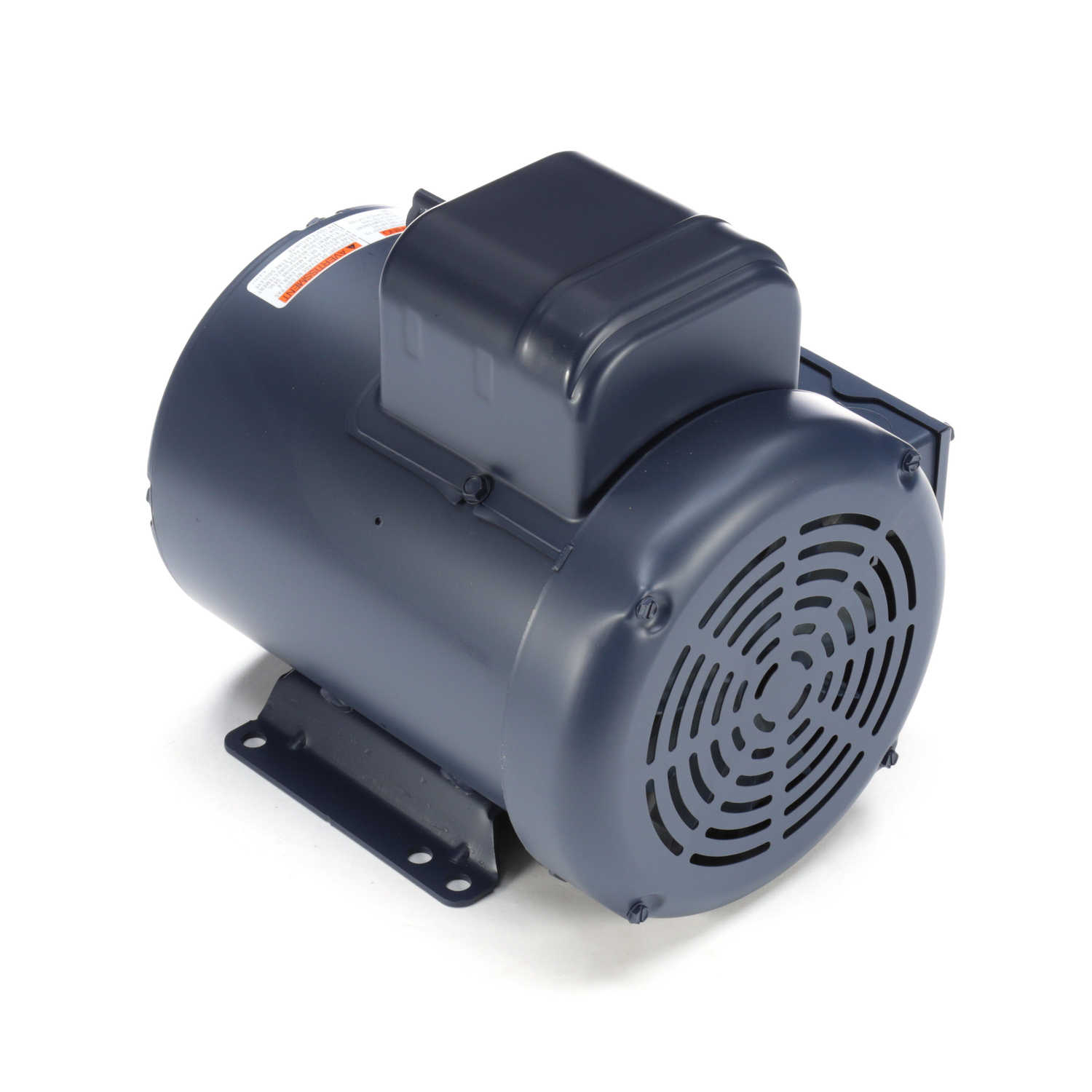

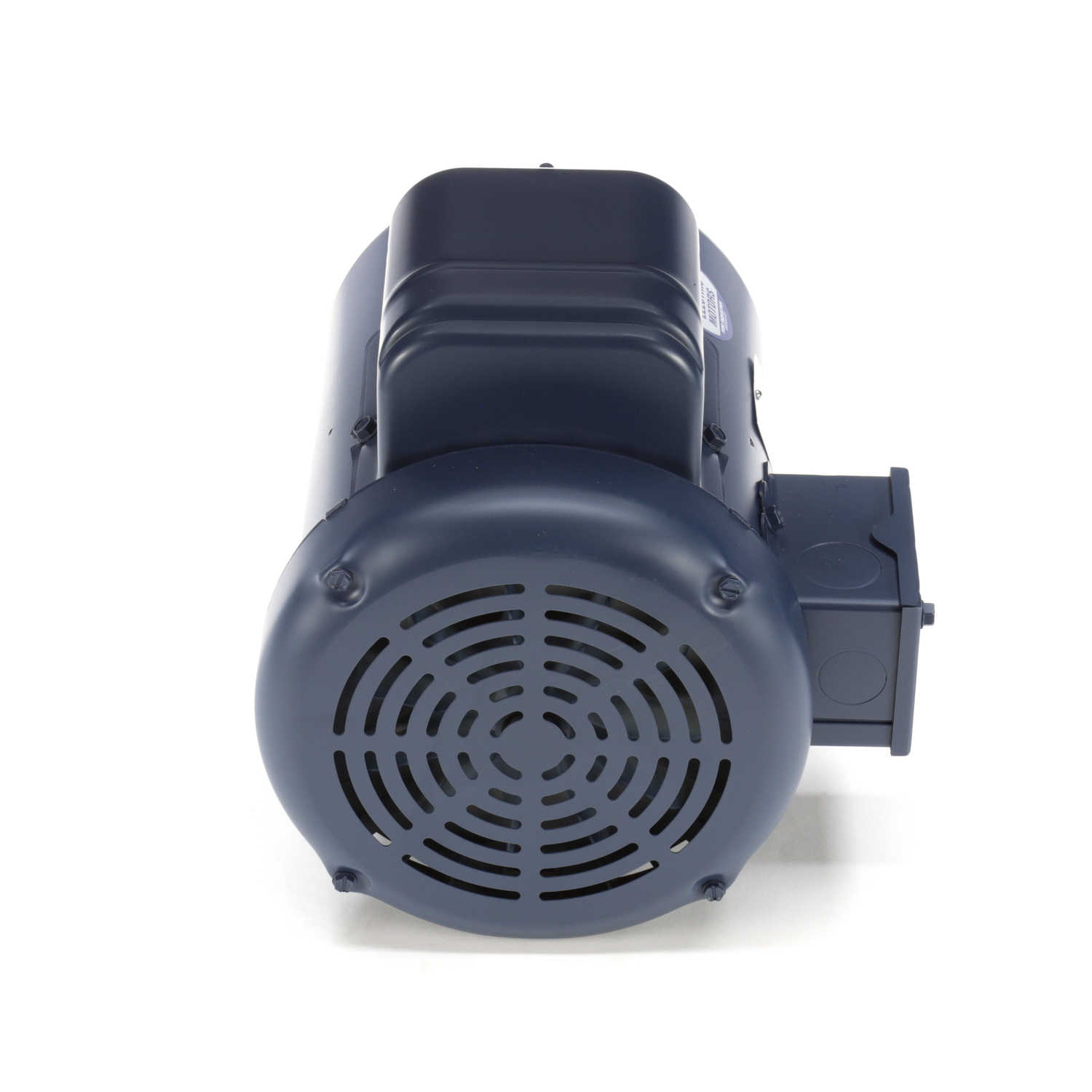

131637.00 Marathon 3HP General Purpose Electric Motor, 3450RPM

MFG: Marathon Electric
MFG Part Number: 131637.00

Selected accessories will also be added to cart
$729.97 / Each
Quantity:
TEFC, 182T Frame, 115/208-230VAC 60Hz Single Phase, Rigid Base, Rolled Steel, 1-1/8" Keyed Shaft

Features

  • Durable rolled steel construction
  • NEMA Design B performance
  • Double shielded ball bearings
  • Continuous duty
  • UL recognized component listing and CSA certified

General Specifications

UPC:691720018576Weight:81.00 LB
Packaged Length:17.94 INPackaged Width:13.06 IN
Packaged Height:12.88 IN

Nameplate Specifications

Output HP:3 HpOutput KW:2.2 kW
Frequency:60 HzVoltage:115/208-230 V
Current:26.8/14.4-13.4 ASpeed:3500 rpm
Service Factor:1.15Phase:1
Efficiency:80 %Power Factor:89
Duty:ContinuousInsulation Class:F
Design Code:LKVA Code:G
Frame:182TEnclosure:Totally Enclosed Fan Cooled
Thermal Protection:NoAmbient Temperature:40 ?C
Drive End Bearing Size:6206Opp Drive End Bearing Size:6205
UL:RecognizedCSA:Y
CE:NIP Code:43

Technical Specifications

Electrical Type:Capacitor Start Capacitor RunStarting Method:Across The Line
Poles:2Rotation:Selective Counterclockwise
Resistance Main:.12 OhmsMounting:Rigid Base
Motor Orientation:HorizontalDrive End Bearing:Ball
Opp Drive End Bearing:BallFrame Material:Rolled Steel
Shaft Type:TOverall Length:14.96 in
Frame Length:9.50 inShaft Diameter:1.125 in
Shaft Extension:2.75 inAssembly/Box Mounting:F1 ONLY

Speed Characteristics

CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)(%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Locked-Rotor102.00761.010.40231.0017.500.03.00
Full Load13.40100.04.50100.000.000.03.00
Pull-Up76.50571.010.00222.02,60013.210.03.00
Break-Down57.90432.012.80284.03,10011.100.03.00

Load Characteristics

% of Rated Load0 %25 %50 %75 %100 %125 %150 %
Current (Amps)4.806.148.3010.8013.4016.7020.10
Rated Output (KW)0.330.921.522.152.803.504.22
Efficiency (%)0.062.470.879.280.079.979.2
Power Factor (%)29.965.279.686.689.091.091.3
Speed (RPM)3,5963,5803,5653,5483,5303,5103,485
Temp. Rise @ FL0.00.00.00.056.069.00.0
Torque (ft-lbs)0.001.132.253.384.505.606.75
Type
Electric Motor
Input Phase
Single Phase
Enclosure
TEFC
Horsepower
3HP
Speed
3450RPM
Enclosure
TEFC
Frame
182T
