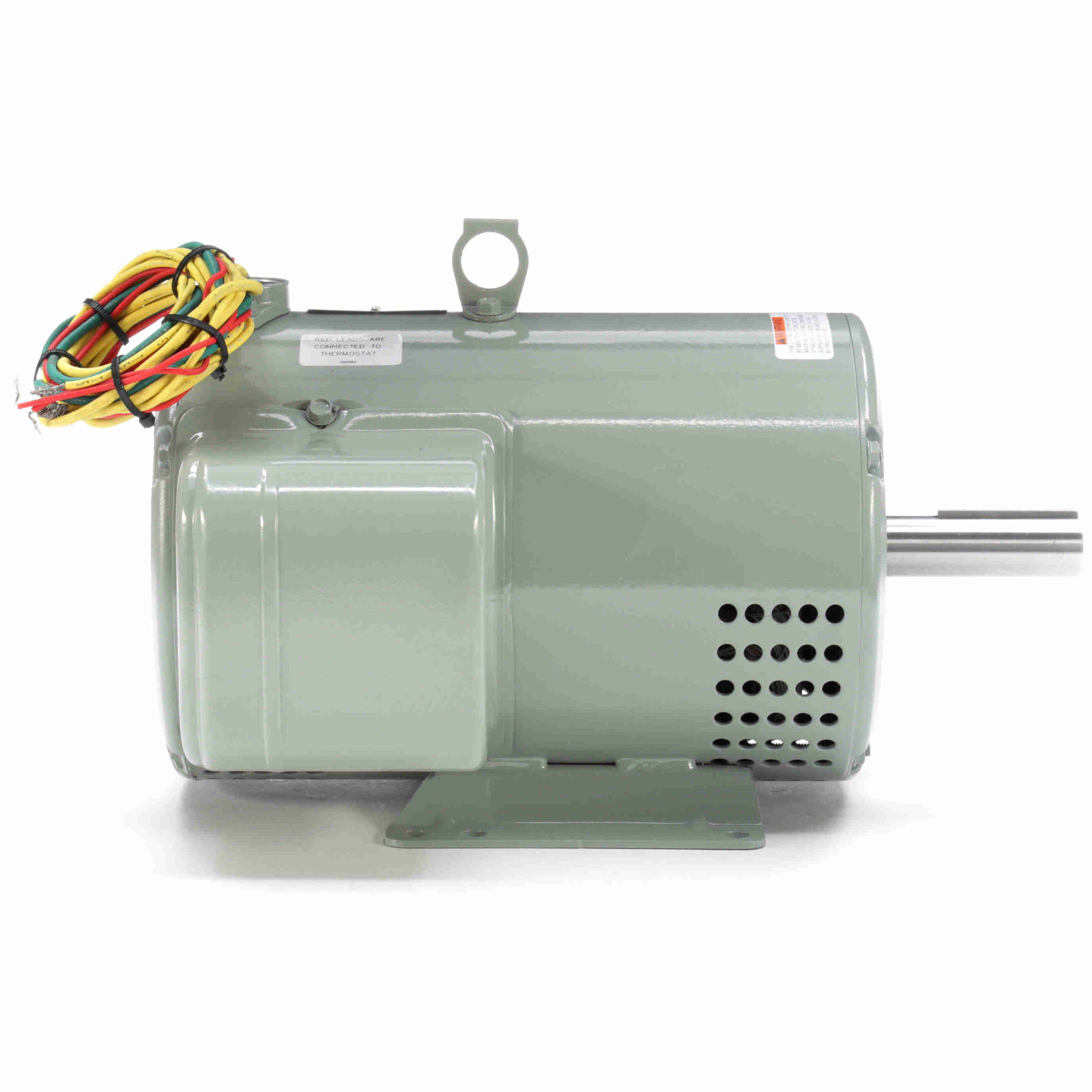

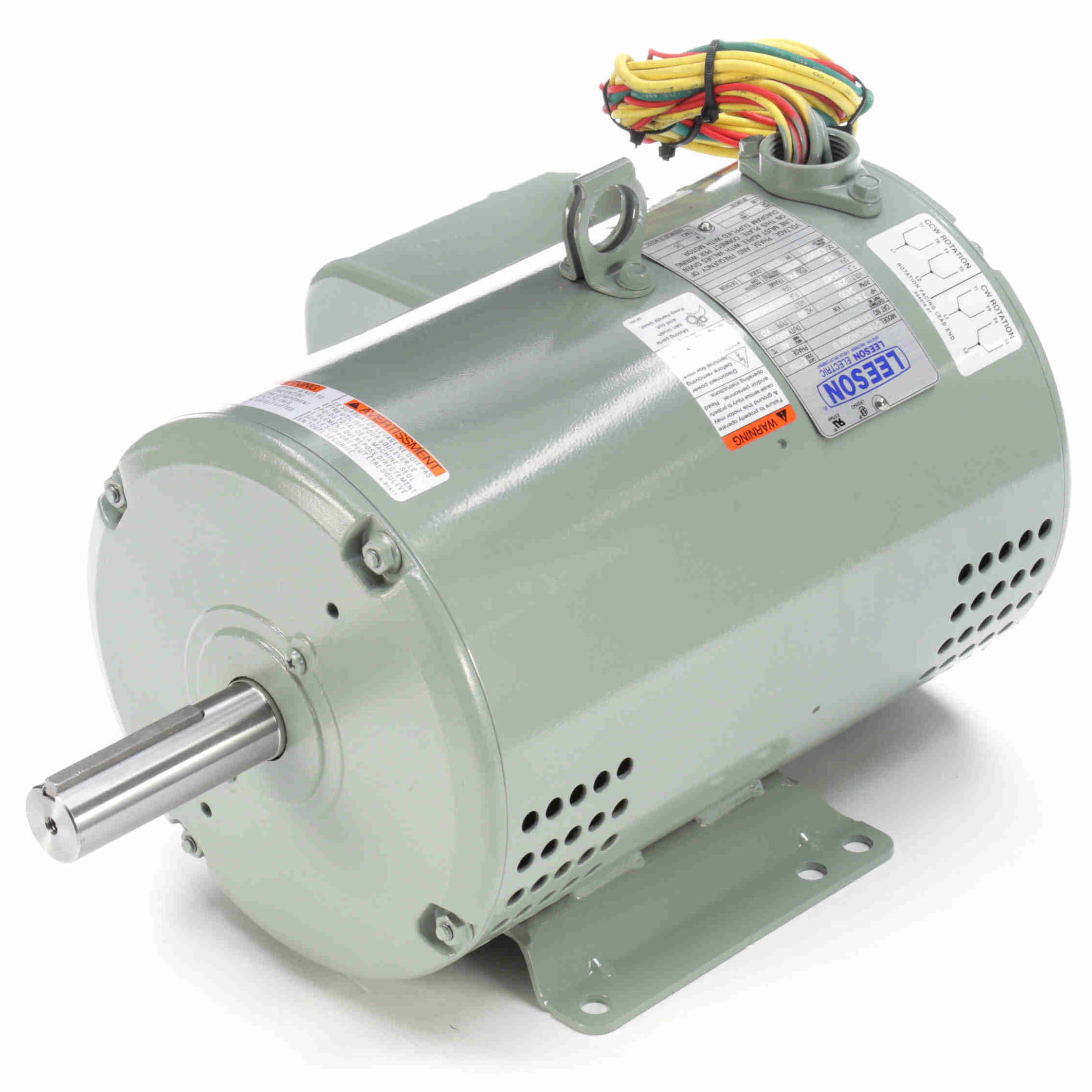

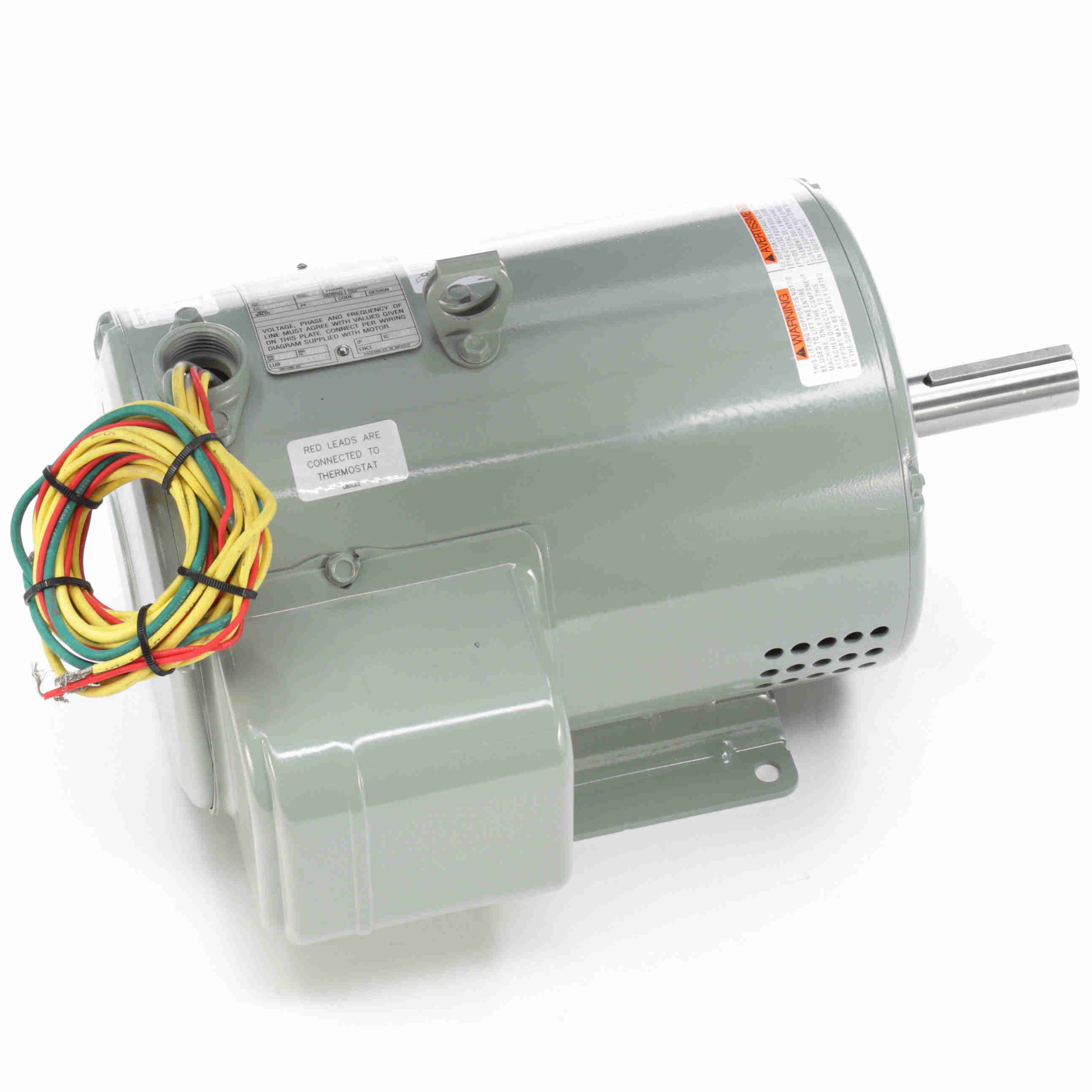

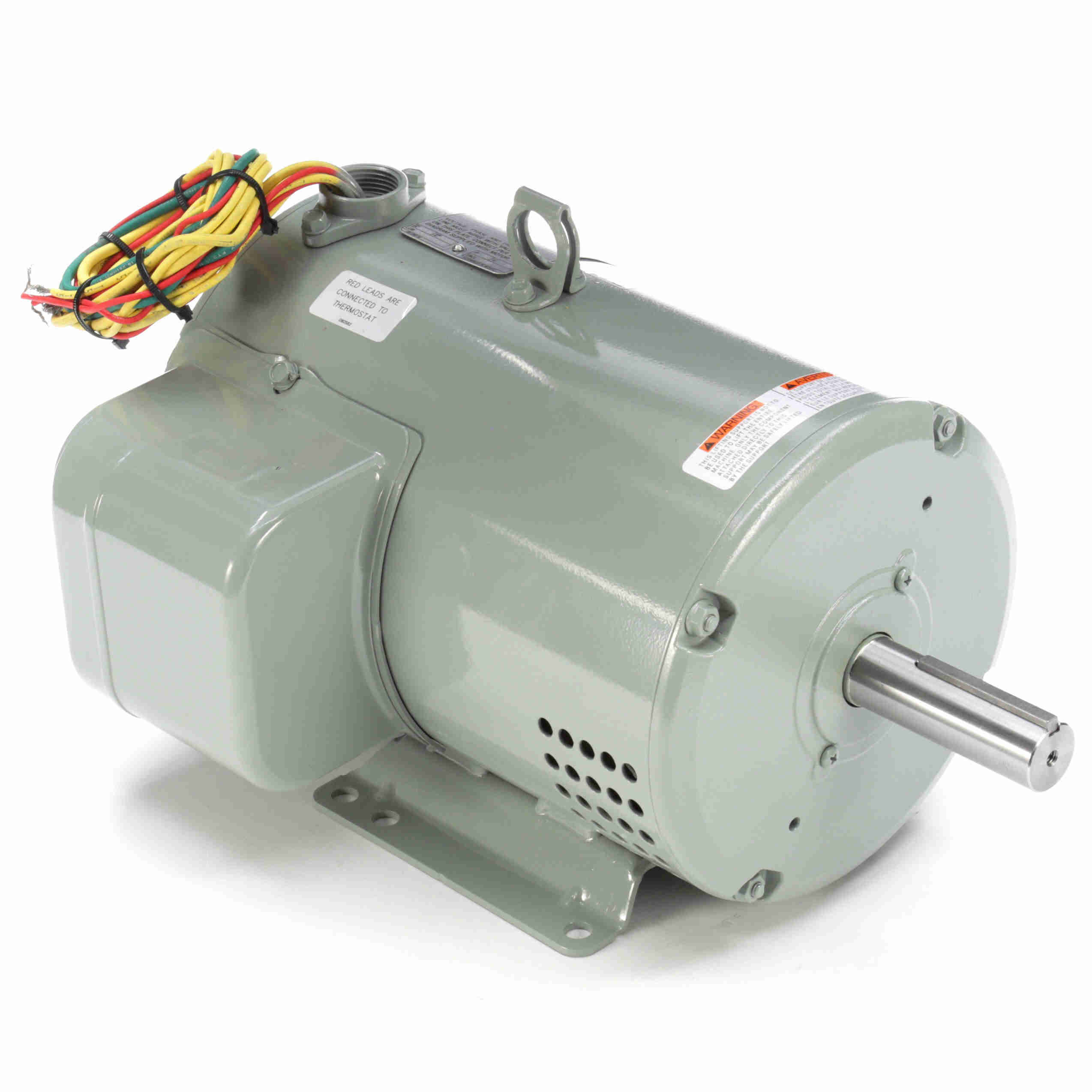

Used on Crop Dryers with air over/fan on shaft designsFeatures:
• Class “F” insulation system
• Overload protected
• Keyed shaft with 1/4-20 UNC tapped hole on end
• 34” long leads
• Motor venting protected against insects and rodents
• Double sealed ball bearings
Features
- Class “F” insulation system
- Overload protected
- 34” long leads
- Motor venting protected against insects and rodents
- Double sealed ball bearings
General Specifications
| UPC: | 691720154458 | Weight: | 98.00 LB |
| Packaged Length: | 17.94 IN | Packaged Width: | 13.06 IN |
| Packaged Height: | 12.88 IN |
Nameplate Specifications
| Output HP: | 7.50 Hp | Output KW: | 5.6 kW |
| Frequency: | 60 Hz | Voltage: | 230 V |
| Current: | 31.0 A | Speed: | 3450 rpm |
| Service Factor: | 1 | Phase: | 1 |
| Efficiency: | 82.5 % | Power Factor: | 93.5 |
| Duty: | Continuous | Insulation Class: | F |
| Design Code: | L | KVA Code: | G |
| Frame: | 182TZ | Enclosure: | Drip Proof Air Over |
| Thermal Protection: | Thermostats 140 deg. C (N/C) | Ambient Temperature: | 40 ?C |
| Drive End Bearing Size: | 6206 | Opp Drive End Bearing Size: | 6205 |
| UL: | Recognized | CSA: | Y |
| CE: | N | IP Code: | 22 |
| Number of Speeds: | 1 |
Technical Specifications
| Electrical Type: | Capacitor Start Capacitor Run | Starting Method: | Across The Line |
| Poles: | 2 | Rotation: | Selective Counterclockwise |
| Resistance Main: | .214 Ohms | Mounting: | Rigid Base |
| Motor Orientation: | Horizontal | Drive End Bearing: | Ball |
| Opp Drive End Bearing: | Ball | Frame Material: | Rolled Steel |
| Shaft Type: | Single Special Extension | Overall Length: | 16.44 in |
| Frame Length: | 11.50 in | Shaft Diameter: | 1.125 in |
| Shaft Extension: | 3.5 in | Assembly/Box Mounting: | F1 ONLY |
Speed Characteristics
| Curvepoint | Current (Amps) | Current (%) | Torque (LB-FT) | Torque (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| Break-Down | 130.00 | 419.0 | 30.00 | 269.0 | 3,100 | 0.00 | 0.0 | 7.50 |
| Pull-Up | 233.00 | 752.0 | 24.20 | 217.0 | 30 | 0.00 | 0.0 | 7.50 |
| Locked-Rotor | 235.00 | 758.0 | 22.00 | 195.0 | 0 | 0.00 | 0.0 | 7.50 |
| Full Load | 31.00 | 100.0 | 11.17 | 100.0 | 0 | 0.00 | 0.0 | 7.50 |
Load Characteristics
| % of Rated Load | 0 % | 25 % | 50 % | 75 % | 100 % | 115 % | 125 % | 150 % |
| Current (Amps) | 7.60 | 11.20 | 17.10 | 23.60 | 31.00 | 35.40 | 38.60 | 47.10 |
| Rated Output (KW) | 0.62 | 2.11 | 3.62 | 5.15 | 6.78 | 7.85 | 8.60 | 10.48 |
| Efficiency (%) | 0.0 | 67.5 | 78.3 | 82.0 | 82.5 | 81.9 | 81.1 | 79.8 |
| Power Factor (%) | 35.6 | 81.8 | 91.9 | 92.5 | 93.5 | 97.0 | 96.9 | 96.7 |
| Speed (RPM) | 3,598 | 3,580 | 3,561 | 3,541 | 3,515 | 3,505 | 3,496 | 3,467 |
| Temp. Rise @ FL | 0.0 | 0.0 | 0.0 | 0.0 | 53.0 | 70.0 | 0.0 | 0.0 |
| Torque (LB-FT) | 0.00 | 2.80 | 5.60 | 8.40 | 11.17 | 12.92 | 14.05 | 16.98 |
