/Products/Electric Motors/Single Phase Electric Motors/Marathon Single Phase Electric Motors/131856.00 Marathon 5HP General Purpose Electric Motor, 1800RPM
Click Image to Expand

Product ID: 131856.00

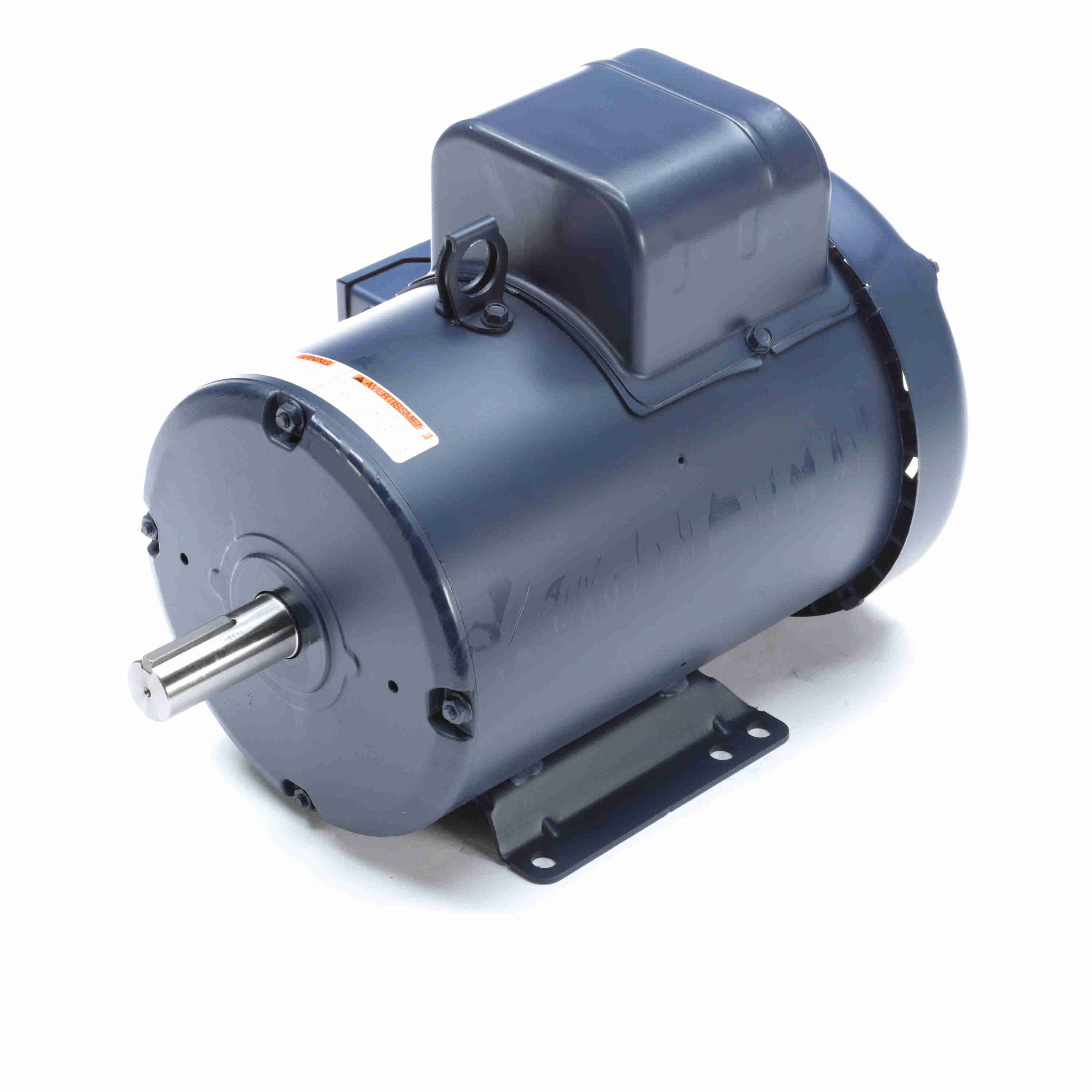

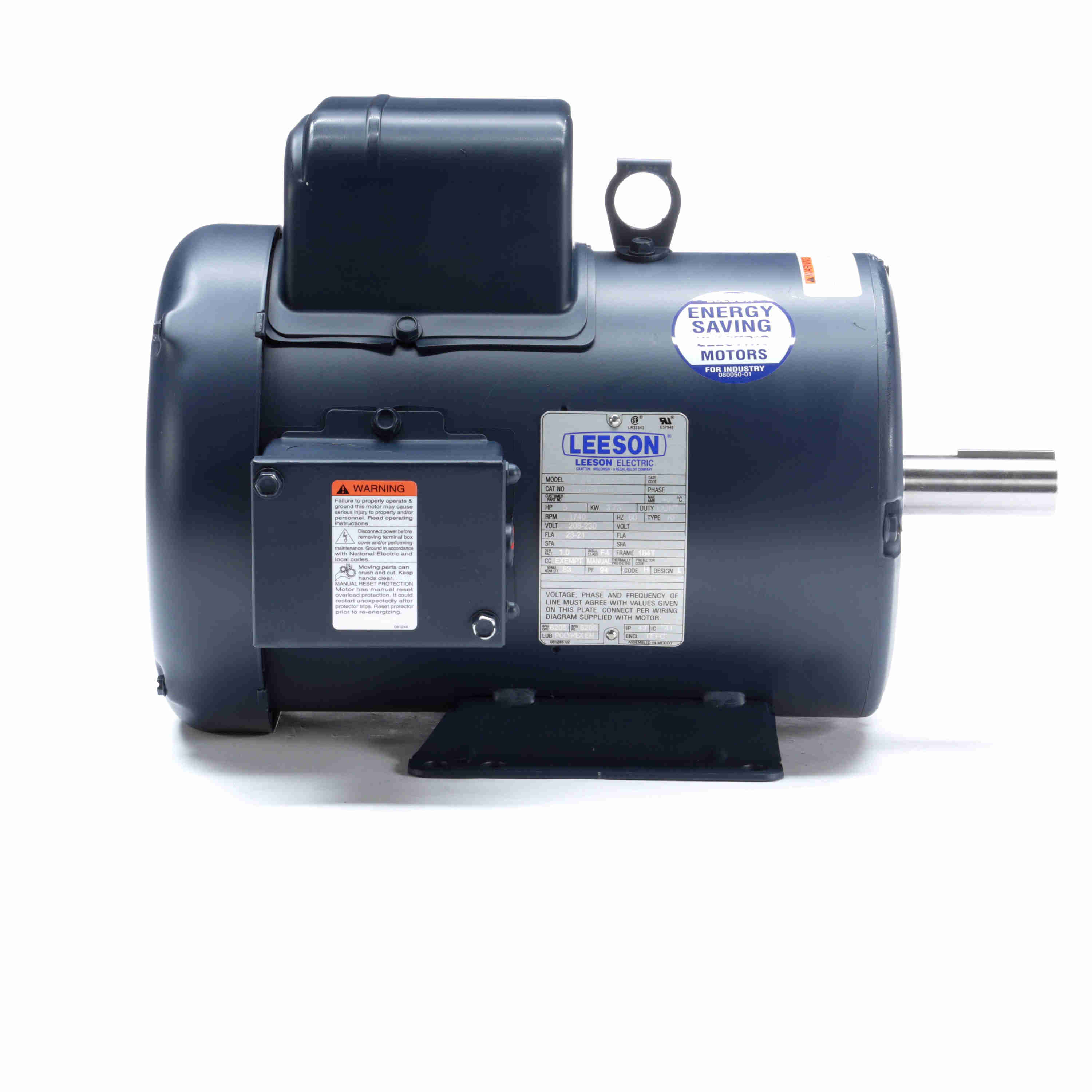

131856.00 Marathon 5HP General Purpose Electric Motor, 1800RPM

MFG: Marathon Electric
MFG Part Number: 131856.00

Selected accessories will also be added to cart
$909.97 / Each
Quantity:
TEFC, 184T Frame, 208-230VAC Single Phase 60Hz, Rigid Base, Rolled Steel, 1-1/8" Shaft

Features

  • Double shielded ball bearings
  • Dynamically balanced rotors
  • NEMA ? Design B performance
  • Continuous Duty
  • Meets or exceeds NEMA service factors

General Specifications

UPC:691720154533Weight:85.00 LB
Packaged Length:17.94 INPackaged Width:13.06 IN
Packaged Height:12.88 IN

Nameplate Specifications

Output HP:5 HpOutput KW:3.7 kW
Frequency:60 HzVoltage:208-230 V
Current:23.0-21.0 ASpeed:1740 rpm
Service Factor:1Phase:1
Efficiency:83 %Power Factor:94
Duty:ContinuousInsulation Class:F
Design Code:LKVA Code:H
Frame:184TEnclosure:Totally Enclosed Fan Cooled
Thermal Protection:ManualAmbient Temperature:40 ?C
Drive End Bearing Size:6206Opp Drive End Bearing Size:6205
UL:RecognizedCSA:Y
CE:NIP Code:43

Technical Specifications

Electrical Type:Capacitor Start Capacitor RunStarting Method:Across The Line
Poles:4Rotation:Selective Counterclockwise
Resistance Main:.48 OhmsMounting:Rigid Base
Motor Orientation:HorizontalDrive End Bearing:Ball
Opp Drive End Bearing:BallFrame Material:Rolled Steel
Shaft Type:TOverall Length:15.96 in
Frame Length:10.50 inShaft Diameter:1.125 in
Shaft Extension:2.75 inAssembly/Box Mounting:F1 Only

Speed Characteristics

CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)(%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Full Load21.0015.00100.005.00
Pull-Up0.0028.90193.005.00
Break-Down0.0032.50217.005.00
Locked-Rotor138.0041.10274.005.00

Load Characteristics

% of Rated Load0 %25 %50 %75 %100 %125 %150 %
Current (Amps)5.908.6811.9016.0420.8526.0032.05
Rated Output (KW)0.601.512.453.454.515.697.11
Efficiency (%)0.063.077.281.983.081.577.4
Power Factor (%)44.275.789.693.594.095.296.5
Speed (RPM)1,7981,7891,7781,7681,7561,7411,722
Temp. Rise @ FL0.00.00.00.095.00.00.0
Torque (ft-lbs)0.003.757.5011.2515.0018.7522.50
Type
Electric Motor
Input Phase
Single Phase
Speed
1800RPM
Enclosure
TEFC
Horsepower
5HP
Frame
184T
