/Products/Electric Motors/Single Phase Electric Motors/Marathon Single Phase Electric Motors/132042.00 Marathon 5HP General Purpose Electric Motor, 3600RPM
Click Image to Expand

Product ID: 132042.00

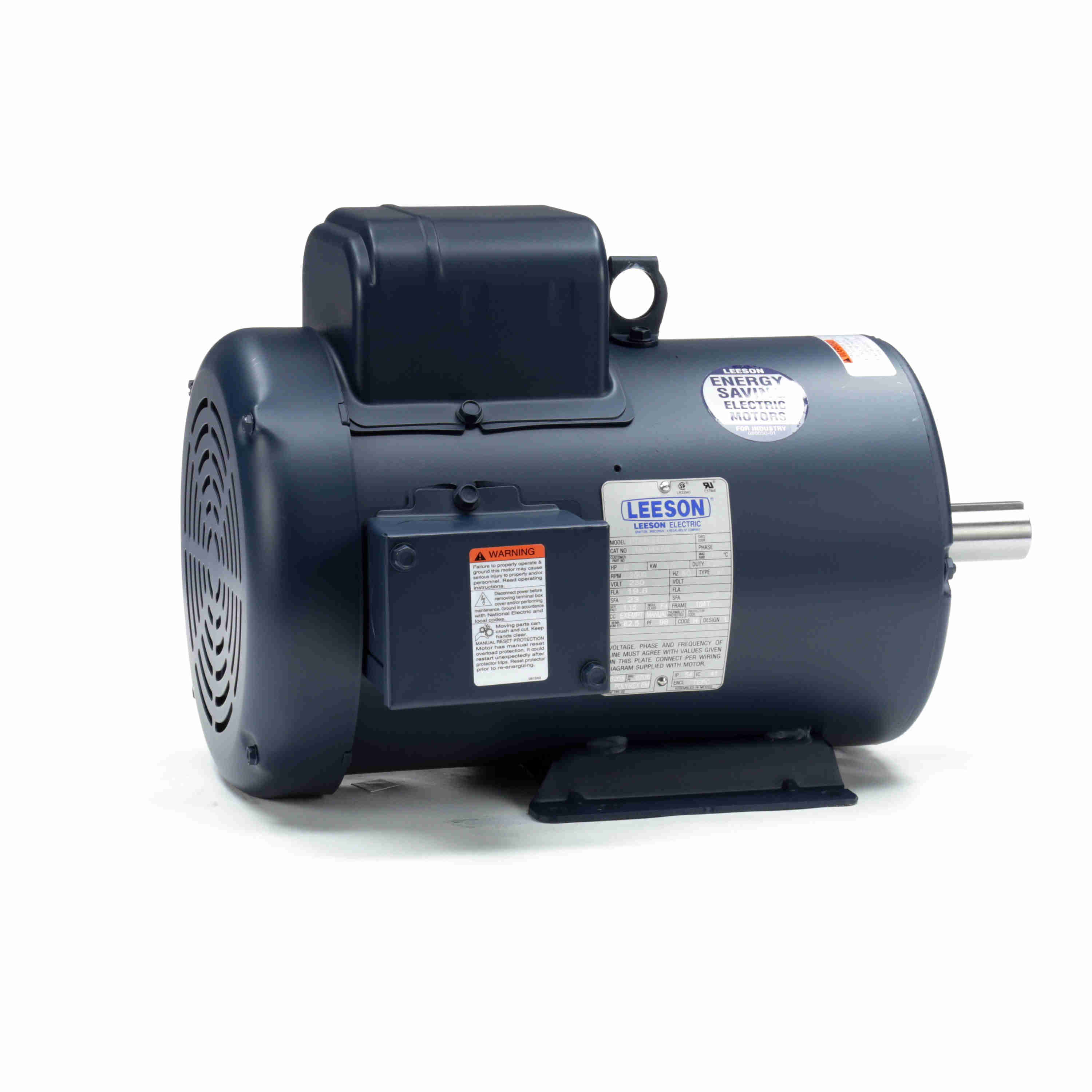

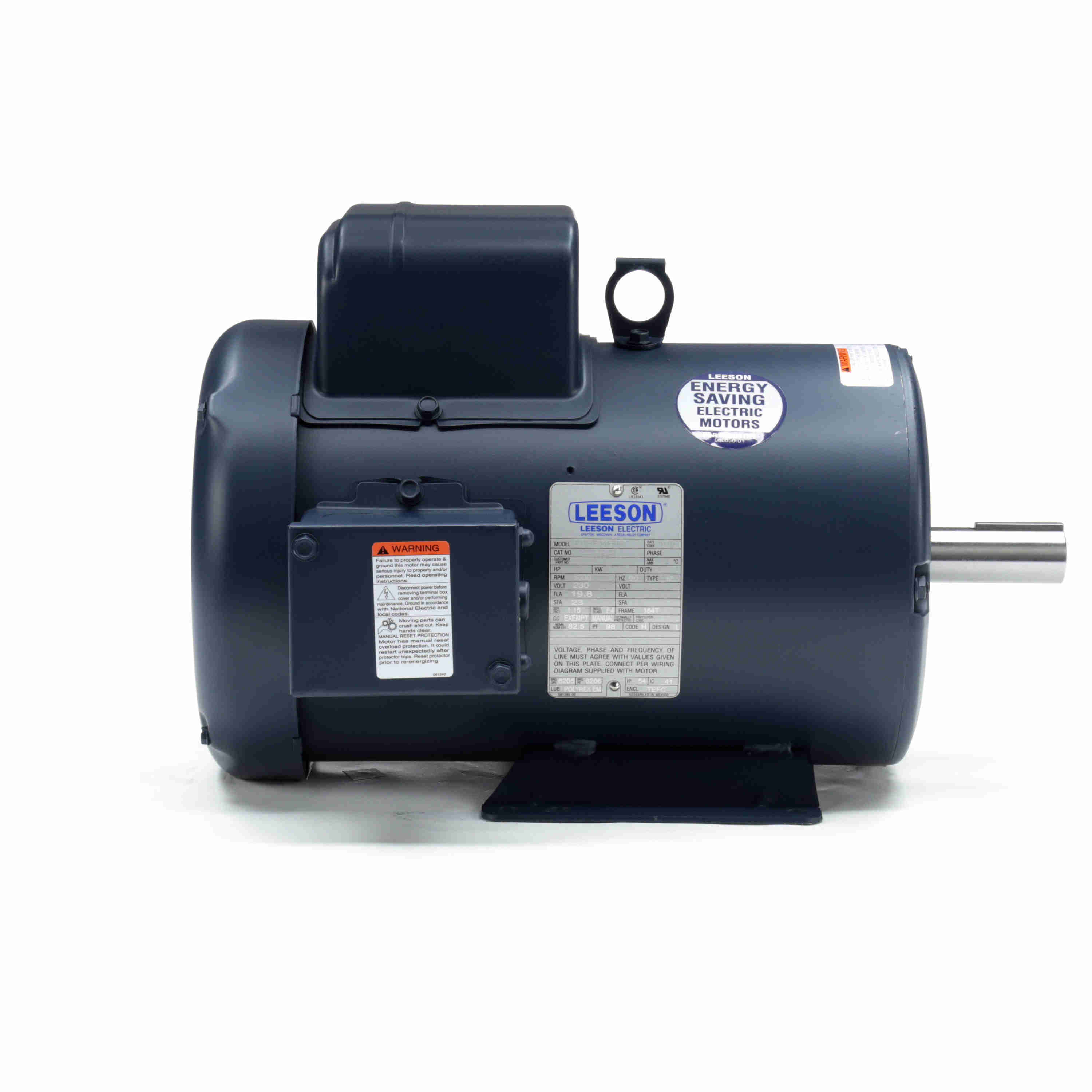

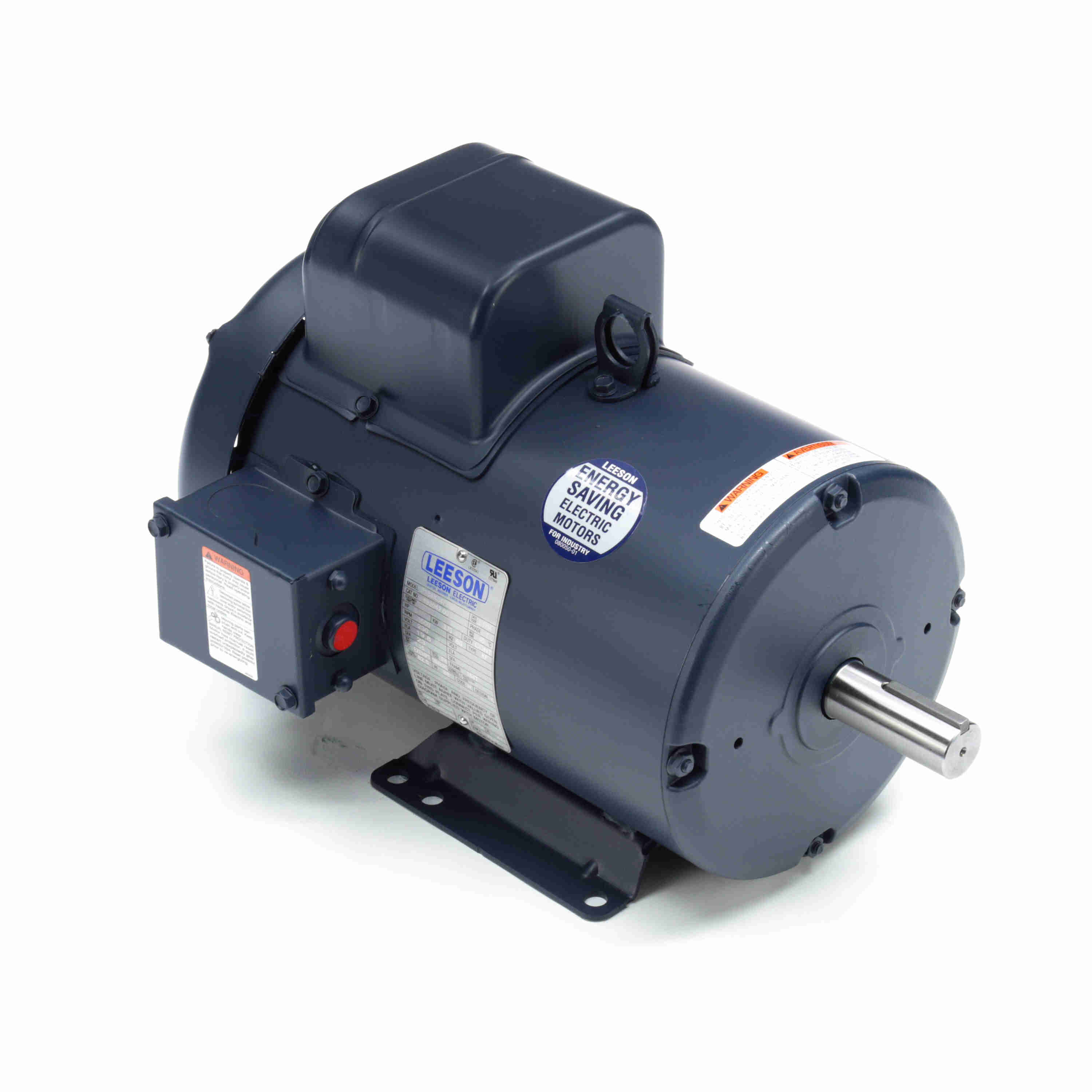

132042.00 Marathon 5HP General Purpose Electric Motor, 3600RPM

MFG: Marathon Electric
MFG Part Number: 132042.00

Selected accessories will also be added to cart
$889.97 / Each
Quantity:
TEFC, 184T Frame, 230VAC Single Phase 60Hz, Rigid Base, Rolled Steel, 1-1/8" Shaft

Features

  • Double shielded ball bearings
  • Dynamically balanced rotors
  • NEMA ? Design B performance
  • Continuous Duty
  • Meets or exceeds NEMA service factors

General Specifications

UPC:691720346686Weight:103.00 LB
Packaged Length:20.13 INPackaged Width:14.63 IN
Packaged Height:12.38 IN

Nameplate Specifications

Output HP:5 HpOutput KW:3.7 kW
Frequency:60 HzVoltage:230 V
Current:19.8 ASpeed:3500 rpm
Service Factor:1.15Phase:1
Efficiency:82.5 %Power Factor:98
Duty:ContinuousInsulation Class:F
Design Code:LKVA Code:H
Frame:184TEnclosure:Totally Enclosed Fan Cooled
Thermal Protection:ManualAmbient Temperature:40 ?C
Drive End Bearing Size:6206Opp Drive End Bearing Size:6205
UL:RecognizedCSA:Y
CE:NIP Code:43

Technical Specifications

Electrical Type:Capacitor Start Capacitor RunStarting Method:Across The Line
Poles:2Rotation:Selective Counterclockwise
Resistance Main:.342 OhmsMounting:Rigid Base
Motor Orientation:HorizontalDrive End Bearing:Ball
Opp Drive End Bearing:BallFrame Material:Rolled Steel
Shaft Type:TOverall Length:16.96 in
Frame Length:11.50 inShaft Diameter:1.125 in
Shaft Extension:2.75 inAssembly/Box Mounting:F1 Only

Speed & Load Characteristics

Speed Characteristics

CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)(%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Full Load19.807.50100.03,5285.00
Break-Down0.0019.40259.005.00
Pull-Up0.0015.80211.005.00
Locked-Rotor153.0016.20216.005.00

Load Characteristics

% of Rated Load0 %25 %50 %75 %100 %115 %125 %150 %
Current (Amps)2.926.6710.9115.4820.2022.8025.4031.05
Rated Output (KW)0.551.472.463.494.565.105.706.93
Efficiency (%)0.065.077.481.382.582.081.980.6
Power Factor (%)81.996.097.898.198.097.097.697.0
Speed (RPM)3,5943,5833,5663,5493,5303,5253,5043,476
Temp. Rise @ FL0.00.00.00.071.00.00.00.0
Torque (ft-lbs)0.001.883.755.637.508.609.3811.30
Type
Electric Motor
Input Phase
Single Phase
Speed
3600RPM
Enclosure
TEFC
Horsepower
5HP
Enclosure
TEFC
Frame
184T
