/Products/Electric Motors/Air Compressor/Leeson/132044.00 Leeson 7.5HP Compressor Duty Electric Motor, 3450RPM
Click Image to Expand

Product ID: 132044.00

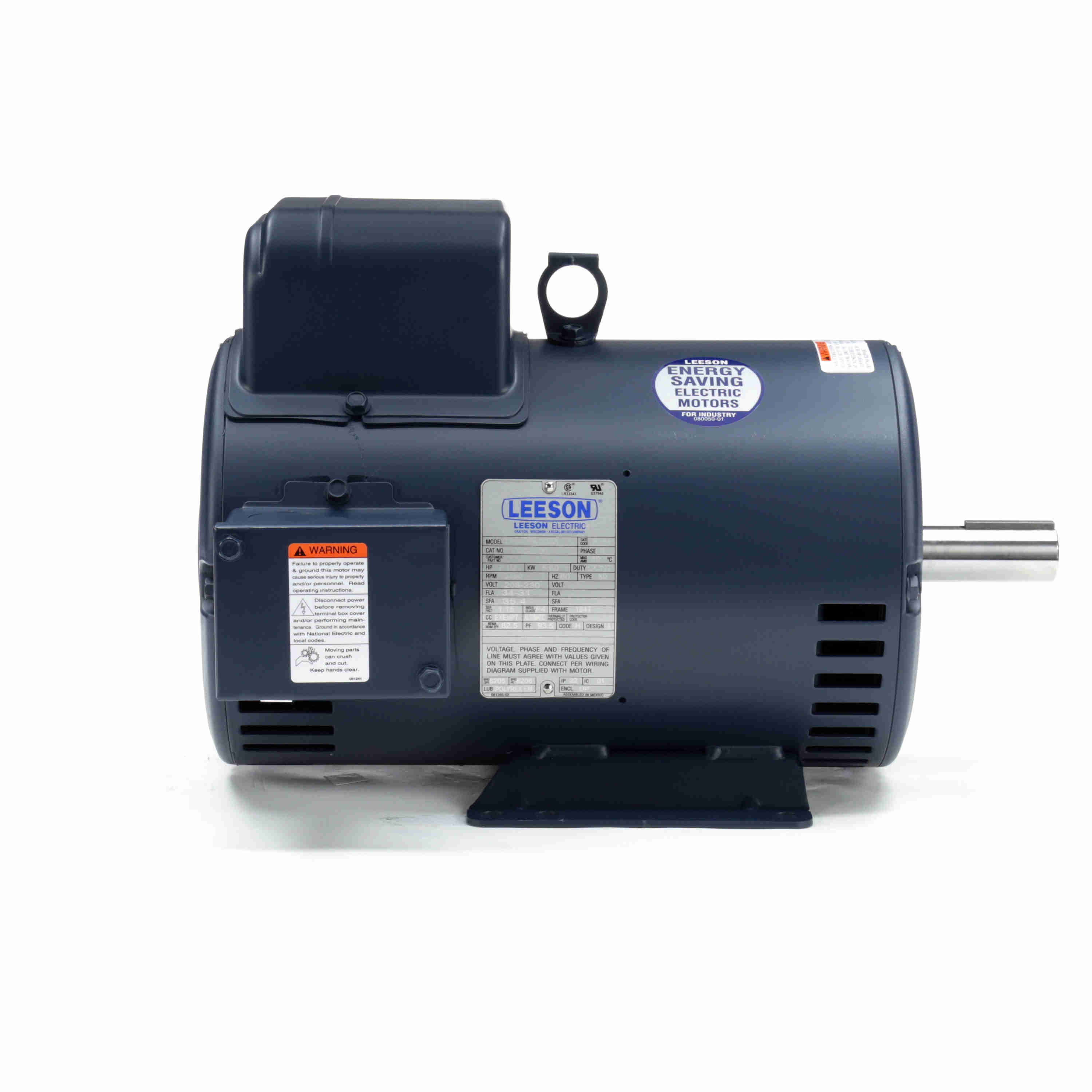

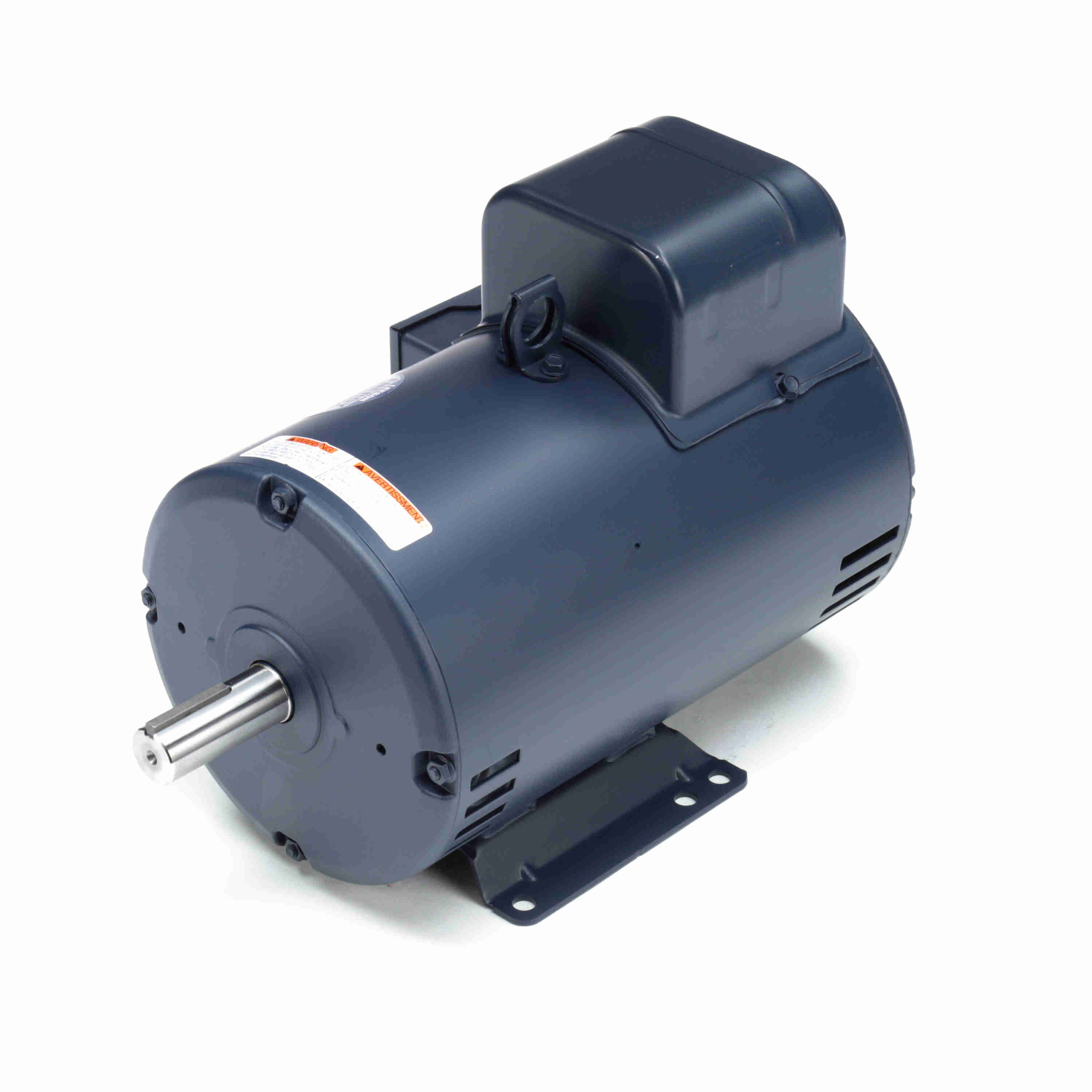

132044.00 Leeson 7.5HP Compressor Duty Electric Motor, 3450RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 132044.00

Selected accessories will also be added to cart
$899.80 / Each
Quantity:
DP, 184T Frame, 208-230V Single Phase 60Hz, Rigid Base, C184K34DB8A

Features

Features
  • Double shielded ball bearings
  • Designed for belted loads
  • High starting and breakdown torque
  • Dual rotation

General Specifications

General Specifications
Model :C184K34DB8A Catalog No :132044.00
Part Description :..7 1/2HP..3450RPM.184.DP./208-230V.1PH.60HZ.CONT.40C.1.15SF.RIGID.C184K34DB8A.....AIR COMPRESSOR.AUTOMATIC....... Category :Air Compressor
Stock :No

Nameplate Specifications

Nameplate Specifications
Output HP :7.50 Hp Output KW :5.6 kW
Frequency :60 Hz Voltage :208-230 V
Current :34.0-31.0 A Speed :3450 rpm
Service Factor :1.15 Phase :1
Efficiency :82.5 % Duty :Continuous
Insulation Class :F Design Code :L
KVA Code :H Frame :184T
Enclosure :Drip Proof Overload Protector :Automatic
Ambient Temperature :40 °C Drive End Bearing Size :6206
Opp Drive End Bearing Size :6205 UL :Recognized
CSA :Y CE :N
IP Code :22

Technical Specifications

Technical Specifications
Electrical Type :Capacitor Start Capacitor Run Starting Method :Across The Line
Poles :2 Rotation :Selective Counterclockwise
Mounting :Rigid base Motor Orientation :HORIZONTAL
Drive End Bearing :BALL Opp Drive End Bearing :BALL
Frame Material :Rolled Steel Shaft Type :T
Overall Length :16.69 in Frame Length :12.50 in
Shaft Diameter :1.125 in Shaft Extension :2.75 in
Assembly/Box Mounting :F1 ONLY UPC :691720346518
Weight :110.00 LB
