/Products/Electric Motors/3 Phase/Leeson/Washguard - TENV/TEFC/132196.00 Leeson Washguard Motor, 3 HP, 1800 RPM
Click Image to Expand

Product ID: 132196.00

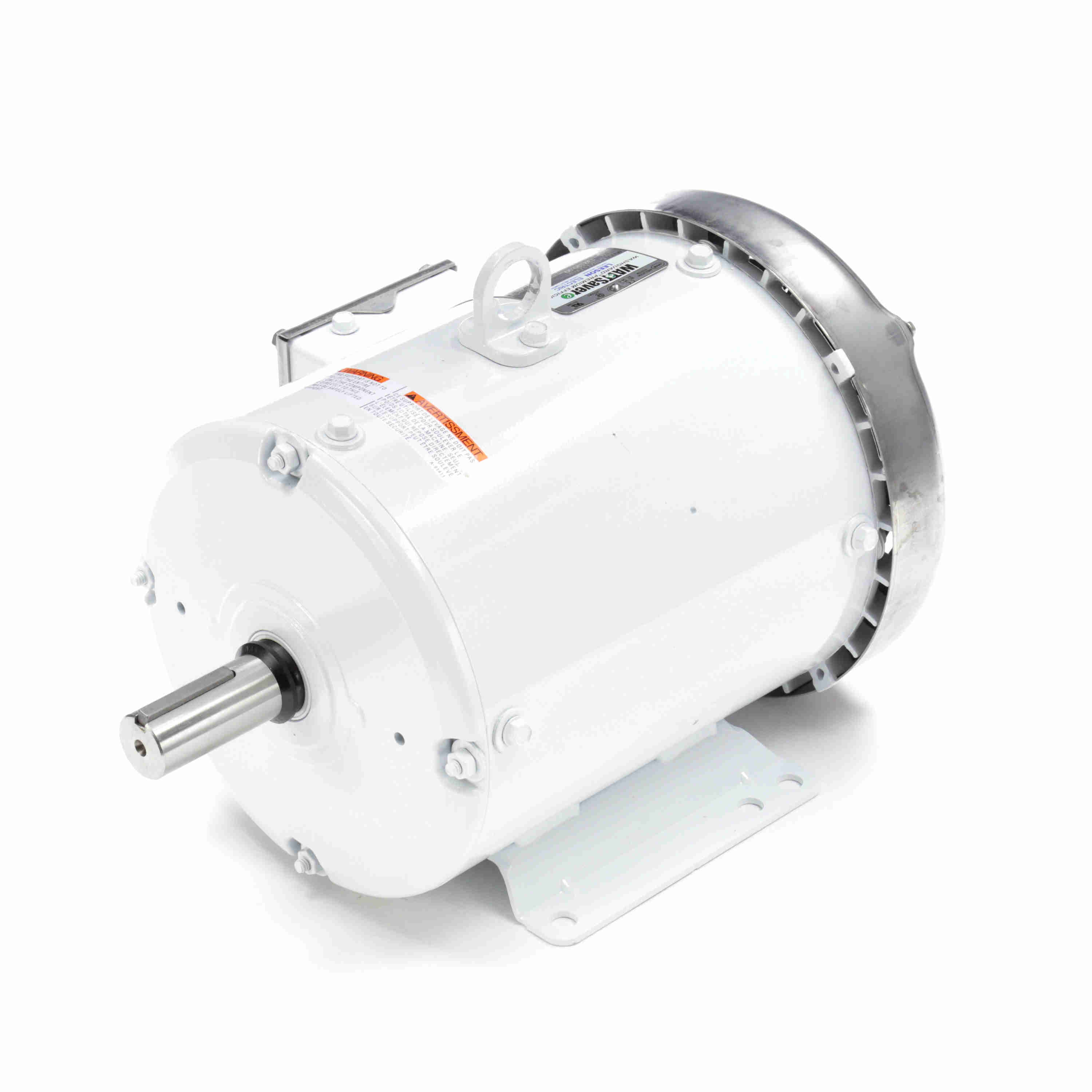

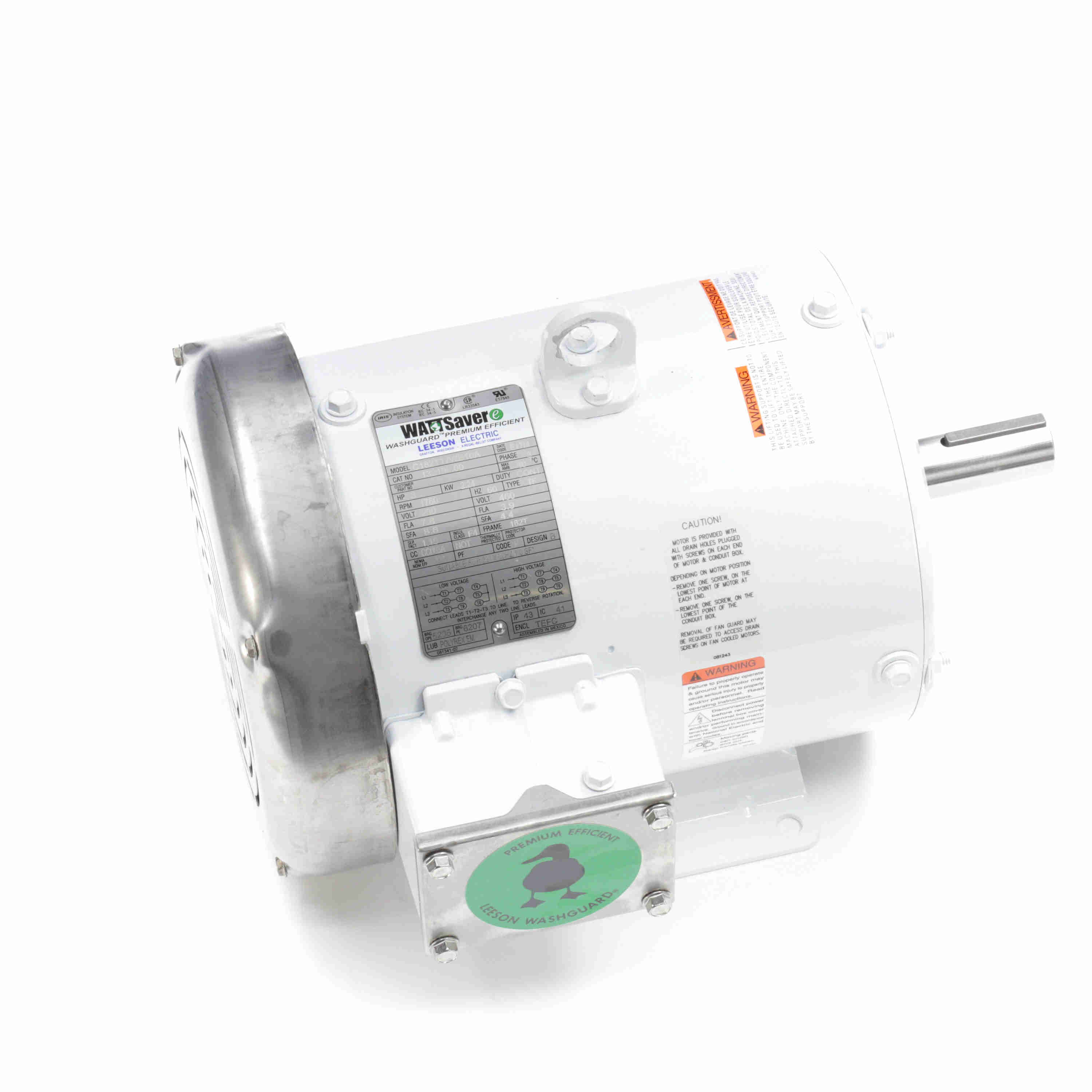

132196.00 Leeson Washguard Motor, 3 HP, 1800 RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 132196.00

Selected accessories will also be added to cart
$1,049.97 / Each
Quantity:
182T Frame, 208-230/460V 3-Phase, TEFC, Rigid Base, C182T17WB10A, Washdown Duty
Features
  • USDA-approved epoxy painted motors
  • NEMA motors
  • Rigid base and C face mount types
  • BISSC approved designs; Double lip contact seals and v-ring seals used for shaft seals
  • 3-year warranty on encapsulated and premium efficient models
  • UL recognized and CSA certified
  • Washdown brakemotors and pump motors available
  • UL recognized and CSA certified
General Specifications
Model :C182T17WB10A Catalog No :132196.00
Part Description :3HP..1770RPM.182.TEFC./V.3PH.60HZ.CONT.NOT.40C.1.15SF.RIGID.WASHGUARD.C182T17WB10A Category :General Purpose
Stock :No
Nameplate Specifications
Output HP :3 Hp Output KW :2.2 kW
Frequency :60 Hz Voltage :230/460 V
Current :7.8/3.9 A Speed :1760 rpm
Service Factor :1.15 Phase :3
Efficiency :89.5 % Duty :Continuous
Insulation Class :F Design Code :B
KVA Code :K Frame :182T
Enclosure :Totally Enclosed Fan Cooled Overload Protector :No
Ambient Temperature :40 °C Drive End Bearing Size :6207
Opp Drive End Bearing Size :6205 UL :Recognized
CSA :Y CE :Y
IP Code :55
Technical Specifications
Electrical Type :Squirrel Cage Induction Run Starting Method :Across The Line
Poles :4 Rotation :Reversible
Mounting :Rigid base Motor Orientation :HORIZONTAL
Drive End Bearing :BALL Opp Drive End Bearing :BALL
Frame Material :Rolled Steel Shaft Type :T
Overall Length :14.46 in Frame Length :9.00 in
Shaft Diameter :1.125 in Shaft Extension :2.75 in
Assembly/Box Mounting :F1 ONLY UPC :691720000229
Weight :78.00 LB
Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Full Load3.90100.08.90100.01,7700.0080.53.00
Locked-Rotor33.50859.022.50253.000.000.03.00
Pull-Up33.00846.021.00236.000.000.03.00
Break-Down21.50551.036.00404.000.000.03.00
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 1.90
  • 0.105
  • 0.0
  • 6.9
  • 1,798
  • 0.0
  • 0.00
  • 25 %
  • 2.10
  • 0.693
  • 80.8
  • 41.4
  • 1,792
  • 0.0
  • 2.20
  • 50 %
  • 2.56
  • 1.278
  • 87.7
  • 62.7
  • 1,785
  • 0.0
  • 4.42
  • 75 %
  • 3.18
  • 1.870
  • 89.6
  • 73.8
  • 1,777
  • 0.0
  • 6.64
  • 100 %
  • 3.90
  • 2.500
  • 89.5
  • 80.5
  • 1,770
  • 40.0
  • 8.91
  • 115 %
  • 4.40
  • 2.862
  • 89.9
  • 81.6
  • 1,766
  • 47.0
  • 10.26
  • 125 %
  • 4.73
  • 3.129
  • 89.2
  • 83.0
  • 1,755
  • 0.0
  • 11.20
  • 150 %
  • 5.61
  • 3.787
  • 88.5
  • 84.7
  • 1,750
  • 0.0
  • 13.49
