/Products/Electric Motors/3 Phase/Leeson/Washguard - TENV/TEFC/132306.00 Leeson Washguard Motor, 7.5 HP, 3600 RPM

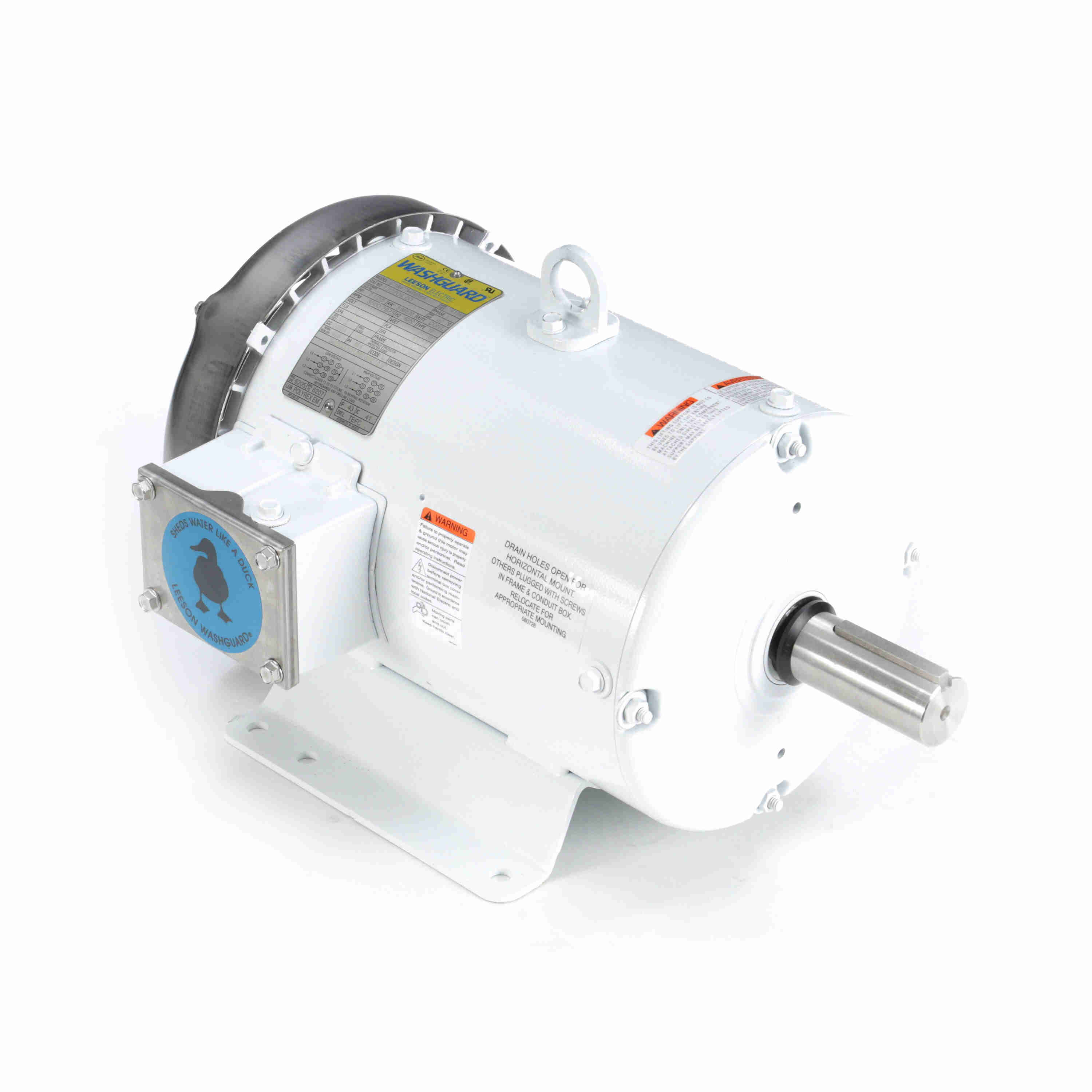

132306.00 Leeson Washguard Motor, 7.5 HP, 3600 RPM
Enlarge Photo

Product ID: 132306.00

132306.00 Leeson Washguard Motor, 7.5 HP, 3600 RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 132306.00

Selected accessories will also be added to cart
$1,459.97 / Each
Quantity:
184T Frame, 208-230/460V 3-Phase, TEFC, Rigid Base, C184T34WB6A, Washdown Duty
Features
  • USDA-approved epoxy painted motors
  • NEMA motors
  • Rigid base and C face mount types
  • BISSC approved designs; Double lip contact seals and v-ring seals used for shaft seals
  • 3-year warranty on encapsulated and premium efficient models
  • UL recognized and CSA certified
  • Washdown brakemotors and pump motors available
  • UL recognized and CSA certified
General Specifications
Model :C184T34WB6A Catalog No :132306.00
Part Description :..7.5HP..3600RPM.184T.TEFC.230/460V.3PH.60HZ.CONT.40C..RIGID......WASHDOWN DUTY........ Category :General Purpose
Stock :No
Nameplate Specifications
Output HP :7.50 Hp Output KW :5.6 kW
Frequency :60 Hz Voltage :230/460 V
Current :17.6/8.8 A Speed :3500 rpm
Service Factor :1.15 Phase :3
Efficiency :89.5 % Duty :Continuous
Insulation Class :F Design Code :A
KVA Code :L Frame :184T
Enclosure :Totally Enclosed Fan Cooled Overload Protector :No
Ambient Temperature :40 °C Drive End Bearing Size :6207
Opp Drive End Bearing Size :6205 UL :Recognized
CSA :Y CE :Y
IP Code :55
Technical Specifications
Electrical Type :Squirrel Cage Induction Run Starting Method :Across The Line
Poles :2 Rotation :Reversible
Mounting :Rigid base Motor Orientation :HORIZONTAL
Drive End Bearing :BALL Opp Drive End Bearing :BALL
Frame Material :Rolled Steel Shaft Type :T
Overall Length :15.96 in Frame Length :10.50 in
Shaft Diameter :1.125 in Shaft Extension :2.75 in
Assembly/Box Mounting :F1 ONLY UPC :691720300862
Weight :87.00 LB
Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Pull-Up0.000.033.50298.04000.000.07.50
Full Load8.80100.011.25100.03,5000.000.07.50
Break-Down0.000.046.00409.000.000.07.50
Locked-Rotor87.50994.034.60308.000.000.07.50
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 3.00
  • 0.225
  • 0.0
  • 9.4
  • 3,595
  • 0.0
  • 0.00
  • 25 %
  • 3.70
  • 1.648
  • 86.4
  • 55.9
  • 3,579
  • 0.0
  • 2.80
  • 50 %
  • 5.20
  • 3.115
  • 90.8
  • 75.2
  • 3,556
  • 0.0
  • 5.60
  • 75 %
  • 6.90
  • 4.627
  • 91.2
  • 84.2
  • 3,535
  • 0.0
  • 8.40
  • 100 %
  • 8.80
  • 6.197
  • 90.1
  • 88.4
  • 3,510
  • 70.0
  • 11.20
  • 115 %
  • 10.00
  • 7.150
  • 89.5
  • 89.7
  • 3,494
  • 0.0
  • 12.90
  • 125 %
  • 10.90
  • 7.821
  • 88.5
  • 90.1
  • 3,482
  • 0.0
  • 14.00
  • 150 %
  • 13.20
  • 9.516
  • 86.6
  • 90.5
  • 3,454
  • 0.0
  • 16.80
