/Products/Electric Motors/3 Phase/Marathon 3-Phase Electric Motors/132393.00 Marathon 5-7HP Grain Dryer / Centrifugal Fan Electric Motor, 3600RPM
Click Image to Expand

Product ID: 132393.00

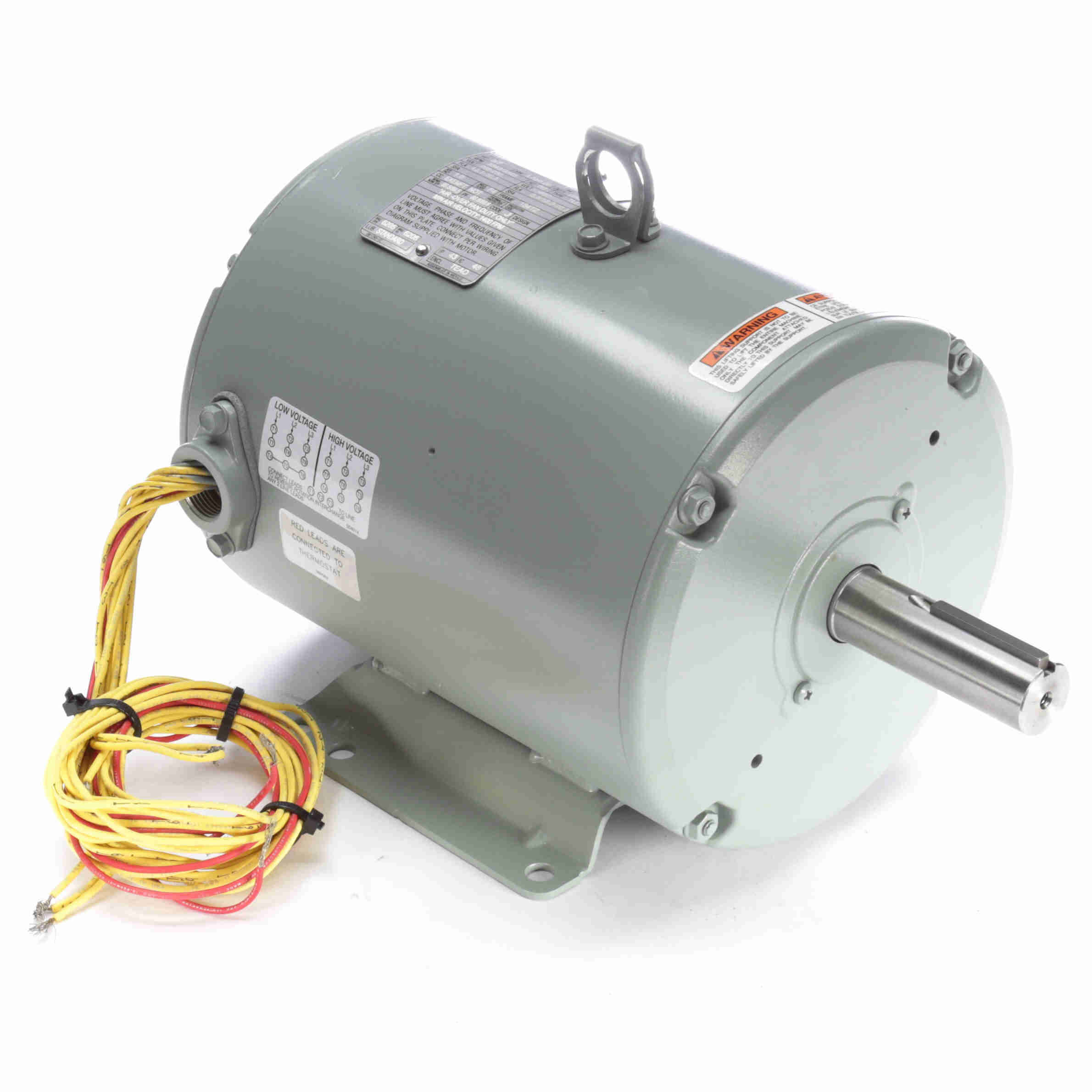

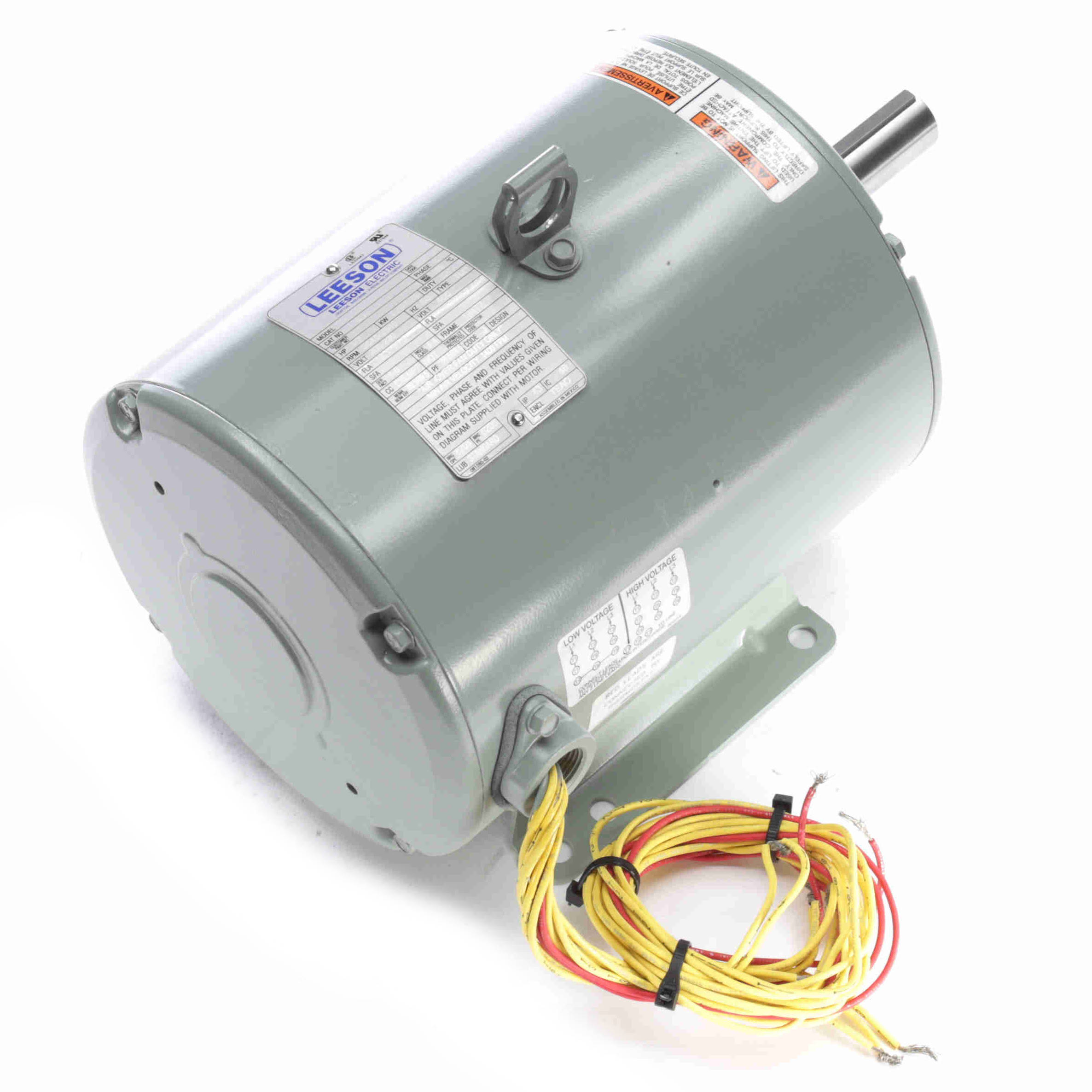

132393.00 Marathon 5-7HP Grain Dryer / Centrifugal Fan Electric Motor, 3600RPM

MFG: Marathon Electric
MFG Part Number: 132393.00

Selected accessories will also be added to cart
$926.29 / Each
Quantity:
TEAO, 184TZ Frame, 230/460VAC 3-Phase 60Hz, C184T34NB3A, Rigid Base

Features

Features
  • Rolled steel construction
  • Oversized sealed bearings
  • 50 degree C ambient temperature
  • Grease fitting with relief
  • Epoxy paint
  • Double sealed ball bearings
  • 1" longer shaft than NEMA

General Specifications

General Specifications
Model :C184T34NB3A Catalog No :132393.00
Part Description :132393.00..5-7HP..3600RPM.184TZ.TEAO.230/460V.3PH.60HZ.CONT.50C.1.0SF.RIGID.C184T34NB3.....CROP DRYER........ Category :Crop Dryer
Stock :No

Nameplate Specifications

Nameplate Specifications
Output HP :5 HP Output KW :3.7 kW
Frequency :60 Hz Voltage :208-230/460 V
Current :13.1-16.5/8.3 A Speed :3545 RPM
Service Factor :1 Phase :3
Efficiency :89.5 % Duty :Continuous
Insulation Class :F Design Code :NO DESIGN CODE
KVA Code :J Frame :184TZ
Enclosure :Totally Enclosed Air Over Overload Protector :No
Ambient Temperature :50 ?C Drive End Bearing Size :6206
Opp Drive End Bearing Size :6205 UL :Recognized
CSA :Y CE :Y
IP Code :43

Technical Specifications

Technical Specifications
Electrical Type :Squirrel Cage Induction Run Starting Method :Across The Line
Poles :2 Rotation :Reversible
Mounting :Rigid base Motor Orientation :HORIZONTAL
Drive End Bearing :BALL Opp Drive End Bearing :BALL
Frame Material :Rolled Steel Shaft Type :Single Special Extension
Overall Length :15.38 in Frame Length :9.50 in
Shaft Diameter :1.125 in Shaft Extension :3.5 in
Assembly/Box Mounting :F1 ONLY UPC :691720103722
Weight :100.00 LB

Speed & Load Characteristics

Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Pull-Up0.000.021.95293.000.000.07.00
Full Load5.92100.07.50100.03,5354.8289.77.00
Locked-Rotor66.001,115.022.40299.000.000.07.00
Break-Down42.70721.034.40459.02,88025.8076.07.00
No Load2.0234.00.000.03590.1710.07.00
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 2.02
  • 0.170
  • 0.0
  • 10.0
  • 3,595
  • 0.0
  • 0.00
  • 25 %
  • 2.63
  • 1.180
  • 81.0
  • 57.0
  • 3,585
  • 0.0
  • 1.88
  • 50 %
  • 3.60
  • 2.200
  • 87.4
  • 77.0
  • 3,570
  • 0.0
  • 3.75
  • 75 %
  • 4.70
  • 3.180
  • 89.4
  • 85.0
  • 350
  • 0.0
  • 5.63
  • 100 %
  • 6.00
  • 4.200
  • 89.5
  • 88.6
  • 3,545
  • 0.0
  • 7.50
  • 115 %
  • 6.80
  • 4.820
  • 89.5
  • 89.7
  • 3,535
  • 0.0
  • 8.60
  • 125 %
  • 7.30
  • 5.270
  • 89.1
  • 90.2
  • 3,530
  • 0.0
  • 9.38
  • 150 %
  • 8.80
  • 6.360
  • 88.2
  • 90.9
  • 3,510
  • 0.0
  • 11.25
Type
Electric Motor
Speed
3600RPM
Enclosure
TEAO
Application
Grain Dryer
Horsepower
5HP
Horsepower
7HP
Frame
184T
