/Products/Electric Motors/3 Phase/Leeson/Washguard - TENV/TEFC/132441.00 Leeson Washguard Motor, 5 HP, 3600 RPM
Click Image to Expand

Product ID: 132441.00

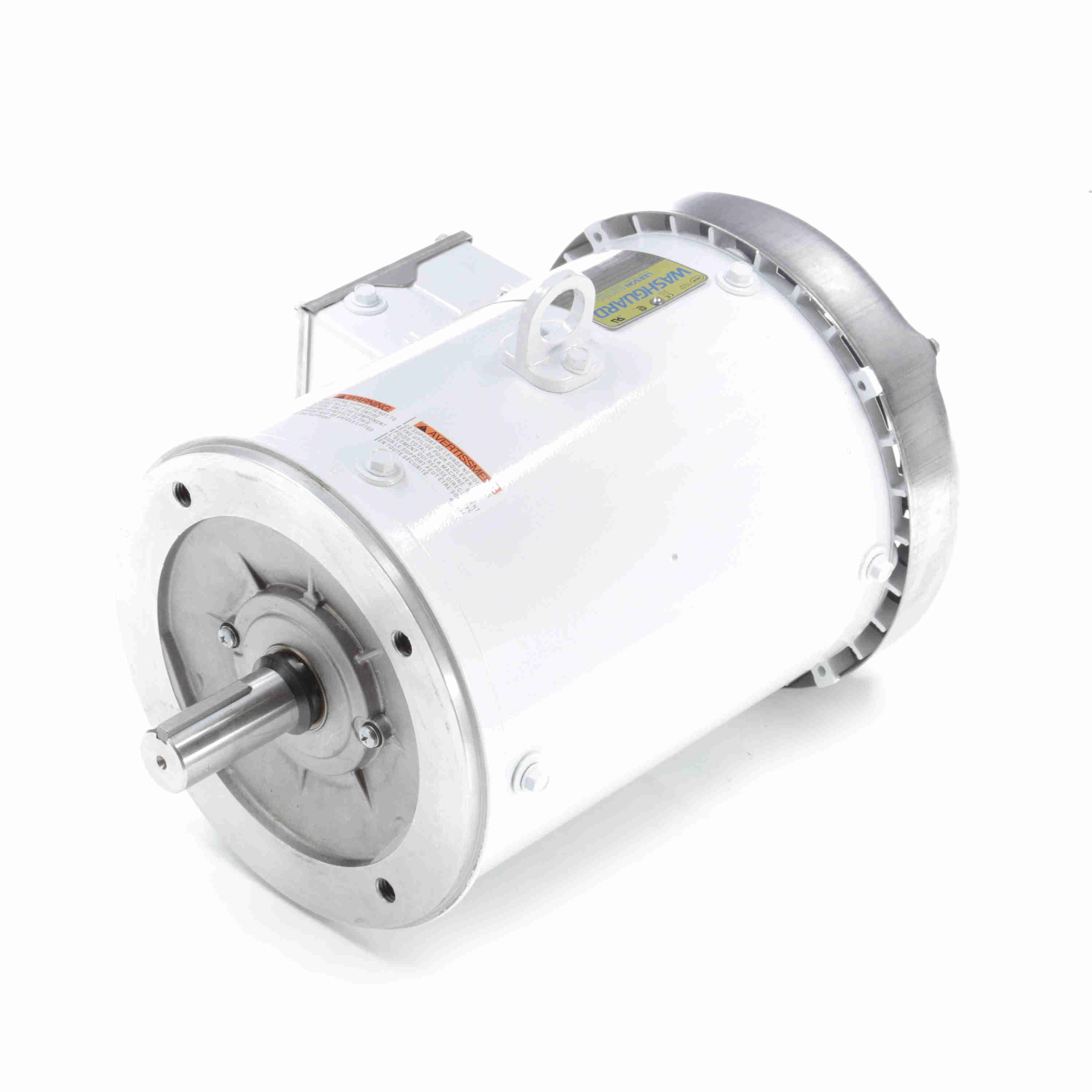

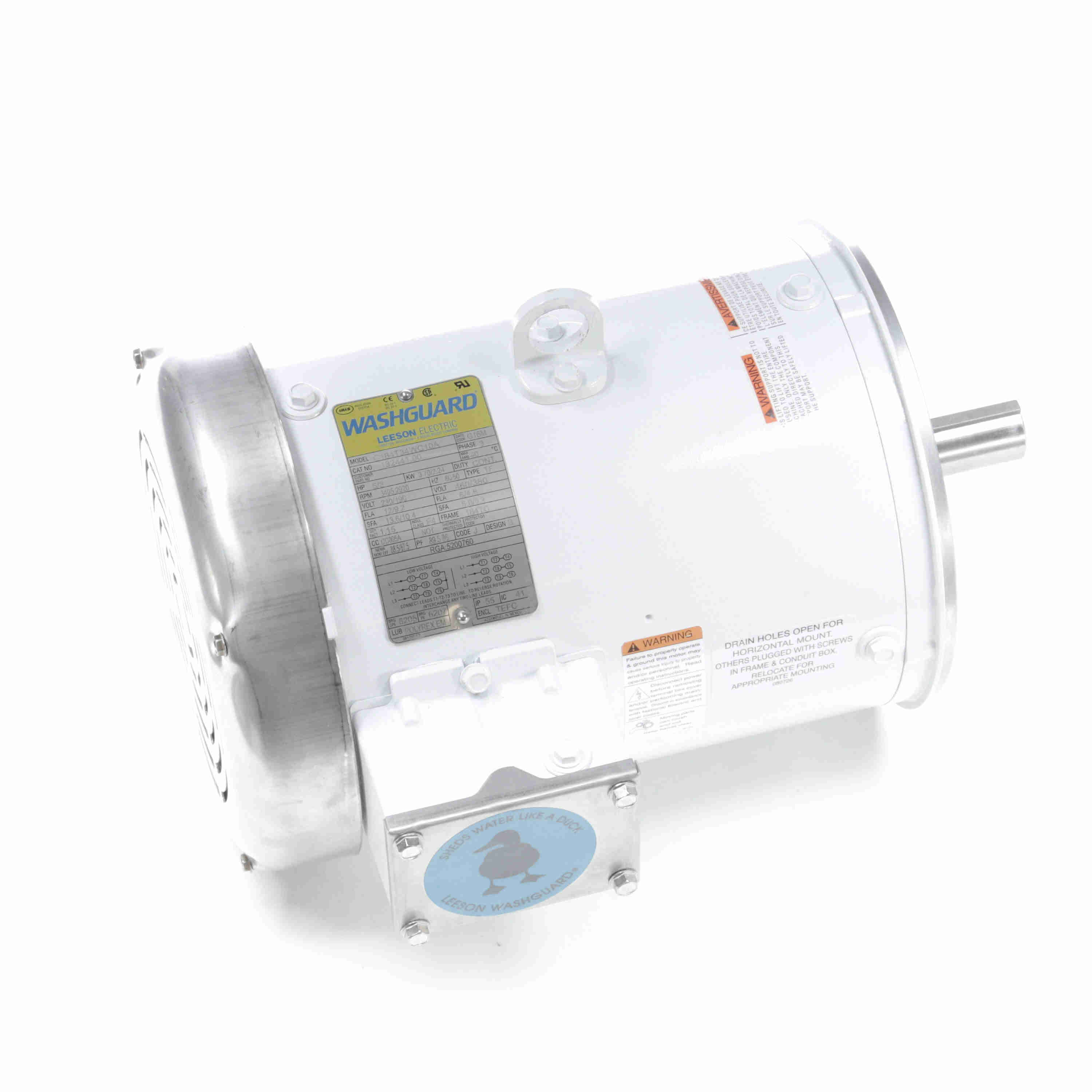

132441.00 Leeson Washguard Motor, 5 HP, 3600 RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 132441.00

Selected accessories will also be added to cart
$1,279.97 / Each
Quantity:
184TC Frame, 208-230/460V 3-Phase, TEFC, C Face Less Base, C184T34WC10A, Washdown Duty
Features
  • USDA-approved epoxy painted motors
  • NEMA motors
  • Rigid base and C face mount types
  • BISSC approved designs; Double lip contact seals and v-ring seals used for shaft seals
  • 3-year warranty on encapsulated and premium efficient models
  • UL recognized and CSA certified
  • Double lip contact seals and v-ring seals used for shaft seals
  • 3-year warranty on encapsulated and premium efficient models
  • Washdown brakemotors and pump motors available
General Specifications
Model :C184T34WC10A Catalog No :132441.00
Part Description :..5HP..3600RPM.184TC.TEFC.230/460V.3PH.60HZ.CONT.40C.1.15 S.F..C FACE......WASHDOWN DUTY........ Category :General Purpose
Stock :No
Nameplate Specifications
Output HP :5 Hp Output KW :3.7 kW
Frequency :60 Hz Voltage :230/460 V
Current :12.0/6.0 A Speed :3495 rpm
Service Factor :1.15 Phase :3
Efficiency :88.5 % Duty :Continuous
Insulation Class :F Design Code :B
KVA Code :J Frame :184TC
Enclosure :Totally Enclosed Fan Cooled Overload Protector :No
Ambient Temperature :40 °C Drive End Bearing Size :6207
Opp Drive End Bearing Size :6205 UL :Recognized
CSA :Y CE :Y
IP Code :55
Technical Specifications
Electrical Type :Squirrel Cage Induction Run Starting Method :Across The Line
Poles :2 Rotation :Reversible
Mounting :Round Motor Orientation :HORIZONTAL
Drive End Bearing :BALL Opp Drive End Bearing :BALL
Frame Material :Rolled Steel Shaft Type :T
Overall Length :14.97 in Frame Length :9.50 in
Shaft Diameter :1.125 in Shaft Extension :2.75 in
Assembly/Box Mounting :F1/F2 CAPABLE UPC :691720051870
Weight :58.00 LB
Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
1/345.00750.014.00187.01,2000.000.05.00
Locked-Rotor47.00783.016.00213.000.000.05.00
Full Load6.00100.07.50100.03,4950.0089.55.00
Pull-Up42.00700.014.00187.01,8000.000.05.00
2/338.00633.015.00200.02,4000.000.05.00
Break-Down30.00500.026.00347.02,8500.000.05.00
No Load1.7028.00.000.03,6000.0014.85.00
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 1.70
  • 0.200
  • 0.0
  • 14.8
  • 3,600
  • 0.0
  • 0.00
  • 25 %
  • 2.30
  • 1.100
  • 81.9
  • 62.9
  • 3,576
  • 0.0
  • 1.80
  • 50 %
  • 3.30
  • 2.100
  • 87.9
  • 81.1
  • 3,551
  • 0.0
  • 3.70
  • 75 %
  • 4.50
  • 3.100
  • 89.1
  • 87.5
  • 3,526
  • 0.0
  • 5.60
  • 100 %
  • 6.00
  • 4.200
  • 88.5
  • 89.5
  • 3,495
  • 55.0
  • 7.50
  • 115 %
  • 6.80
  • 4.900
  • 88.3
  • 90.5
  • 3,477
  • 75.0
  • 8.70
  • 125 %
  • 7.40
  • 5.300
  • 87.6
  • 90.8
  • 3,463
  • 85.0
  • 9.50
  • 150 %
  • 9.10
  • 6.300
  • 86.5
  • 88.5
  • 3,470
  • 100.0
  • 11.34
