/Products/Electric Motors/Single Phase Electric Motors/Marathon Single Phase Electric Motors/140685.00 Marathon 10HP General Purpose Electric Motor, 3600RPM
Click Image to Expand

Product ID: 140685.00

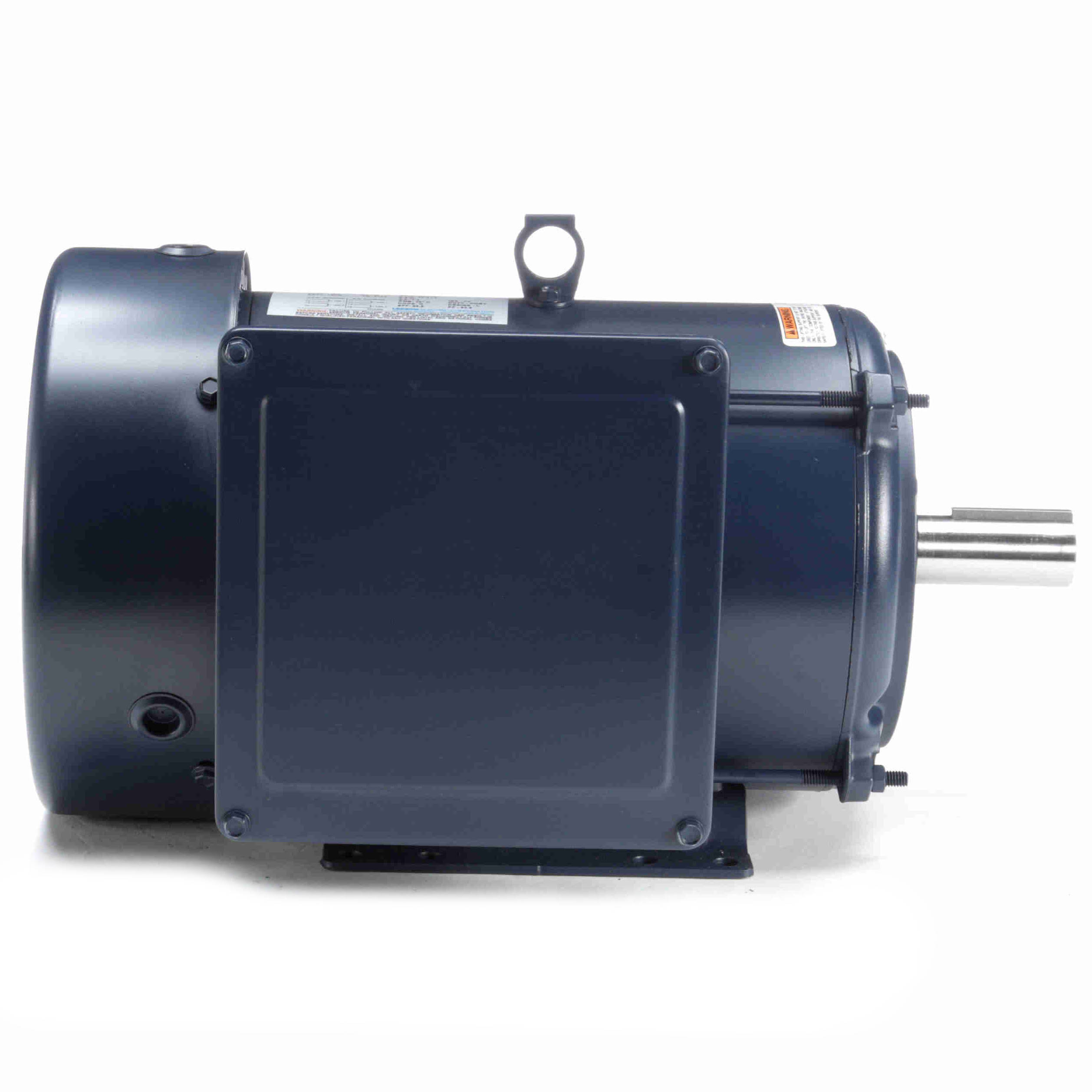

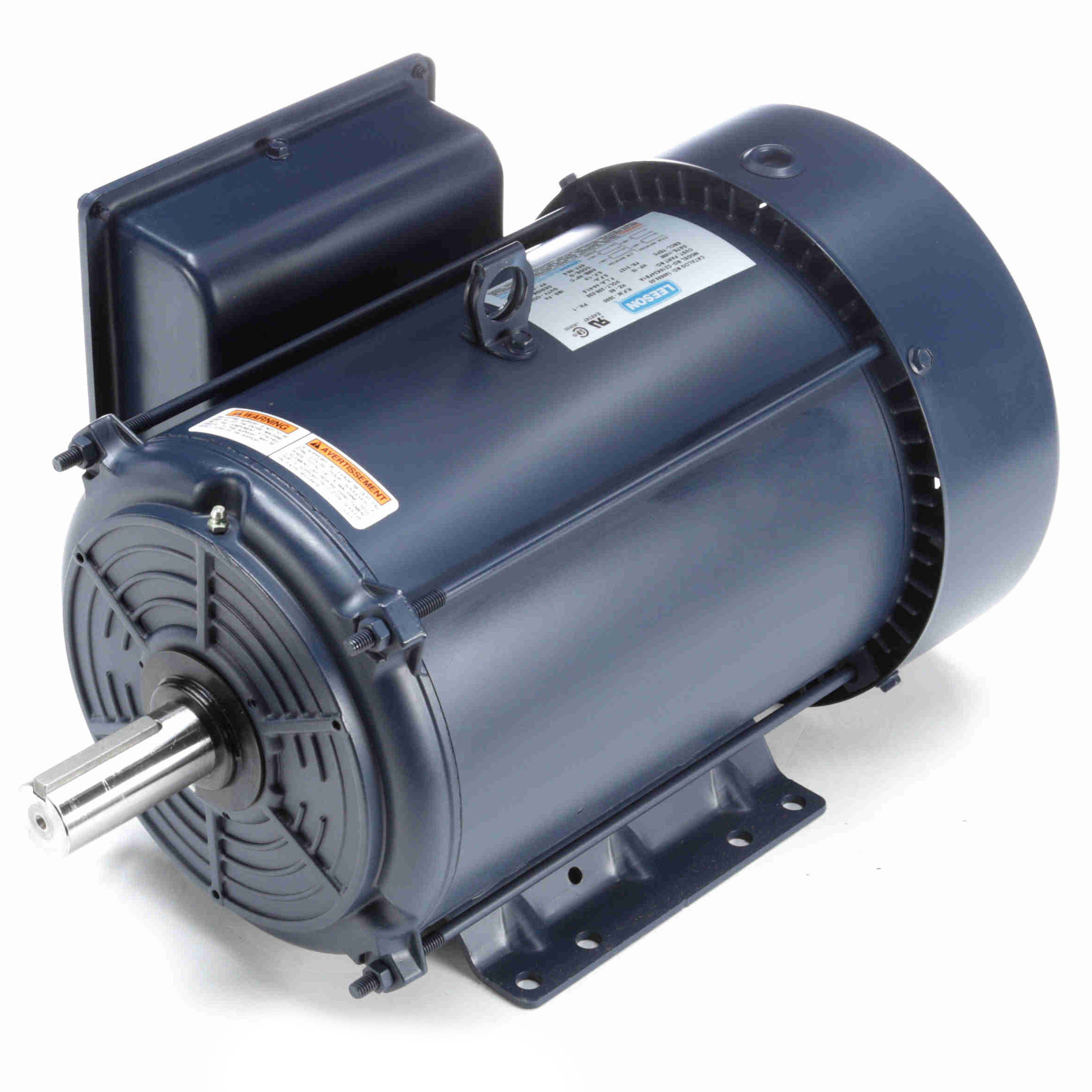

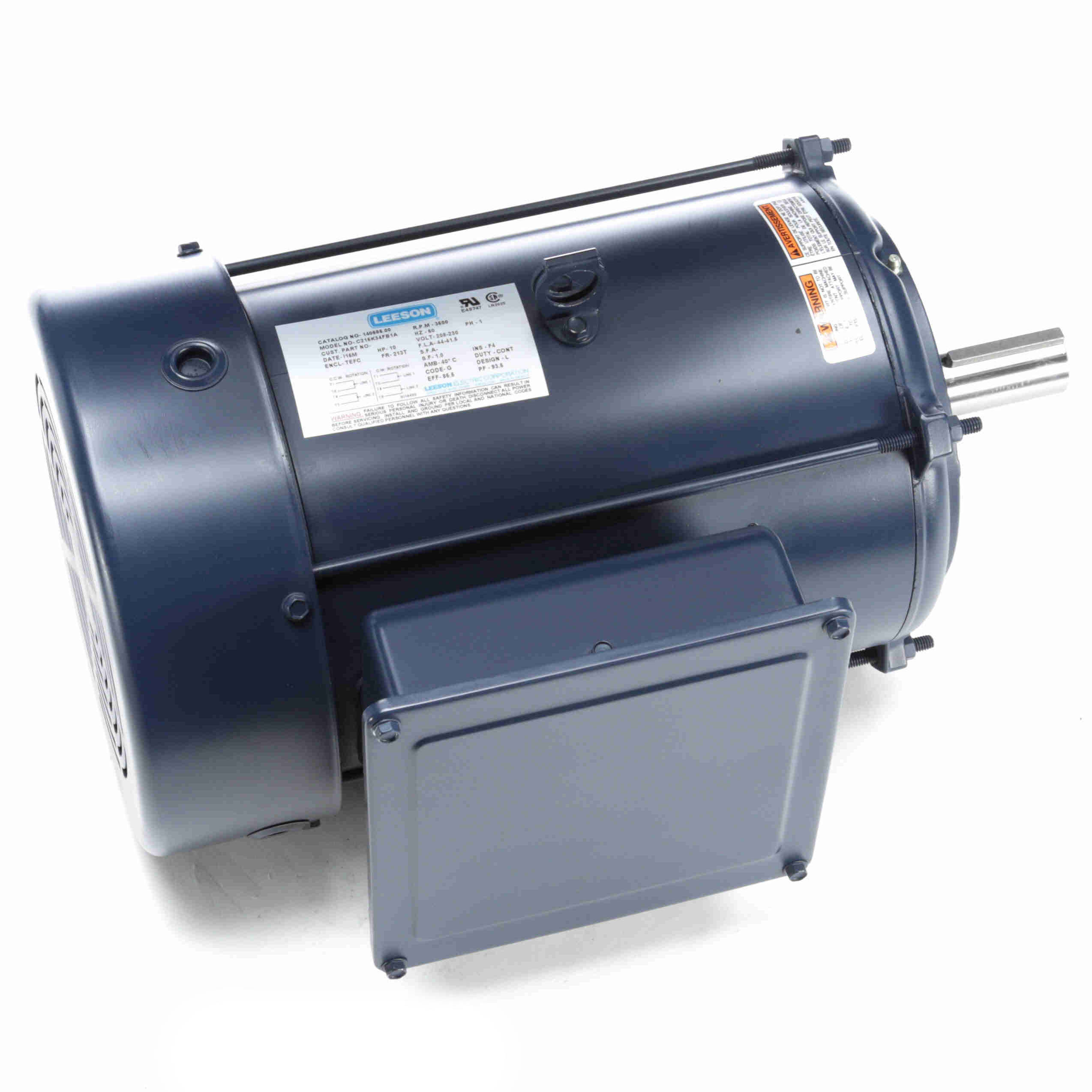

140685.00 Marathon 10HP General Purpose Electric Motor, 3600RPM

MFG: Marathon Electric
MFG Part Number: 140685.00

Selected accessories will also be added to cart
$1,699.97 / Each
Quantity:
TEFC, 215T Frame, 208-230VAC 60Hz Single Phase, C215K34FB1A, Rigid Base, Rolled Steel, 1-3/8" Keyed Shaft

Features

  • Durable rolled steel construction
  • NEMA Design B performance
  • Meets or exceed NEMA service factors
  • Double shielded ball bearings
  • Continuous duty
  • UL recognized component listing and CSA certified

General Specifications

UPC:691720256992Weight:145.00 LB
Packaged Length:22.5 INPackaged Width:16.81 IN
Packaged Height:14 IN

Nameplate Specifications

Output HP:10 HpOutput KW:7.5 kW
Frequency:60 HzVoltage:208-230 V
Current:44.0-41.5 ASpeed:3500 rpm
Service Factor:1Phase:1
Efficiency:85.5 %Power Factor:93.5
Duty:ContinuousInsulation Class:F
Design Code:LKVA Code:G
Frame:215TEnclosure:Totally Enclosed Fan Cooled
Thermal Protection:NoAmbient Temperature:40 ?C
Drive End Bearing Size:307Opp Drive End Bearing Size:206
UL:RecognizedCSA:Y
CE:NIP Code:43

Technical Specifications

Electrical Type:Capacitor Start Capacitor RunStarting Method:Across The Line
Poles:2Rotation:Selective Counterclockwise
Resistance Main:0 OhmsMounting:Rigid base
Motor Orientation:HORIZONTALDrive End Bearing:BALL
Opp Drive End Bearing:BALLFrame Material:Rolled Steel
Shaft Type:TOverall Length:19.84 in
Frame Length:11.15 inShaft Diameter:1.375 in
Shaft Extension:3.38 inAssembly/Box Mounting:F1 ONLY

Speed Characteristics

CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)(%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Break-Down151.00364.038.50257.03,04329.000.010.00
Pull-Up25.0060.020.00133.012942.600.010.00
Full Load41.50100.015.00100.03,5008.900.010.00
Locked-Rotor249.00600.026.00173.0043.0063.510.00

Load Characteristics

% of Rated Load0 %25 %50 %75 %100 %115 %125 %
Current (Amps)9.0013.9022.1031.3041.5047.7052.40
Rated Output (KW)1.002.604.596.698.9010.3011.30
Efficiency (%)0.072.281.383.983.883.582.8
Power Factor (%)48.381.390.392.993.293.993.8
Speed (RPM)3,6003,5743,5523,5283,5003,4803,465
Temp. Rise @ FL0.00.00.00.085.0115.00.0
Torque (ft-lbs)0.003.707.4011.2015.0017.4019.00
Type
Electric Motor
Input Phase
Single Phase
Speed
3600RPM
Enclosure
TEFC
Horsepower
10HP
Frame
215T
