/Products/Electric Motors/3 Phase/Leeson/Washguard - TENV/TEFC/140820.00 Leeson Washguard Motor, 10 HP, 1800 RPM
Click Image to Expand

Product ID: 140820.00

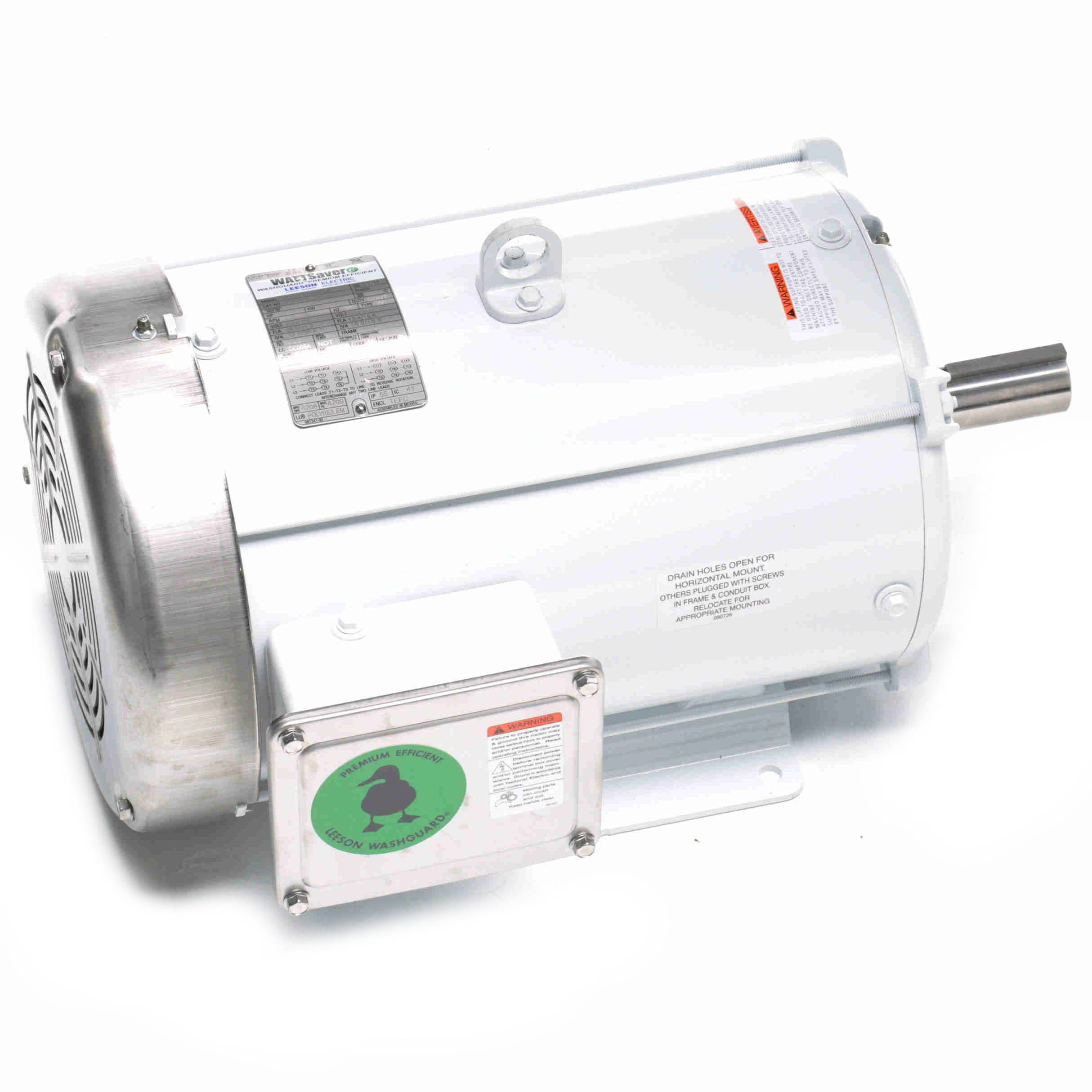

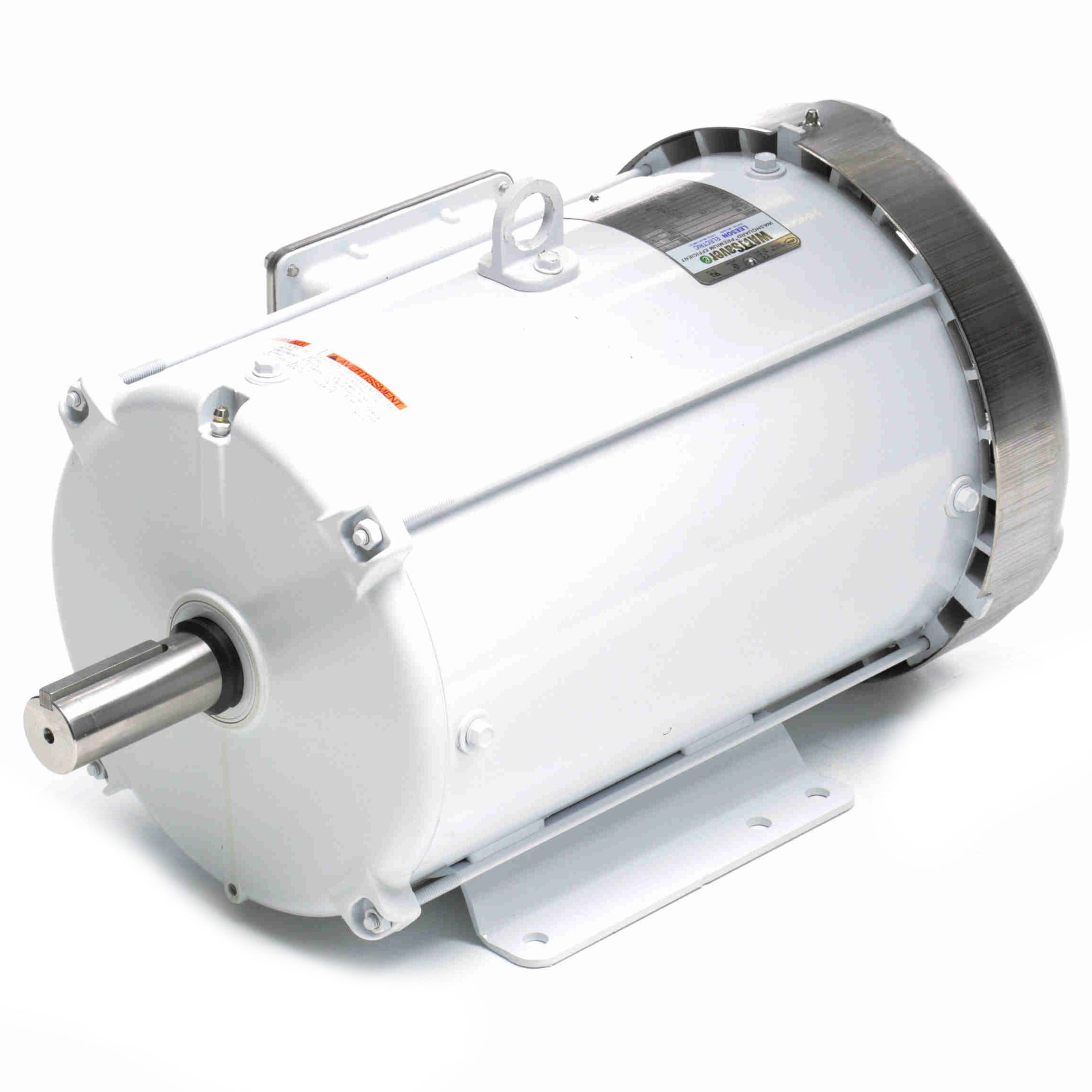

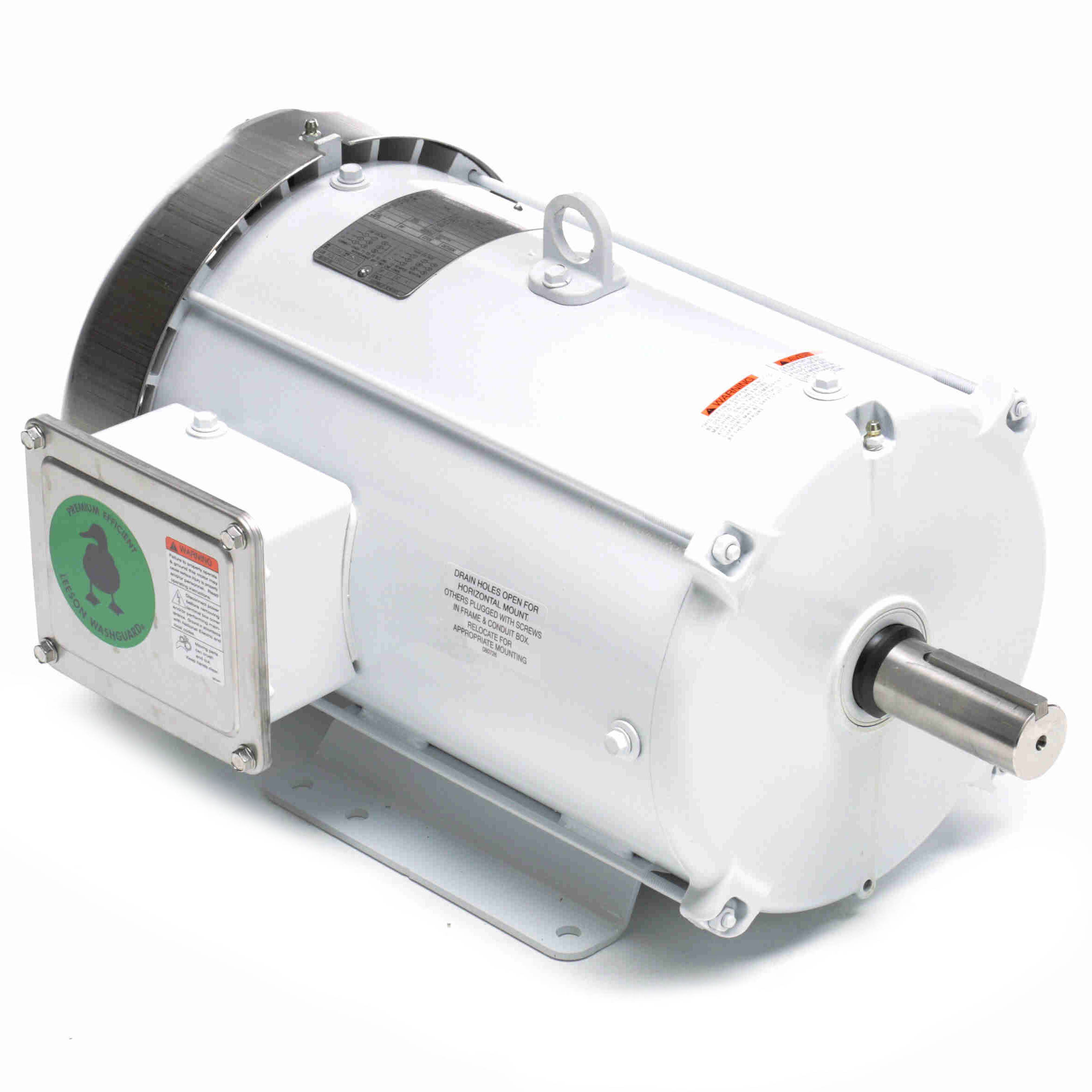

140820.00 Leeson Washguard Motor, 10 HP, 1800 RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 140820.00

Selected accessories will also be added to cart
$1,949.97 / Each
Quantity:
215T Frame, 208-230/460V 3-Phase, TEFC, Rigid Base, C215T17WB5A, Washdown Duty
Features
  • USDA-approved epoxy painted motors
  • NEMA motors
  • AC washdown
  • Rigid base and C face mount types
  • BISSC approved designs; Double lip contact seals and v-ring seals used for shaft seals
  • 3-year warranty on encapsulated and premium efficient models
  • UL recognized and CSA certified
  • Washdown brakemotors and pump motors available
  • UL recognized and CSA certified
General Specifications
Model :C215T17WB5A Catalog No :140820.00
Part Description :..10HP..1765RPM.215.TEFC.230/460V.3PH.60HZ.CONT.40C.1.25SF.RIGID.C215T17WB5A.....WASHGUARD.NOT....7.5kW... Category :General Purpose
Stock :No
Nameplate Specifications
Output HP :10 Hp Output KW :7.5 kW
Frequency :60 Hz Voltage :230/460 V
Current :26.8/13.4 A Speed :1765 rpm
Service Factor :1.25 Phase :3
Efficiency :91.7 % Duty :Continuous
Insulation Class :F Design Code :B
KVA Code :H Frame :215T
Enclosure :Totally Enclosed Fan Cooled Overload Protector :No
Ambient Temperature :40 °C Drive End Bearing Size :6209
Opp Drive End Bearing Size :6206 UL :Recognized
CSA :Y CE :Y
IP Code :55
Technical Specifications
Electrical Type :Squirrel Cage Induction Run Starting Method :Across The Line
Poles :4 Rotation :Reversible
Mounting :Rigid base Motor Orientation :HORIZONTAL
Drive End Bearing :BALL Opp Drive End Bearing :BALL
Frame Material :Rolled Steel Shaft Type :T
Overall Length :19.71 in Frame Length :13.00 in
Shaft Diameter :1.375 in Shaft Extension :3.38 in
Assembly/Box Mounting :F1 ONLY UPC :691720000151
Weight :181.00 LB
Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Full Load13.40100.029.75100.01,7650.000.010.00
Pull-Up77.00575.040.00134.04000.000.010.00
Locked-Rotor79.00590.055.20186.000.000.010.00
Break-Down48.50362.090.00303.01,5500.000.010.00
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 6.20
  • 0.300
  • 0.0
  • 6.1
  • 1,799
  • 0.0
  • 0.00
  • 25 %
  • 6.90
  • 2.175
  • 85.8
  • 39.6
  • 1,793
  • 0.0
  • 7.33
  • 50 %
  • 8.60
  • 4.115
  • 90.6
  • 60.1
  • 1,784
  • 0.0
  • 14.71
  • 75 %
  • 10.70
  • 6.110
  • 91.7
  • 71.7
  • 1,774
  • 0.0
  • 22.23
  • 100 %
  • 13.40
  • 8.155
  • 91.7
  • 77.0
  • 1,765
  • 55.0
  • 29.75
  • 115 %
  • 15.00
  • 9.400
  • 91.0
  • 78.8
  • 1,758
  • 70.0
  • 34.20
  • 125 %
  • 16.20
  • 10.280
  • 90.7
  • 79.2
  • 1,754
  • 85.0
  • 37.43
  • 150 %
  • 19.50
  • 12.480
  • 89.6
  • 80.3
  • 1,743
  • 0.0
  • 45.17
