/Products/Electric Motors/3 Phase/Leeson/Washguard - TENV/TEFC/140823.00 Leeson Washguard Motor, 10 HP, 3600 RPM
Click Image to Expand

Product ID: 140823.00

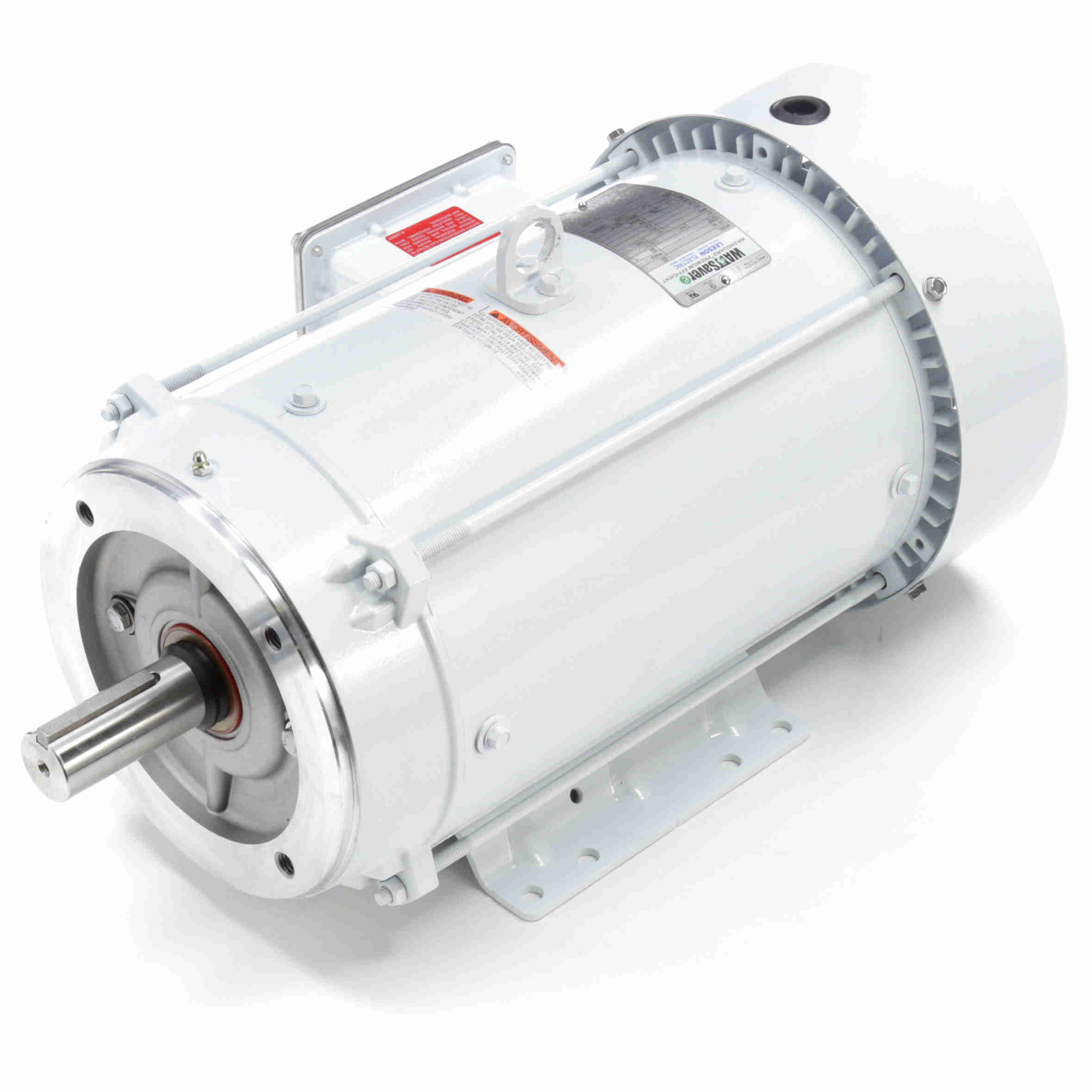

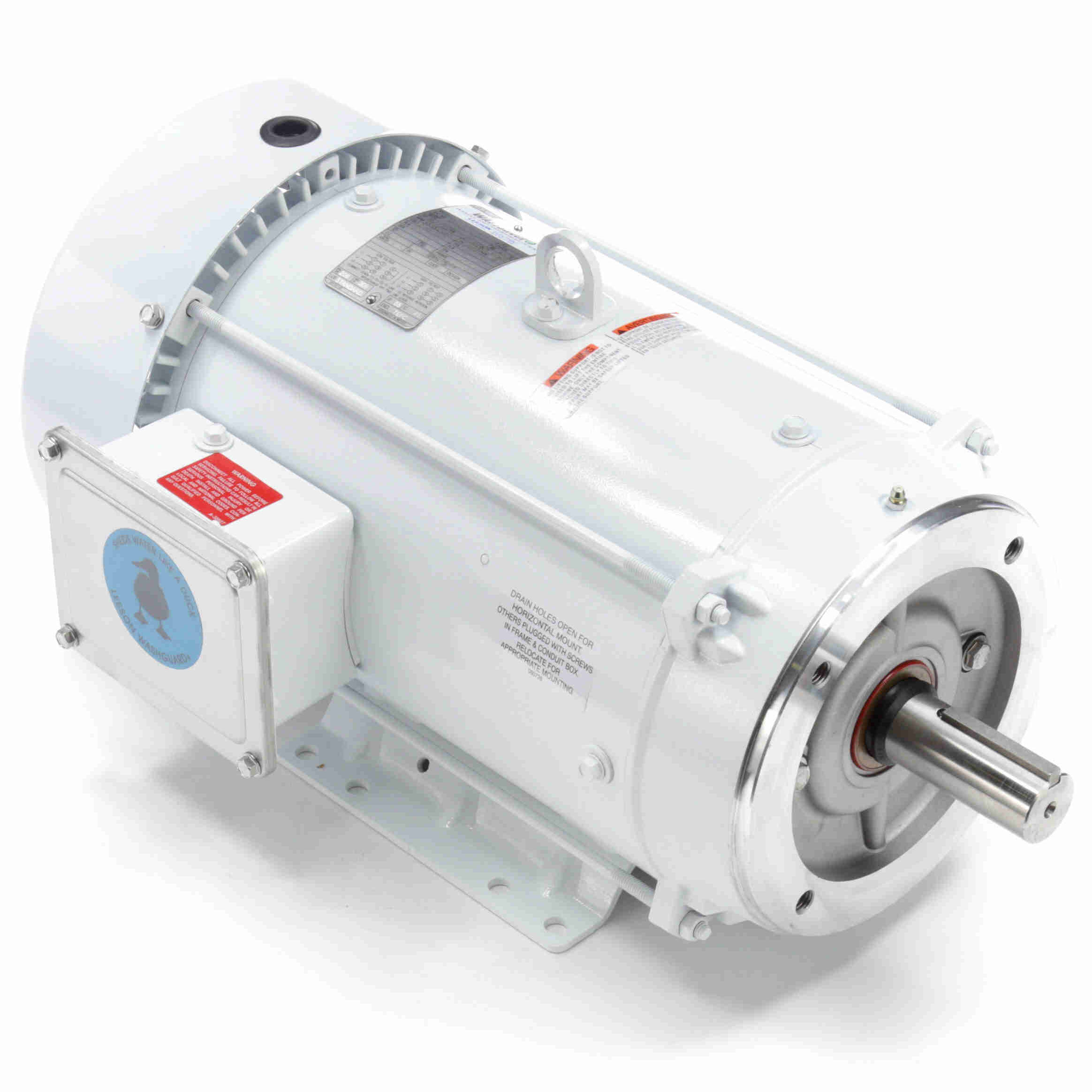

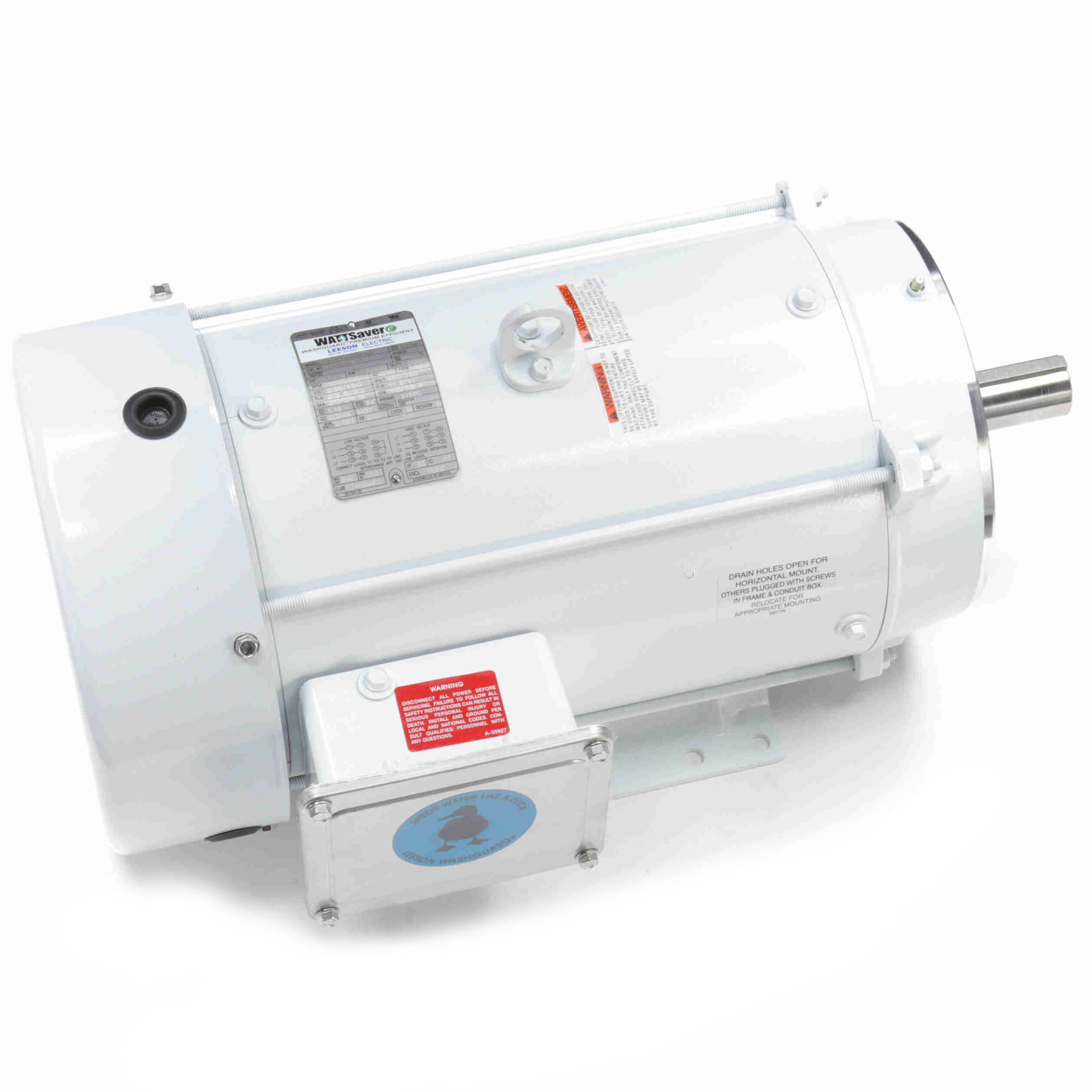

140823.00 Leeson Washguard Motor, 10 HP, 3600 RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 140823.00

Selected accessories will also be added to cart
$2,239.97 / Each
Quantity:
215TC Frame, 208-230/460V 3-Phase, TEFC, C Face with Base, C215T34WK9A, Washdown Duty
Features
  • USDA-approved epoxy painted motors
  • NEMA motors
  • AC washdown
  • Rigid base and C face mount types
  • BISSC approved designs; Double lip contact seals and v-ring seals used for shaft seals
  • 3-year warranty on encapsulated and premium efficient models
  • UL recognized and CSA certified
  • Washdown brakemotors and pump motors available
  • UL recognized and CSA certified
General Specifications
Model :C215T34WK9A Catalog No :140823.00
Part Description :..10HP..3525RPM.215TC.TEFC.208-230/460V.3PH.60HZ.CONT.40C.1.15SF.RIGID.C215T34WK9A.....WASHGUARD.NOT....... Category :General Purpose
Stock :No
Nameplate Specifications
Output HP :10 Hp Output KW :7.5 kW
Frequency :60 Hz Voltage :230/460 V
Current :23.6/11.8 A Speed :3535 rpm
Service Factor :1.15 Phase :3
Efficiency :91.7 % Duty :Continuous
Insulation Class :F Design Code :B
KVA Code :H Frame :215TC
Enclosure :Totally Enclosed Fan Cooled Overload Protector :No
Ambient Temperature :40 °C Drive End Bearing Size :309
Opp Drive End Bearing Size :206 UL :Recognized
CSA :Y CE :Y
IP Code :55
Technical Specifications
Electrical Type :Squirrel Cage Inverter Rated Starting Method :Line Or Inverter
Poles :2 Rotation :Reversible
Mounting :Rigid base Motor Orientation :HORIZONTAL
Drive End Bearing :BALL Opp Drive End Bearing :BALL
Frame Material :Rolled Steel Shaft Type :T
Overall Length :21.82 in Frame Length :12.40 in
Shaft Diameter :1.375 in Shaft Extension :3.38 in
Assembly/Box Mounting :F1/F2 CAPABLE UPC :691720980095
Weight :164.00 LB
Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
1/376.00644.026.00174.01,20010.00
No Load3.5030.00.000.03,60010.00
Pull-Up72.00610.027.00181.01,80010.00
2/368.00576.032.00215.02,40010.00
Locked-Rotor80.00678.030.00201.0040.010.00
Full Load11.80100.014.90100.03,53510.00
Break-Down50.00424.046.00309.03,17573.010.00
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 3.50
  • 0.300
  • 0.0
  • 8.5
  • 3,600
  • 0.0
  • 0.00
  • 25 %
  • 4.50
  • 2.000
  • 88.0
  • 58.5
  • 3,585
  • 0.0
  • 3.50
  • 50 %
  • 6.50
  • 4.000
  • 91.7
  • 78.5
  • 3,570
  • 0.0
  • 7.50
  • 75 %
  • 9.00
  • 6.000
  • 92.4
  • 86.0
  • 3,555
  • 0.0
  • 11.00
  • 100 %
  • 11.80
  • 8.000
  • 91.7
  • 87.0
  • 3,535
  • 50.0
  • 14.90
  • 115 %
  • 13.00
  • 9.500
  • 91.7
  • 89.0
  • 3,530
  • 75.0
  • 17.00
  • 125 %
  • 14.00
  • 10.000
  • 91.7
  • 90.0
  • 3,525
  • 95.0
  • 18.50
