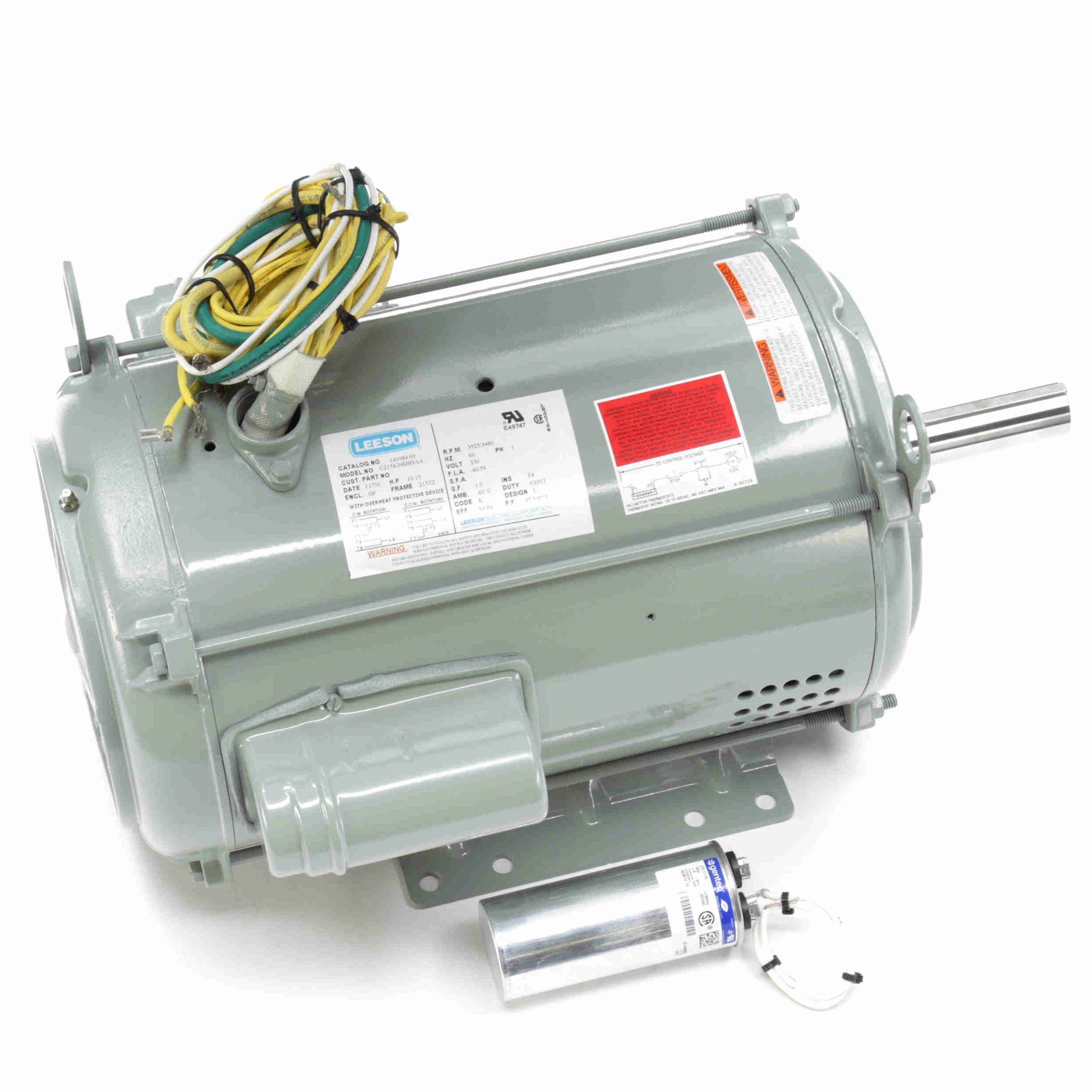

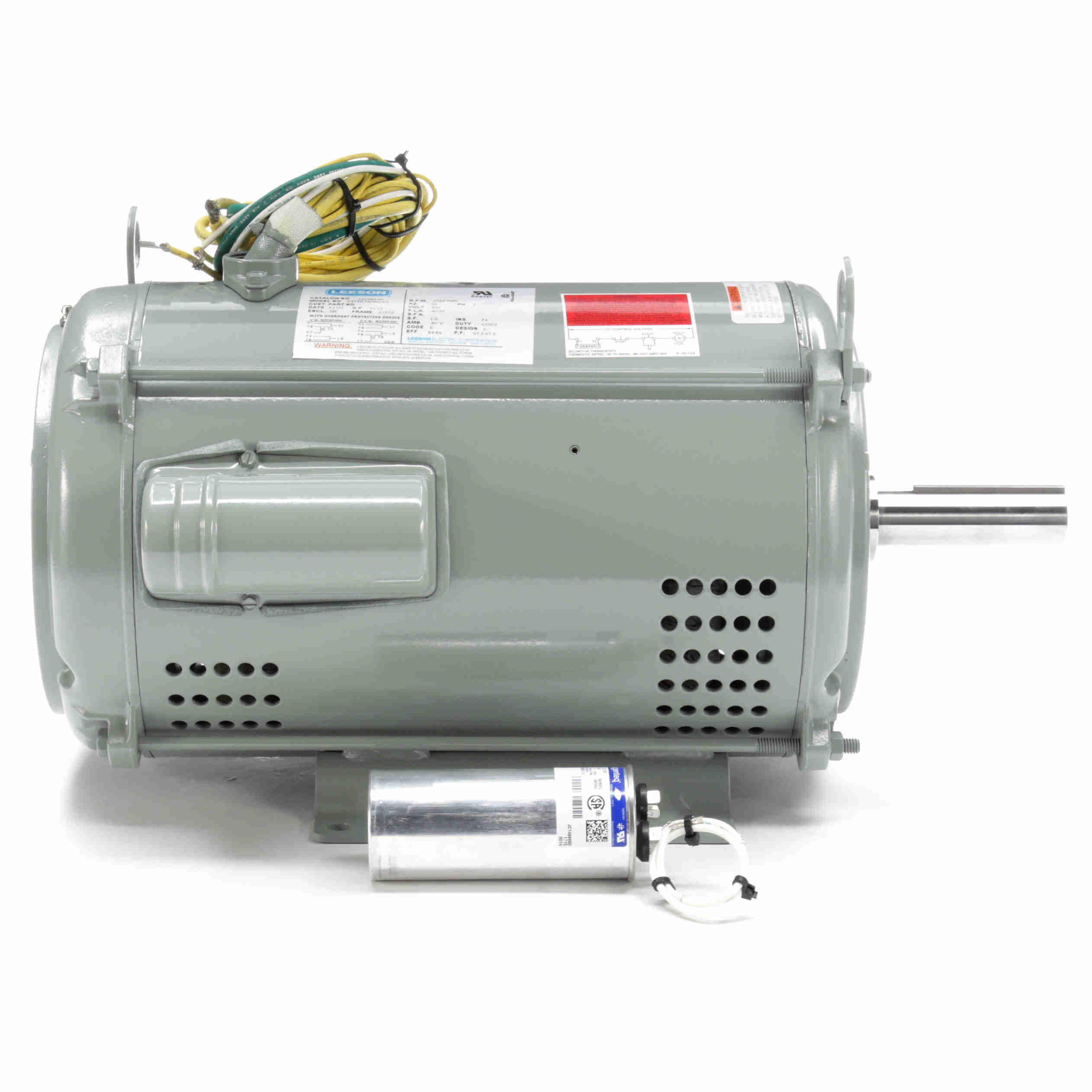

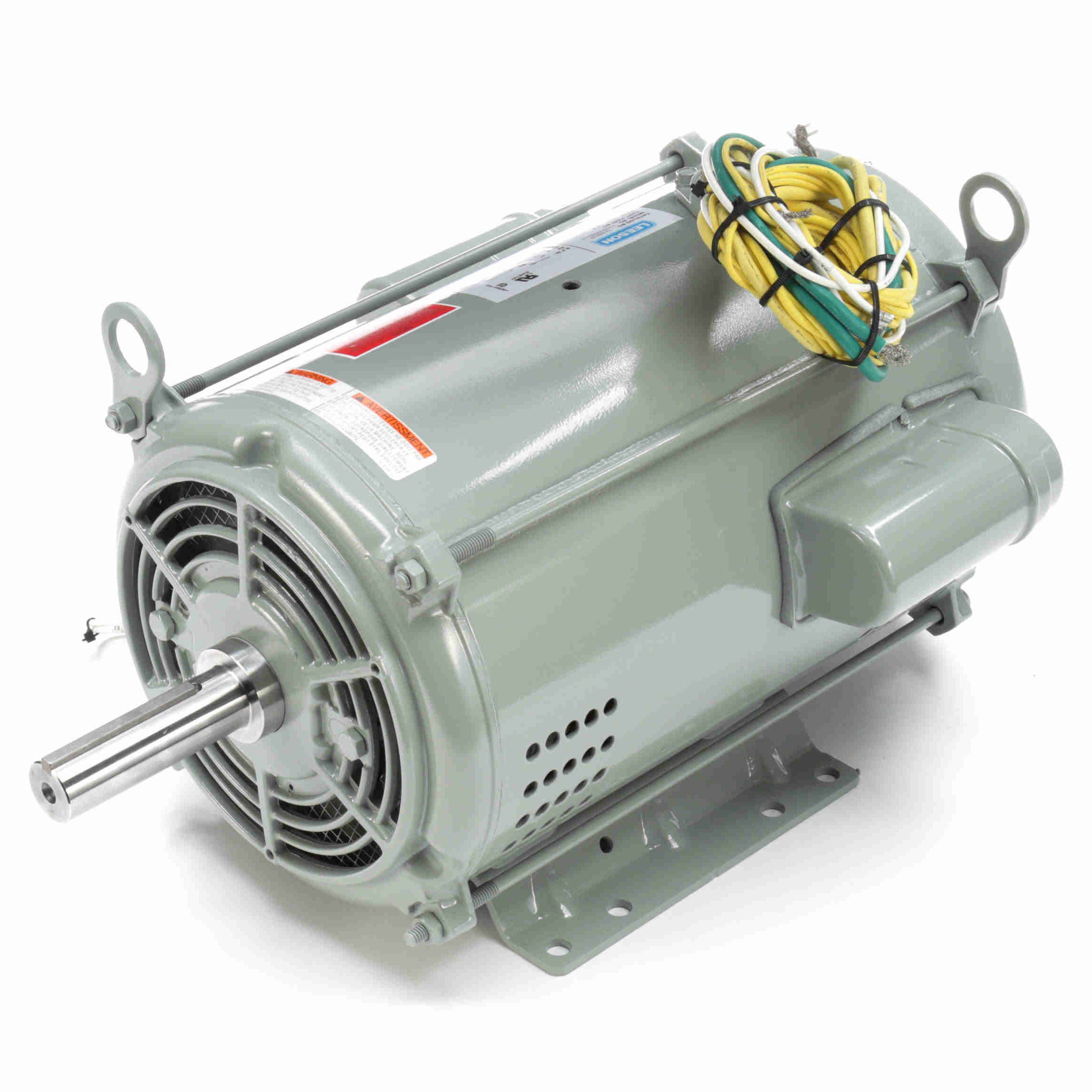

Used on Crop Dryers with air over/fan on shaft designs
Features
- Class “F” insulation system
- Overload protected
- Keyed shaft with 1/4-20 UNC tapped hole on end
- 34” long leads
- Capacitors shipped loose on 1-phase designs
- Motor venting protected against insects and rodents
- Double sealed ball bearings
General Specifications
| UPC: |
691720212035 |
Weight: |
159.00 LB |
| Packaged Length: |
22.63 IN |
Packaged Width: |
16.13 IN |
| Packaged Height: |
14.25 IN |
Nameplate Specifications
| Output HP: |
10 Hp |
Output KW: |
7.5 kW |
| Frequency: |
60/60 Hz |
Voltage: |
230 V |
| Current: |
40.0 A |
Speed: |
3525 rpm |
| Service Factor: |
1 |
Phase: |
1 |
| Efficiency: |
84 % |
Power Factor: |
97.5 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
L |
KVA Code: |
K |
| Frame: |
215TZ |
Enclosure: |
Drip Proof |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
309 |
Opp Drive End Bearing Size: |
206 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
IP Code: |
22 |
Technical Specifications
| Electrical Type: |
Capacitor Start Capacitor Run |
Starting Method: |
Across The Line |
| Poles: |
2 |
Rotation: |
Selective Counterclockwise |
| Resistance Main: |
.106 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
Single Special Extension |
Overall Length: |
20.08 in |
| Frame Length: |
12.40 in |
Shaft Diameter: |
1.125 in |
| Shaft Extension: |
3.75 in |
Assembly/Box Mounting: |
F3 |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Locked-Rotor |
330.00 |
0.0 |
39.30 |
0.0 |
0 |
55.80 |
73.8 |
15.00 |
| Pull-Up |
348.00 |
0.0 |
28.50 |
0.0 |
140 |
52.60 |
65.5 |
15.00 |
| Full Load |
59.00 |
100.0 |
22.60 |
100.0 |
3,480 |
13.20 |
98.5 |
15.00 |
| Break-Down |
212.00 |
0.0 |
52.13 |
0.0 |
3,070 |
39.50 |
80.8 |
15.00 |
