/Products/Electric Motors/3 Phase/Leeson/Washguard - TENV/TEFC/141120.00 Leeson Washguard Motor, 7.5 HP, 3600 RPM
Click Image to Expand

Product ID: 141120.00

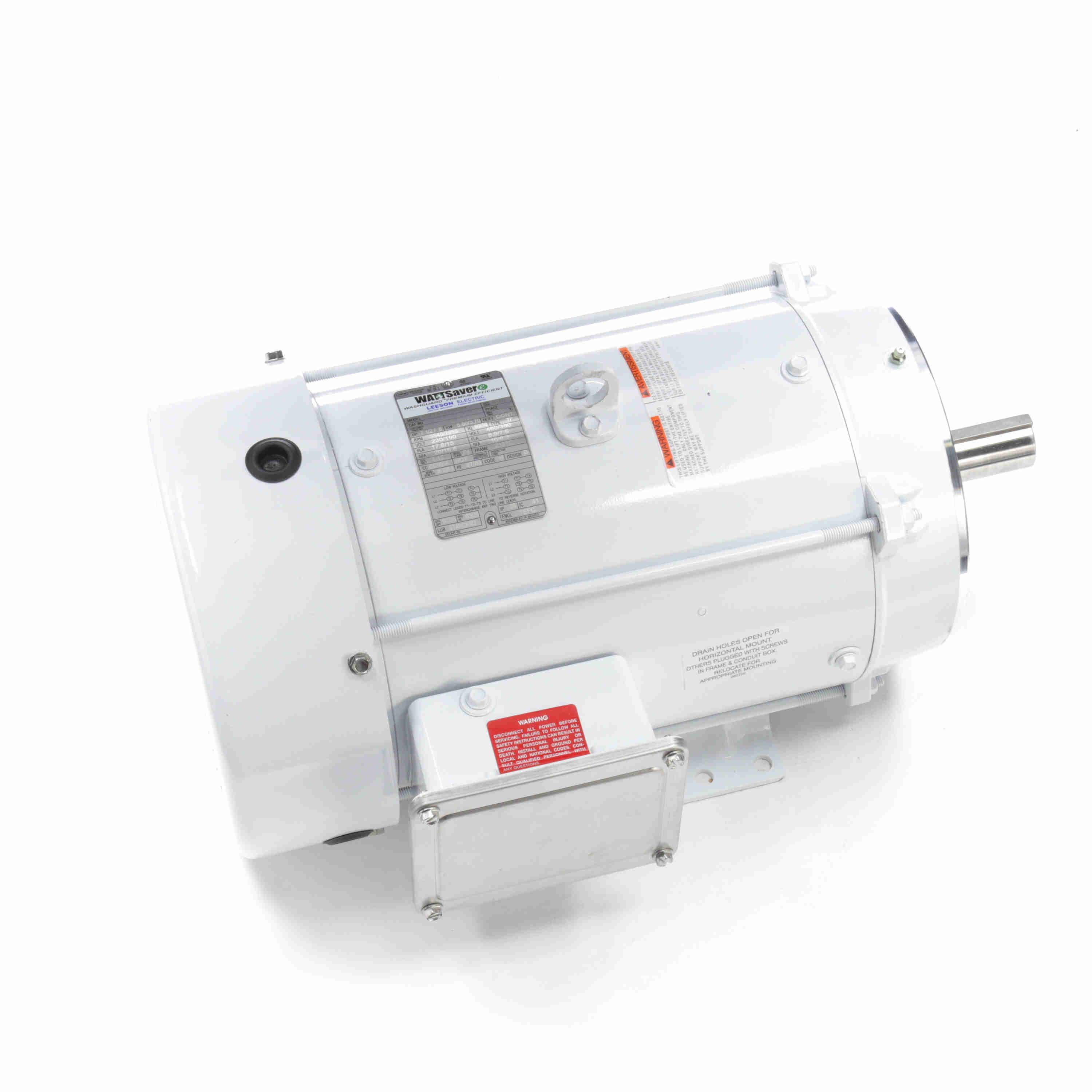

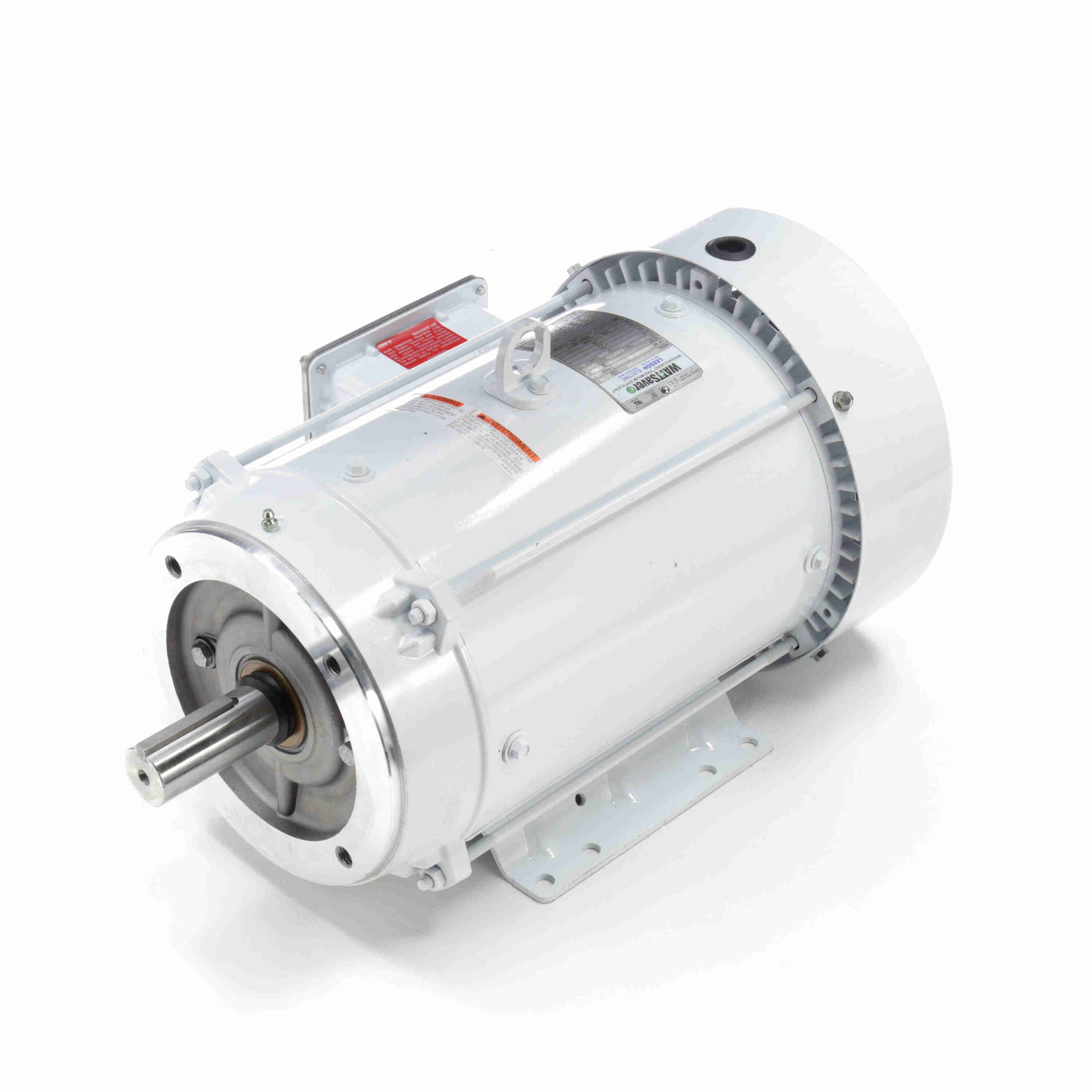

141120.00 Leeson Washguard Motor, 7.5 HP, 3600 RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 141120.00

Selected accessories will also be added to cart
$1,719.97 / Each
Quantity:
213TC Frame, 208-230/460V 3-Phase, TEFC, C Face with Base, C213T34WK6A, Washdown Duty
Features
  • USDA-approved epoxy painted motors
  • NEMA motors
  • AC washdown
  • Rigid base and C face mount types
  • BISSC approved designs; Double lip contact seals and v-ring seals used for shaft seals
  • 3-year warranty on encapsulated and premium efficient models
  • UL recognized and CSA certified
  • Washdown brakemotors and pump motors available
  • UL recognized and CSA certified
General Specifications
Model :C213T34WK6A Catalog No :141120.00
Part Description :..7 1/2HP..3600RPM.213TC.TEFC.230/460V.3PH.60HZ.CONT.40C.1.15SF.RIGID-C......WASHDOWN DUTY........ Category :General Purpose
Stock :No
Nameplate Specifications
Output HP :7.50 Hp Output KW :5.6 kW
Frequency :60 Hz Voltage :230/460 V
Current :17.8/8.9 A Speed :3540 rpm
Service Factor :1.15 Phase :3
Efficiency :90.2 % Duty :Continuous
Insulation Class :F Design Code :B
KVA Code :H Frame :213TC
Enclosure :Totally Enclosed Fan Cooled Overload Protector :No
Ambient Temperature :40 °C Drive End Bearing Size :6309
Opp Drive End Bearing Size :6206 UL :Recognized
CSA :Y CE :Y
IP Code :55
Technical Specifications
Electrical Type :Squirrel Cage Inverter Rated Starting Method :Line Or Inverter
Poles :2 Rotation :Reversible
Mounting :Rigid base Motor Orientation :HORIZONTAL
Drive End Bearing :BALL Opp Drive End Bearing :BALL
Frame Material :Rolled Steel Shaft Type :T
Overall Length :20.57 in Frame Length :11.15 in
Shaft Diameter :1.375 in Shaft Extension :3.38 in
Assembly/Box Mounting :F1/F2 CAPABLE UPC :691720303429
Weight :140.00 LB
Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
1/360.00674.020.00180.01,2007.50
2/354.00607.025.00225.02,4007.50
Locked-Rotor63.50713.024.00216.0040.07.50
Break-Down40.00449.038.00342.03,25072.07.50
Full Load8.90100.011.10100.03,5407.50
No Load3.0034.00.000.03,6007.50
Pull-Up57.00640.022.00198.01,8007.50
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 3.00
  • 0.200
  • 0.0
  • 9.0
  • 3,600
  • 0.0
  • 0.00
  • 25 %
  • 4.00
  • 1.500
  • 80.0
  • 54.0
  • 3,585
  • 0.0
  • 2.50
  • 50 %
  • 5.00
  • 3.000
  • 86.5
  • 74.5
  • 3,575
  • 0.0
  • 5.50
  • 75 %
  • 7.00
  • 4.500
  • 89.5
  • 83.0
  • 3,560
  • 0.0
  • 8.50
  • 100 %
  • 8.90
  • 6.000
  • 90.2
  • 87.0
  • 3,540
  • 40.0
  • 11.10
  • 115 %
  • 10.00
  • 6.500
  • 90.2
  • 88.0
  • 3,535
  • 60.0
  • 12.50
  • 125 %
  • 11.00
  • 7.500
  • 89.5
  • 89.0
  • 3,530
  • 0.0
  • 14.00
