/Products/Electric Motors/3 Phase/Leeson/Washguard - TENV/TEFC/141267.00 Leeson Washguard Motor, 7.5 HP, 3600 RPM
Click Image to Expand

Product ID: 141267.00

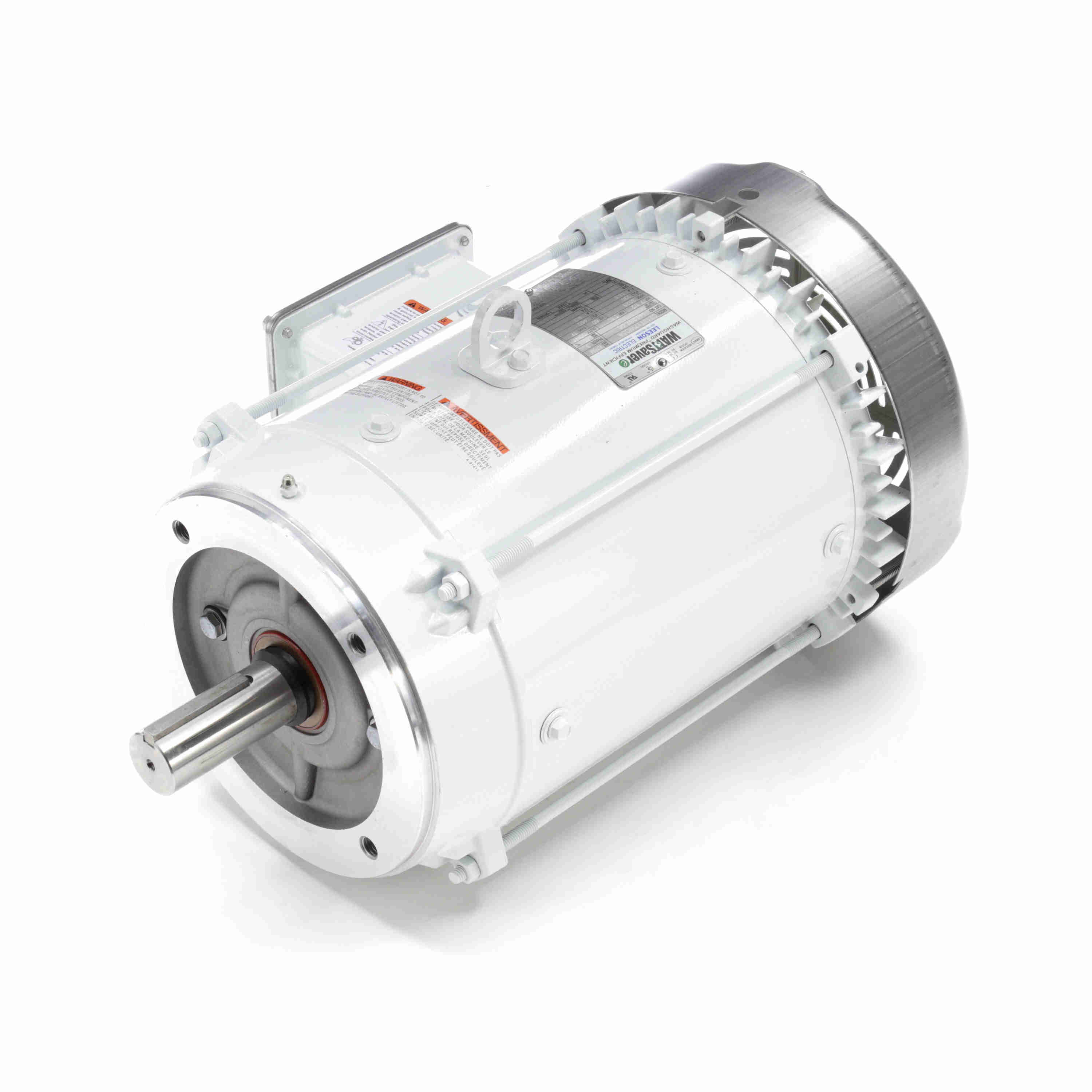

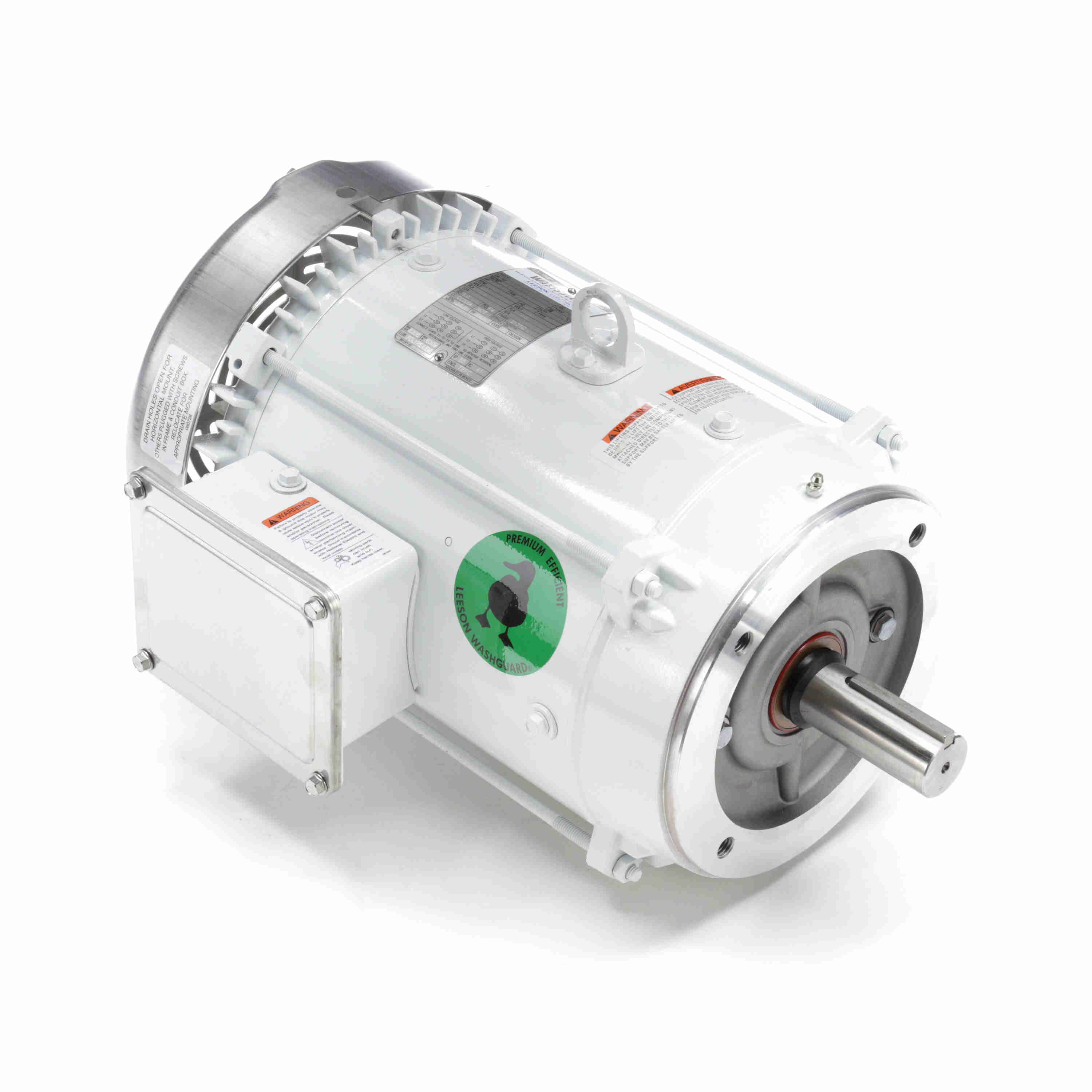

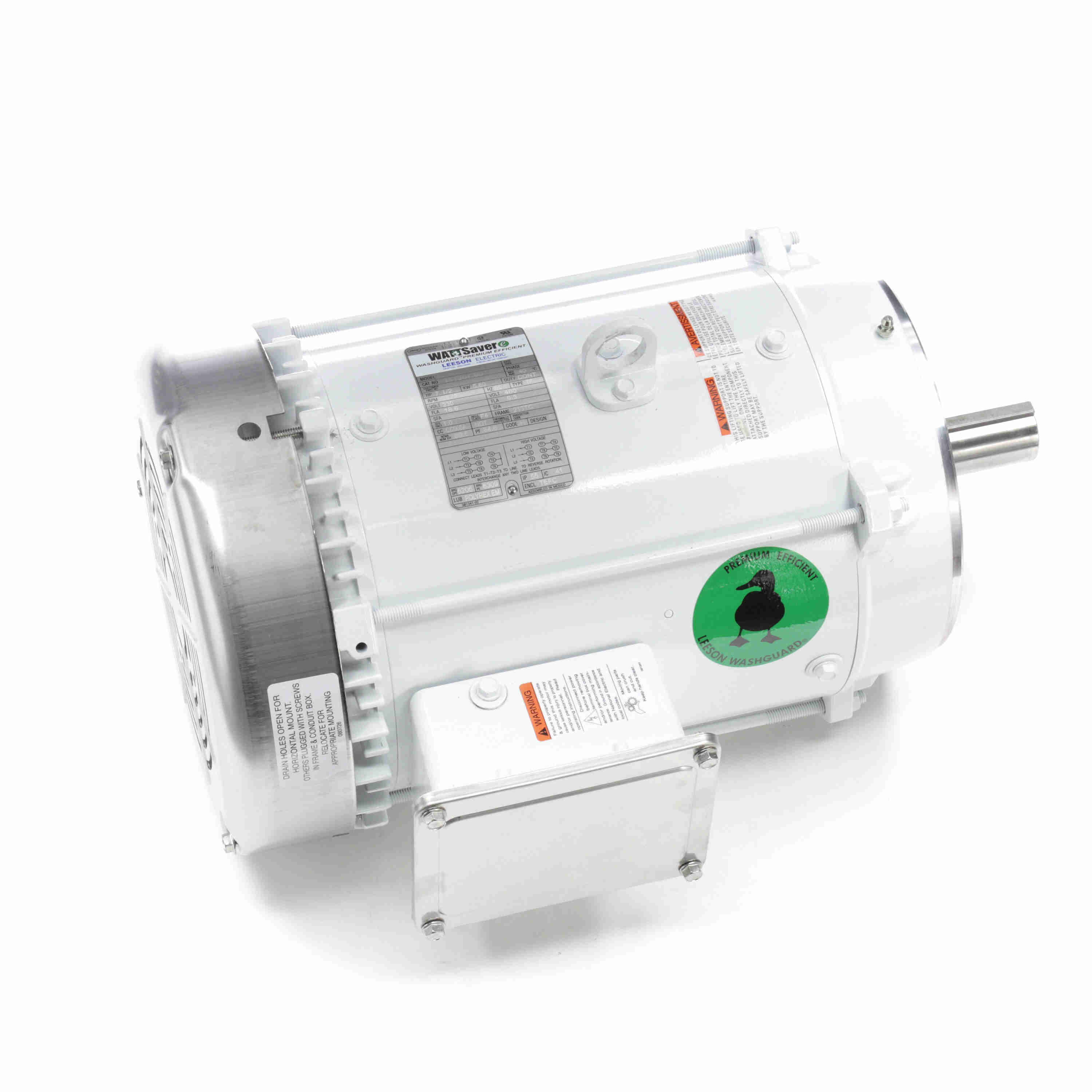

141267.00 Leeson Washguard Motor, 7.5 HP, 3600 RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 141267.00

Selected accessories will also be added to cart
$1,569.97 / Each
Quantity:
213TC Frame, 208-230/460V 3-Phase, TEFC, C Face Less Base, C213T17WC5A, Washdown Duty
Features
  • USDA-approved epoxy painted motors
  • NEMA motors
  • AC washdown
  • Rigid base and C face mount types
  • BISSC approved designs; Double lip contact seals and v-ring seals used for shaft seals
  • 3-year warranty on encapsulated and premium efficient models
  • UL recognized and CSA certified
  • Double lip contact seals and v-ring seals used for shaft seals
  • 3-year warranty on encapsulated and premium efficient models
  • Washdown brakemotors and pump motors available
General Specifications
Model :C213T17WC5A Catalog No :141267.00
Part Description :..7.5HP..3600RPM.213TC.TEFC.230/460V.3PH.60HZ.CONT.40C.1.15 S.F..C FACE......WASHDOWN DUTY........ Category :General Purpose
Stock :No
Nameplate Specifications
Output HP :7.50 Hp Output KW :5.6 kW
Frequency :60 Hz Voltage :230/460 V
Current :18.6/9.3 A Speed :3525 rpm
Service Factor :1 Phase :3
Efficiency :89.5 % Duty :Continuous
Insulation Class :F Design Code :B
KVA Code :H Frame :213TC
Enclosure :Totally Enclosed Fan Cooled Overload Protector :No
Ambient Temperature :40 °C Drive End Bearing Size :6309
Opp Drive End Bearing Size :6206 UL :Recognized
CSA :Y CE :Y
IP Code :55
Technical Specifications
Electrical Type :Squirrel Cage Induction Run Starting Method :Across The Line
Poles :2 Rotation :Reversible
Mounting :Round Motor Orientation :HORIZONTAL
Drive End Bearing :BALL Opp Drive End Bearing :BALL
Frame Material :Rolled Steel Shaft Type :T
Overall Length :18.77 in Frame Length :9.65 in
Shaft Diameter :1.375 in Shaft Extension :3.12 in
Assembly/Box Mounting :F1 ONLY UPC :691720051894
Weight :147.00 LB
Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Pull-Up60.00645.019.00170.05520.000.07.50
1/358.00624.025.00223.01,2000.000.07.50
No Load4.1044.00.000.03,6000.000.07.50
Locked-Rotor63.00677.019.30172.000.000.07.50
2/348.00516.030.00268.02,4000.000.07.50
Break-Down38.00409.033.00295.03,1300.0074.77.50
Full Load9.30100.011.20100.03,5250.000.07.50
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 4.10
  • 0.260
  • 0.0
  • 8.0
  • 3,600
  • 0.0
  • 0.00
  • 25 %
  • 4.50
  • 1.680
  • 81.8
  • 46.9
  • 3,585
  • 0.0
  • 2.70
  • 50 %
  • 5.80
  • 3.160
  • 88.1
  • 68.4
  • 3,565
  • 0.0
  • 5.50
  • 75 %
  • 7.40
  • 4.700
  • 88.9
  • 79.7
  • 3,545
  • 0.0
  • 8.30
  • 100 %
  • 9.30
  • 6.265
  • 89.5
  • 84.6
  • 3,525
  • 55.0
  • 11.20
  • 115 %
  • 10.20
  • 6.950
  • 89.9
  • 85.5
  • 3,520
  • 70.0
  • 12.50
  • 125 %
  • 11.40
  • 7.910
  • 88.1
  • 87.1
  • 3,505
  • 85.0
  • 14.00
