/Products/Electric Motors/Single Phase Electric Motors/Marathon Single Phase Electric Motors/141311.00 Marathon 10HP Grain Dryer / Centrifugal Fan Electric Motor, 1800RPM

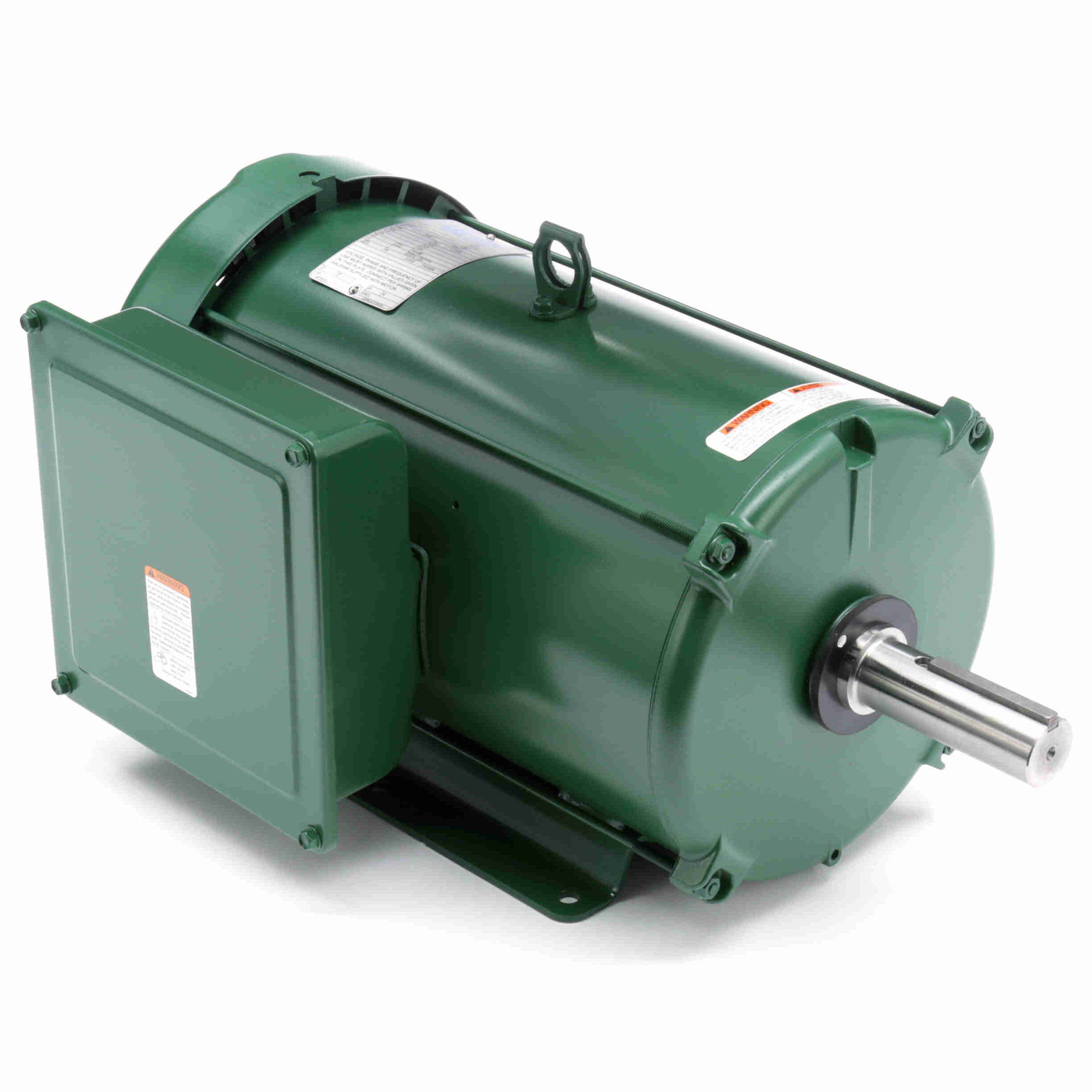

Click Image to Expand

Product ID: 141311.00

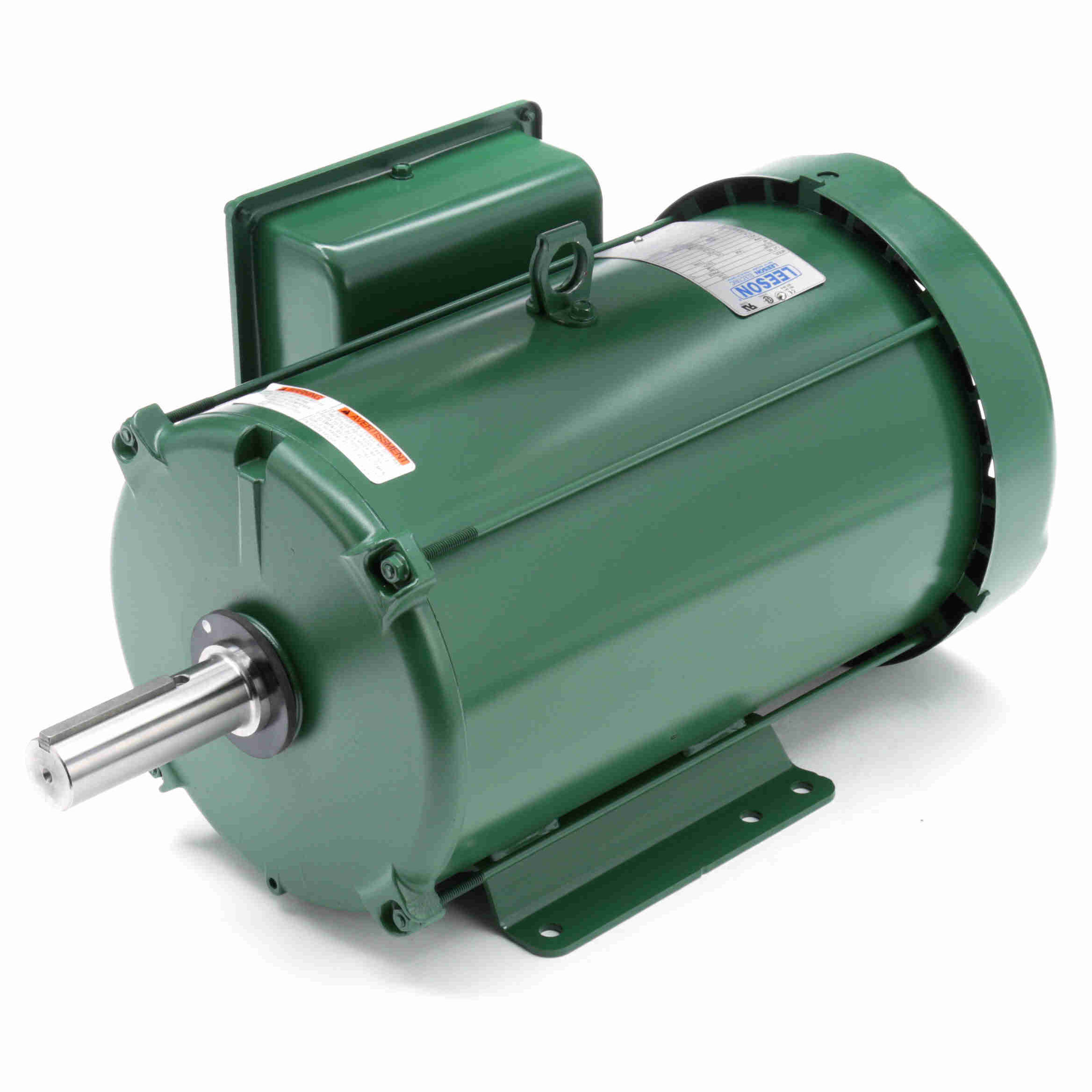

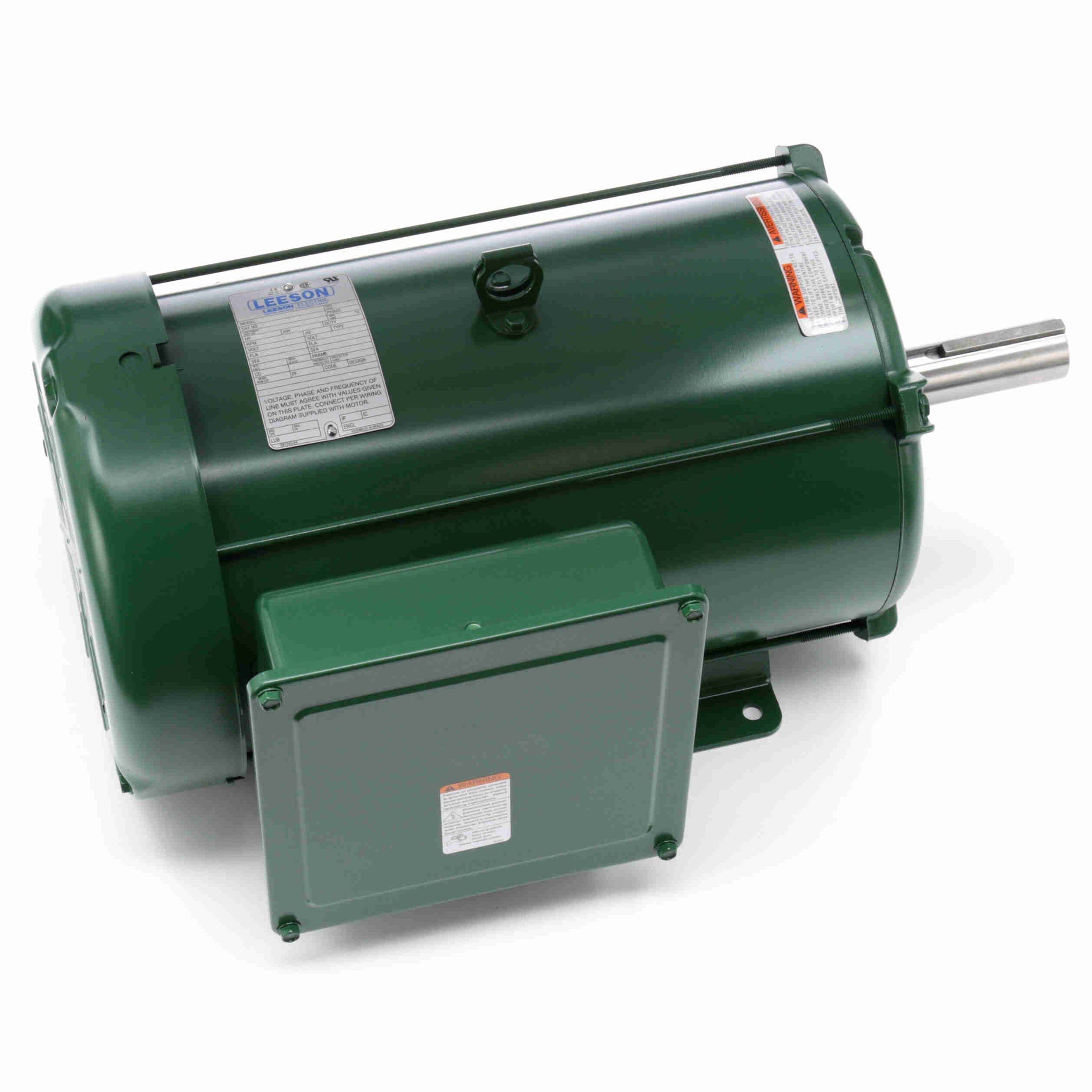

141311.00 Marathon 10HP Grain Dryer / Centrifugal Fan Electric Motor, 1800RPM

MFG: Marathon Electric
MFG Part Number: C215K17FB73

Selected accessories will also be added to cart
$2,976.00 / Each
Quantity:
TEFC, 215T Frame, 230VAC Single Phase 60Hz, C215K17FB73A, Rigid Base, Rolled Steel, 1-3/8" Keyed Shaft
Accessories
Select any of the accessories below to purchase them with this inventory item:

Features

Features
  • Rolled steel construction
  • Double sealed ball bearings
  • Cap start/cap run designs
  • High starting torque
  • 230 Volts only
  • Vibration dampening centrifugal switch

General Specifications

General Specifications
Model :C215K17FB73ACatalog No :141311.00
Part Description :..10HP..1740RPM.215TZ.TEFC.230V.1PH.60HZ.CONT.40C.1.15SF.RIGID.C215K17FB73A.............Category :Crop Dryer
Stock :No

Nameplate Specifications

Nameplate Specifications
Output HP :10 HPOutput KW :7.5 kW
Frequency :60 HzVoltage :230 V
Current :40.0 ASpeed :1740 RPM
Service Factor :1.15 Phase :1
Efficiency :86.5 %Duty :Continuous
Insulation Class :F Design Code :NO DESIGN CODE
KVA Code :G Frame :215TZ
Enclosure :Totally Enclosed Fan Cooled Overload Protector :No
Ambient Temperature :40 ?CDrive End Bearing Size :6209
Opp Drive End Bearing Size :6206 UL :Recognized
CSA :Y CE :Y
IP Code :43

Technical Specifications

Technical Specifications
Electrical Type :Capacitor Start Capacitor Run Starting Method :Across The Line
Poles :4 Rotation :Selective Counterclockwise
Mounting :Rigid Base Motor Orientation :Horizontal
Drive End Bearing :Ball Opp Drive End Bearing :Ball
Frame Material :Rolled Steel Shaft Type :T
Overall Length :21.72 inFrame Length :14.00 in
Shaft Diameter :1.375 inShaft Extension :4.5 in
Assembly/Box Mounting :F1 ONLY UPC :691720053539
Weight :192.00 LB

Speed & Load Characteristics

Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Pull-Up179.40448.061.50205.01,38031.900.010.00
Full Load40.00100.030.00100.000.000.010.00
Break-Down146.00365.069.50232.01,54029.200.010.00
Locked-Rotor264.00660.090.20301.0051.000.010.00
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 7.70
  • 0.813
  • 0.0
  • 45.9
  • 1,798
  • 0.0
  • 0.00
  • 25 %
  • 13.40
  • 2.636
  • 72.3
  • 85.5
  • 1,788
  • 0.0
  • 7.50
  • 50 %
  • 21.20
  • 4.523
  • 83.7
  • 92.8
  • 1,776
  • 0.0
  • 15.00
  • 75 %
  • 29.90
  • 6.529
  • 86.4
  • 94.9
  • 1,766
  • 0.0
  • 22.50
  • 100 %
  • 39.50
  • 8.656
  • 86.2
  • 95.3
  • 1,751
  • 95.0
  • 30.00
  • 125 %
  • 49.70
  • 10.913
  • 84.6
  • 95.5
  • 1,733
  • 0.0
  • 37.50
  • 150 %
  • 60.90
  • 13.360
  • 82.1
  • 95.4
  • 1,715
  • 0.0
  • 45.00
Type
Electric Motor
Input Phase
Single Phase
Speed
1800RPM
Horsepower
10HP
Application
Grain Dryer
Frame
215TZ
Enclosure
TEFC
