/Products/Electric Motors/3 Phase Stainless Steel/Leeson/TENV/TEFC C-Face with Base/191417.00 1HP Leeson Electric SS Motor, Washdown
Click Image to Expand

Product ID: 191417.00

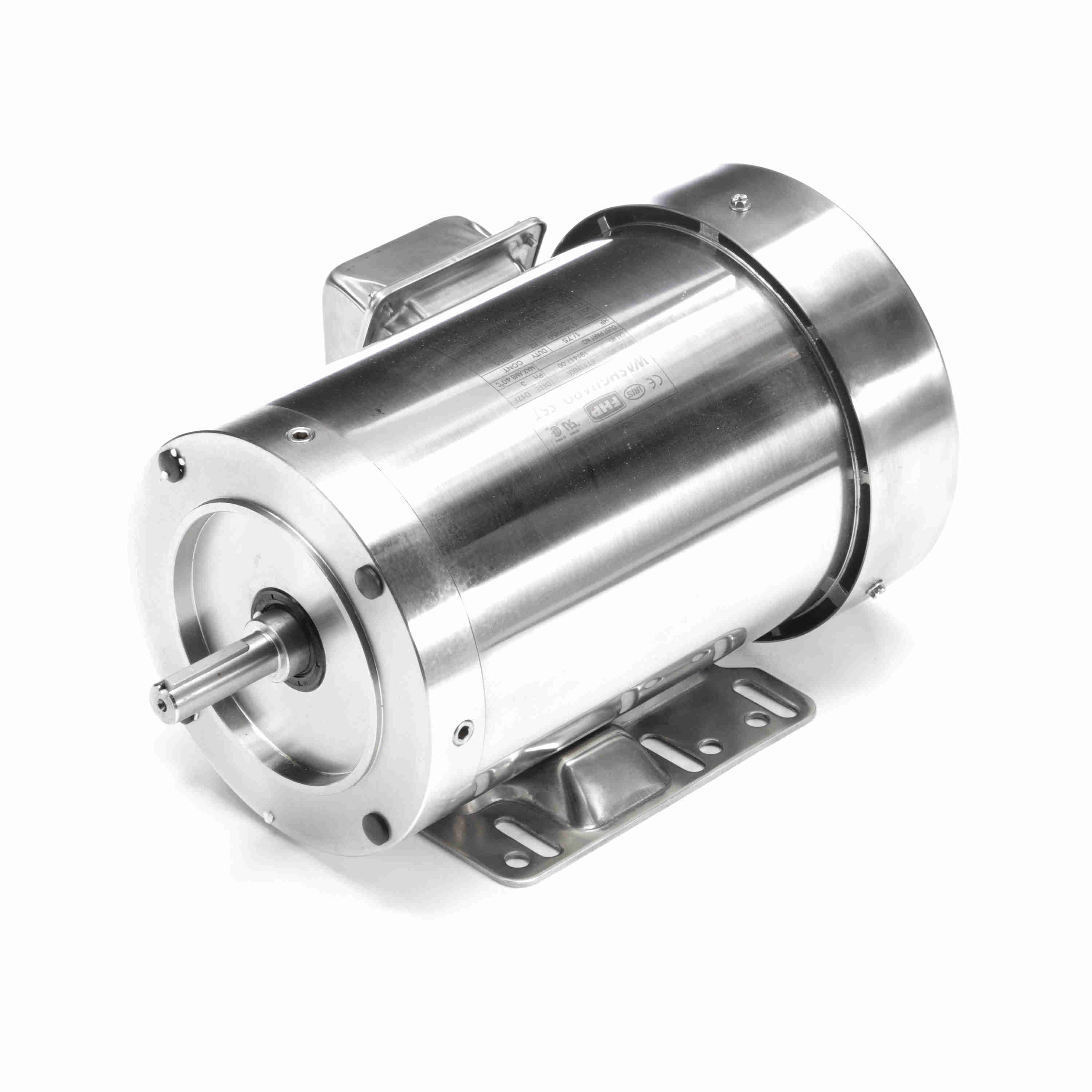

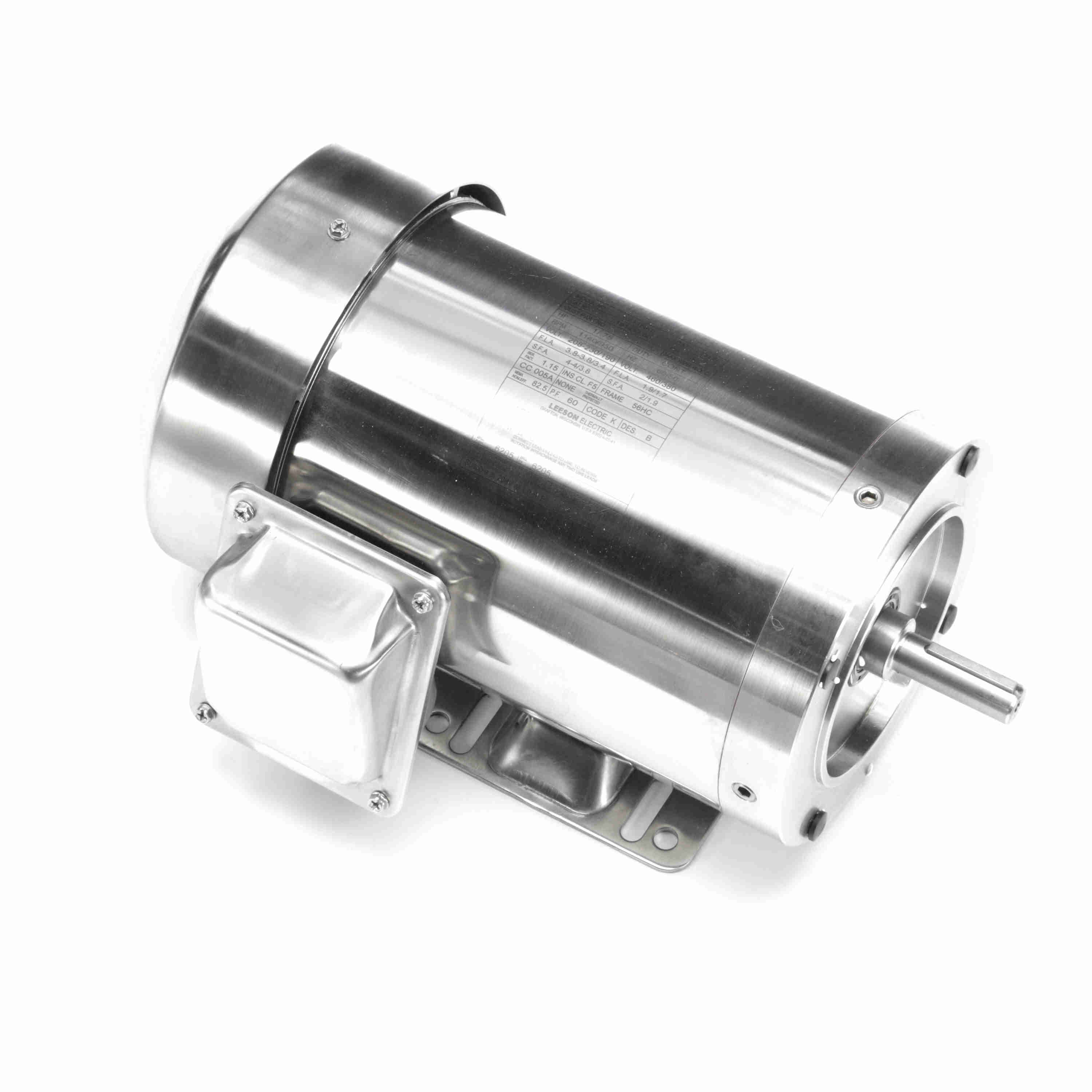

191417.00 1HP Leeson Electric SS Motor, Washdown

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: C6T11NK6

Selected accessories will also be added to cart
$825.97 / Each
Quantity:
1200 RPM, 56HC Frame, TEFC, 3 Phase, 230/460VAC

Product Features


Catalog No 191417.00 Model C6T11NK6A
Product type AC MOTOR Stock Stock
Description 1HP..1140/950RPM.56H.TEFC.230/460V.3PH.60/50HZ.CONT.NOT.40C.1.15SF.RIGID C.GENERAL PURPOSE.C6T11NK6A
Information shown is for current motor's design
 Engineering Data
Volts 208-230 Volts 460 Volts 190/380
F.L. Amps 3.8-3.8 F.L. Amps 1.9 F.L. Amps 3.4/1.7
S. F Amps 4-4 S. F Amps 2 S. F Amps 3.8/1.9
RPM 1200 Hertz 60
HP 1 Duty CONTINUOUS TYPE TF
KW 0.75
Frame 56HC Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code K
Insul Class F Protection NOT Therm.Prot.
Eff 100% 82.5 Eff 75% PF 60
UL Yes CSA Yes Bearing OPE 6205
CC Number NONE CE Yes Bearing PE 6205
Load Type Inverter Type Speed Range NONE
RPM 1000 Hertz 50
HP 3/4 Duty CONTINUOUS TYPE TF
KW 0.56
Frame 56HC Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code K
Insul Class F Protection NOT Therm.Prot.
Eff 100% Eff 75% PF
UL Yes CSA Yes Bearing OPE 6205
CC Number NONE CE Yes Bearing PE 6205
Load Type Inverter Type Speed Range NONE
Motor Wt. 47 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate Mounting RIGID Rotation REV
Assembly Shaft Dia. Ext. Diag. 005010.01
Cust Part No Outline OL191417 Ext. Diag2
Packaging B Winding QT6365
Carton Label INDIVIDUAL     GROUP: 3
Iris Paint VERIFY Test Card 00
Form Factor   RMS Amps   Const Torque Speed Range
Torque   Peak
AB Code   Peak@DegC
Resistance
Connection
Rework Status   Rework TYPE
Hazardous Loc NONE  Brake Motors
Explosion Proof   Temp Op Code FORCE
Class GROUP: VDC
Class GROUP: ADC
        Brake Coil OHMs @25 C
Performance
Torque UOM Inertia (WK²) -1 LB-FT^2
Torque 4.5(Full Load) 17.4(Break Down) 12.5(Pull Up) 12.55(Locked Rotor)
CURRENT (amps) 1.8(Full Load) 0(Break Down) 0(Pull Up) 11.4(Locked Rotor)
Efficiency (%) 0(Full Load) 86.7(75% Load) 81.5(50% Load) 71.6(25% Load)
PowerFactor 0(Full Load) 52.6(75% Load) 38.7(50% Load) 23.7(25% Load)
Speed Torque Curve @ 60 Hz, 460 Volts
Curve Point Amps Amps(%) Torque Torque(%) RPM KW PF HP
FL 1.8 100.0 4.5 100.0 1158 - - 1.0
BD - - 17.4 388.0 843 - - 1.0
PU - - 12.5 277.0 180 - - 1.0
LR 11.4 633.0 12.55 278.0 0.0 - - 1.0
SOURCE: CALCULATED GROUP: 3
Speed Torque Curve @ 50 Hz, 380 Volts
Curve Point Amps Amps(%) Torque Torque(%) RPM KW PF HP
FL 1.71 100.0 4.0 100.0 963 0.867 0.0 0.75
BD - 0.0 16.4 410.0 543 0.0 0.0 0.75
PU - 0.0 12.4 310.0 150 0.0 0.0 0.75
LR 10.6 0.0 12.5 3.12 0.0 0.0 0.0 0.75
SOURCE: DATABASE GROUP: 3
Load Curve Data @60/50 Hz, 460 Volts, 1 Horsepower
Load Amps KW RPM Torque EFF PF Rise By Resis Frame Rise
0.0 1.3 0.07 1198 0.0 0.0 6.8 0.0 -
0.25 1.4 0.264 1189 1.12 71.6 23.7 0.0 -
0.5 1.5 0.463 1180 2.25 81.5 38.7 0.0 -
0.75 1.6 0.67 1169 3.5 86.7 52.6 0.0 -
1.0 1.8 0.888 1158 4.5 83.4 61.9 44.0 40.0
1.25 2.1 1.12 1144 5.65 82.0 66.9 0.0 -
1.5 2.4 1.36 1132 6.75 79.8 71.1 0.0 -
SOURCE: CALCULATED GROUP: 3
