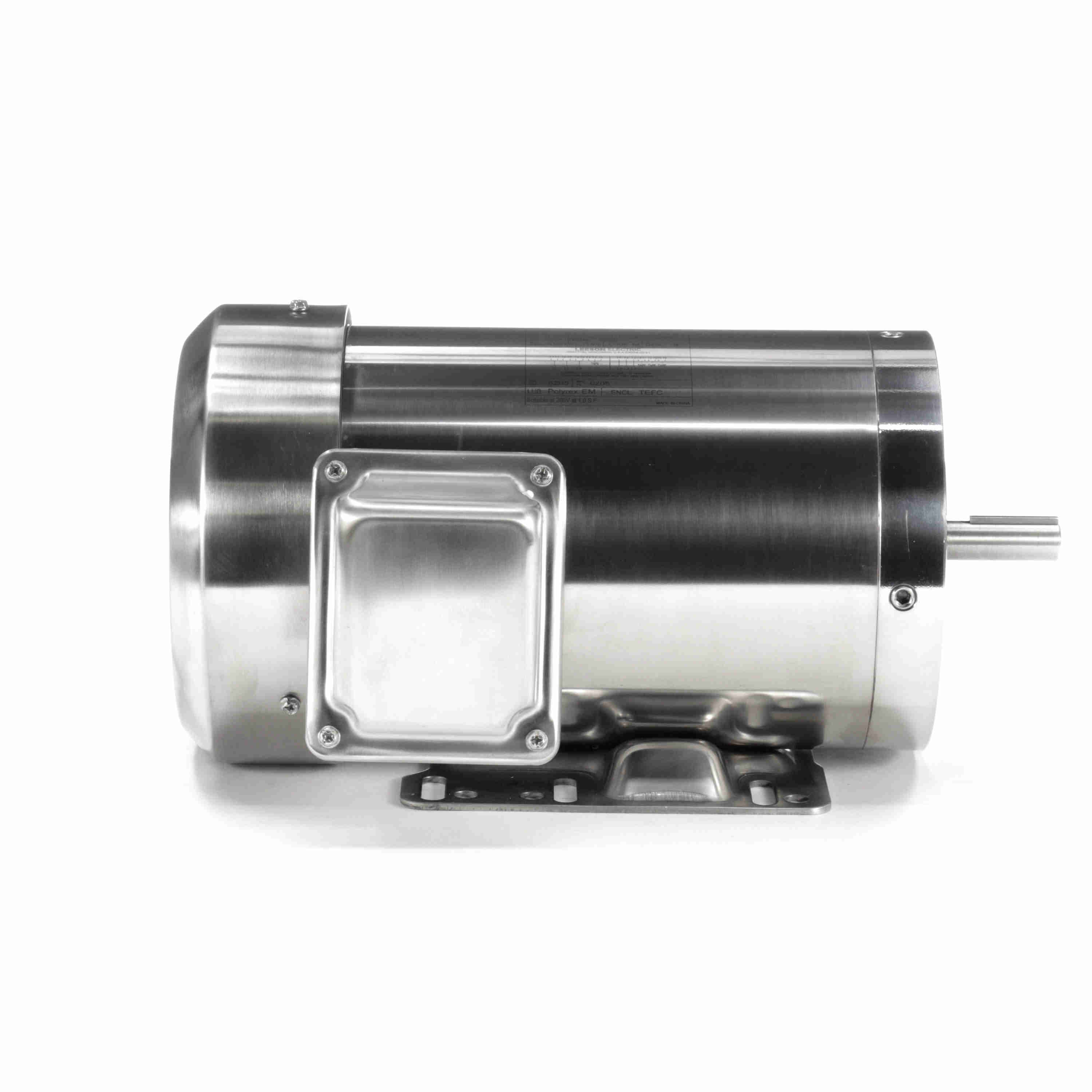

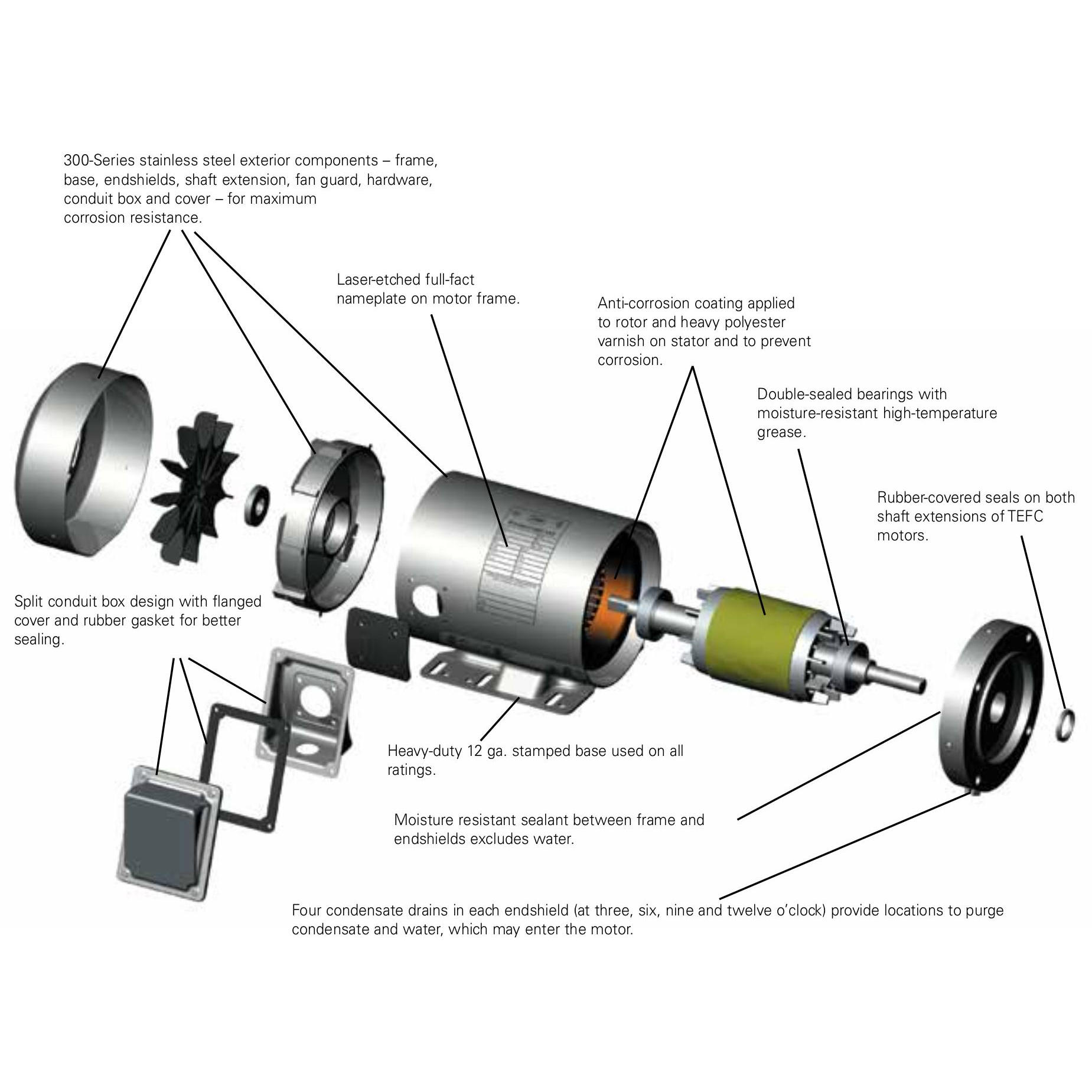

Catalog No 191561.00 Model C6T17WK43A   Product type AC MOTOR Stock Stock Description ..1 1/2HP..1740RPM.56H.TEFC.208-230/460V.3PH.60HZ.CONT.40C.1.15SF.RIGID C.C6T17FK82A.....WAHSGUARD-ALL STAINLESS.NOT.......

Information shown is for current motor's design
Engineering Data
Volts	208-230	Volts	460	Volts	190/380
F.L. Amps	4.8-4.4	F.L. Amps	2.2	F.L. Amps	3.8/1.9
S. F Amps	5.5-5	S. F Amps	2.5	S. F Amps	4/2
RPM	1800	Hertz	60
HP	1 1/2	Duty	CONTINUOUS	TYPE	TF
KW	1.12
Frame	56HC	Serv. Factor	1.15	Phase	3
Max Amb	40	Design	B	Code	M
Insul Class	F	Protection	NOT	Therm.Prot.
Eff 100%	86.5	Eff 75%		PF	73.5
UL	Yes	CSA	Yes	Bearing OPE	6205
CC Number	CC005A	CE	Yes	Bearing PE	6205
Load Type		Inverter Type		Speed Range	2.0 X BASE SPEED
RPM	1500	Hertz	50
HP	1	Duty	CONTINUOUS	TYPE	TF
KW	.75
Frame	56HC	Serv. Factor	1.15	Phase	3
Max Amb	40	Design	B	Code	M
Insul Class	F	Protection	NOT	Therm.Prot.
Eff 100%	85.5	Eff 75%		PF	70
UL	Yes	CSA	Yes	Bearing OPE	6205
CC Number	CC005A	CE	Yes	Bearing PE	6205
Load Type		Inverter Type		Speed Range	2.0 X BASE SPEED
Motor Wt.	46 LB	Enclosure	TEFC	Lubrication	POLYREX EM
Nameplate		Mounting	RIGID	Rotation	REV
Assembly		Shaft Dia.	5/8 IN	Ext. Diag.	005010.01
Cust Part No		Outline	16992800	Ext. Diag2
Packaging	INDIVIDUAL			Winding	QT63421
Carton Label				GROUP:	3
Iris		Paint	NO PAINT	Test Card
Form Factor		RMS Amps		Const Torque Speed Range
Torque		Peak
AB Code		Peak@DegC
Resistance
Connection
Rework Status		Rework TYPE
Hazardous Loc	NONE			Brake Motors
Explosion Proof		Temp Op Code		FORCE
Class		GROUP:		VDC
Class		GROUP:		ADC
				Brake Coil OHMs @25 C

Performance
Torque UOM	LB-FT	Inertia (WK²)	-1 LB-FT^2
Torque	4.51(Full Load)	21.05(Break Down)	15.28(Pull Up)	18.1(Locked Rotor)
CURRENT (amps)	2.2(Full Load)	12.5(Break Down)	19.4(Pull Up)	19.9(Locked Rotor)
Efficiency (%)	0(Full Load)	84.1(75% Load)	79.5(50% Load)	70.5(25% Load)
PowerFactor	75.5(Full Load)	66.3(75% Load)	54.4(50% Load)	35.7(25% Load)

Speed Torque Curve @ 60 Hz, 460 Volts
Curve Point	Amps	Amps(%)	Torque	Torque(%)	RPM	KW	PF	HP
FL	2.2	100.0	4.51	100.0	1745	1.323	75.5	1.5
BD	12.5	568.0	21.05	467.0	1286	8.3	83.3	1.5
PU	19.4	882.0	15.28	339.0	257	9.6	61.9	1.5
LR	19.9	905.0	18.1	401.0	0.0	9.5	59.5	1.5
SOURCE: CALCULATED GROUP: 3

Speed Torque Curve @ 50 Hz, 380 Volts
Curve Point	Amps	Amps(%)	Torque	Torque(%)	RPM	KW	PF	HP
No Speed Torque Curve Data!

Load Curve Data @60/50 Hz, 460 Volts, 1 1/2 Horsepower
Load	Amps	KW	RPM	Torque	EFF	PF	Rise By Resis	Frame Rise
0.0	1.3	0.106	0	0.0	0.0	10.2	0.0	-
0.25	1.4	0.398	1785	1.106	70.5	35.7	0.0	-
0.5	1.6	0.694	1773	2.19	79.5	54.4	0.0	-
0.75	1.9	1.003	1759	3.375	84.1	66.3	0.0	-
1.0	2.2	1.323	1745	4.513	84.6	75.5	53.18	-
1.15	2.48	1.54	1735	5.238	83.8	77.9	0.0	-
1.25	2.6	1.659	1730	5.713	84.6	80.1	0.0	-
1.5	3.0	2.011	1713	6.9	83.5	84.1	0.0	-
SOURCE: CALCULATED GROUP: 3
