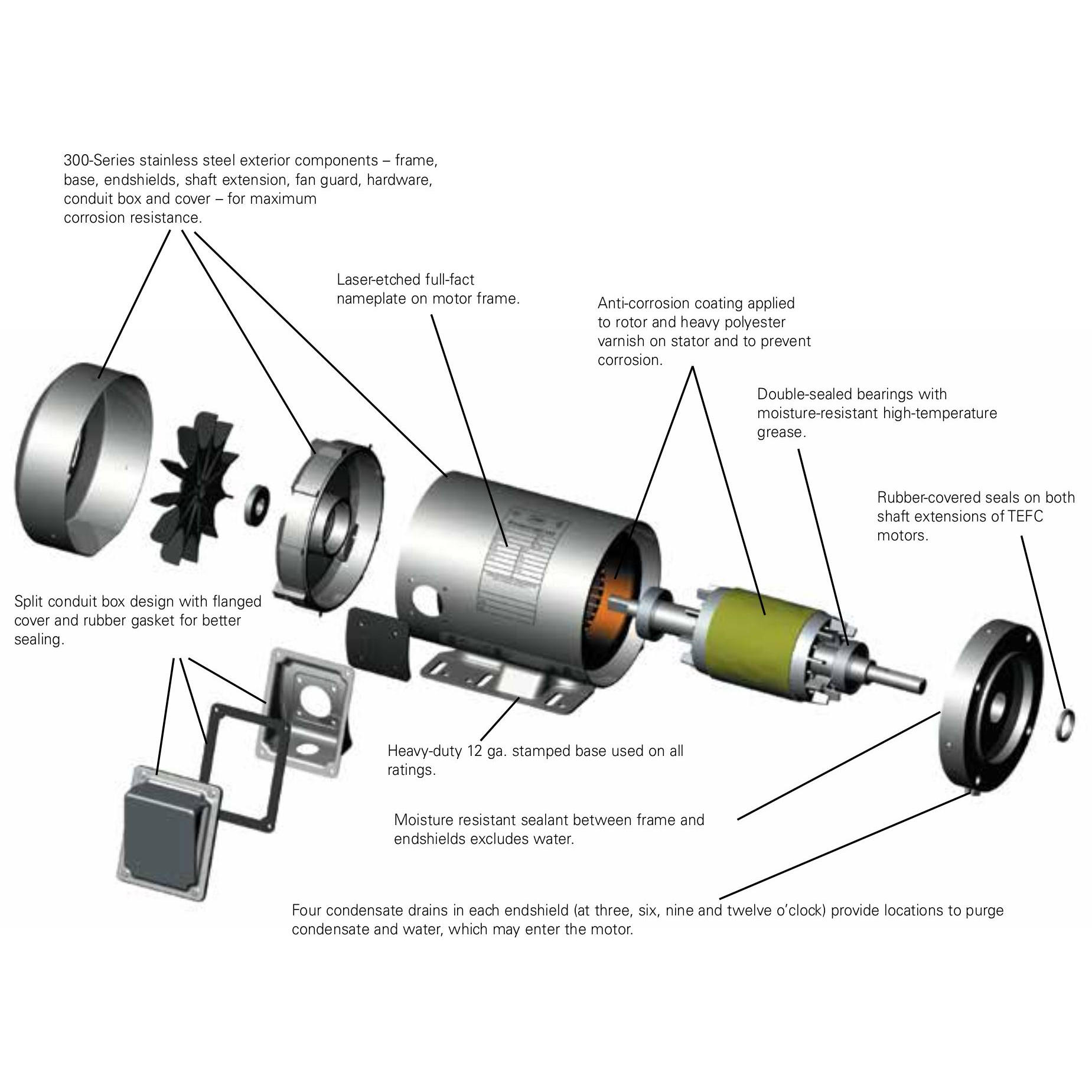

Product Features

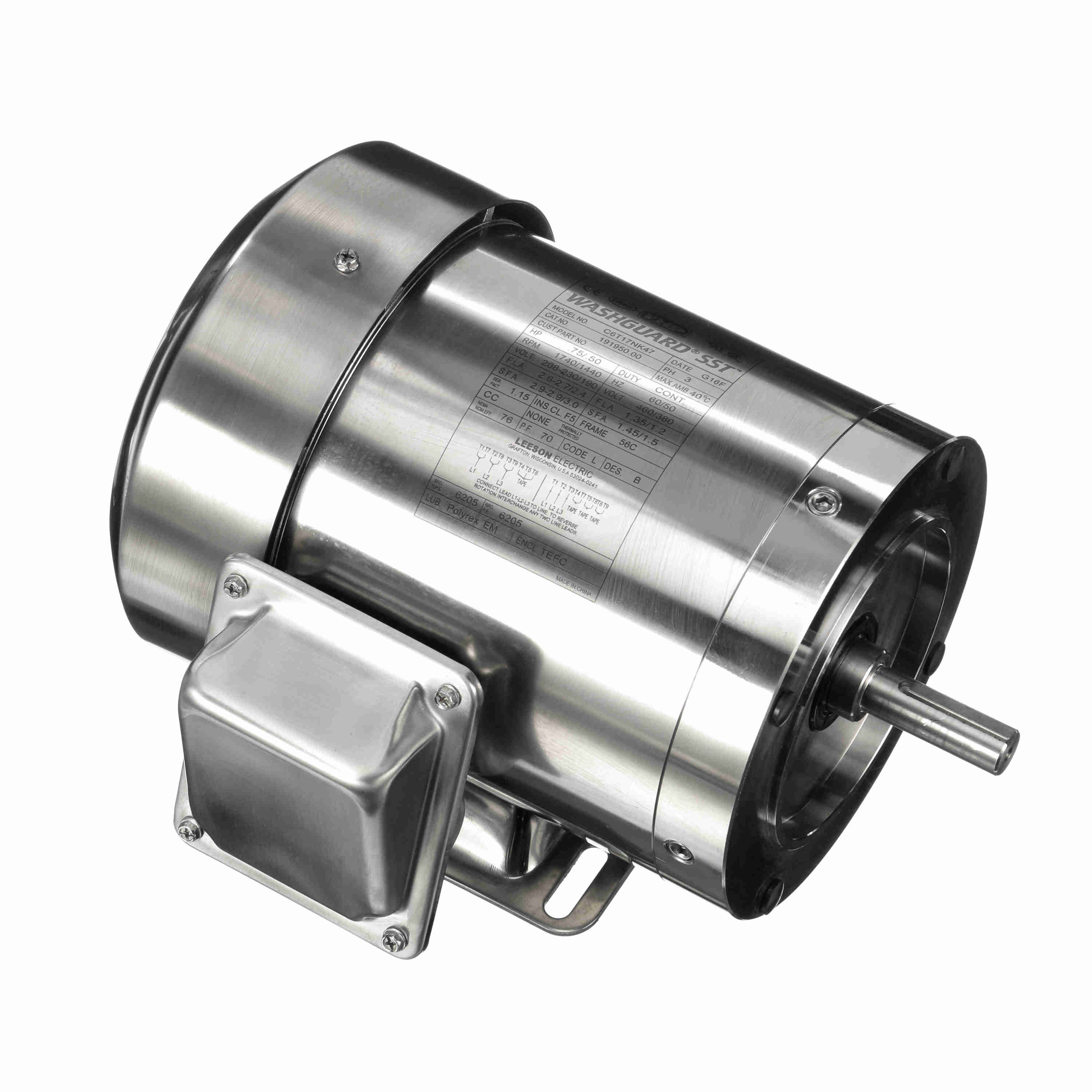

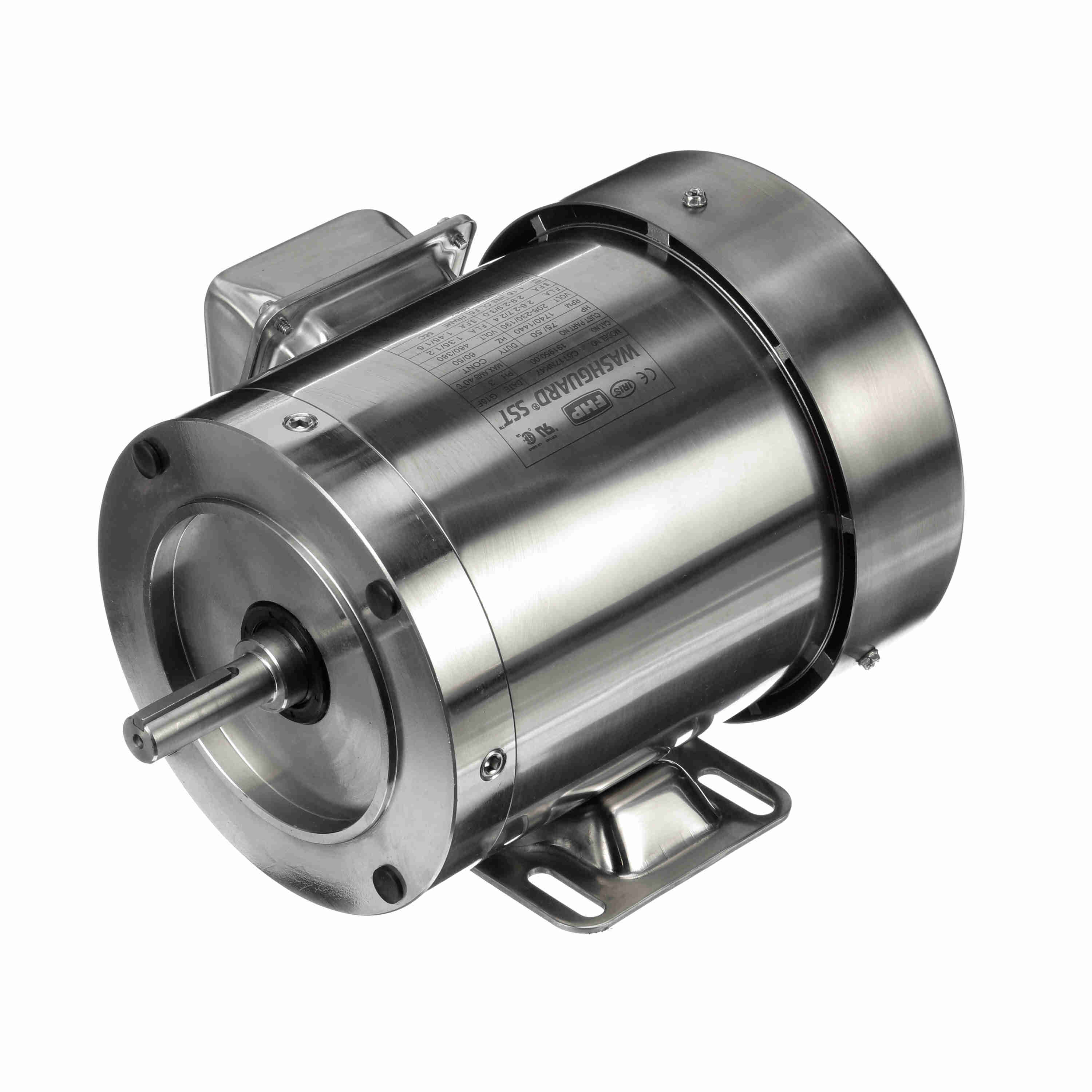

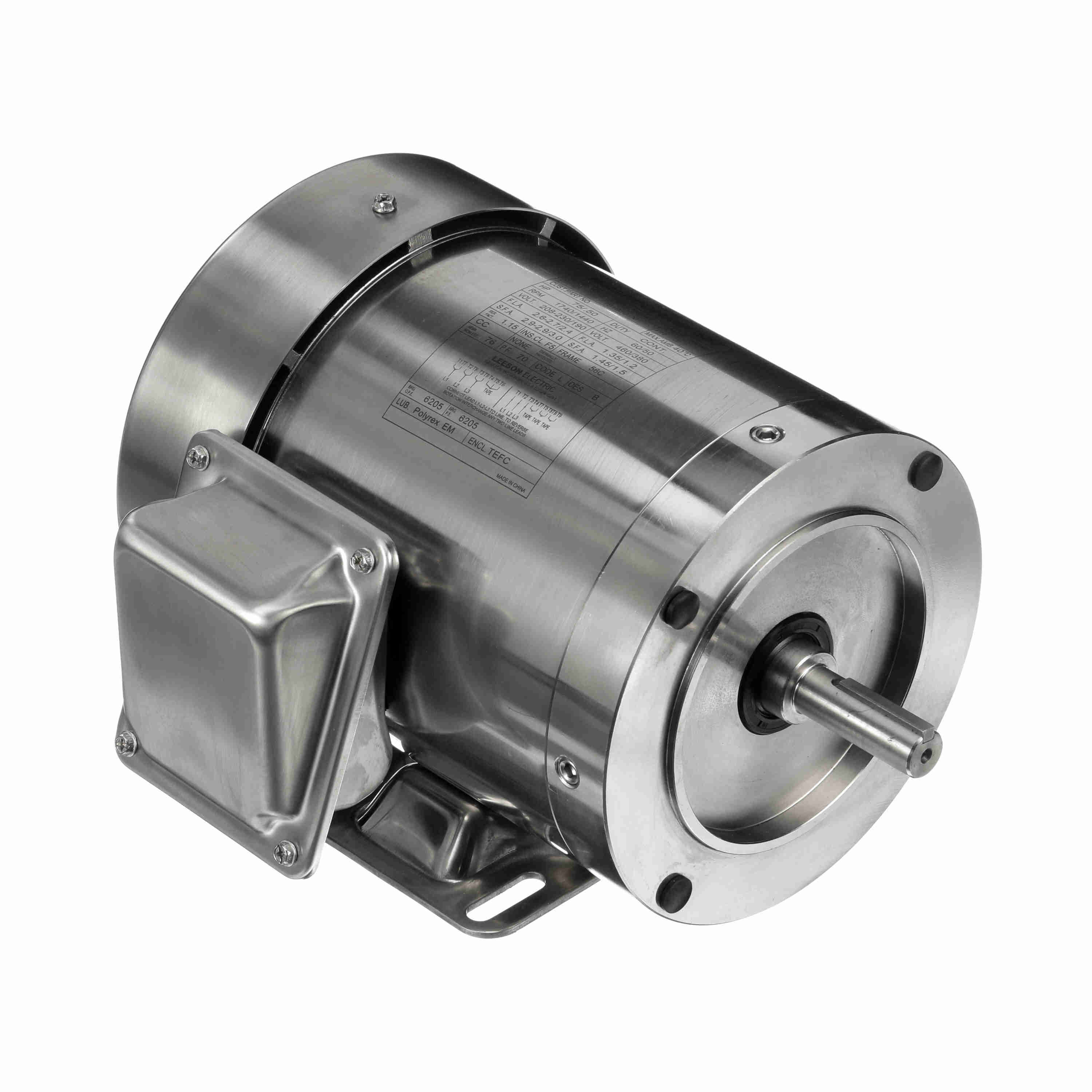

Catalog No 191950.00 Model C6T17WK40A   Product type AC MOTOR Stock Stock Description ..3/4HP..1800RPM.56C.TEFC.230/460V.3PH.60HZ.CONT.40C.1.15SF.RIGID C......STAINLESS WASHDOWN........

Information shown is for current motor's design
Engineering Data
Volts	208-230	Volts	460	Volts	190/380
F.L. Amps	2.4-2.3	F.L. Amps	1.15	F.L. Amps	2/1
S. F Amps	2.6	S. F Amps	1.3	S. F Amps	2.2/1.1
RPM	1800	Hertz	60
HP	3/4	Duty	CONTINUOUS	TYPE	TF
KW	.56
Frame	56C	Serv. Factor	1.15	Phase	3
Max Amb	40	Design	B	Code	L
Insul Class	F	Protection	NOT	Therm.Prot.
Eff 100%	82.5	Eff 75%		PF	73
UL	Y-(LEESON UL REC)	CSA	Yes	Bearing OPE	6205
CC Number	EXEMPT	CE	Yes	Bearing PE	6205
Load Type		Inverter Type		Speed Range	NONE
RPM	1500	Hertz	50
HP	1/2	Duty	CONTINUOUS	TYPE	TF
KW	.37
Frame	56C	Serv. Factor	1.15	Phase	3
Max Amb	40	Design	B	Code	L
Insul Class	F	Protection	NOT	Therm.Prot.
Eff 100%	83.6	Eff 75%		PF	68.4
UL	Y-(LEESON UL REC)	CSA	Yes	Bearing OPE	6205
CC Number	EXEMPT	CE	Yes	Bearing PE	6205
Load Type		Inverter Type		Speed Range	NONE
Motor Wt.	32.2 LB	Enclosure	TEFC	Lubrication	POLYREX EM
Nameplate	TBD	Mounting	RIGID	Rotation	REV
Assembly		Shaft Dia.		Ext. Diag.	005010.01
Cust Part No		Outline	TBD	Ext. Diag2
Packaging	B			Winding	QT6349
Carton Label				GROUP:	3
Iris		Paint	NO PAINT	Test Card	00
Form Factor		RMS Amps		Const Torque Speed Range
Torque		Peak
AB Code		Peak@DegC
Resistance
Connection
Rework Status		Rework TYPE
Hazardous Loc	NONE			Brake Motors
Explosion Proof		Temp Op Code		FORCE
Class		GROUP:		VDC
Class		GROUP:		ADC
				Brake Coil OHMs @25 C

Performance
Torque UOM	OZ-FT	Inertia (WK²)	-1 LB-FT^2
Torque	36(Full Load)	163(Break Down)	113(Pull Up)	116(Locked Rotor)
CURRENT (amps)	0(Full Load)	0(Break Down)	0(Pull Up)	9.3(Locked Rotor)
Efficiency (%)	0(Full Load)	84(75% Load)	80.9(50% Load)	69.7(25% Load)
PowerFactor	0(Full Load)	63.1(75% Load)	50.6(50% Load)	33.4(25% Load)

Speed Torque Curve @ 60 Hz, 460 Volts
Curve Point	Amps	Amps(%)	Torque	Torque(%)	RPM	KW	PF	HP
FL	-	100.0	36.0	100.0	1750	-	-	0.75
BD	-	-	163.0	453.0	0.0	-	-	0.75
PU	-	-	113.0	314.0	0.0	-	-	0.75
LR	9.3	-	116.0	322.0	0.0	-	-	0.75
SOURCE: CALCULATED GROUP: 3

Speed Torque Curve @ 50 Hz, 380 Volts
Curve Point	Amps	Amps(%)	Torque	Torque(%)	RPM	KW	PF	HP
FL	-	100.0	29.0	100.0	1460	0.0	0.0	0.5
BD	-	0.0	144.0	497.0	0.0	0.0	0.0	0.5
PU	-	0.0	110.0	379.0	0.0	0.0	0.0	0.5
LR	8.6	0.0	112.0	386.0	0.0	0.0	0.0	0.5
SOURCE: DATABASE GROUP: 3

Load Curve Data @60/50 Hz, 460 Volts, 3/4 Horsepower
Load	Amps	KW	RPM	Torque	EFF	PF	Rise By Resis	Frame Rise
0.0	0.7	0.078	1798	0.0	0.0	14.0	0.0	-
0.25	0.77	0.205	1787	9.0	69.7	33.4	0.0	-
0.5	0.87	0.351	1776	18.0	80.9	50.6	0.0	-
0.75	1.0	0.503	1763	27.0	84.0	63.1	0.0	-
1.0	1.15	0.678	1752	36.0	82.6	74.0	0.0	-
1.25	1.32	0.818	1738	45.0	84.9	77.8	0.0	-
1.5	1.51	0.98	1724	54.0	84.4	81.5	0.0	-
SOURCE: CALCULATED GROUP: 3
