/Products/Electric Motors/3 Phase Metric/Leeson/TEFC, B3 / B14 Flange, Rigid Base/192204.00 Leeson 1.5HP / 1.1kW IEC Metric Electric Motor, 1740RPM

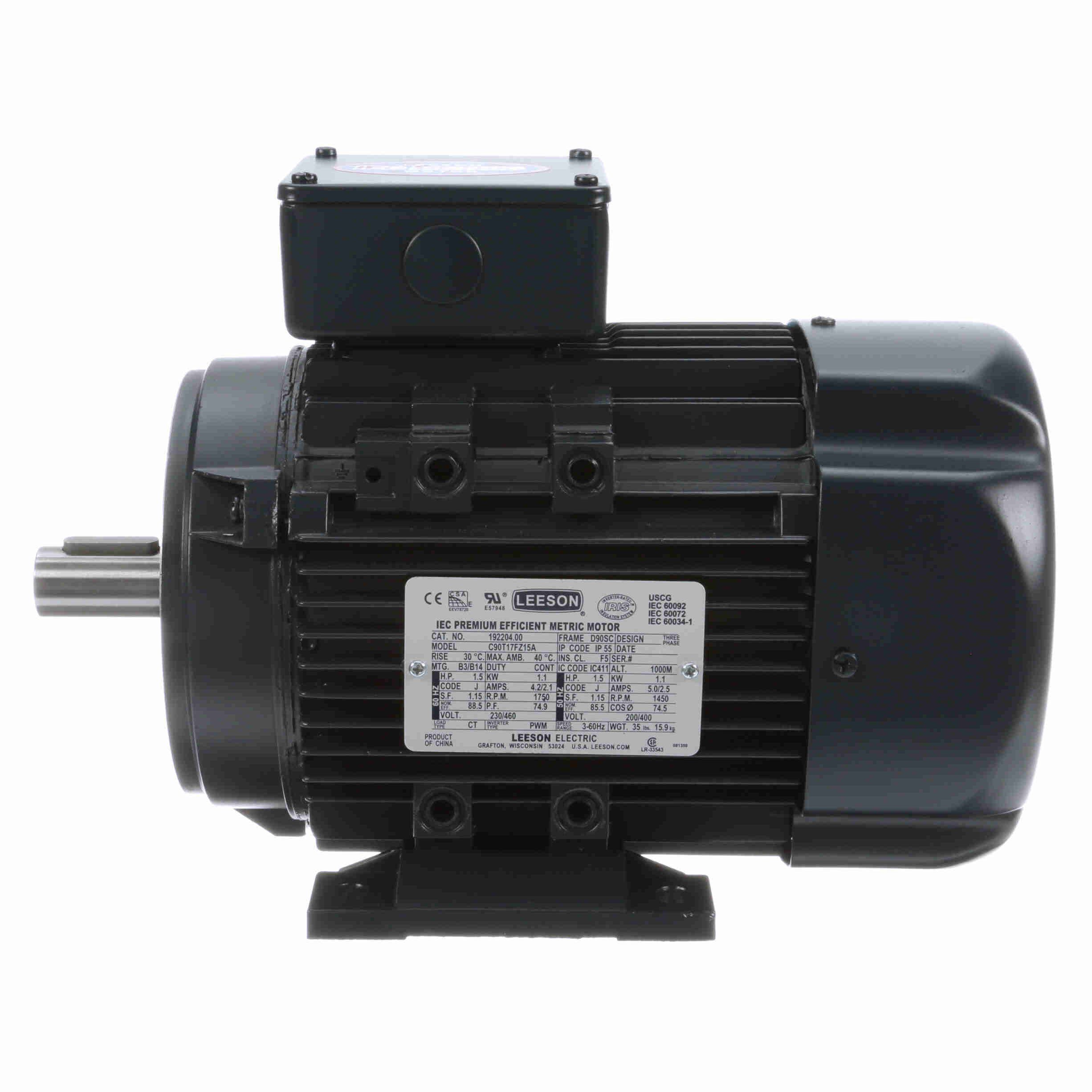

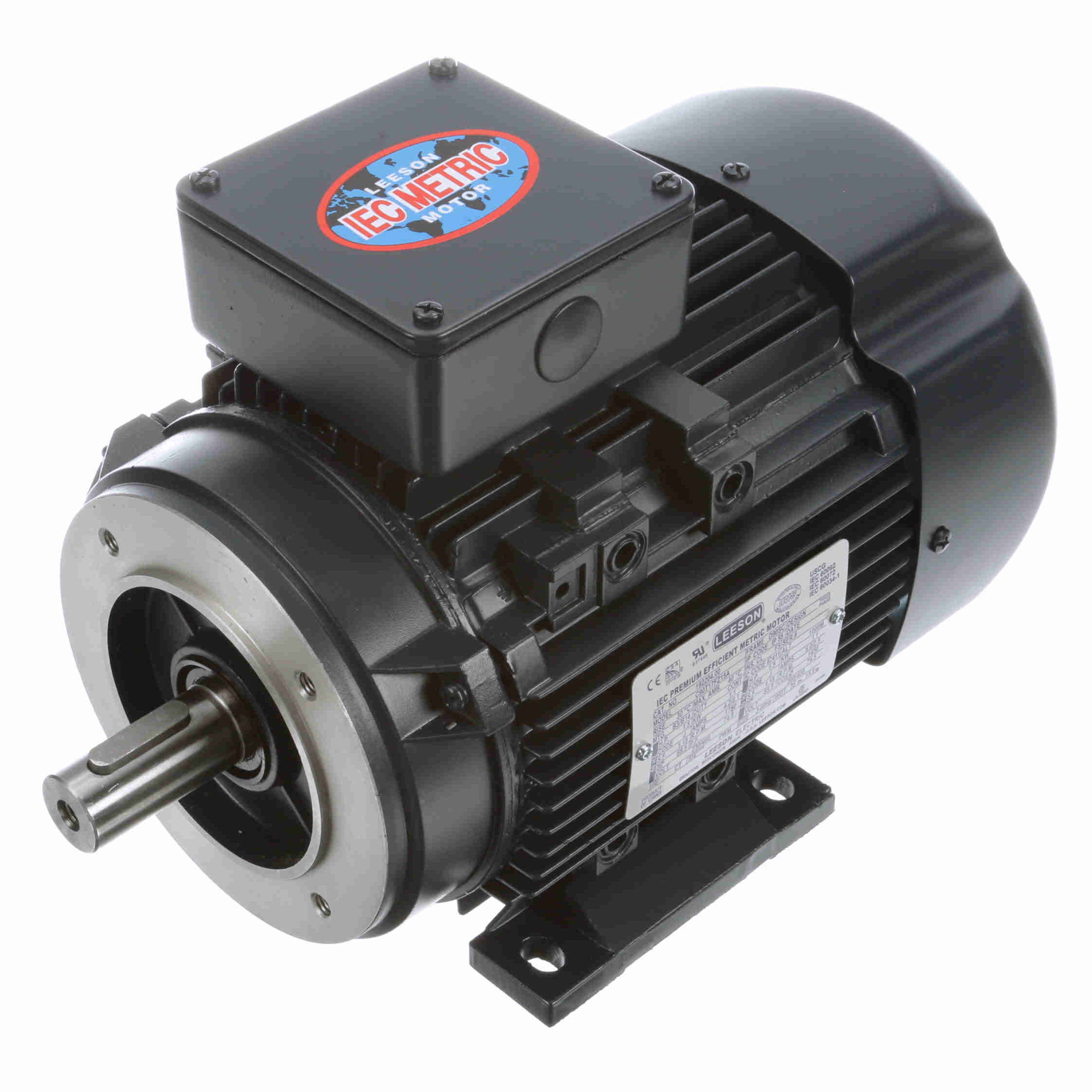

Click Image to Expand

Product ID: 192204.00

192204.00 Leeson 1.5HP / 1.1kW IEC Metric Electric Motor, 1740RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 192204.00

Selected accessories will also be added to cart
$608.97 / Each
Quantity:
TEFC, IP43, D90S Frame, 230/460VAC 3-Phase 50/60Hz, C90T17FZ15A, Rigid Base, B3/B14 Flande, Aluminum, 1" Shaft

Features

Features
  • Aluminum frame construction
  • 60/50 Hz interchangeability
  • B3, B5, B14 mounting flanges
  • Inverter rated (IRIS™) insulation system on AC models
  • UL listed and CSA certified

General Specifications

General Specifications
Model : C90T17FZ15A Catalog No : 192204.00
Part Description : 1 1/2HP-1.1KW..1740RPM.90S.IP55.230/460V.3PH.60HZ.CONT.40C.1.15SF.B3/B14......IEC METRIC........ Category : TEFC
Stock : No

Nameplate Specifications

Nameplate Specifications
Output HP : 1.50 HP Output KW : 1.1 kW
Frequency : 60 Hz Voltage : 230/460 V
Current : 4.2/2.1 A Speed : 1745 RPM
Service Factor : 1.15 Phase : 3
Efficiency : 86.5 % Duty : Continuous
Insulation Class : F Design Code : B
KVA Code : J Frame : D90S
Enclosure : Totally Enclosed Fan Cooled Overload Protector : No
Ambient Temperature : 40 °C Drive End Bearing Size : 6205
Opp Drive End Bearing Size : 6205 UL : Recognized
CSA : Y CE : Y
IP Code : 43

Technical Specifications

Technical Specifications
Electrical Type : Squirrel Cage Induction Run Starting Method : Line Or Inverter
Poles : 4 Rotation : Reversible
Mounting : B3 Motor Orientation : HORIZONTAL
Drive End Bearing : BALL Opp Drive End Bearing : BALL
Frame Material : Aluminum Shaft Type : IEC
Overall Length : 12.83 in Frame Length : 6.33 in
Shaft Diameter : 1.000 in Shaft Extension : 1.96 in
Assembly/Box Mounting : F3 UPC : 691720246900
Weight : 40.00 LB

Speed & Load Characteristics

Speed Characteristics
Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Full Load 2.10 100.0 4.51 100.0 1,748 1.26 75.4 1.50
Break-Down 9.30 443.0 13.51 300.0 1,400 5.00 67.3 1.50
Locked-Rotor 14.30 681.0 9.86 219.0 2 5.00 44.4 1.50
Pull-Up 13.80 657.0 9.35 207.0 321 5.30 48.0 1.50
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 1.10
  • 0.052
  • 0.0
  • 5.9
  • 1,800
  • 0.0
  • 0.00
  • 25 %
  • 1.20
  • 0.338
  • 83.0
  • 35.4
  • 1,788
  • 0.0
  • 1.10
  • 50 %
  • 1.40
  • 0.633
  • 88.3
  • 56.8
  • 1,776
  • 0.0
  • 2.22
  • 75 %
  • 1.70
  • 0.940
  • 89.7
  • 69.4
  • 1,764
  • 0.0
  • 3.36
  • 100 %
  • 2.10
  • 1.261
  • 88.7
  • 75.4
  • 1,748
  • 21.1
  • 4.51
  • 125 %
  • 2.60
  • 1.599
  • 87.7
  • 77.2
  • 1,732
  • 0.0
  • 5.70
  • 150 %
  • 3.10
  • 1.960
  • 85.6
  • 79.4
  • 1,712
  • 0.0
  • 6.90
