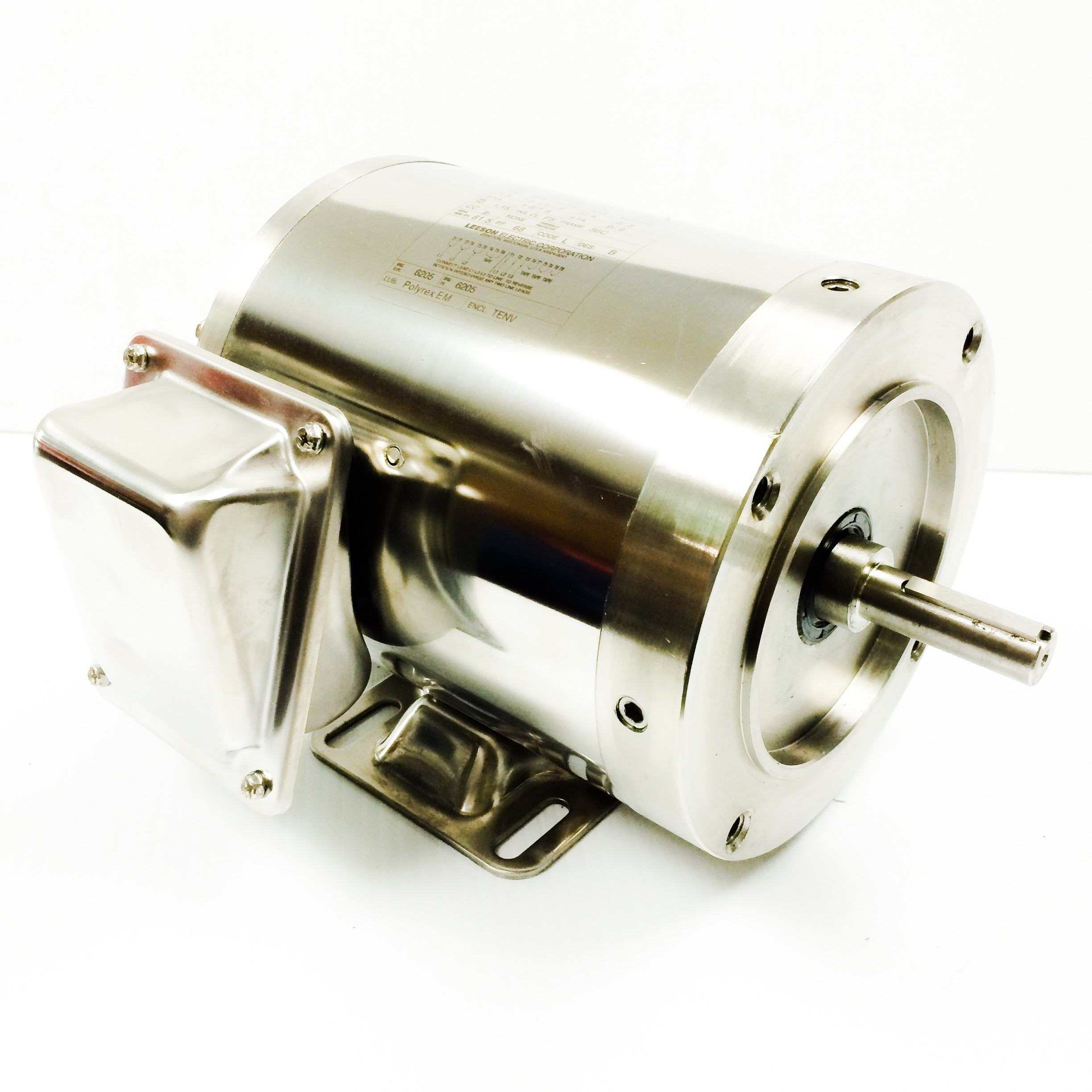

Catalog No 194004.00 Model C213T34WK9A   Product type AC MOTOR Stock Stock Description ..7.5HP..3600RPM.213TC.TEFC.230/460V.3PH.60HZ.CONT.40C.1.15S.F..RIGID C FACE......STAINLESS WASHDOWN.NOT.......

Information shown is for current motor's design
Engineering Data
Volts	230	Volts	460	Volts	190/380
F.L. Amps	17.4	F.L. Amps	8.7	F.L. Amps	14.2/7.1
S. F Amps	19.6	S. F Amps	9.8	S. F Amps	16.2/8.1
RPM	3600	Hertz	60
HP	7 1/2	Duty	CONTINUOUS	TYPE	TF
KW	5.6
Frame	213TC	Serv. Factor	1.15	Phase	3
Max Amb	40	Design	B	Code	H
Insul Class	F	Protection	NOT	Therm.Prot.
Eff 100%	89.5	Eff 75%		PF	89
UL	Yes	CSA	Yes	Bearing OPE	6306
CC Number	CC005A	CE	Yes	Bearing PE	6306
Load Type		Inverter Type		Speed Range	NONE
RPM	3000	Hertz	50
HP	5	Duty	CONTINUOUS	TYPE	TF
KW	3.7
Frame	213TC	Serv. Factor	1.15	Phase	3
Max Amb	40	Design	B	Code	H
Insul Class	F	Protection	NOT	Therm.Prot.
Eff 100%	91	Eff 75%		PF	87
UL	Yes	CSA	Yes	Bearing OPE	6306
CC Number	CC005A	CE	Yes	Bearing PE	6306
Load Type		Inverter Type		Speed Range	NONE
Motor Wt.	156 LB	Enclosure	TEFC	Lubrication	POLYREX EM
Nameplate	NP210TCSST	Mounting	RIGID	Rotation	REV
Assembly		Shaft Dia.	1 3/8 IN	Ext. Diag.	0050101.01
Cust Part No		Outline	OL210TCSST	Ext. Diag2
Packaging	INDIVIDUAL			Winding	QT2101
Carton Label				GROUP:	3
Iris		Paint	NO PAINT	Test Card
Form Factor		RMS Amps		Const Torque Speed Range
Torque		Peak
AB Code		Peak@DegC
Resistance
Connection
Rework Status		Rework TYPE
Hazardous Loc	NONE			Brake Motors
Explosion Proof		Temp Op Code		FORCE
Class		GROUP:		VDC
Class		GROUP:		ADC
				Brake Coil OHMs @25 C

Performance
Torque UOM	LB-FT	Inertia (WK²)	0
Torque	11(Full Load)	35(Break Down)	17.7(Pull Up)	19.8(Locked Rotor)
CURRENT (amps)	8.7(Full Load)	0(Break Down)	0(Pull Up)	65.7(Locked Rotor)
Efficiency (%)	0(Full Load)	93.7(75% Load)	88.8(50% Load)	82(25% Load)
PowerFactor	0(Full Load)	83.6(75% Load)	78.7(50% Load)	58.4(25% Load)

Speed Torque Curve @ 60 Hz, 460 Volts
Curve Point	Amps	Amps(%)	Torque	Torque(%)	RPM	KW	PF	HP
FL	8.7	100.0	11.0	100.0	3544	-	-	7.5
LR	65.7	755.0	19.8	180.0	0.0	-	-	7.5
BD	-	-	35.0	318.0	0.0	-	-	7.5
PU	-	-	17.7	161.0	0.0	-	-	7.5
SOURCE: CALCULATED GROUP: 3

Speed Torque Curve @ 50 Hz, 380 Volts
Curve Point	Amps	Amps(%)	Torque	Torque(%)	RPM	KW	PF	HP
FL	7.1	100.0	8.9	100.0	2958	0.0	0.0	5.0
LR	62.6	882.0	19.8	222.0	0.0	0.0	0.0	5.0
BD	-	0.0	35.8	402.0	0.0	0.0	0.0	5.0
PU	-	0.0	19.0	213.0	0.0	0.0	0.0	5.0
SOURCE: DATABASE GROUP: 3

Load Curve Data @60/50 Hz, 460 Volts, 7 1/2 Horsepower
Load	Amps	KW	RPM	Torque	EFF	PF	Rise By Resis	Frame Rise
0.0	2.8	0.253	3595	0.0	0.0	11.3	0.0	-
0.25	3.6	1.674	3581	2.7	82.0	58.4	0.0	-
0.5	5.0	3.135	3563	5.5	88.8	78.7	0.0	-
0.75	6.7	4.46	3544	8.3	93.7	83.6	0.0	-
1.0	8.7	6.194	3524	11.2	90.5	89.4	61.0	-
1.25	10.8	7.806	3501	14.1	89.8	90.7	0.0	-
1.5	13.1	9.476	3475	17.0	88.6	90.8	0.0	-
SOURCE: CALCULATED GROUP: 3
