/Products/Electric Motors/3 Phase Stainless Steel/Leeson/TENV/TEFC C-Face with Base/194005.00 7.5HP Leeson Electric SS Motor, Washdown
Click Image to Expand

Product ID: 194005.00

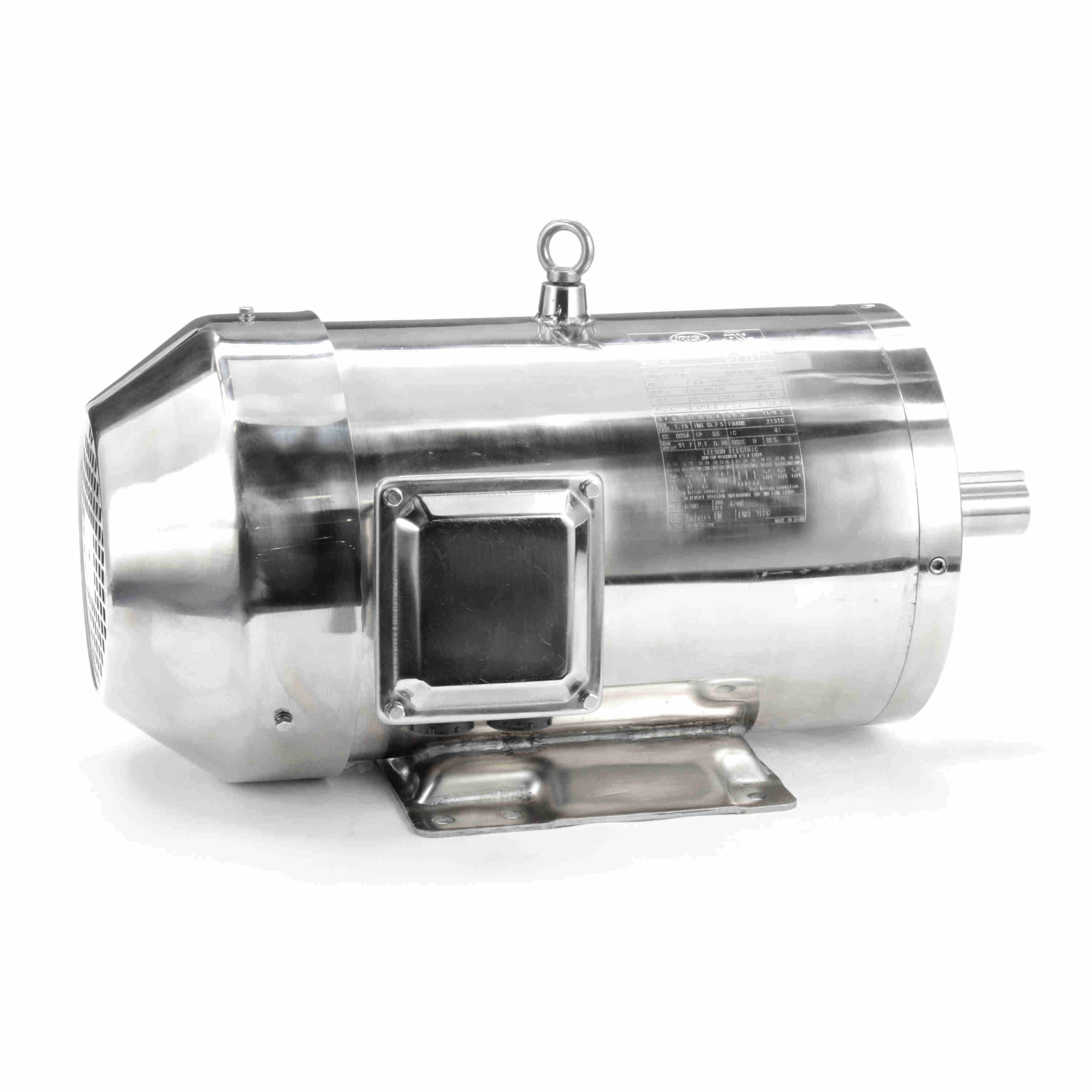

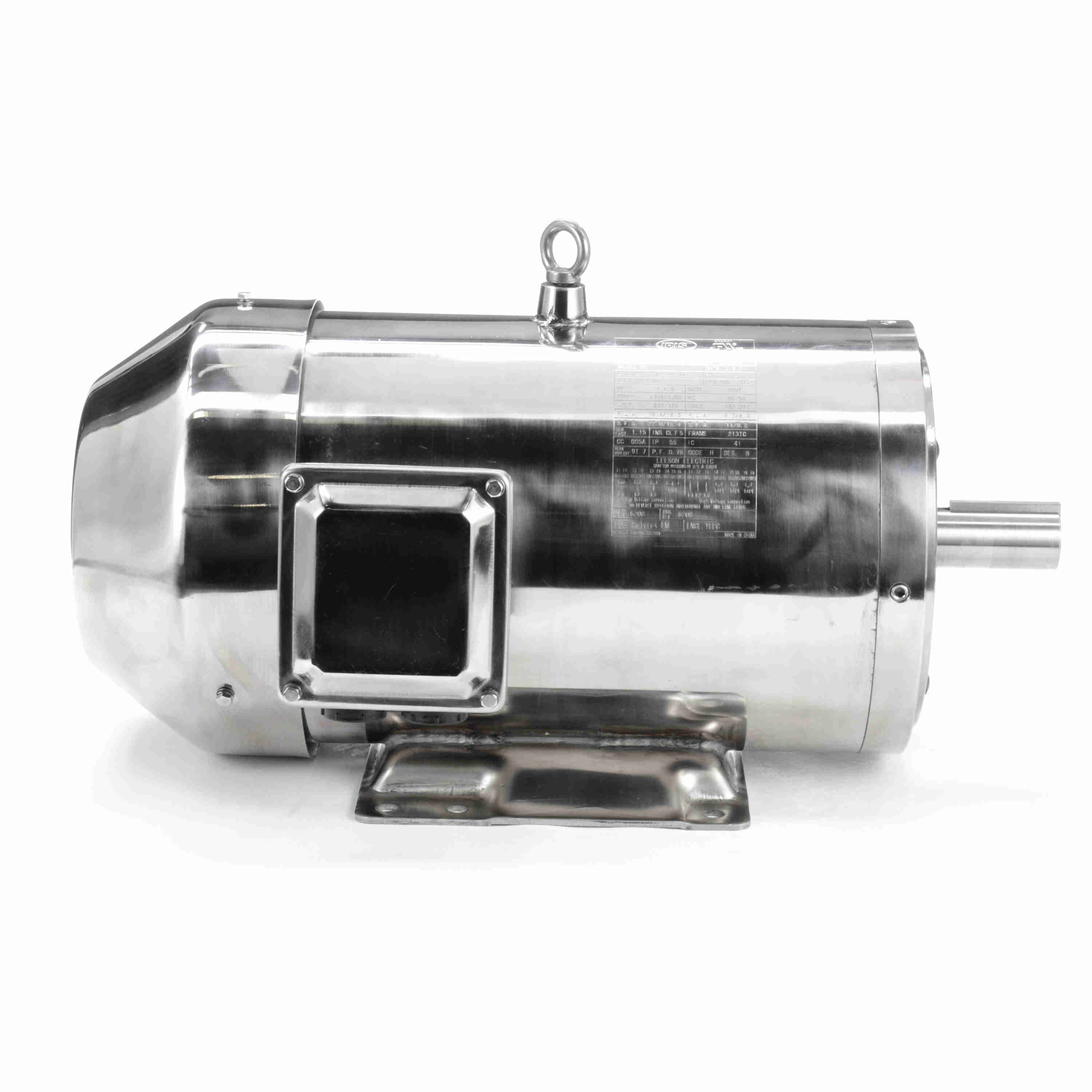

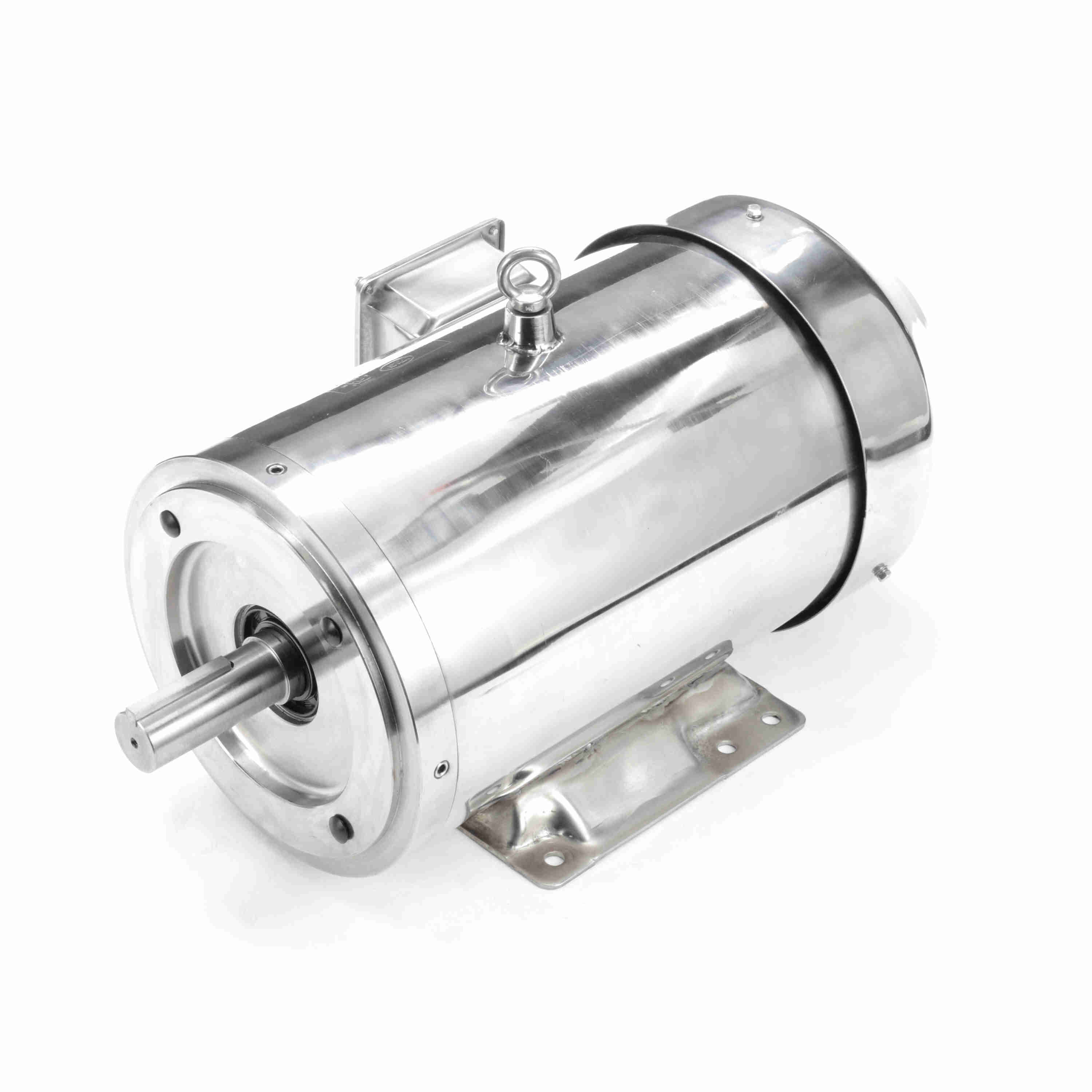

194005.00 7.5HP Leeson Electric SS Motor, Washdown

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: C213T17WK19

Selected accessories will also be added to cart
$2,876.97 / Each
Quantity:
1800 RPM, 213TC Frame, TEFC, 3 Phase, 230/460V

Product Features
Catalog No 194005.00 Model C213T17WK19A
Product type AC MOTOR Stock Stock
Description ..7.5HP..1800RPM.213TC.TEFC.230/460V.3PH.60HZ.CONT.40C.1.15S.F..RIGID C FACE......STAINLESS WASHDOWN.NOT.......
Information shown is for current motor's design
 Engineering Data
Volts 230 Volts 460 Volts 190/380
F.L. Amps 19.4 F.L. Amps 9.7 F.L. Amps 16.6/8.3
S. F Amps 22.0 S. F Amps 11.0 S. F Amps 18.4/9.2
RPM 1800 Hertz 60
HP 7 1/2 Duty CONTINUOUS TYPE TF
KW 5.6
Frame 213TC Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code H
Insul Class F Protection NOT Therm.Prot.
Eff 100% 91.7 Eff 75% PF 78
UL Yes CSA Yes Bearing OPE 6306
CC Number CE Yes Bearing PE 6306
Load Type Inverter Type Speed Range NONE
RPM 1500 Hertz 50
HP 5 Duty CONTINUOUS TYPE TF
KW 3.7
Frame 213TC Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code H
Insul Class F Protection NOT Therm.Prot.
Eff 100% 90.2 Eff 75% PF 74
UL Yes CSA Yes Bearing OPE 6306
CC Number CE Yes Bearing PE 6306
Load Type Inverter Type Speed Range NONE
Motor Wt. 185 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate NP210TCSST Mounting RIGID Rotation REV
Assembly Shaft Dia. 1 3/8 IN Ext. Diag. 005010.01
Cust Part No Outline OL210TCSST Ext. Diag2
Packaging INDIVIDUAL Winding QT2102
Carton Label     GROUP: 3
Iris Paint NO PAINT Test Card
Form Factor   RMS Amps   Const Torque Speed Range
Torque   Peak
AB Code   Peak@DegC
Resistance
Connection
Rework Status   Rework TYPE
Hazardous Loc NONE  Brake Motors
Explosion Proof   Temp Op Code FORCE
Class GROUP: VDC
Class GROUP: ADC
        Brake Coil OHMs @25 C
Performance
Torque UOM LB-FT Inertia (WK²) 0
Torque 22.2(Full Load) 69.5(Break Down) 41.4(Pull Up) 48.5(Locked Rotor)
CURRENT (amps) 9.8(Full Load) 0(Break Down) 0(Pull Up) 65.4(Locked Rotor)
Efficiency (%) 0(Full Load)
PowerFactor 0(Full Load)
Speed Torque Curve @ 60 Hz, 460 Volts
Curve Point Amps Amps(%) Torque Torque(%) RPM KW PF HP
FL 9.8 100.0 22.2 100.0 0.0 - - 7.5
LR 65.4 667.0 48.5 218.0 0.0 - - 7.5
BD - - 69.5 313.0 0.0 - - 7.5
PU - - 41.4 186.0 0.0 - - 7.5
SOURCE: CALCULATED GROUP: 3
Speed Torque Curve @ 50 Hz, 380 Volts
Curve Point Amps Amps(%) Torque Torque(%) RPM KW PF HP
FL 8.4 100.0 26.6 100.0 0.0 0.0 0.0 5.0
LR 61.6 733.0 44.6 168.0 0.0 0.0 0.0 5.0
BD - 0.0 68.1 256.0 0.0 0.0 0.0 5.0
PU - 0.0 38.6 145.0 0.0 0.0 0.0 5.0
SOURCE: DATABASE GROUP: 3
Load Curve Data @60/50 Hz, 460 Volts, 7 1/2 Horsepower
Load Amps KW RPM Torque EFF PF Rise By Resis Frame Rise

Load Curve Data Not Available
