/Products/Electric Motors/3 Phase/Marathon/Globetrotter General Purpose/TEFC, C-Face, Rigid Base/GT1210A Marathon 3HP Globetrotter Electric Motor, 1800RPM
Click Image to Expand

Product ID: GT1210A

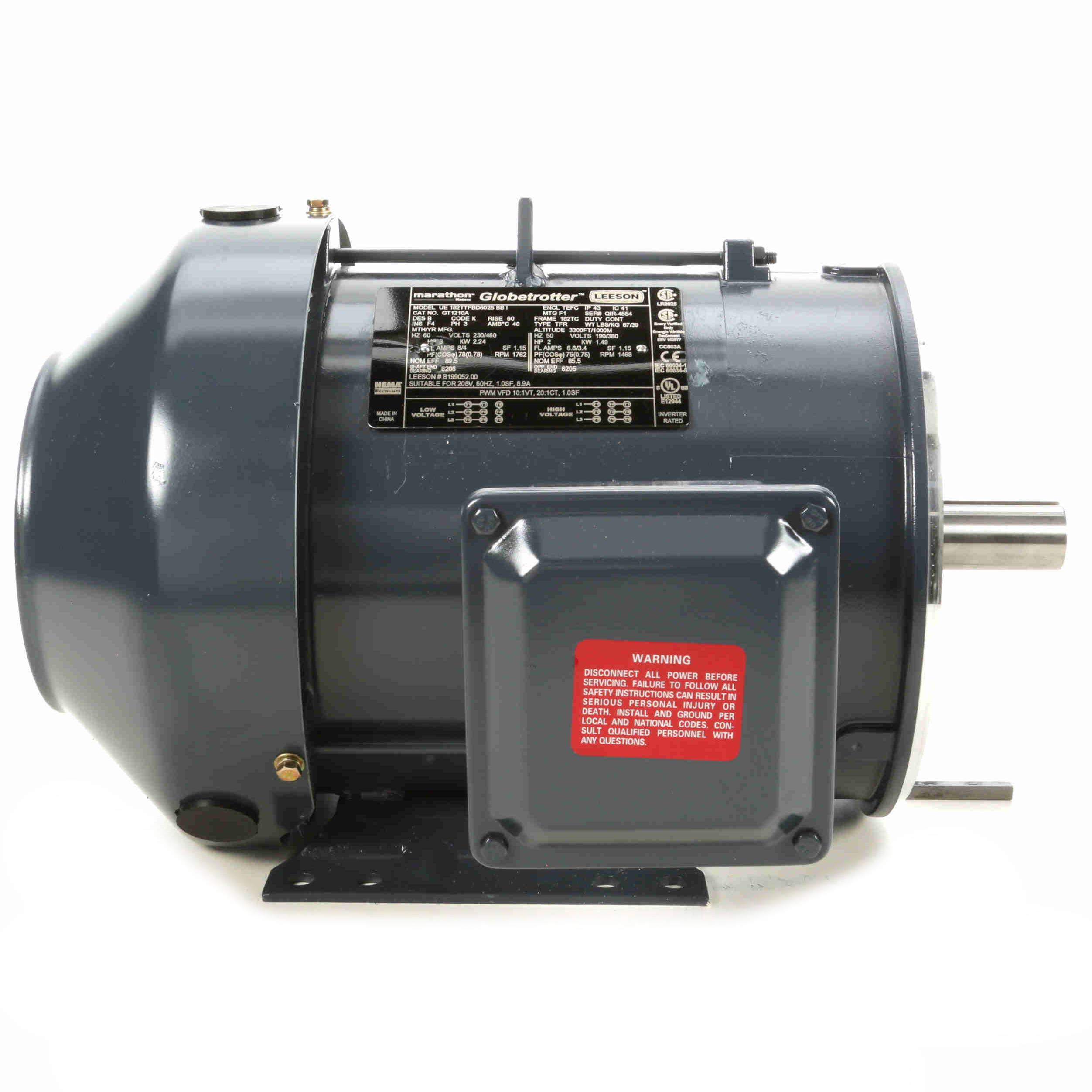

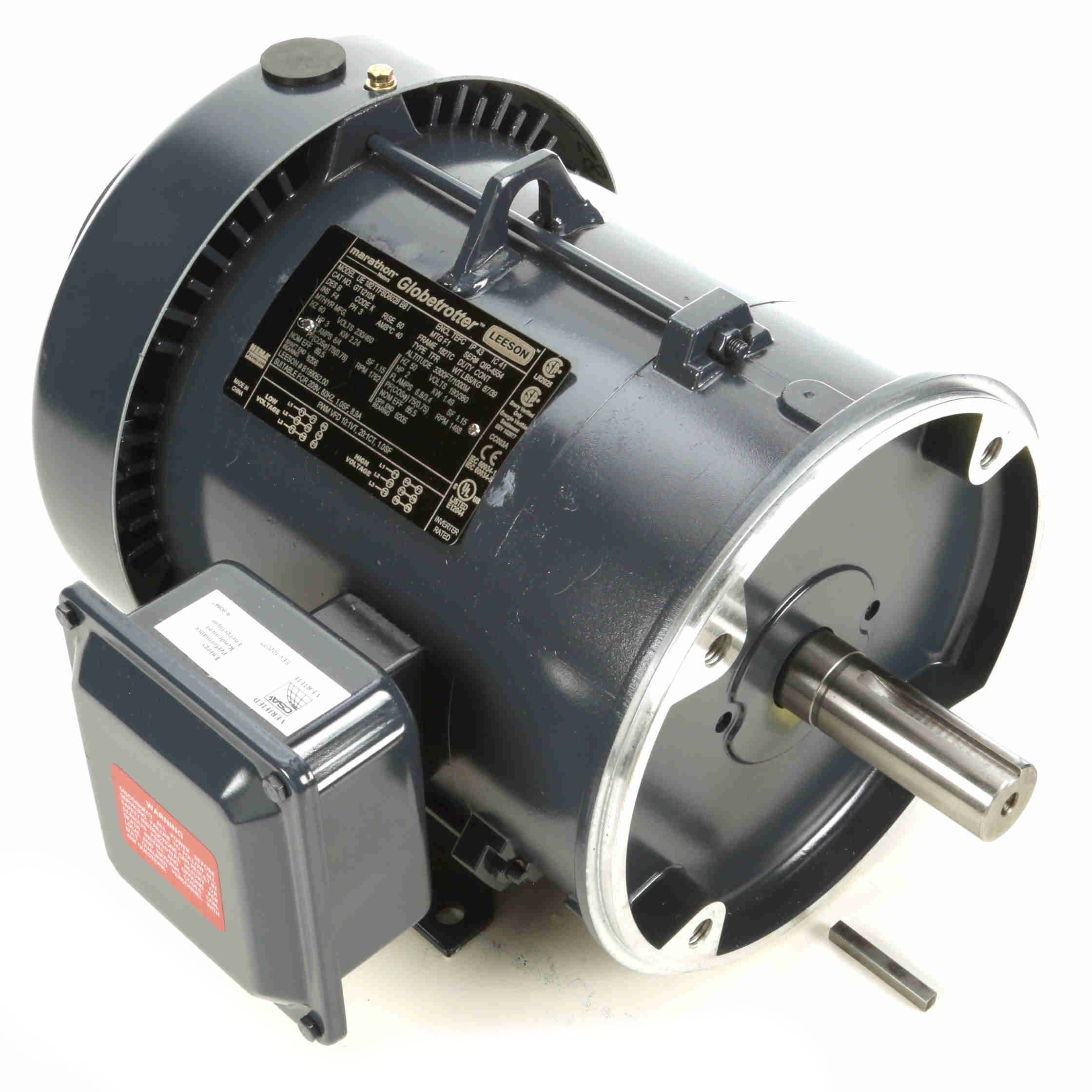

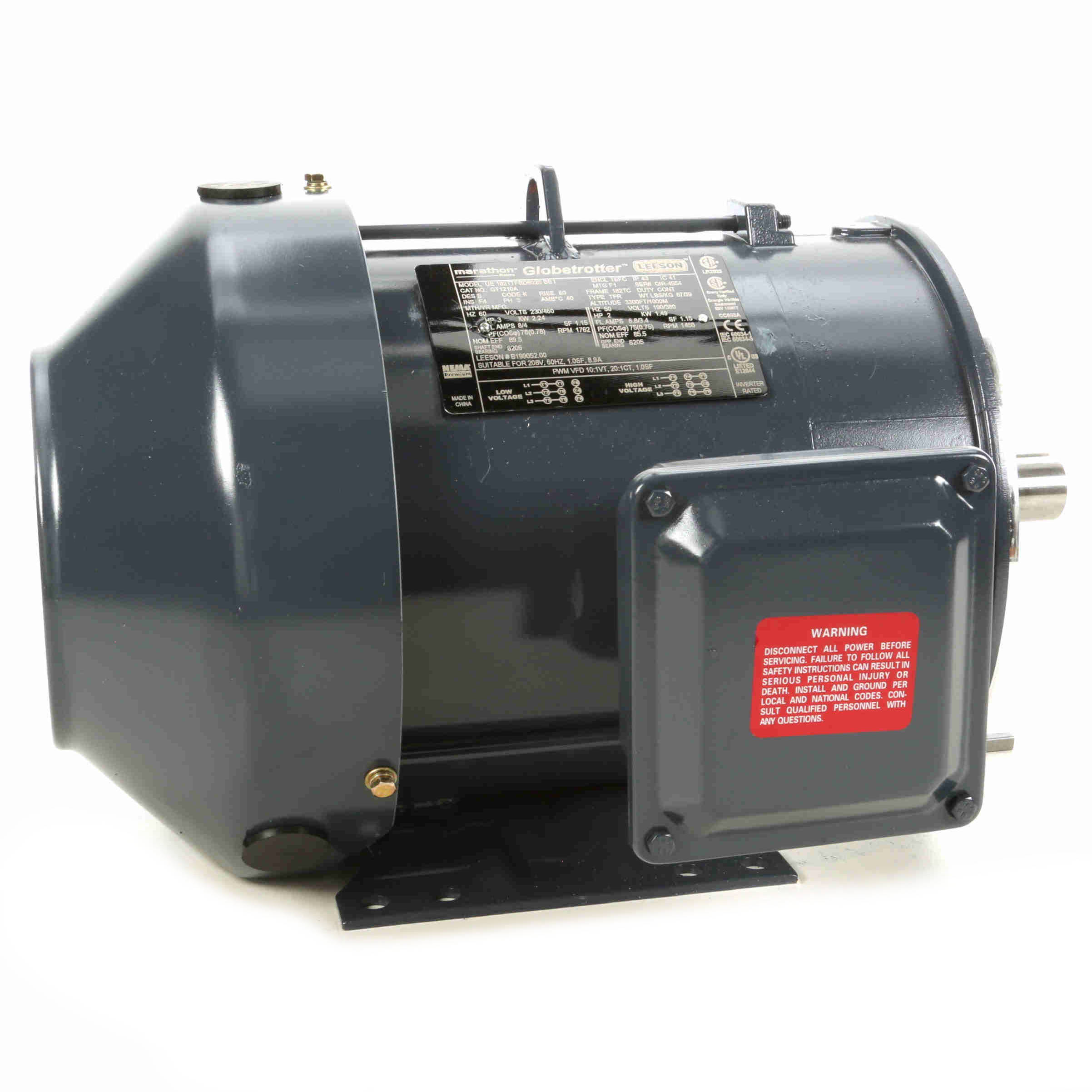

GT1210A Marathon 3HP Globetrotter Electric Motor, 1800RPM

MFG: Marathon Electric (Regal Beloit Corp)
MFG Part Number: GT1210A

Selected accessories will also be added to cart
$389.97 / Each
Quantity:
TEFC, 182TC Frame, 230/460VAC 60Hz 3-Phase, 182TTFBD6028, Rigid Base, C-Face, Rolled Steel, 1-1/8" Keyed Shaft

Features

  • Inverter duty 10:1 variabl torque and 10:1 constant torque
  • 1.15 Service factor on sinewave, 1.0 service factor on IGBT power
  • Meets temperature code T2B
  • Class F insulation
  • Standard assembly F1, reversible to F2 assembly
  • Ul recognized, CSA certified, CE mark

General Specifications

UPC: 722856068958 Weight: 87.00 LB
Packaged Length: 16.53 IN Packaged Width: 14.48 IN
Packaged Height: 18.42 IN

Nameplate Specifications

Output HP: 3 Hp Output KW: 2.2 kW
Frequency: 60 Hz Voltage: 230/460 V
Current: 8.0/4.0 A Speed: 1762 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 89.5 % Power Factor: 78
Duty: Continuous Insulation Class: F
Design Code: B KVA Code: K
Frame: 182TC Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6206 Opp Drive End Bearing Size: 6205
UL: Listed CSA: Y
CE: Y IP Code: 43

Technical Specifications

Electrical Type: Squirrel Cage Inverter Rated Starting Method: Line Or Inverter
Poles: 4 Rotation: Reversible
Resistance Main: 4.15 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: T Overall Length: 15.85 in
Frame Length: 5.85 in Shaft Diameter: 1.125 in
Shaft Extension: 2.75 in Assembly/Box Mounting: F1/F2 CAPABLE

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Full Load 4.00 100.0 9.00 100.0 1,762 78.0 3.00
Locked-Rotor 32.00 20.00 220.0 0 48.0 3.00
Break-Down 18.00 29.00 320.0 1,675 72.0 3.00
2/3 26.00 20.00 1,200 3.00
Pull-Up 28.00 17.00 900 3.00
No Load 2.30 0.00 0.0 1,800 7.0 3.00
1/3 30.00 17.00 600 3.00

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 125 %
Current (Amps) 2.30 2.40 2.80 3.40 4.00 4.50 4.80
Rated Output (KW) 0.19 0.77 1.35 1.96 2.59 2.98 3.25
Efficiency (%) 0.0 79.5 86.5 88.5 89.5 89.5 88.5
Power Factor (%) 7.0 37.0 57.0 70.0 78.0 80.0 82.0
Speed (RPM) 1,800 1,790 1,782 1,772 1,762 1,758 1,755
Temp. Rise @ FL 0.0 0.0 0.0 0.0 60.0 80.0 0.0
Torque (ft-lbs) 0.00 2.20 4.40 6.70 9.00 10.30 11.20
